12V Twin Cylinder Air Compressor in Carrying Case + Accessories

HF Twin-Piston Compressor – High Performance and Reliability in the Field

The HF twin-piston compressor is the perfect solution for demanding off-road users and workshops. Thanks to its high performance, it is ideal for:

• operating HF/ARB differential lockers

• inflating tires on off-road vehicles and SUVs

• powering pneumatic tools such as impact wrenches

The compressor features a modern electronic overheating protection system that automatically shuts off the device in case of excessive load, protecting the motor from damage. Its housing is made from lightweight yet highly durable materials used in the aviation industry and is additionally sealed against dust and moisture.

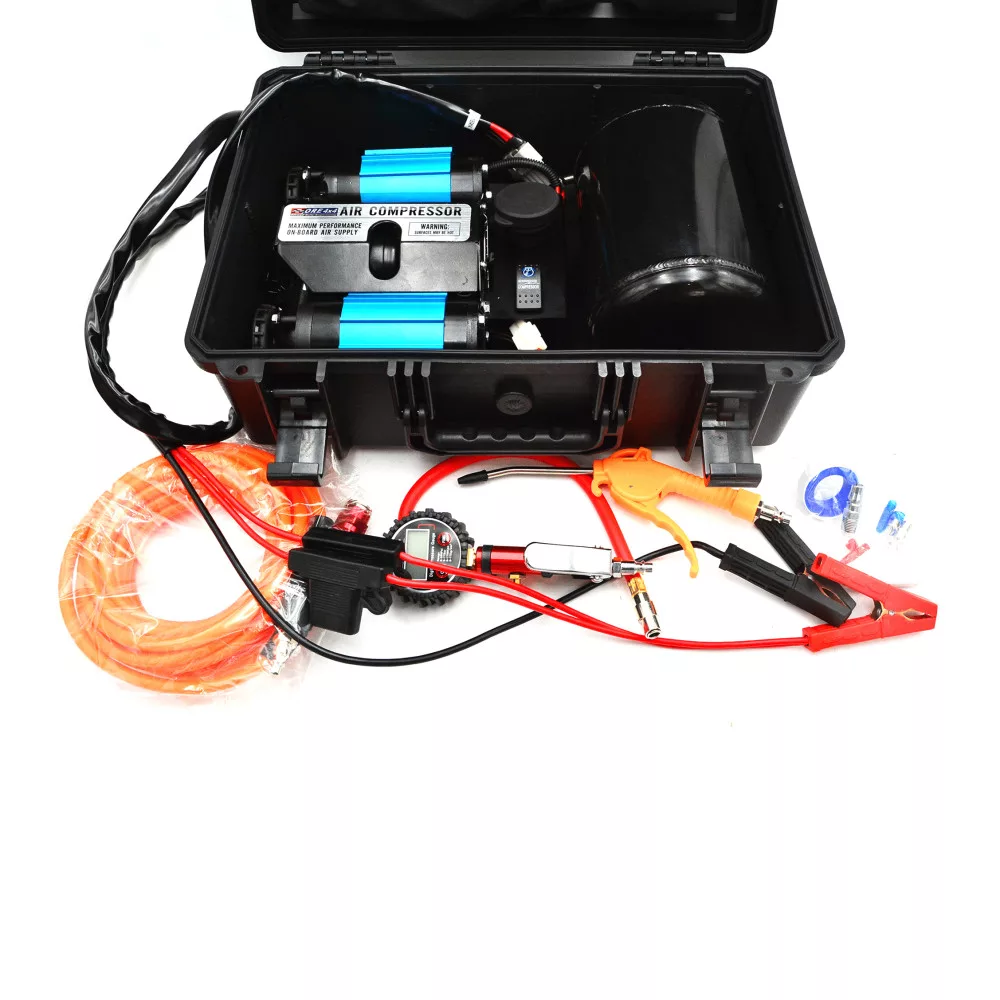

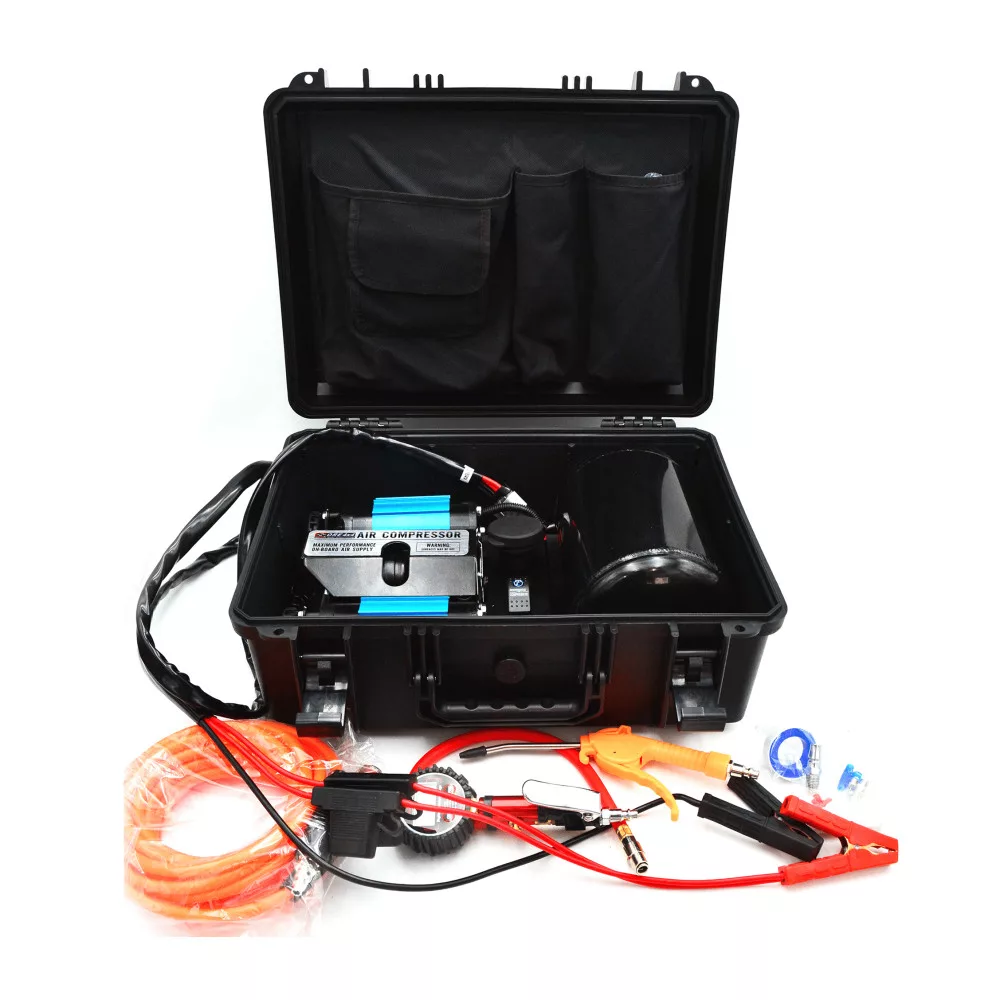

Included in the set:

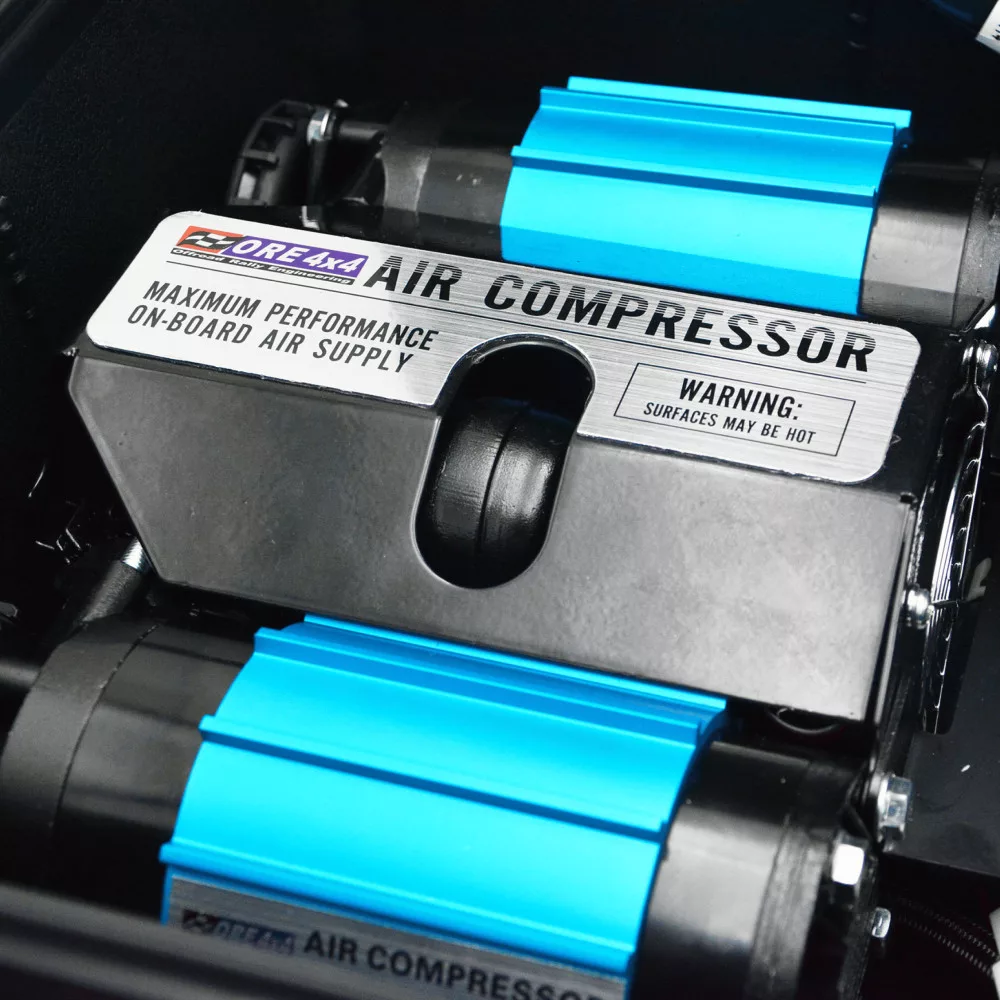

• HF twin-piston compressor

• Air filter

• Pressure switch

• Electrical switch for installation in the vehicle cabin

• Complete wiring harness

Note: To operate differential lockers, the compressor requires a kit with the HF OH-030 air reservoir.

Technical specifications:

• Dimensions (H x L x W): 102 x 190 x 275 mm

• Weight: 8.8 kg

• Power supply: 12 V

• Operating range: 9.3 – 10.3 bar

Current draw:

• No load: 28 A

• Under load: 51 A

• Maximum: 56 A

Performance:

• No load: 174.3 l/min

• Under load (at 200 kPa): 131.7 l/min

• Efficiency: 100%

• Overload protection in the wiring harness: yes

• Motor thermal protection: yes

Applications:
The compressor provides continuous air supply for tools requiring up to 85 l/min airflow. For tools with higher air demand, the use of an air tank is recommended.

Note: The compressor is not designed for continuous operation or for industrial or professional use.
