Auxiliary light Purelux Panther 9 - Round / 23 cm / 210W / Ref. 25

Purelux Panther 9 is a shockingly powerful auxiliary light that shakes up the market of round driving lights with a fierce performance, one of the best combination light beams on the market, an R65-approved warning light function and a unique appearance. The light has two different power modes, i.e. it can be switched on either the more moderate power mode approved for road traffic or the PowerBoost® mode that releases unlimited light output. The innovative user interface switch integrated into the light allows you to change the power modes easily and quickly, even directly while driving, so there is no need to make any additional connections!

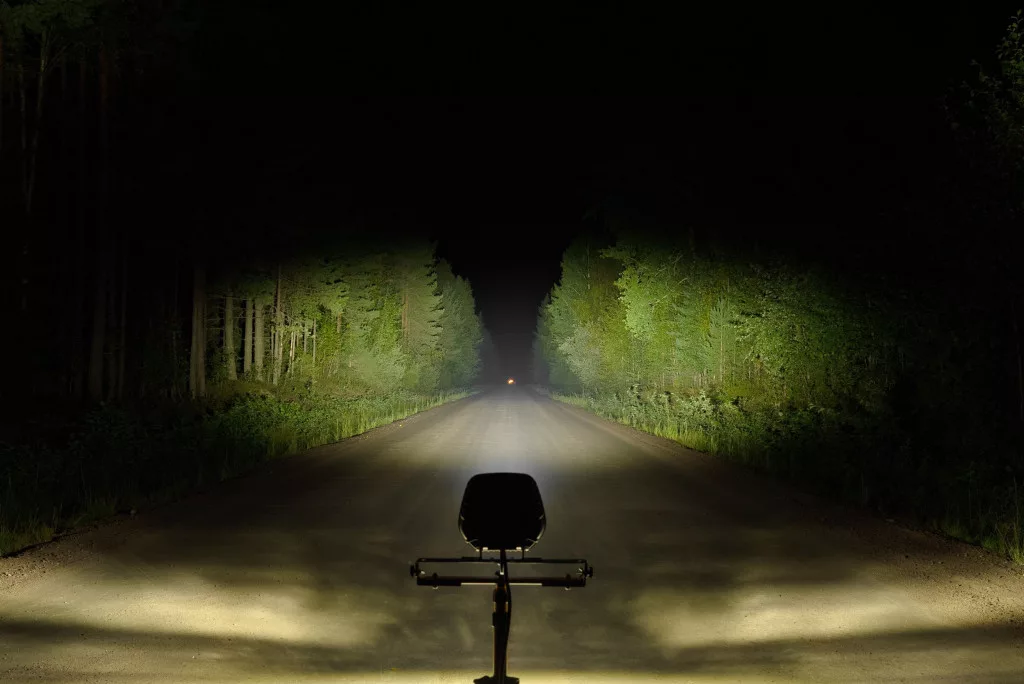

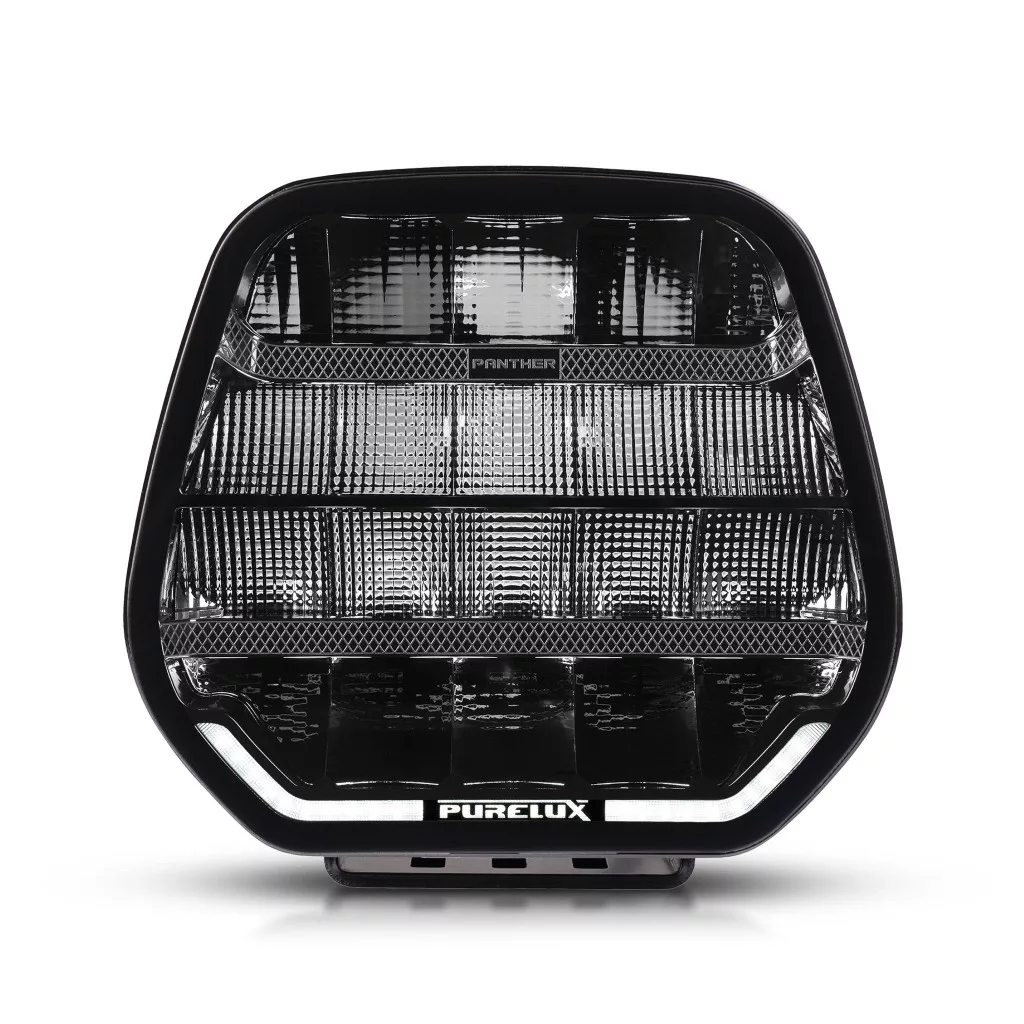

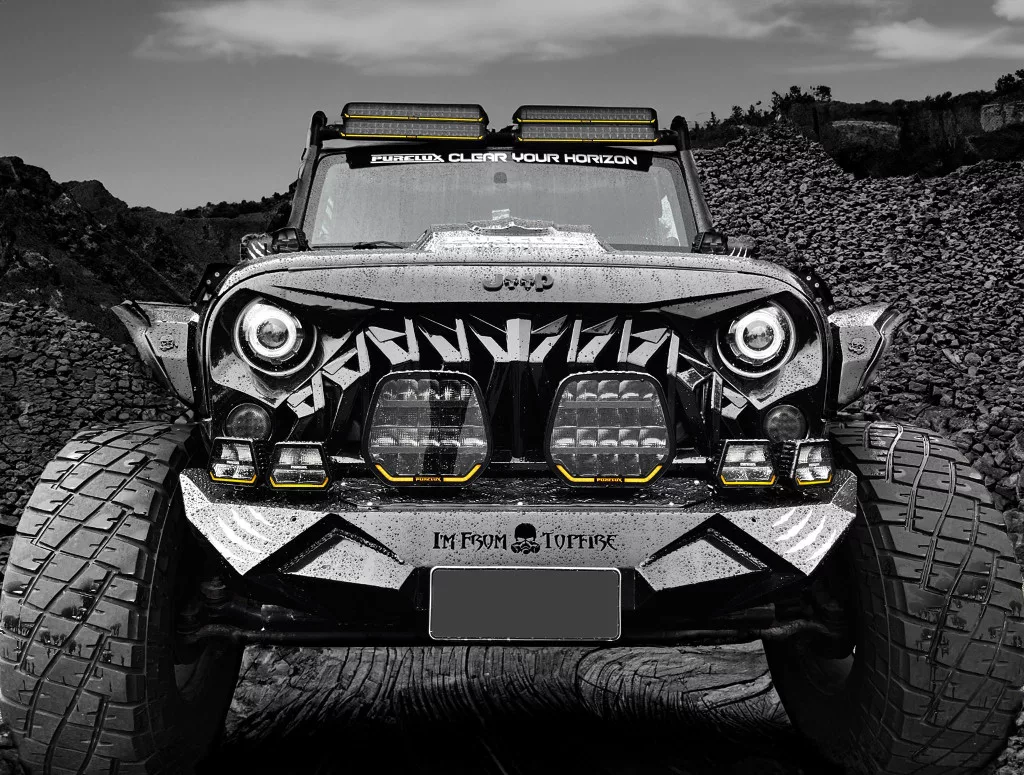

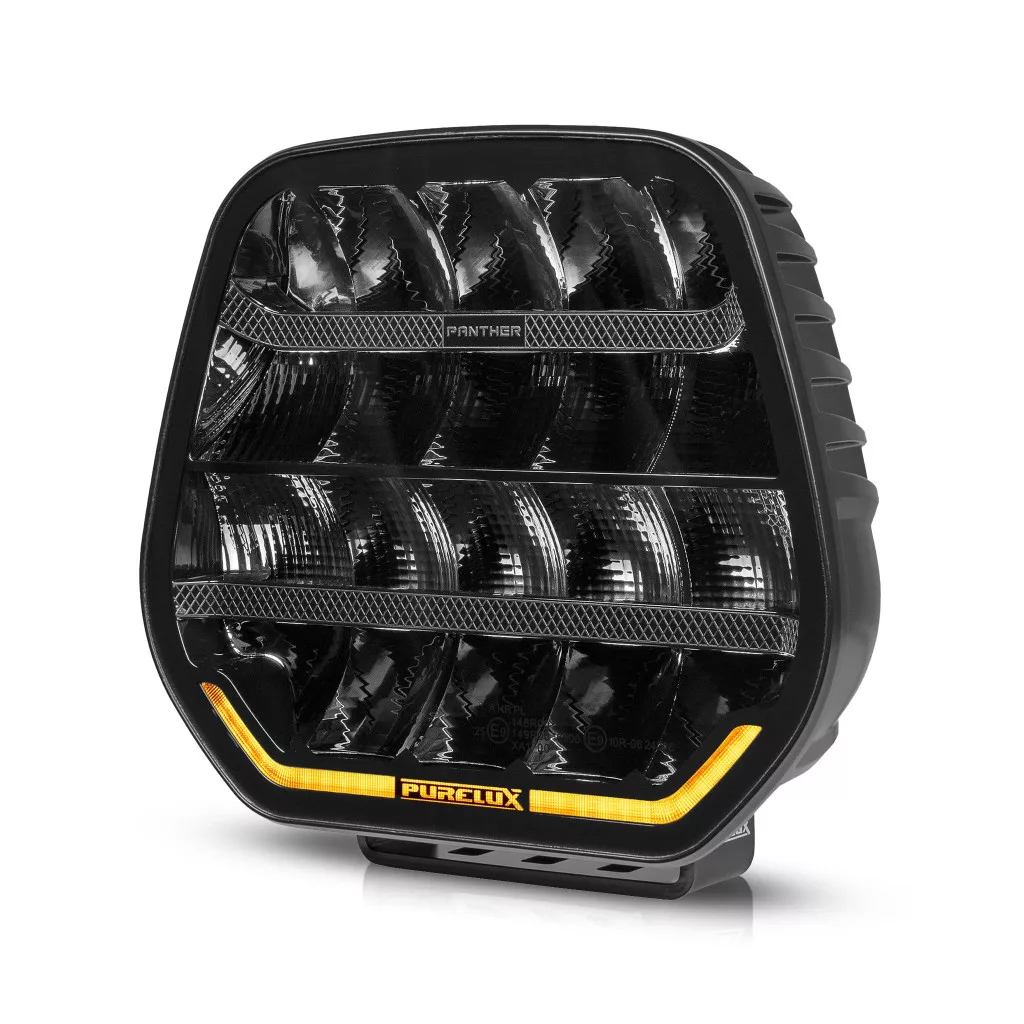

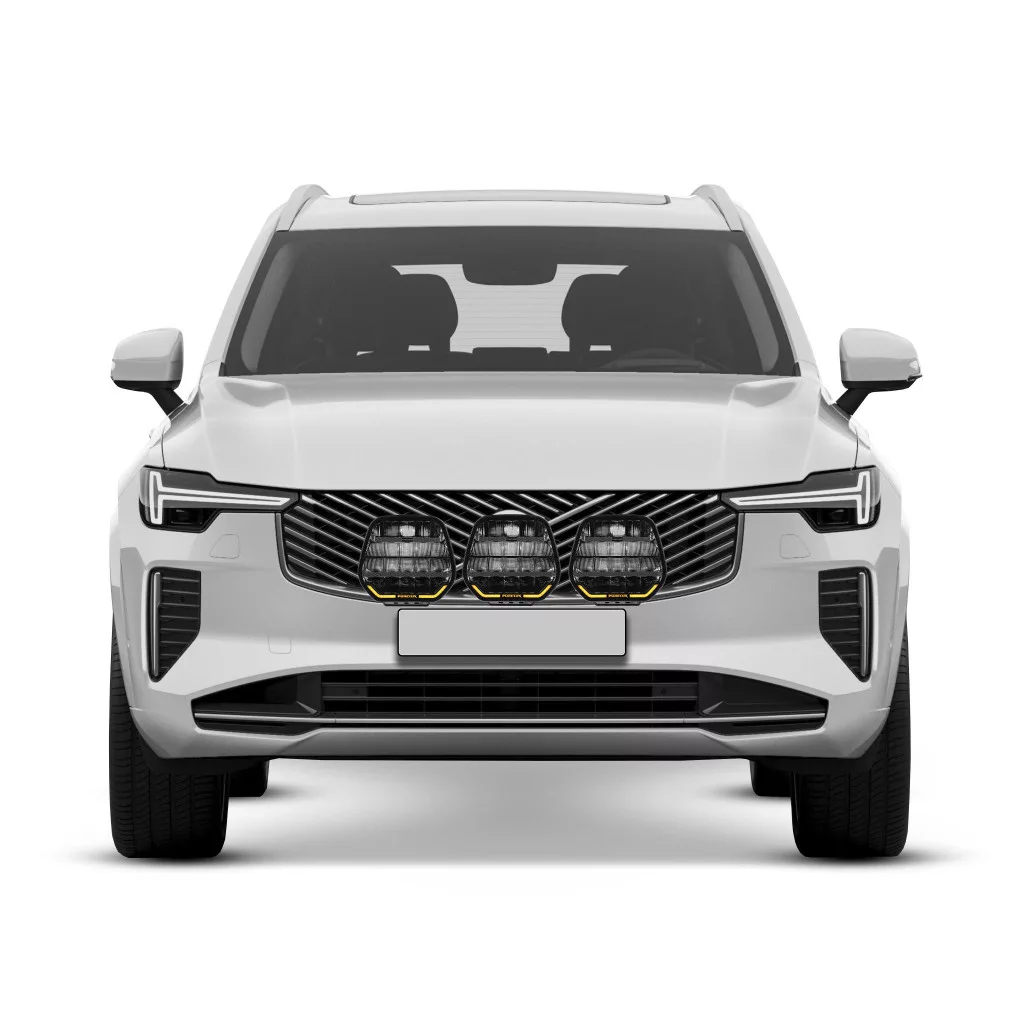

In PowerBoost® mode, the measured (in LightLab) light output of just one light is 12314 lumens, with a range of up to 709 meters (1 lux), and when two or more lights are installed side by side, in the darkness of the night the unnoticeable row of black panthers turns into a light phenomenon that signs the way ahead in an unprecedented way. The attention-grabbing design, stylish details and the orange or white parking light at the bottom of the light make the Panther 9 an eye-catching revelation, and thanks to the black color it fits neatly into any vehicle.

Technical specification

• Brand and model: Purelux Panther 9
• Purpose: As an additional light in cars / work machines
• Operating voltage: 9-36 V (DC)
• Reference number: 25
• Calculated power: 210 W
• Power consumption measured by Valostore
  • Purelux PowerBoost®: 8.125A @ 24V
  • Road mode: 1.79A @ 24V
  • Warning light: 0.61A @ 24V
• Power measured by Valostore
  • Purelux PowerBoost®: 195 W
  • Road traffic mode: 43 W
  • Warning light: 14.7 W
  • Parking lights: 4.1 W
• Light output measured by Valostore: 12314 lm (Purelux PowerBoost®) / 3872 lm (Road traffic mode)
• Range measured by Valostore: 709 m @ 1 lux / 1418 m @ 0.25 lux (Purelux PowerBoost®)
• Range measured by Valostore: 387 m @ 1 lux / 774 m @ 0.25 lux (Traffic mode)
• Range with more light, measured (PowerBoost® / E-approved, @ 1 lux):
  • With two: 1003 m / 547 m (@ 1 lux)
  • With three: 1228 m / 670 m (@ 1 lux)
  • With four: 1418 m / 774 m (@ 1 lux)
• Color temperature stated by the manufacturer: 5000 K
  • Measured by Valostore: 5019 K
• Mounting: Mounting leg
• Connector: DTP-2
  • Separate parking lights and warning light + wires
• Cable length: approx. 100 cm
• Dimensions: 225 x 200 x 77 mm (Width x Height x Depth)
  • Height with mounting foot: 214 mm
• Weight: 2470 g
• IP rating: IP69K
• Approvals: ECE R10, R148, R149, R65, CE, RoHS
  • Road traffic approval does not apply to the Purelux PowerBoost® mode
• Other: The light has a ready-made place for stabilizer
• Warranty: 36 months

Basic delivery content (1 pc)

• Purelux Panther 9
• Mounting leg
• Power cord with DTP-2 connector
• Connection and installation instructions (FI/SE/NO/DK)

Installation guide

Coupling

• DTP connector: Additional light
• Yellow: Orange parking light
• White: White parking light
• Green: Warning light (R65)
• Grey: Synchronizing the warning light / changing the operating mode of the warning light

Changing the power mode with UI technology: The first time the lamp is used, it lights up in PowerBoost mode. To change the power mode, turn the light off, then turn the light on for two seconds, and turn the light off and on 2 times in 1.5 seconds to change the power mode. Repeat to change the power mode again.

Synchronization and warning light functions:

• Warning light: Connect green wire to power (+)
• Synchronization: Synchronize multiple warning lights by connecting the gray wires together
• Warning light pattern: Connect the gray wire to power (+) for less than 1 second, the pattern will change
• Reset: Connect the gray wire to power (+) for at least 3 seconds to return directly to the first pattern of the warning light

You can find the manufacturer's connection and installation instructions by clicking here.
