Specifications
- Brand and model: Strands Freedom MP 7"
- Intended use: As an auxiliary light in cars / work machines
- Operating voltage: 9-32V
- Reference number: 20
- Manufacturer's declared power:
- Auxiliary light: 108 W
- Front marker light: 3 W
- Side marker light: 9 W
- Manufacturer's declared power consumption
- Auxiliary light: 9.A @ 12V
- Front marker light: 0.25A @ 12V
- Side marker light: 0.75A @ 12V
- Manufacturer's declared luminous efficacy: 10,000 lm
- Manufacturer's stated range: 311 m @ 1 lux / 622 m @ 0.25 lux
- Range with multiple lights:
- With two: 440 m (@ 1 lux)
- With three: 539 m (@ 1 lux)
- With four: 622 m (@ 1 lux)
- Manufacturer's stated color temperature: 5700 K

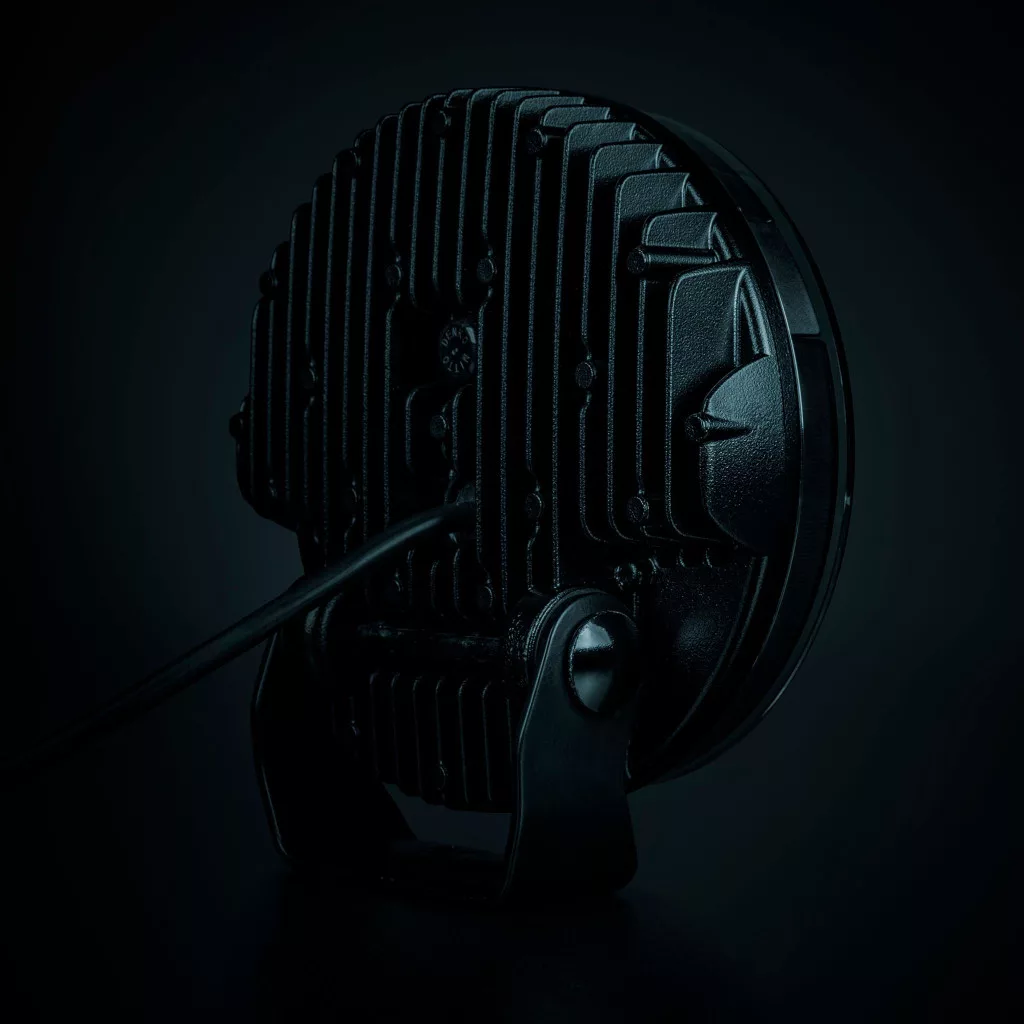

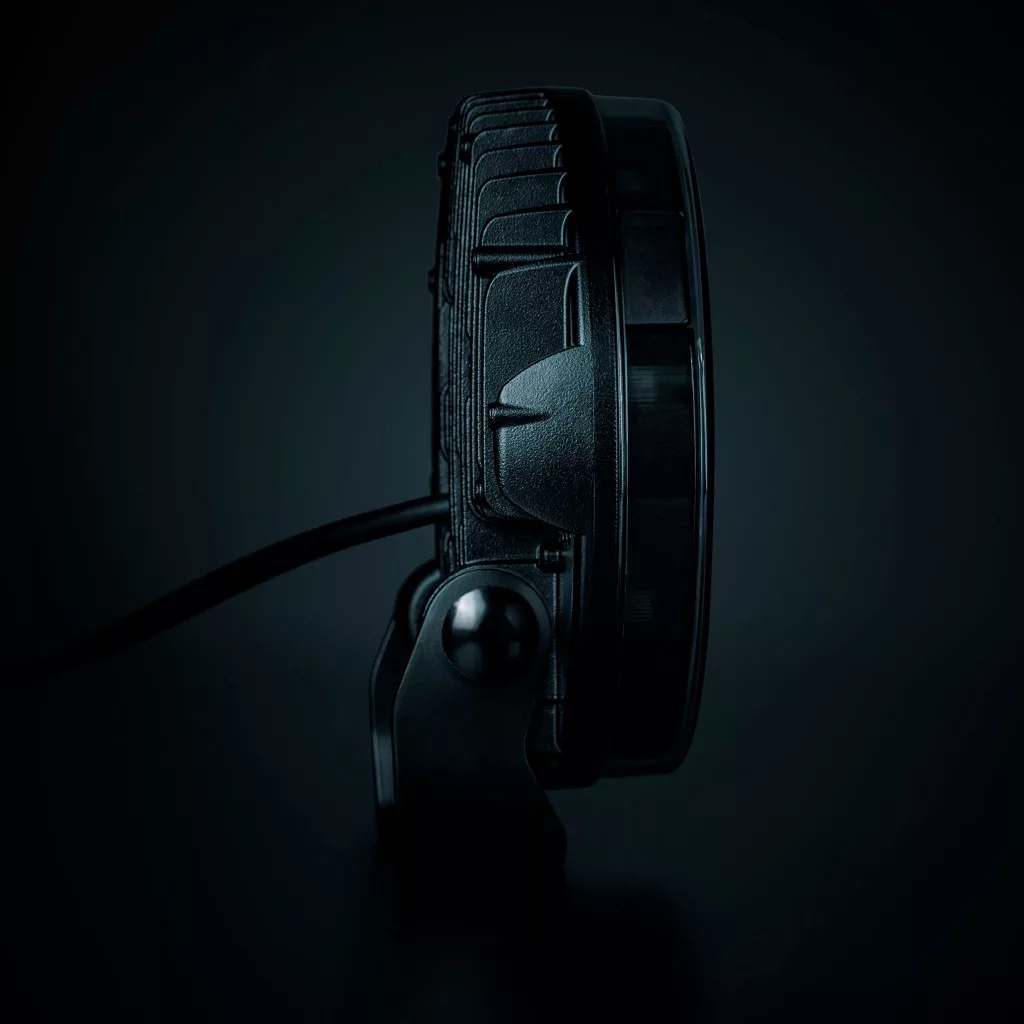

- Mounting: Mounting foot
- Connector: No connector, straight wires
- Cable length: approx. 300 cm
- Dimensions: 179 x 179 x 62 mm (Width x Height x Depth)
- Height with mounting foot: 194 mm
- IP rating: IP69K
- Approvals: ECE R10, R148 (R7, R91), R149 (R112)
- Warranty: 36 months
Installation guide
Coupling
- Green: Power (+)
- White: Ground (-)
- Red: Amber parking light
- Black: White parking light
You can find the manufacturer's connection and installation instructions by clicking here.
