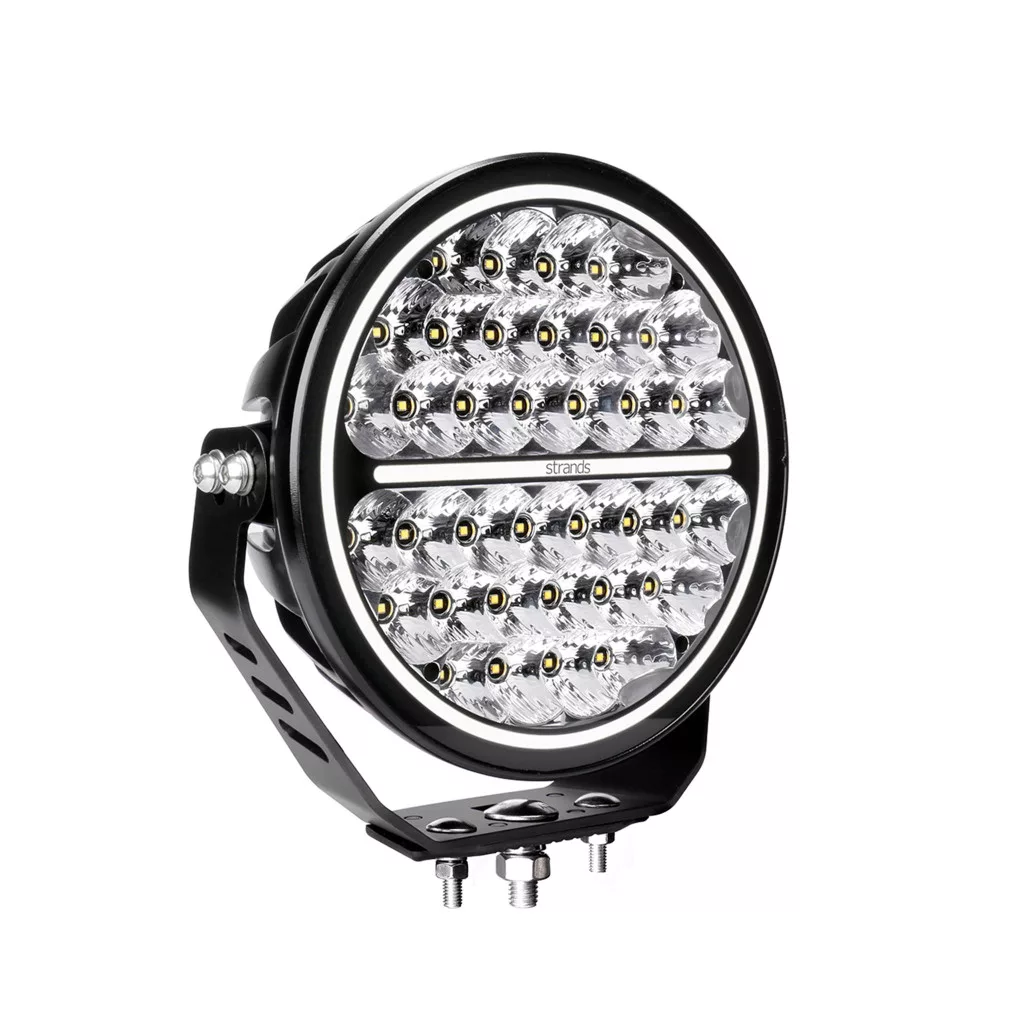

Auxiliary light Strands Siberia Night Ranger 9" - Round / 23 cm / 170W

Strand's Siberia Night Ranger 9" is a highly effective auxiliary light with a cheeky look. The auxiliary light has been developed with the super popular Siberia series light bars as a basis, and according to customer requests, Strands is now releasing a round version. The good looks are further enhanced by the parking/ the warning light that runs around and above the lens. The parking light can also be set to illuminate both orange and white. According to the manufacturer, the Night Ranger 9" version provides a luminous flux of an incredible 13,377 lumens, and together with the wide combination light pattern, a range of 465 meters (1 lux). Combination light cone means that the additional light has a very powerful and focused spot in the middle, but also plenty of scattered light all around. The spot alone is wide enough to illuminate the road from edge to edge, and the height is also sufficient even for really hilly roads.

The 9" version is mainly developed for trucks, lorries, SUVs and other larger vehicles. The lamp fixture is very hard-wearing and durable, and completely waterproof (IP67 rated).

Specifications

• Strand's Siberia Night Ranger 9"
• Area of use: Additional light on heavier vehicles
• Nominal power: 170 W
• Input power (manufacturer's information): 145.3 W
• Current consumption: 12.1 A (@12V) / 6A (@24V)
• Power cable with DT4 connector
• Luminous flux (manufacturer's information): 20,400 lm (theoretical) / 13,377 lm (actual)

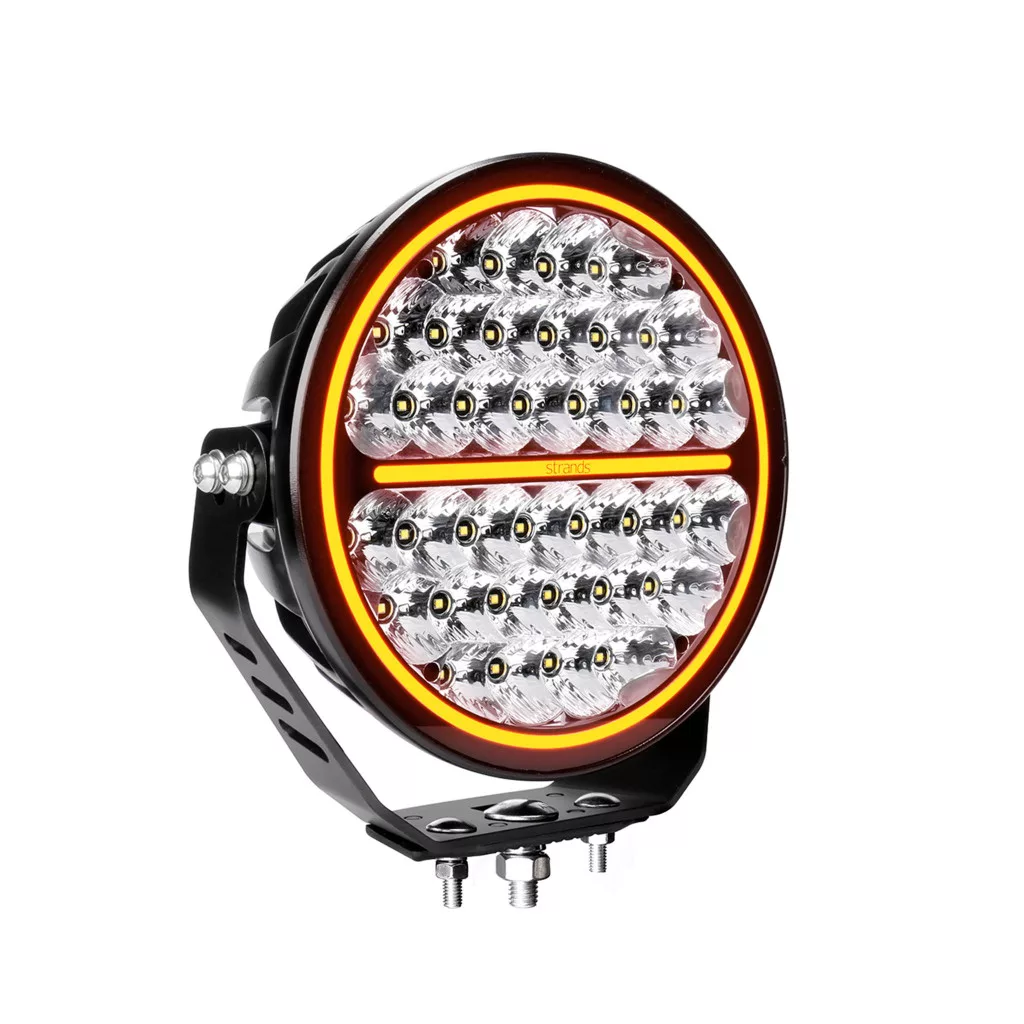

• Parking lights: White or orange
• Range (manufacturer's information): 465 m / 1 lux
• Color temperature: 6000 K
• Operating voltage: 9-32 V
• Dimensions: 228.6 x 86.7 mm (diameter x depth)
• Height incl. foot: 249.3 mm
• Reference number: 30
• Emarked
• Certifications: ECE R112 R7, ECE R10
• Protection class: IP67 / IP69K
• Cable length: approx. 50 cm
• Operating temperature: -20°C - +45°C
• Warranty: 36 months

Connection

• Black: Ground (-)
• Red: High beam (+)
• White: White parking light (+)
• Yellow: Orange parking light (+)
