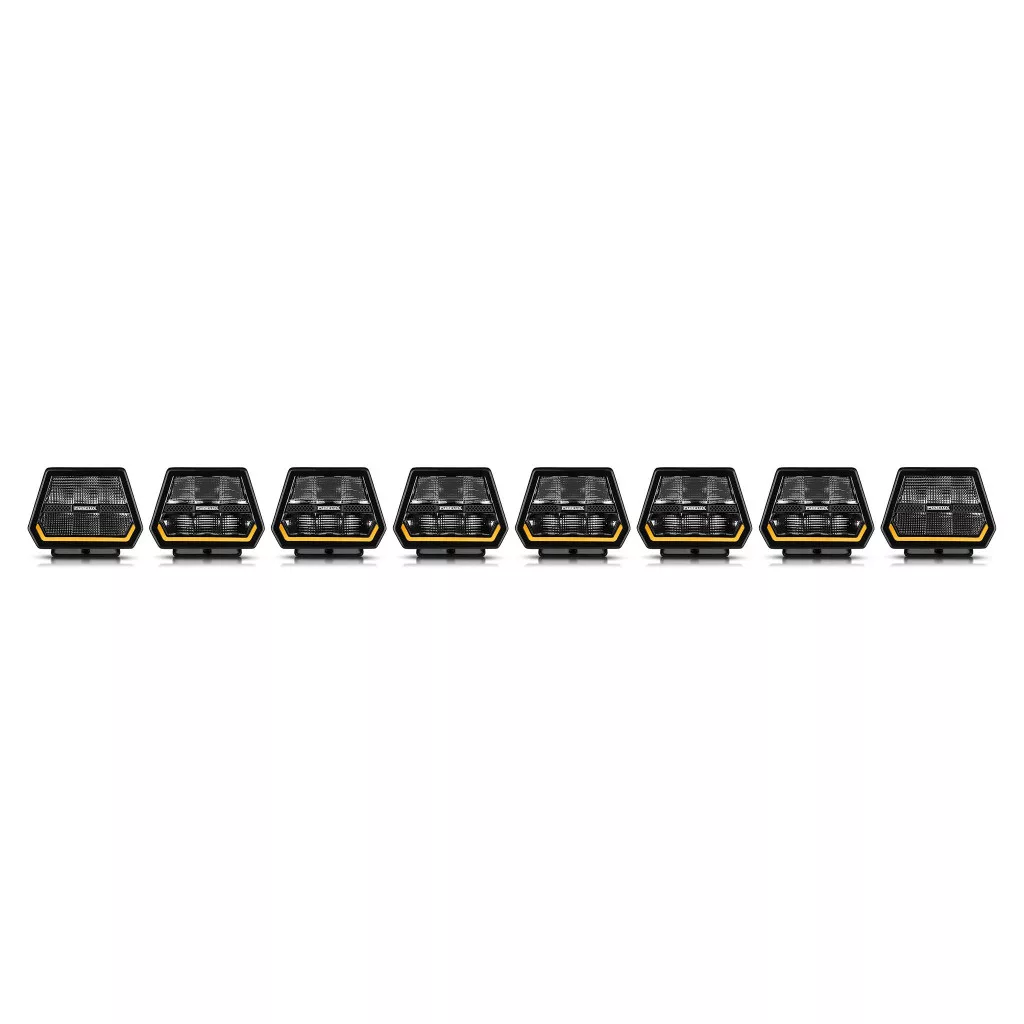

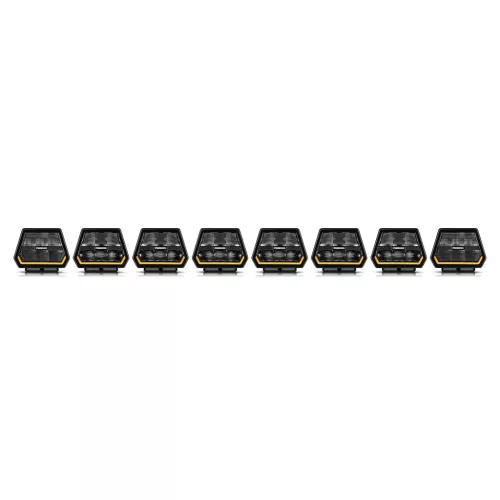

Auxiliary light kit 1246 mm - 8 lights (6 x Panther 5 & 2 x Alpha 90)

The Panther 5's small size, low reference number and exceptional body make it possible to build a super-stylish light bar with multiple lights. Having multiple lights in the set means that the light beam they create can be tailored to the user's needs: for maximum range, it's best to point them all at the same point directly ahead. If you want to maximise the width of the beam, you should align the beams of the lights side by side. It is also possible to combine the mounting arrangements, e.g. the 4 lights in the centre can be directed straight ahead and the lights on the sides slightly to the left and right to give a nice width to the beam. In addition, the set offers the possibility of replacing the edge lights with a light with the same body but with a very wide beam. This gives even more light to the close appromixity and sides of the vehicle for off-road use, for example.

The stylish appearance of the bar is crowned by a parking light running along the bottom of the lamp, which can be lit in orange or white. For more information on the lights, see below.

NOTE: Due to the nature of the set, no complete bracket is included, but the lights are intended to be mounted side by side on a roof rack, for example.

Technical specifications

Set of 8 lights:

• 52 480 lm
• Measured range 1335 m @ 1 lux
• Battery width: 1246 mm (10 mm gap between lights)
• Power: 611.2 W
• Colour temperature: 5000K

PS. The set comes complete with relay wiring harnesses to connect the lights.

Contents of delivery (8 luminaires)

• 6 x Panther 5 + 2 x Panther Alpha 90, 5000K
• 2 x Relay cable set, DT-2 (4 outputs)
• 2 x Adapter Purelux DT-4 - DT-2

Note: Panther 5 lights are equipped with DT-2 connectors and Panther Alpha 90 lights are equipped with DT-4 connectors. The sets come with DT-2 wiring harnesses and DT4-DT2 adapter cables, which allow you to easily connect the Alpha 90 lights to the DT-2 wiring harness.
