Brake light / Marker light / Turn signal PURELUX Panther Core-R - 12/24V / 24W / 105 mm

The Purelux Panther Core-R is an extremely stylish rear light with a red brake light, an orange turn signal and a red marker light approved for road use. The Core-R is part of the Panther marker light series created by the Purelux product development team, which has been designed with practical features, absolute reliability and exceptional style in mind. The rear-view warning lights (bright brake light, orange turn signal and steady red warning/marker light) integrated into the small and slender frame make this light a perfect choice for trailers, caravans, camper vans, tractors, construction vehicles, ATVs and snowmobiles, but thanks to its striking appearance, the Core-R can also be installed for purely stylistic reasons on practically any vehicle whose lines you want to emphasize in an exceptional way.

The Core lights feature two light bars running across the lens, with a unique design, high-performance LEDs and even light distribution that will catch your eye from afar. In addition, the sleek black body and dark optics blend the light into any vehicle's structure, ensuring a clean installation. Thanks to the low power consumption, multiple lights can be installed on the same vehicle without any worries, and the Core series lights can also be synchronized to work harmoniously with each other. This ensures a uniform, stylish and finished lighting for the vehicle, with the Purelux Panther Core at its core.

Panther Core lights are very easy to install, as the power cord has its own wires for all functions. Made of high-quality components, the lights are protected from water and dust according to the highest possible tightness rating (IP69K), and their impact-resistant body ensures reliable operation even in challenging conditions. Thanks to the excellent protection, the lights can be installed high or low, as sand dust raised by tires, stone or oxygen splashes, UV radiation from the sun, heavy rain, sub-freezing water or even hail do not affect their operation. In addition, the lights are protected from radio interference according to the R10 standard, and the wide operating voltage (9-36V) allows installation in both 12V and 24V systems. Three-year (36 months) warranty!

Delivery content

• Purelux Panther Core-R
• Power cord, 300 mm
• Rubber mounting backing
• Mounting screws
• Installation and connection instructions (FI/EN/SE/NO/DK)

Specifications

• Product: Purelux Panther Core-R
• Intended use: As a warning/marker light in work machines/vehicles
• Operating voltage: 9-36V
• Power measured by the light source:
  • Brake light: 24.5 W
  • Marker light: 9 W
• Functions: Brake light, turn signal + red marker light
• Light color: red and orange

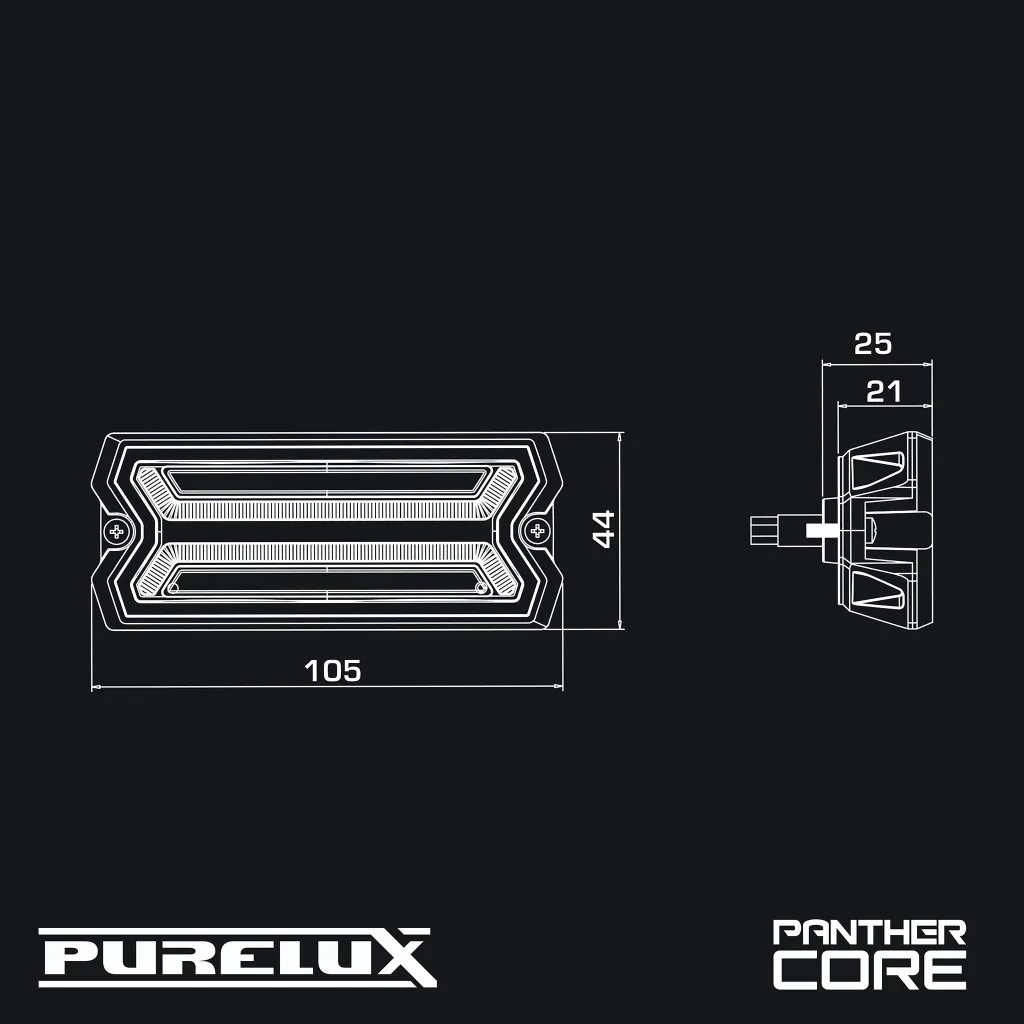

• Dimensions: 105 x 21 x 44 mm (Width x Height x Depth)
• Height with mounting foot: 25 mm
• Power cable length: 300 mm
• Connector: No connector, straight wires
• Weight: 115g
• IP rating: IP69K
• Operating temperature: -40°C - +60°C
• Approvals: EMC: ECE R10, R7, CE, RoHS
• Warranty: 36 months

Quick guide

Coupling

• Red: Brake light
• Black: Ground
• Yellow: Turn signal
• White: Red rear marker light
