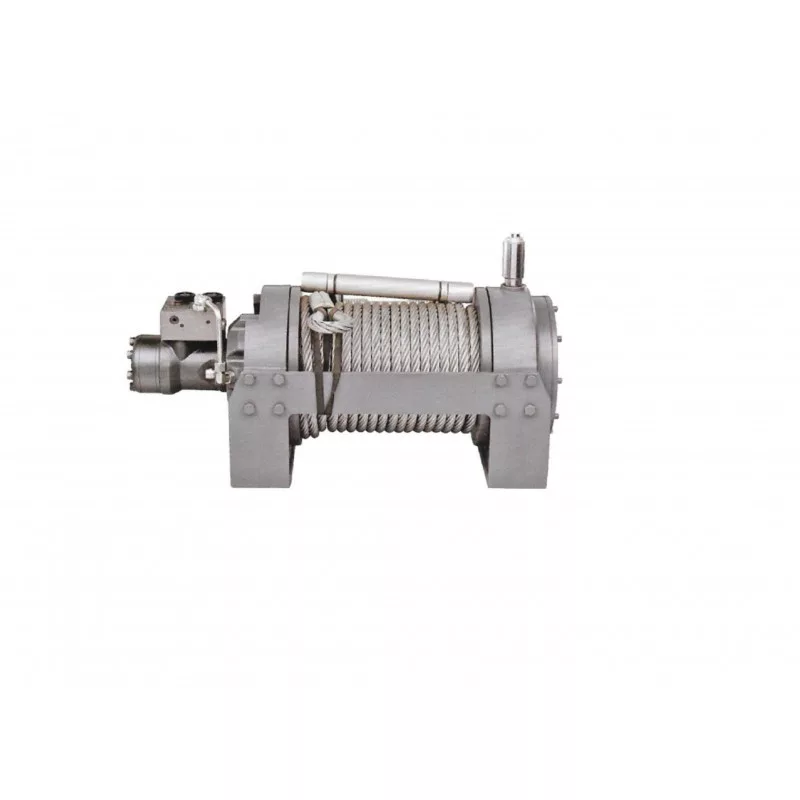

HusarWinch hidraulic winch 17637 lbs (8000kg)
4 401.29 €
(w/o VAT:3 465.59 €)
(w/o VAT:3 465.59 €)
HusarWinch hidraulic winch 17637 lbs (8000kg)
Item number:
HWIBSTHS080
Available to order
In external stock: 5 pcs,
Available: 10-12 days
HusarWinch hidraulic winch 17637 lbs (8000kg)
| BST H 12000 lbs | Technical data | |||
| Pulling rate (one line) | 17637 lbs (8000kg) | |||
| Brake | automatic | |||
| Oil flow | 5-50L/min | |||
| Pressure | 15 MPa | |||
| Gear | 2 -stage planetary | |||
| Gear ratio | 38:1 | |||
| Rope | 32m x Ø14mm 8-M14 | |||
| Net weight | 138 kg | |||
| Mounting bolt pattern | 400 × 220mm 400 × 120mm | |||
| Dimensions |
665 × 226 × 262 mm |
|||
| Line speed and motor current (first layer) | ||||||
| lbs | 0 | 4409 | 8818 | 1328 | 17637 | |
| Line pull | kg | 0 | 2000 | 4000 | 6000 | 8000 |
| Line speed | m/perc | 1.8 | 2.5 | 3.2 | 4 | |
| Pressure | PSI | 290.1 | 609.2 | 1131,3 | 1508 | 1885.4 |
| Oil flow | l/perc | 5 | 10 | 20 | 30 | 60 |
| Line pull and cable capacity | ||||||
| Layer of cable | 1 | 2 | 3 | |||
| lbs | 17637 | 1498 | 1302 | |||
| Rated line pull per layer | kg | 8000 | 6795 | 5906.0 | ||
| Cable capacity per layer | m | 9 | 20 | 32 | ||

Pull capacity(single line):
17637 lbs/8000kg
Gear:
2 fokozatú bolygóműves
Brake:
automata
Rope:
acél
Net weight:
138 kg
Mounting bolt pattern:
400 × 220mm 400 × 120mm
Dimensions (L x W x H):
665 × 226 × 262 mm
Oil flow :
5-50L/perc
Oil pressure :
15 Mpa
4 401.29 €
(w/o VAT:3 465.59 €)
(w/o VAT:3 465.59 €)
pcs
