HusarWinch hidraulic winch 35000 lbs (15875kg)
9 208.45 €
(w/o VAT:7 250.75 €)
(w/o VAT:7 250.75 €)

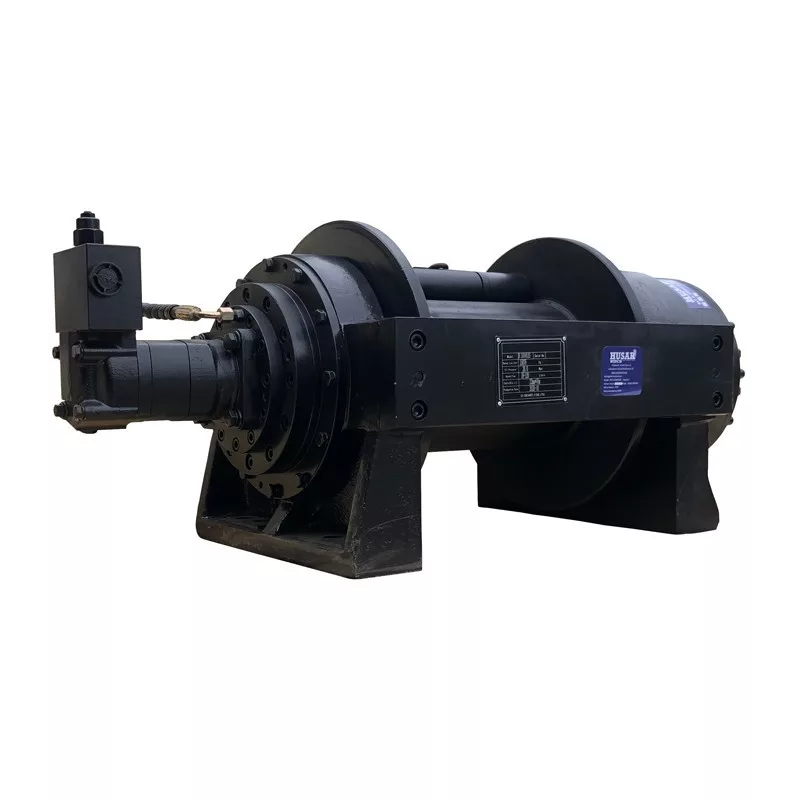

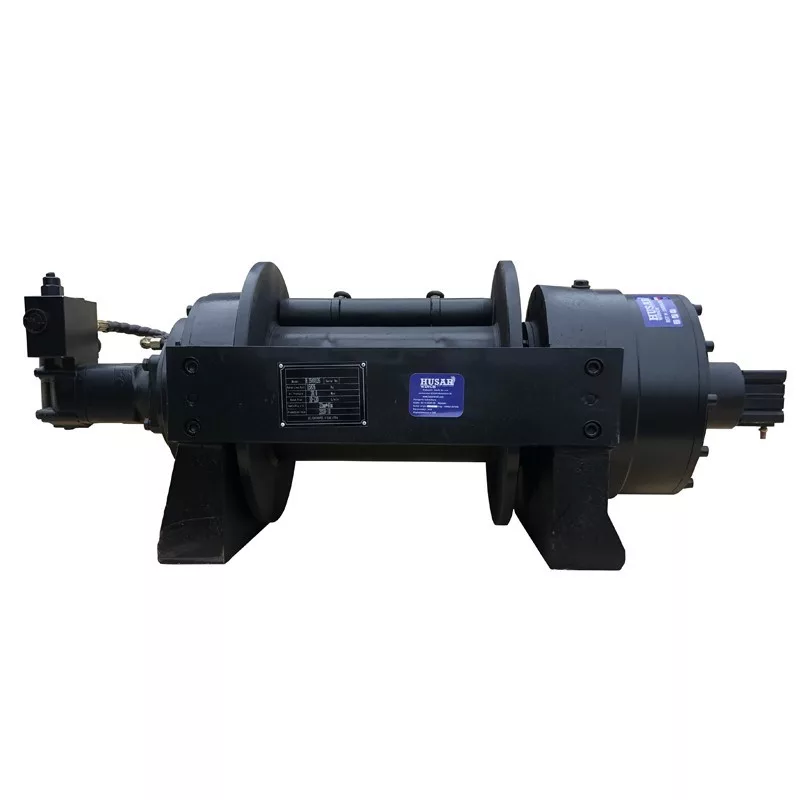

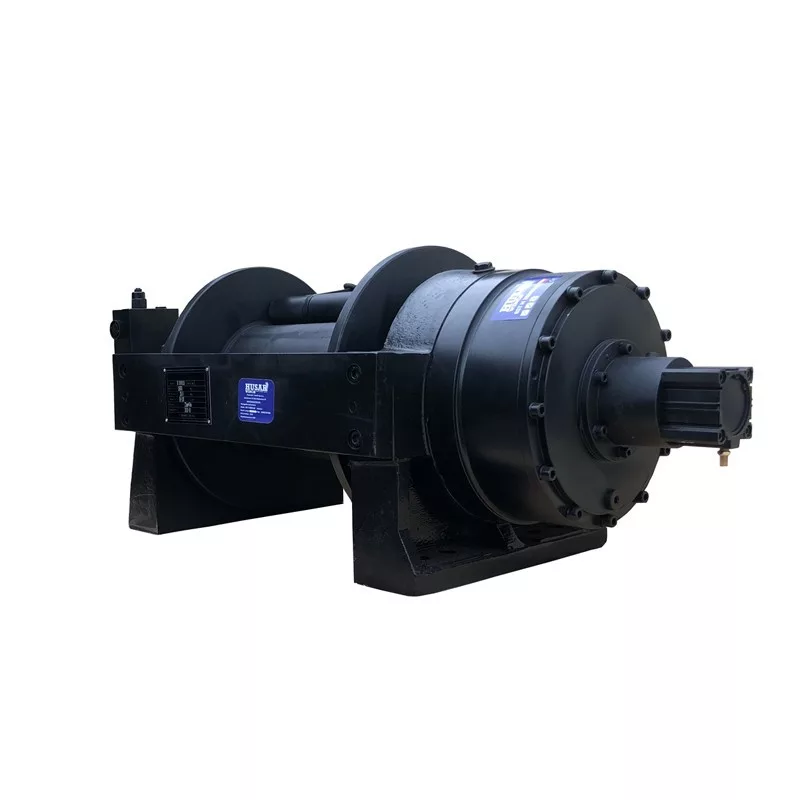

HusarWinch hidraulic winch 35000 lbs (15875kg)
Item number:
HWIBSTH35000
Available to order
In external stock: 5 pcs,
Available: 10-12 days
| BST H 35000lbs | Technical Specifications | ||
| Pulling force (single rope) | 15875 kg | ||
| Wire rope recommended (Ø× L) | Ø22mm, 50m | ||
| Pressure | 16 MPa | ||
| Clutch | Pneumatic | ||
| Pneumatic clutch pressure | 0.4~0.8MPa | ||
| Oil | 220 industrial gear oil | ||
| Oil capacity | 0.8 liters | ||
| screws | 8×M20, Class 10.9 | ||
| Gross weight | 320 kg | ||
| Drum size (Ø.×L) | Ø210mm×340mm | ||
| Spacing of mounting screws | 522mm×180/280mm 8- Ø22 | ||
| Dimensions (L×W×H) | 1077mm×640mm×420mm | ||
| Rope speed and motor current (first layer) | |||||
| A layer of rope | 1 | 2 | 3 | 4 | 5 |
| Rope pull on the layer | 35000lbs | 28000lbs | 24500lbs | 21000lbs | 19000lbs |
| 15875 kg | 12700 kg | 11113 kg | 9525 kg | 8618 kg | |
| Maximum speed depending on layer | 8.17 m/min | 9.45 m/min | 10.85 m/min | 12.19 m/min | 13.56 m/min |
Pull capacity(single line):
35000 lbs/15875 kg
Brake:
automata
Net weight:
320 kg
Mounting bolt pattern:
522mm×180/280mm 8- Ø22
Dimensions (L x W x H):
1077mm × 640mm × 420mm
9 208.45 €
(w/o VAT:7 250.75 €)
(w/o VAT:7 250.75 €)
pcs
Husar Winch is a recognized and proven brand that has been operating in the market for many years. Thanks to dynamic development, our products can be found throughout Europe and Asia, where we have become one of the leading brands. Husar Winch offers a wide range of electric, hydraulic, manual, chain, and workshop winches, as well as a wide range of off-road accessories, compressors, worm gears, shackles, ropes, and much more.
The idea and project were first conceived in Profel-Szydłowiec. This factory has been manufacturing winches for the heavy and defense industries in Poland and abroad for many years. Our experience has resulted in the creation of reliable, high-quality products. Thanks to the technology that pays great attention to every detail, we have gained an exceptional reputation in the market.
Husar Winch winches assist in various areas of everyday work:
-
ATV/Quad winches, which hunters prefer to use as game hoists on pickup trucks.
-
Self-recovery winches for 4x4 vehicles, suitable for every load from Suzuki to Mercedes G.
-
Very fast winches for off-road racing cars with our dual-motor solution.
-
On recovery platforms for pulling damaged cars.
-
High-performance 24V and hydraulic winches on off-road trucks.
-
Manual winches on car transporter trailers.
-
In workshops, our high-quality 220V remote-controlled lifting winches are used.
Producer:
HusarWinch
EAN code:
5904024534303
Manufacturer logo:
Warranty :
2 év
Weight:
320 kg/pcs
