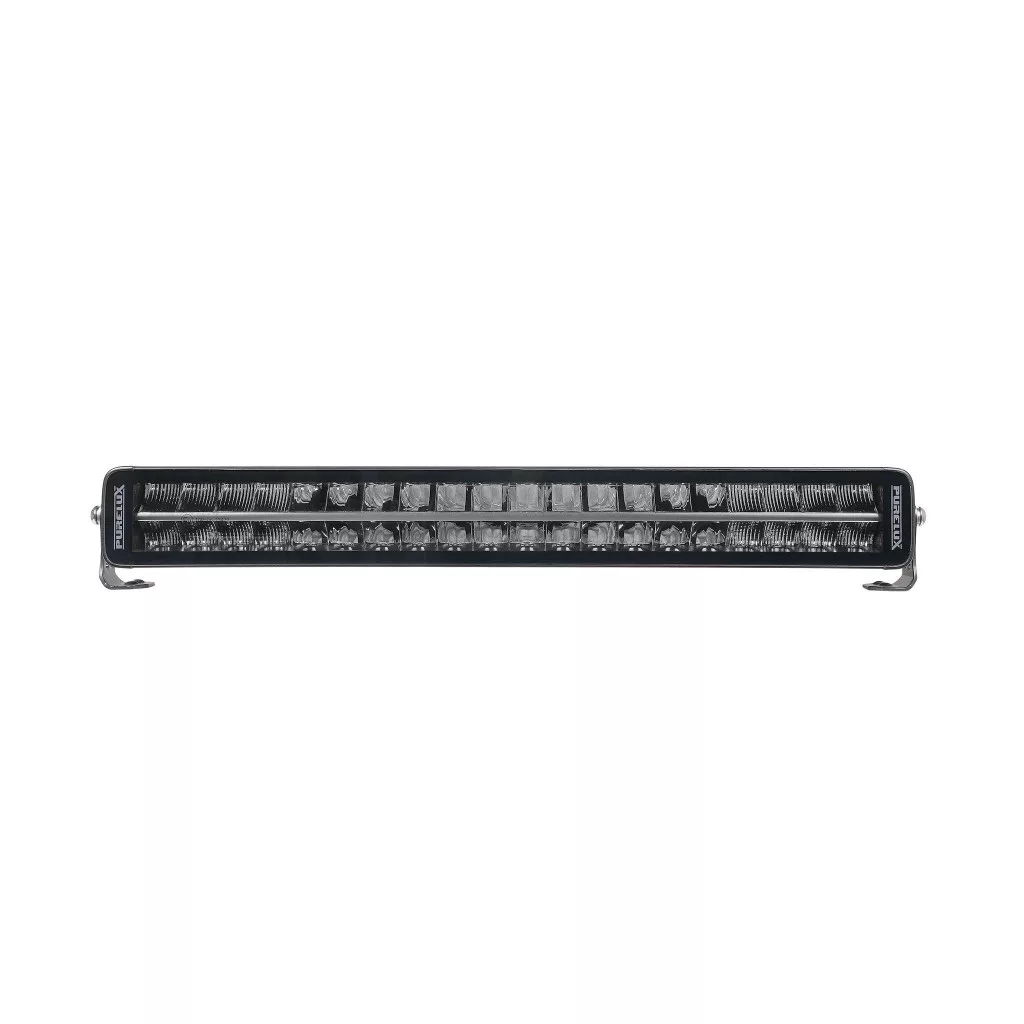

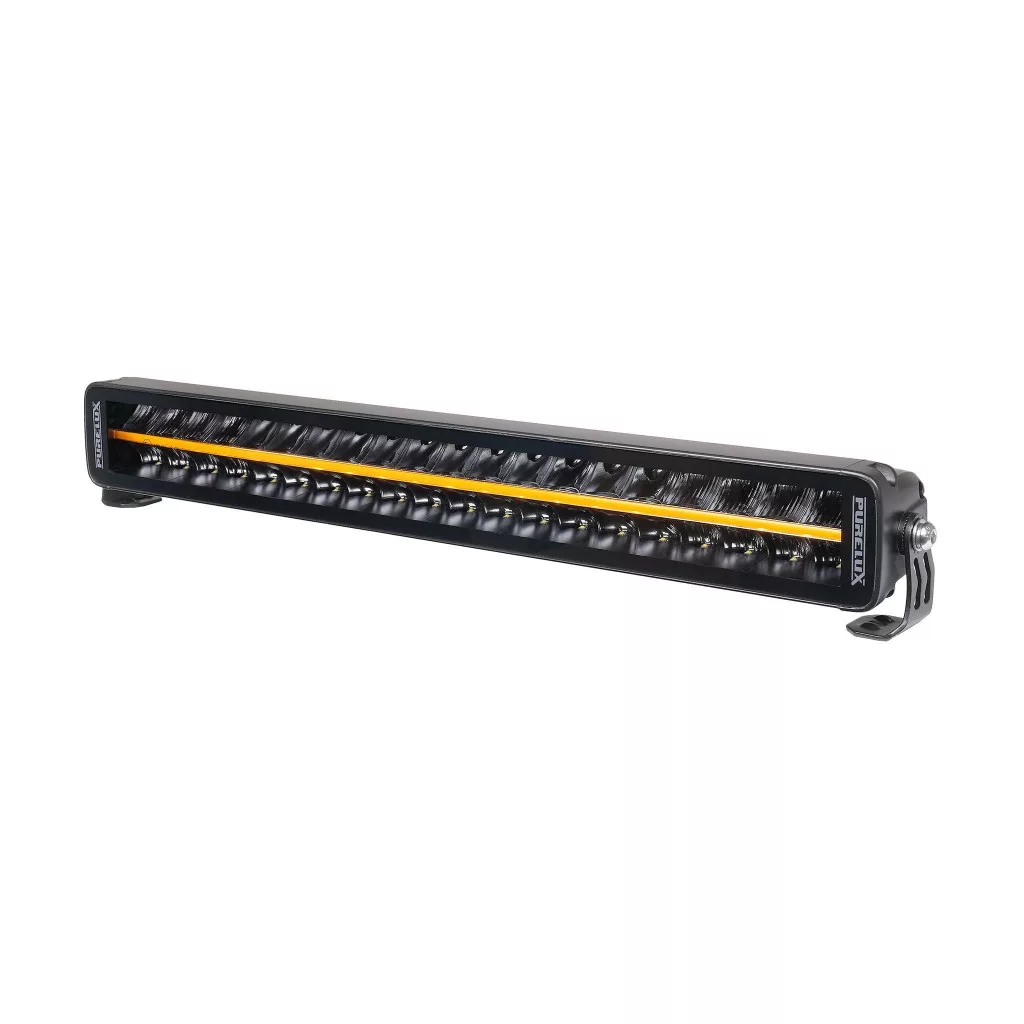

Led bar Purelux Black Boost S560 - Straight / 56 cm / 200W / Ref. 50

• • Brand and model: Purelux Black Boost S560 Gen3

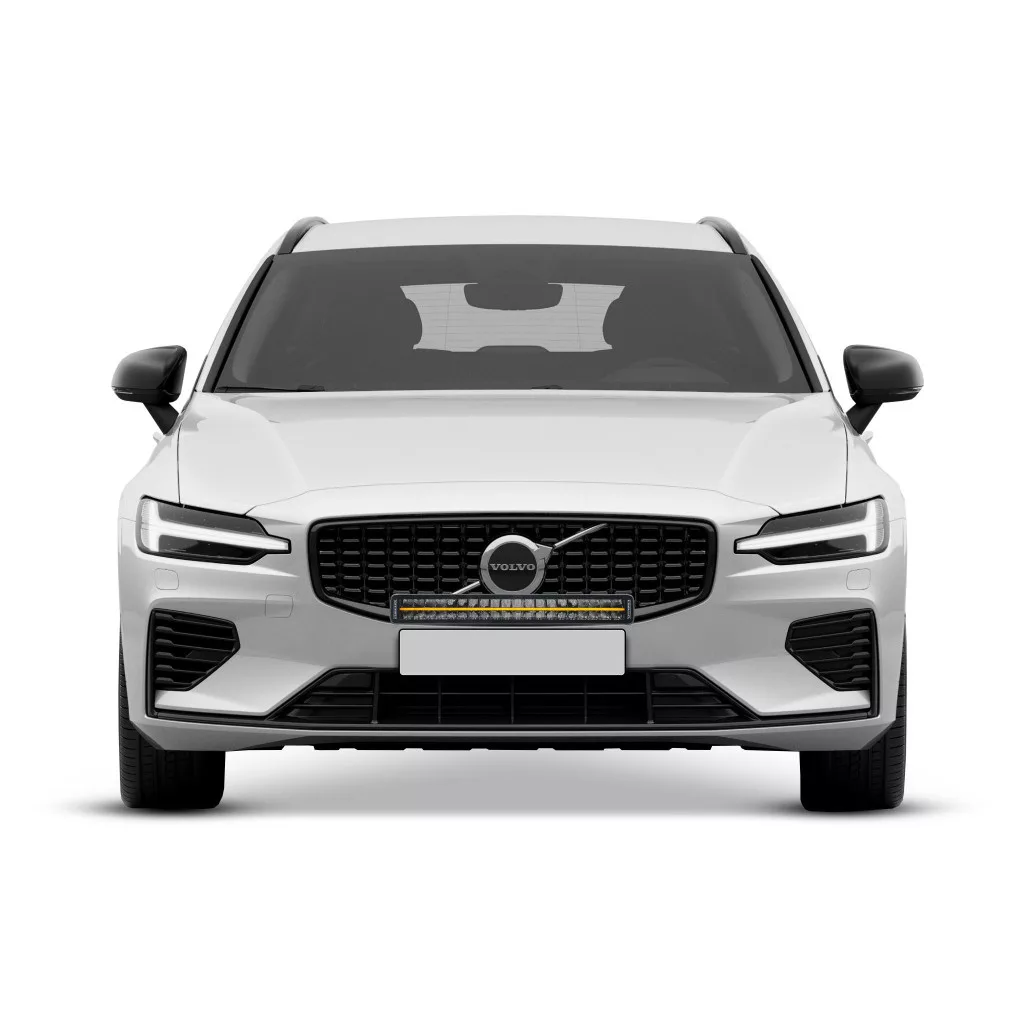

  • Purpose: As an additional light in cars / Off-Road vehicles / work machines
  • LED: Osram
  • Operating voltage: 9-32 V
  • Reference number: 50
  • Calculated power: 200 W
  • Power consumption measured by Valostore
    • Purelux PowerBoost®: 14.65A @ 12V / 7.33A @ 24V
    • Road mode: 6.99A @ 12V / 3.49A @ 24V
  • Power measured by Valostore:
    • Purelux PowerBoost®: 175.9 W @ 24V
    • Road mode: 83.9 W @ 24V
  • Light output declared by the manufacturer: 16800 lm (Purelux PowerBoost®)
    • Measured by Valostore: 12648 lm (Purelux PowerBoost®)
    • Measured by Valostore: 5954 lm (Traffic mode)

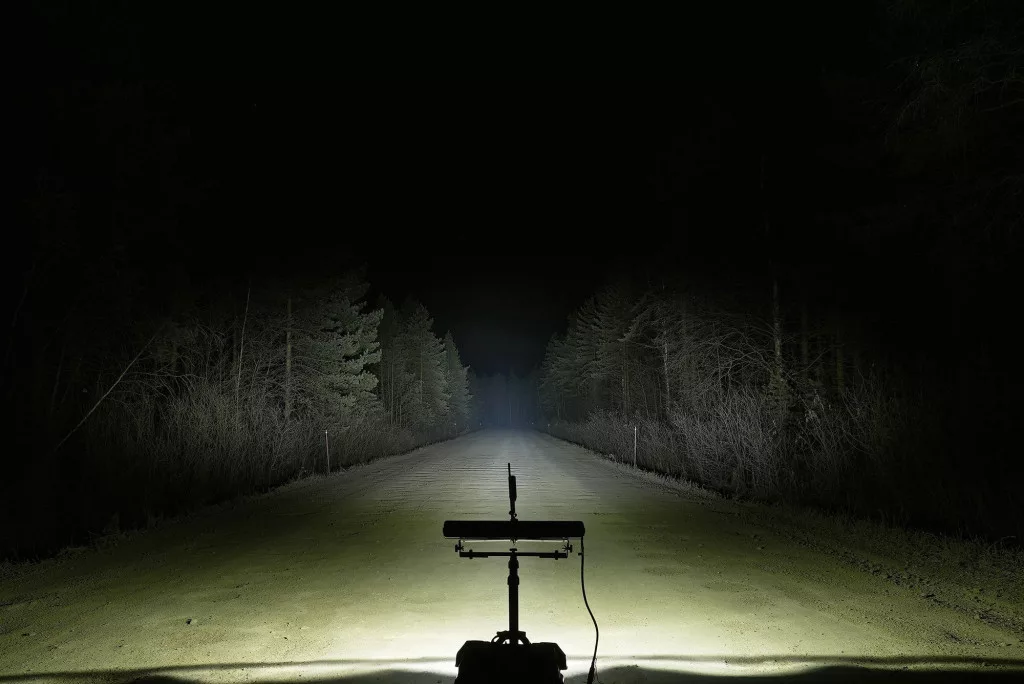

  • Range measured by Valostore: 654 m @ 1 lux / 1090 m @ 0.25 lux (Purelux PowerBoost®)
  • Range measured by Valostore: 410 m @ 1 lux / 820 m @ 0.25 lux (Road traffic mode)
  • Color temperature stated by the manufacturer: 5700 K
    • Measured by Valostore: 5840 K

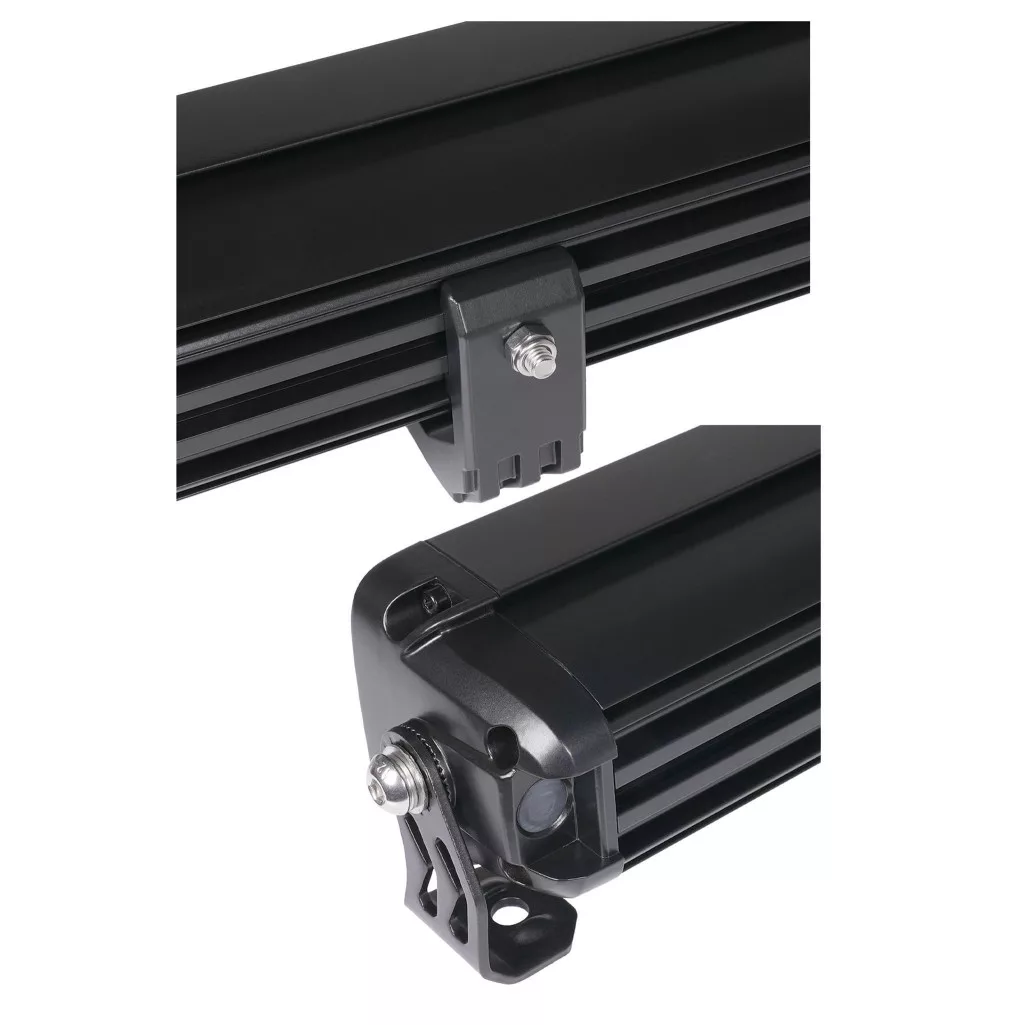

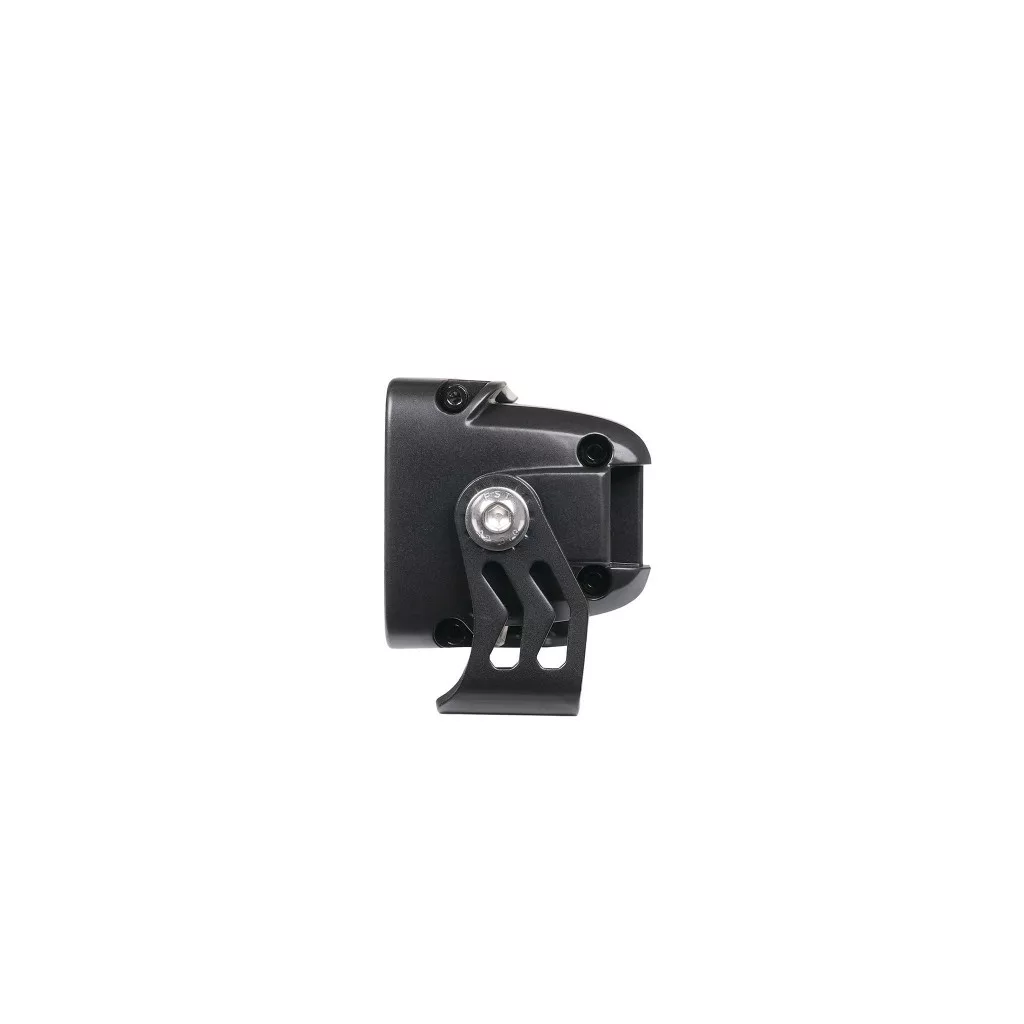

  • Fastening: End legs, width-adjustable lower legs
  • Connector: DTP-2
    • The parking lights + wires are separate
  • Cable length: 50 cm
  • Dimensions: 561 x 70 x 67 mm (Width x Height x Depth)
    • Height with end legs: 86 mm
    • Height with lower legs: 89 mm
  • Weight: 2300 g
  • IP rating: IP69K
  • Approvals: ECE: R10, R148, R149*
    • *Road traffic approval does not apply to PowerBoost® mode
  • Warranty: 24 months
  • Importer: Handshake.fi

  Installation guide

  Coupling

  • DTP-2 connector: Additional light connection
  • White: White parking light
  • Yellow: Orange parking light

  Changing the power mode with UI technology: The first time the lamp is used, it lights up in the E-approved mode. Change the power mode by using the auxiliary light on for at least 2 seconds, then flash high beam twice in a row to change the power mode. Repeat to change power mode.

  You can find the manufacturer's connection and installation instructions (FI/SE/NO/DK/EN) by clicking here.

Basic delivery content

• Purelux Black Boost S560 Gen3
• 2 x Levees with adjustable footrests
• 2 x Headrests
• Power cable connector
• Connection and installation instructions (EN/SE/NO/DK/FI)
