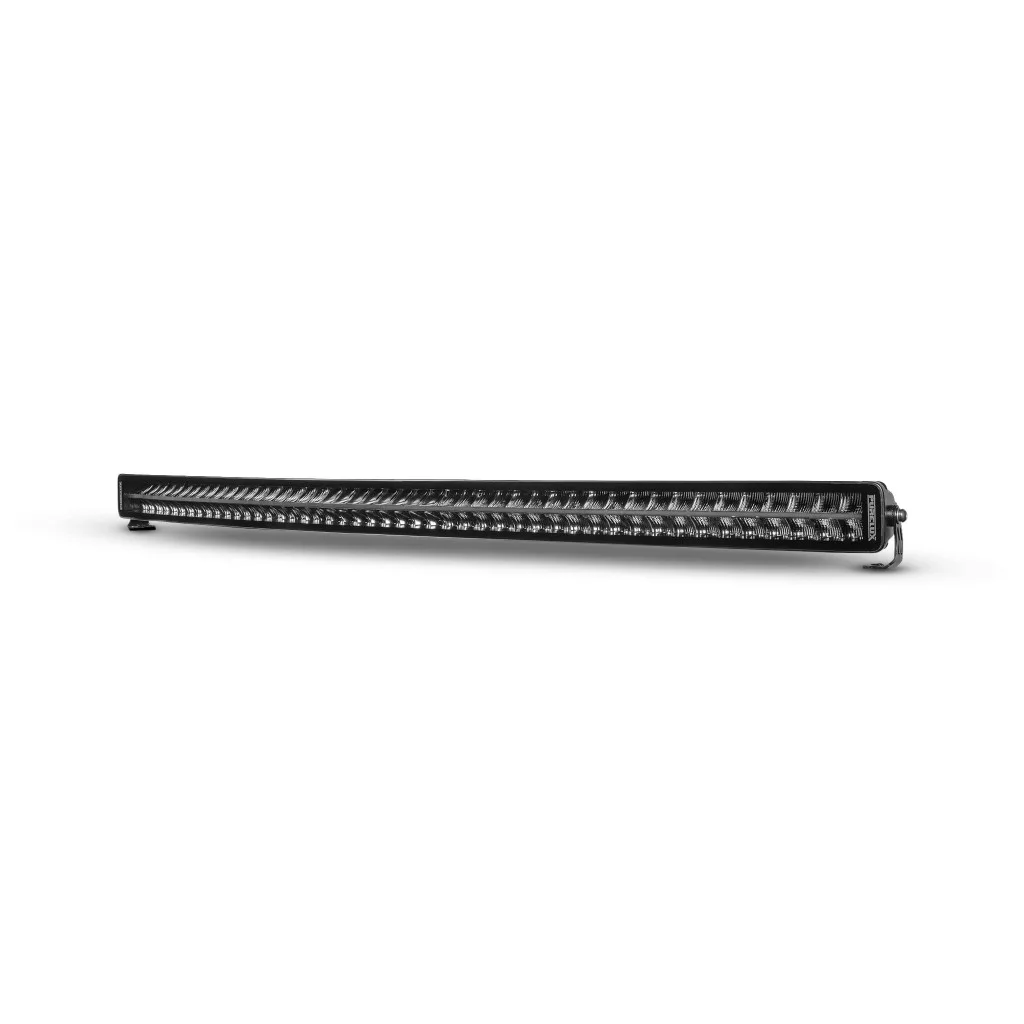

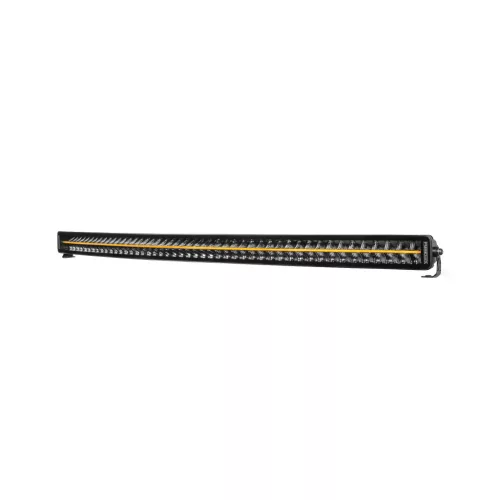

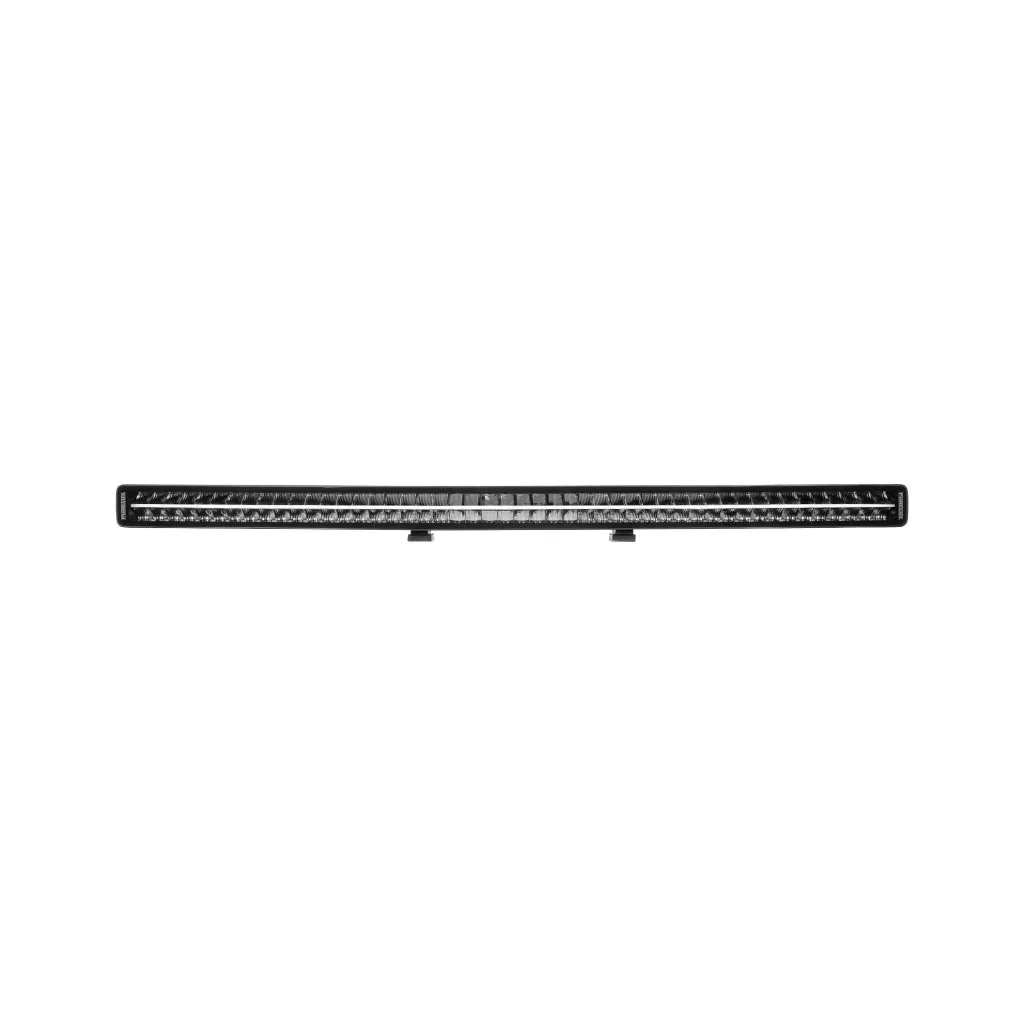

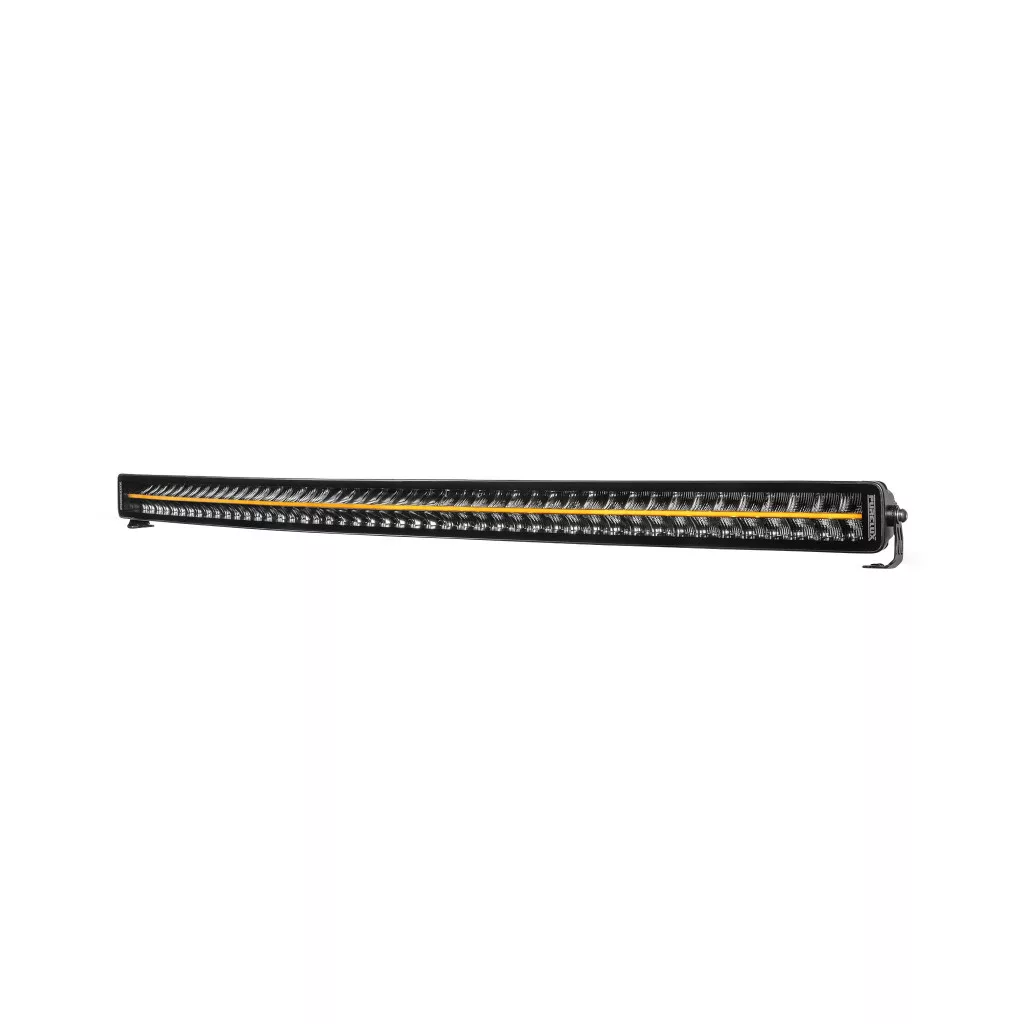

Led bar Purelux Black X-Slim C520 - Curved / 52 cm / 105W / Ref. 37.5

Purelux Black X-Slim C520 Gen3

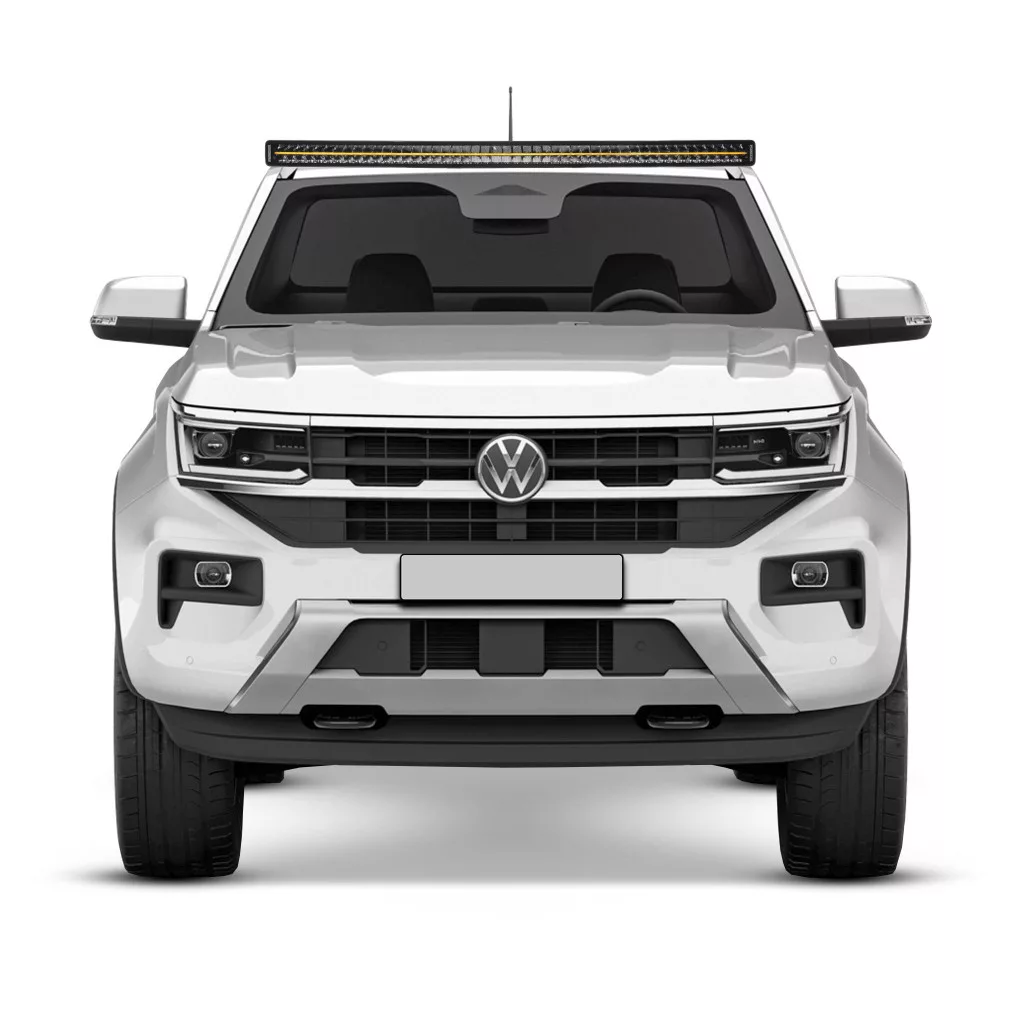

• Purpose: As an additional light in cars / Off-Road vehicles / work machines
• LED: Osram
• Operating voltage: 9-32 V
• Reference number: 37.5
• Calculated power: 105 W
• Power consumption measured by Valostore
  • Purelux PowerBoost®: 7.33A @ 12V / 3.66A @ 24V
  • Road mode: 4.25A @ 12V / 2.125A @ 24V
• Power measured by Valostore:
  • Purelux PowerBoost®: 88W @ 24V
  • Road mode: 51 W @ 24V
• Light output declared by the manufacturer: 8820 lm (Purelux PowerBoost®)
  • Measured by Valostore: 6857 lm (Purelux PowerBoost®)
  • Measured by Valostore: 4012 lm (Traffic condition)
• Range measured by Valostore:
• Purelux PowerBoost®: 419 m @ 1 lux / 838 m @ 0.25 lux
• Road traffic condition: 312 m @ 1 lux / 624 m @ 0.25 lux
• Color temperature stated by the manufacturer: 5700 K
  • Measured by Valostore: 5650 K

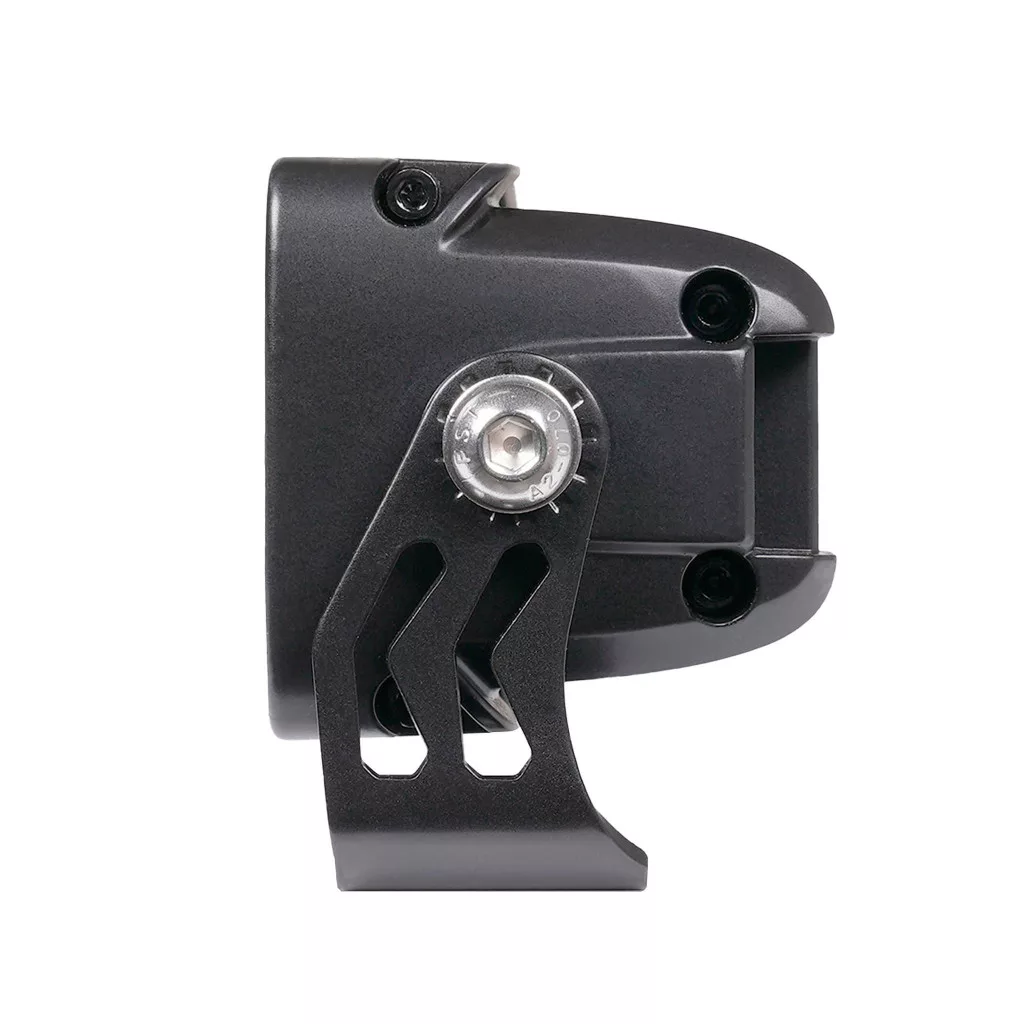

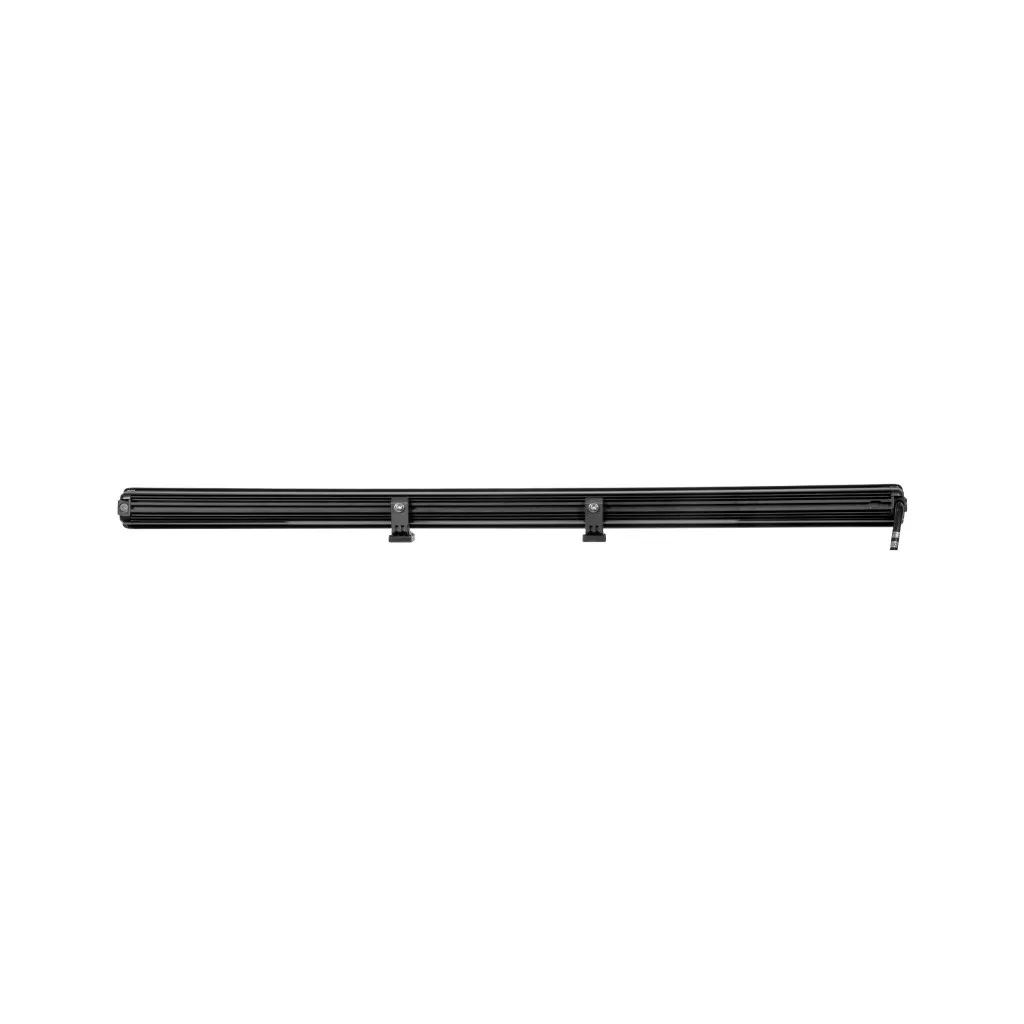

• Fastening: End legs, width-adjustable lower legs
• Connector: Deutch DT-2
  • The parking lights + wires are separate
• Cable length: 50 cm
• Dimensions: 525.5 x 40 x 54.4 mm (Width x Height x Depth)
  • Height with end legs: 49 mm
  • Height with lower legs: 51 mm
• Weight: 1400 g
• Radius of curvature: 2839 mm
• IP rating: IP69K
• Approvals: ECE: R10, R148, R149*
  • *Road traffic approval does not apply to PowerBoost® mode
• Warranty: 24 months

Installation guide

Coupling

• DT-2 connector: Additional light connection
• White: White parking light
• Yellow: Orange parking light

Changing the power mode with UI technology: The first time the lamp is used, it lights up in the E-approved mode. Change the power mode by using the auxiliary light on for at least 2 seconds, then flash high beam twice in a row to change the power mode. Repeat to change power mode.
