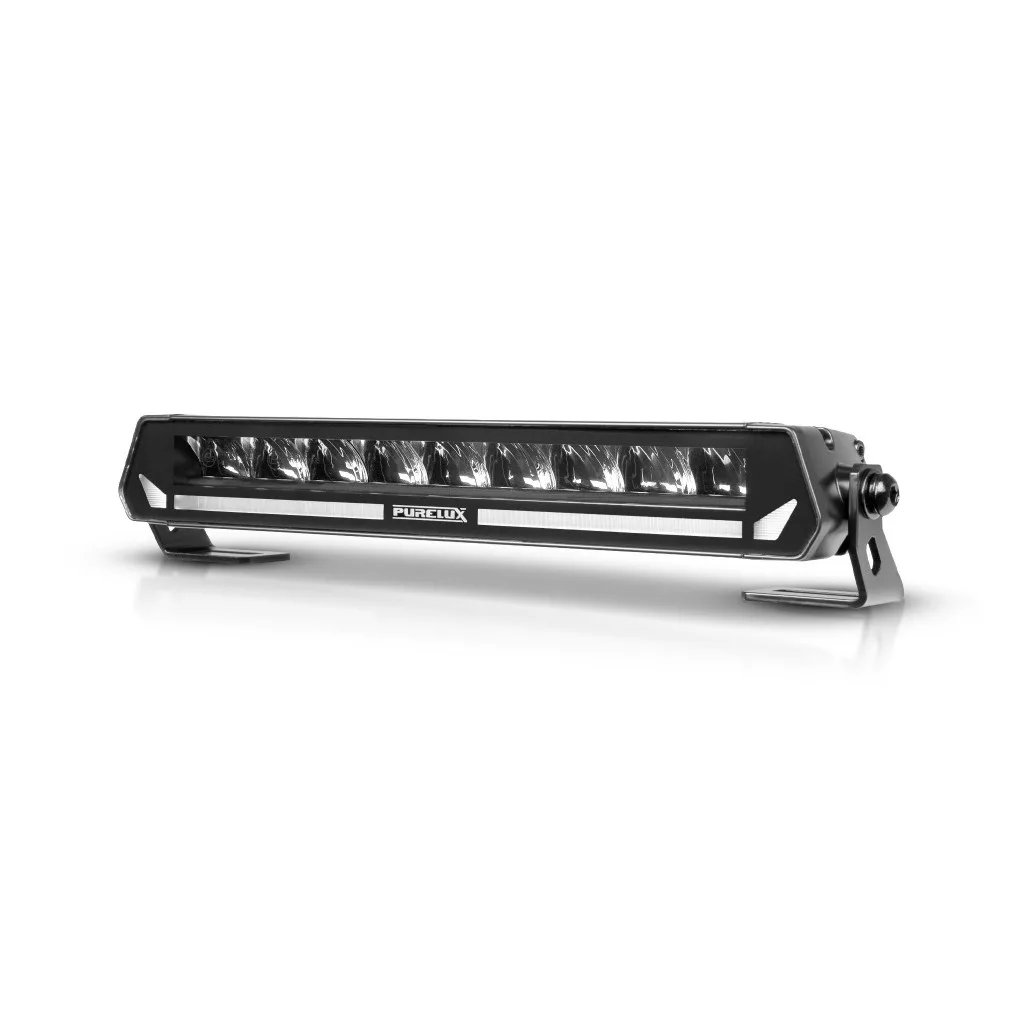

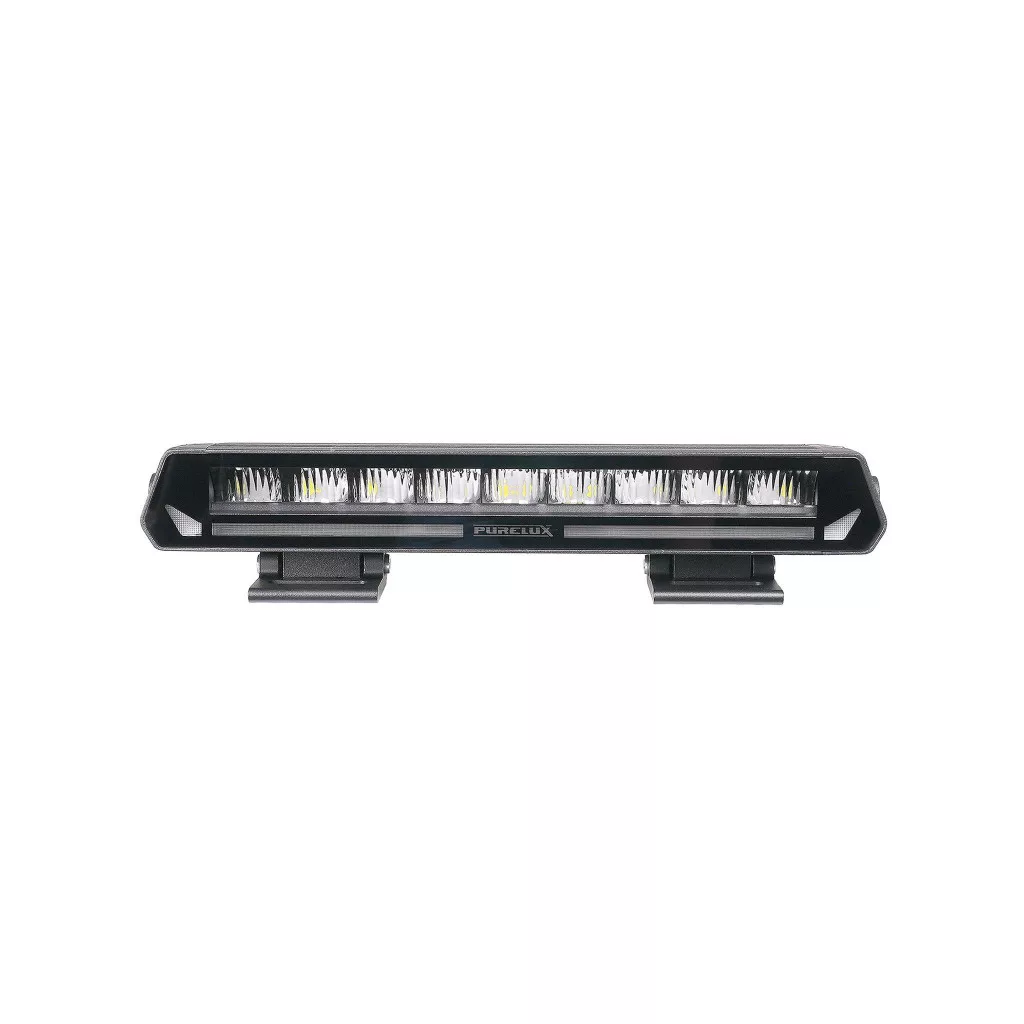

- Brand and model: Purelux Panther Aero S300 Gen2

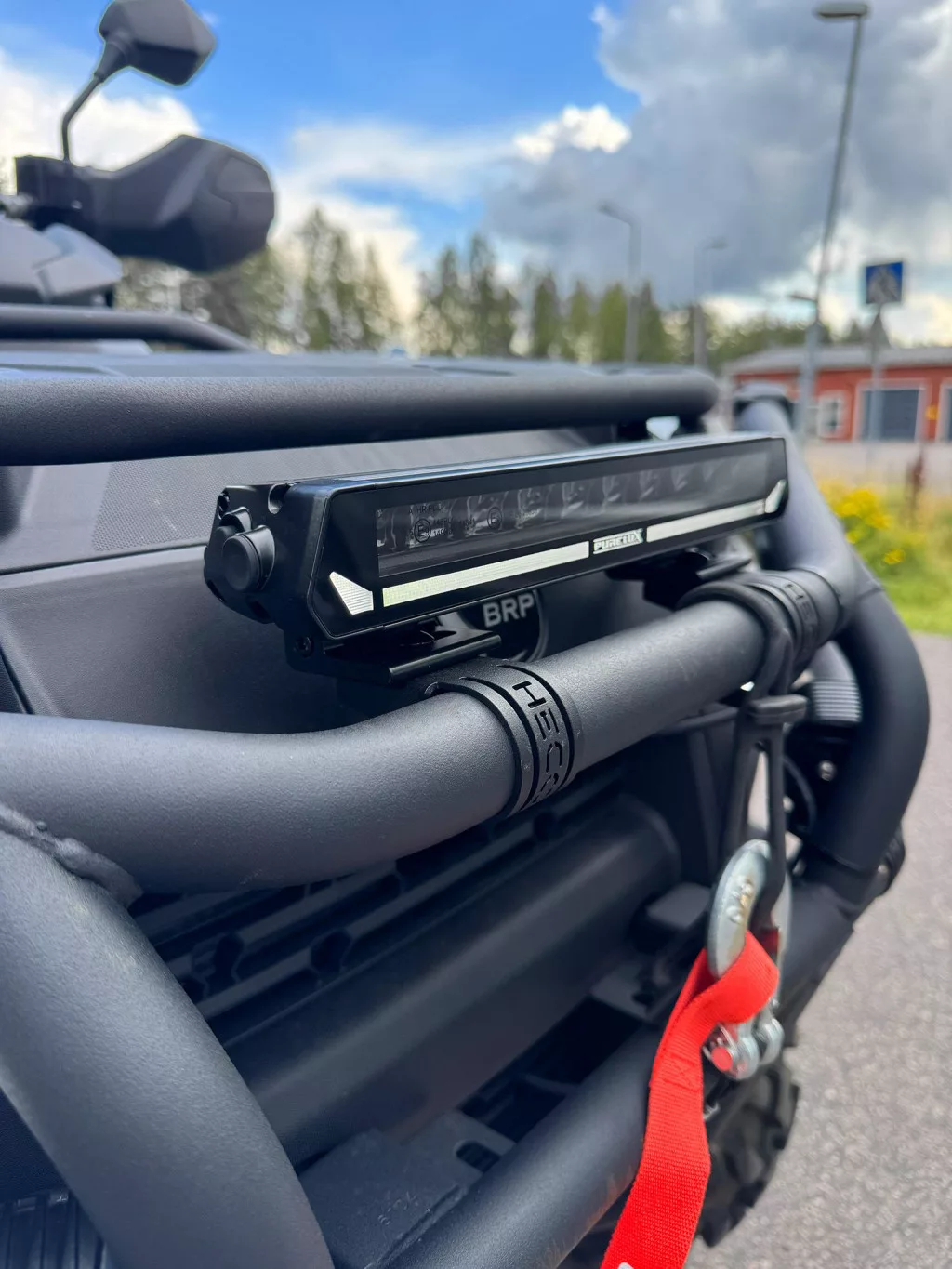

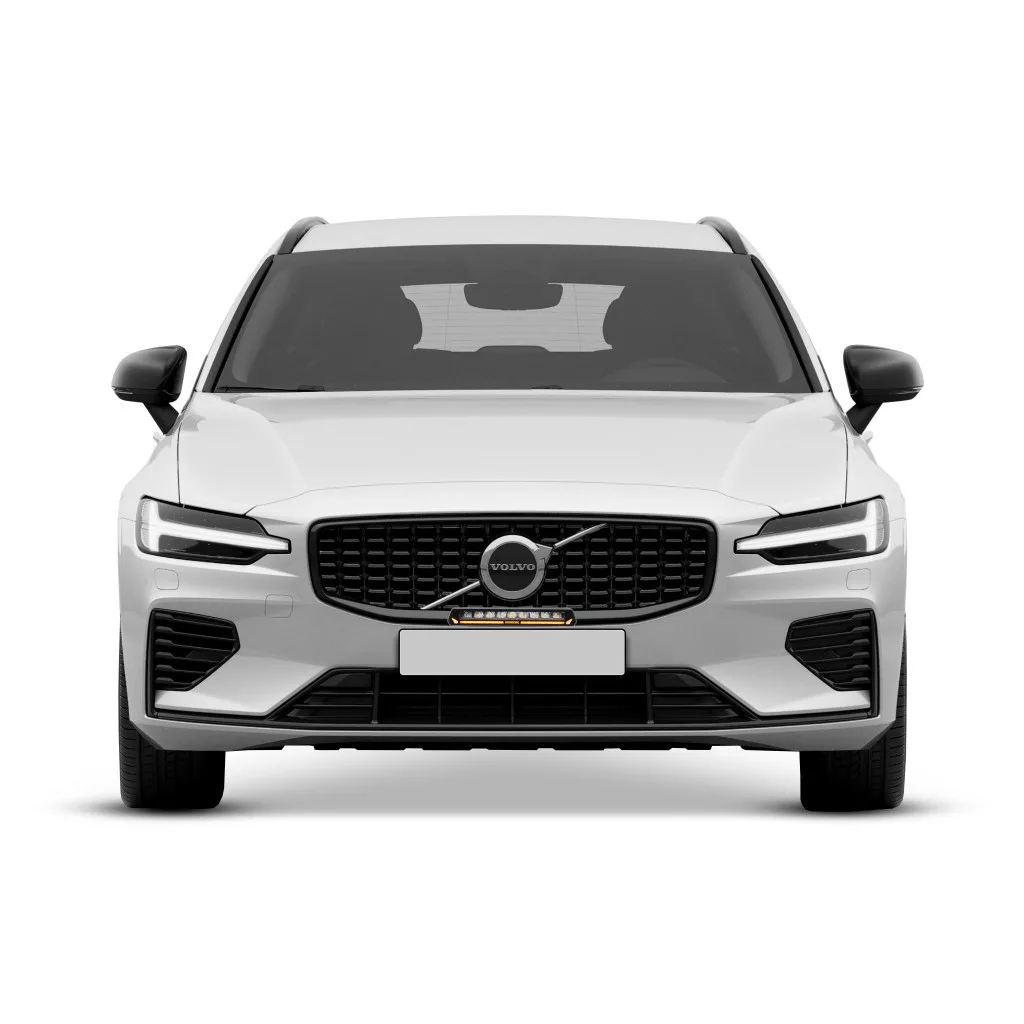

- Purpose: As an additional light in cars / Off-Road vehicles / work machines
- LED: 9 x 6W
- Operating voltage: 9-36 V (DC)
- Reference number: 17.5
- Calculated power: 54 W
- Power consumption measured by Valostore
- Purelux PowerBoost®: 4.5A @ 12V / 2A @ 24V
- Road mode: 1.91A @ 12V / 0.91A @ 24V
- Power measured by Valostore
- Purelux PowerBoost®: 54W @ 12V / 48W @ 24V
- Road mode: 23W @ 12V / 22W @ 24V
- Light output declared by the manufacturer: 3800 lm (Purelux PowerBoost®)
- Measured by Valostore: 3930 lm (Purelux PowerBoost®)
- Measured by Valostore: 1979 lm (Traffic condition)
- Range declared by the manufacturer: 366 m @ 1 lux (Purelux PowerBoost®) / 272 m @ 1 lux (Road traffic mode)
- Measured by Valostore: 352 m @ 1 lux / 703 m @ 0.25 lux / (Purelux PowerBoost®)
- Measured by Valostore: 264 m @ 1 lux / 527 m @ 0.25 lux (Traffic mode)
- Color temperature stated by the manufacturer: 5000 K
- Measured by Valostore: 5020 K

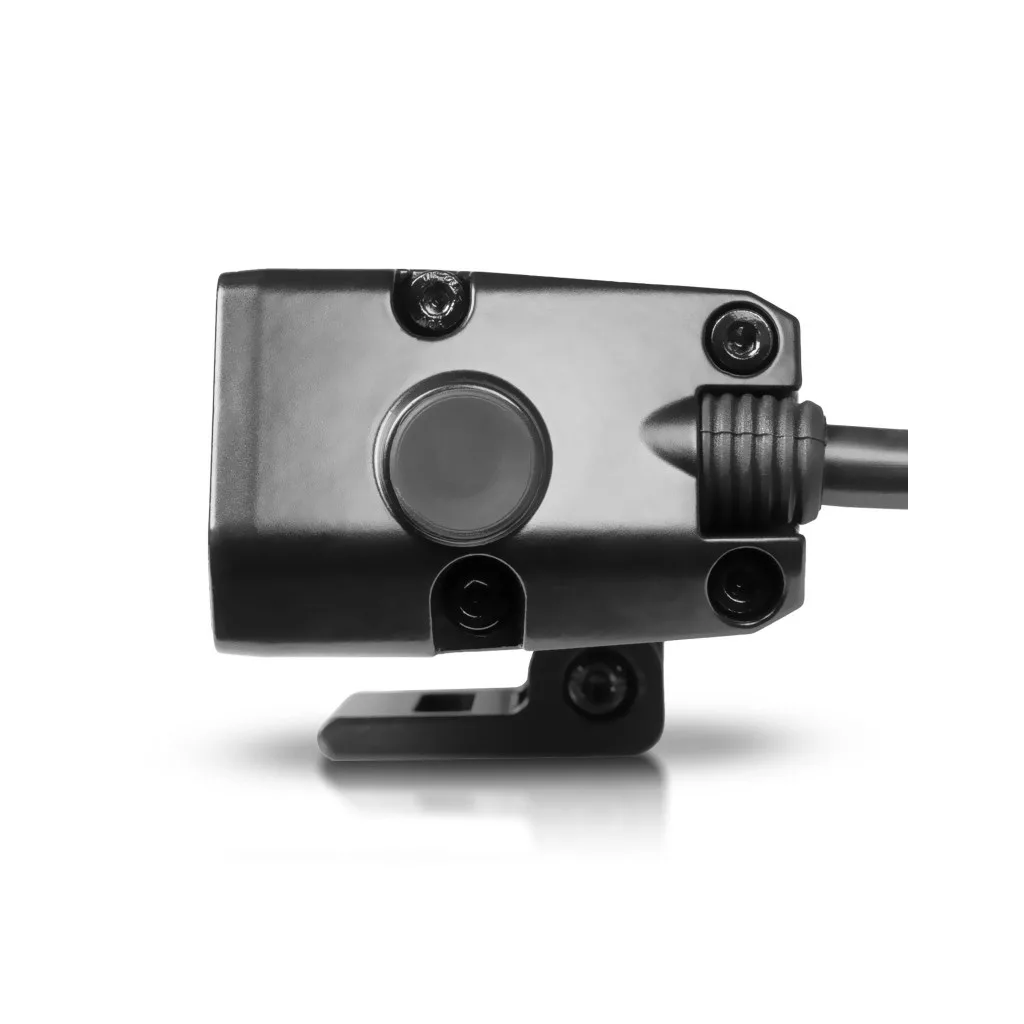

- Fastening: End legs, width-adjustable lower legs

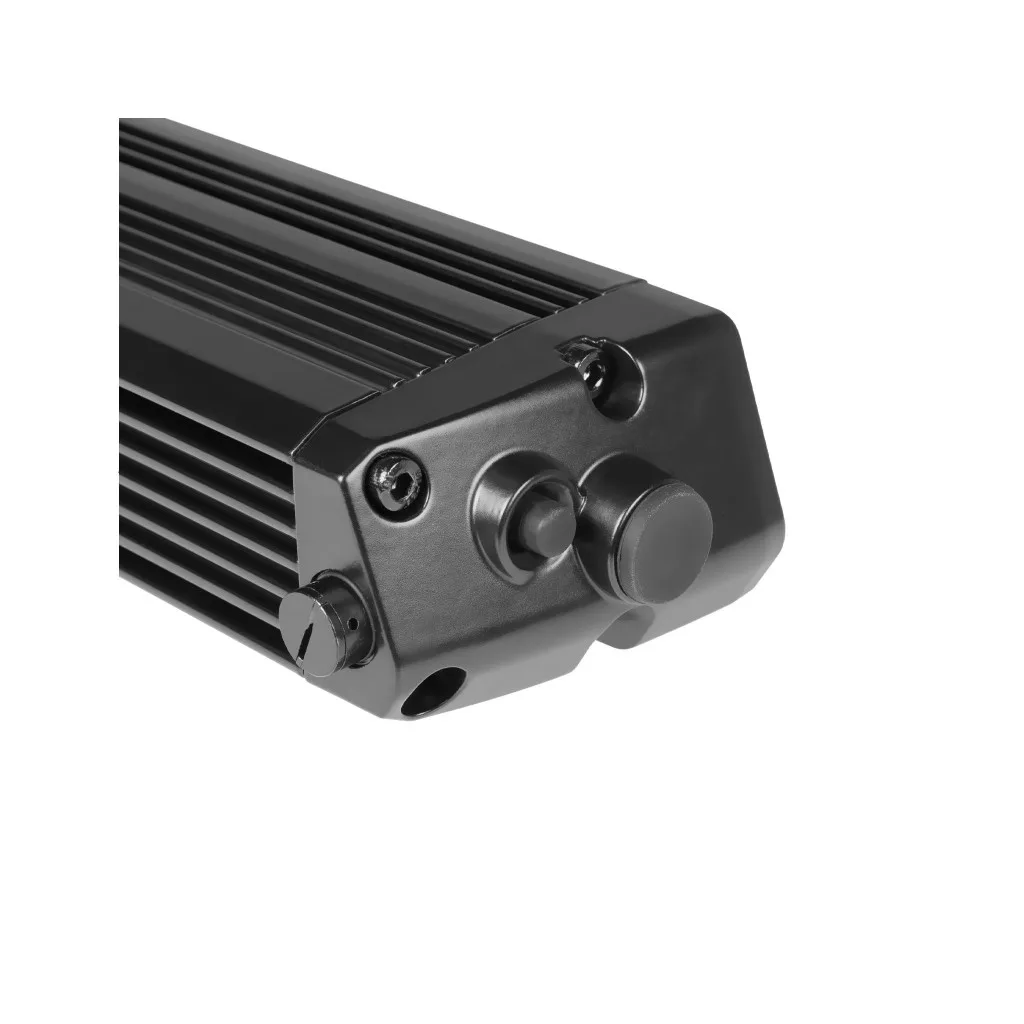

- Connector: Deutsch DT-2

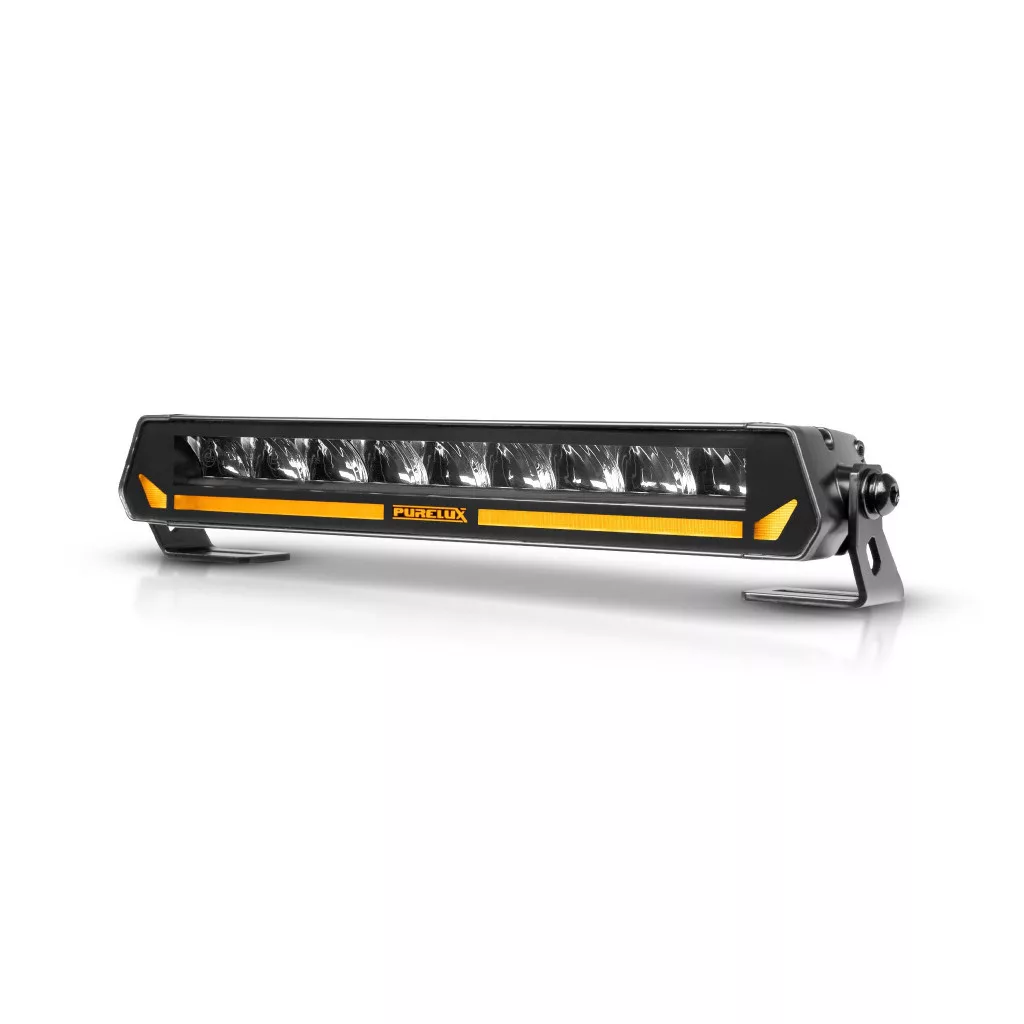

- The parking lights + wires are separate

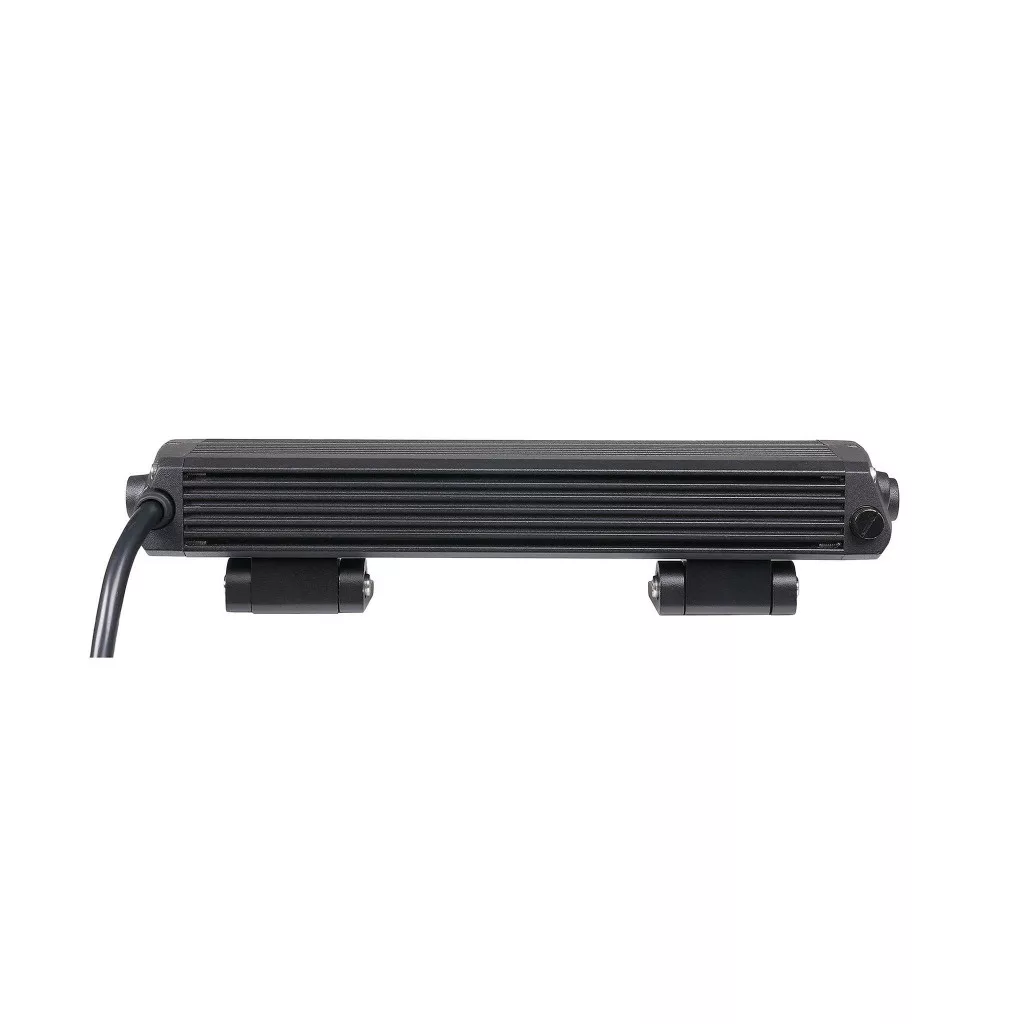

- Cable length: 50 cm
- Dimensions: 296 x 42 x 62.5 mm (Width x Height x Depth)
- Height with end legs: 57 mm
- Height with lower legs: 62 mm
- Weight: 900 g
- IP rating: IP68/IP69K
- Approvals: CE, ECE R10, R7, R112*
- *Road traffic approval does not apply to PowerBoost® mode
- Warranty: 24 months
- Importer: Handshake.fi
Installation guide
You can find the manufacturer's connection and installation instructions (FI/SE/NO/DK/EN) by clicking here.
