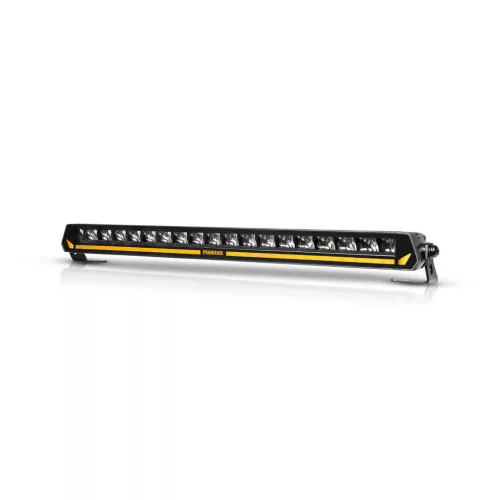

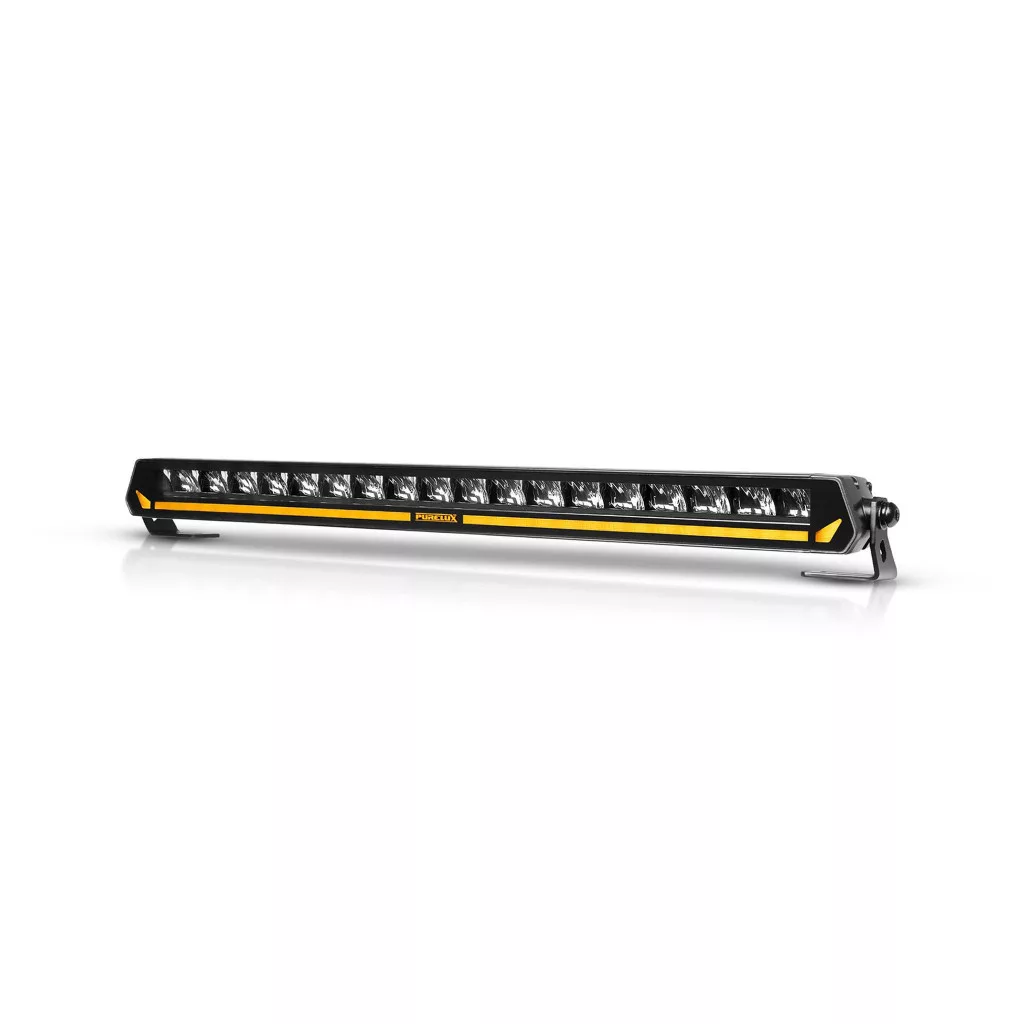

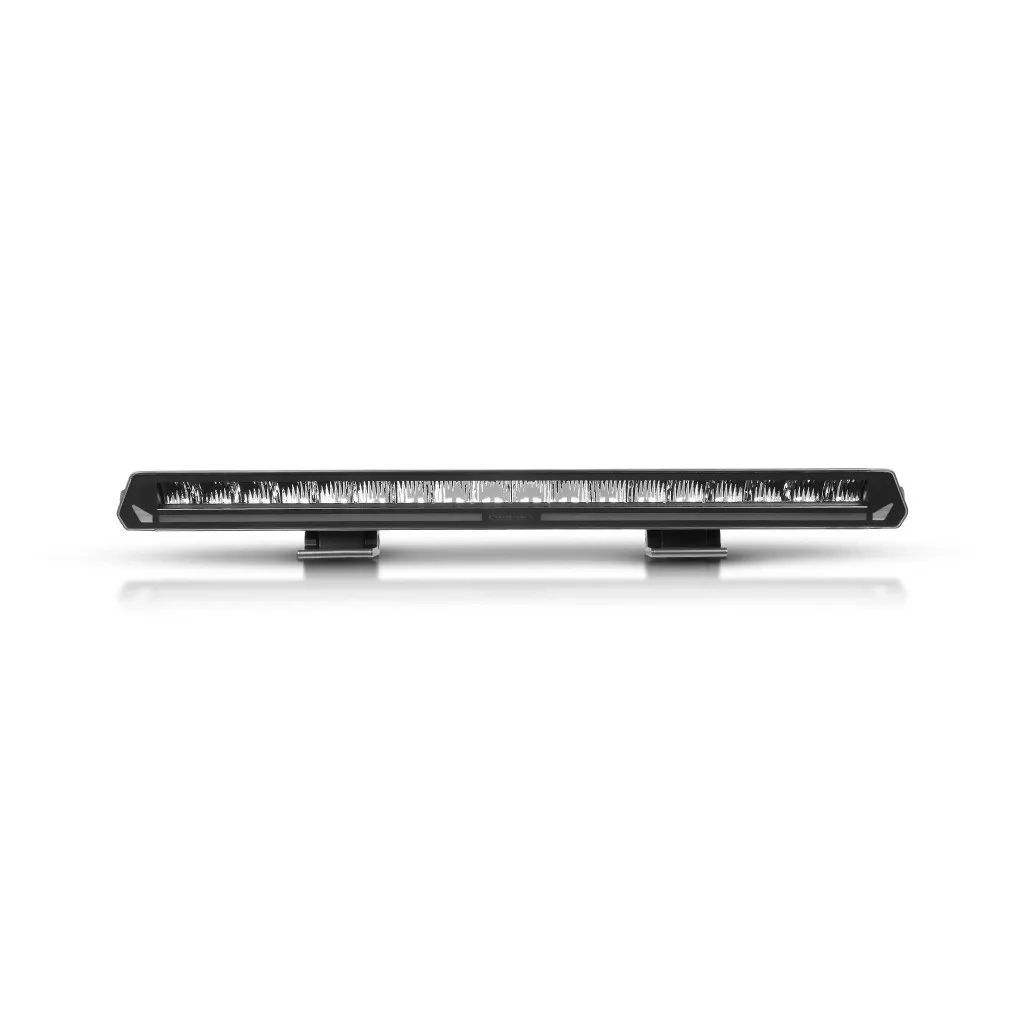

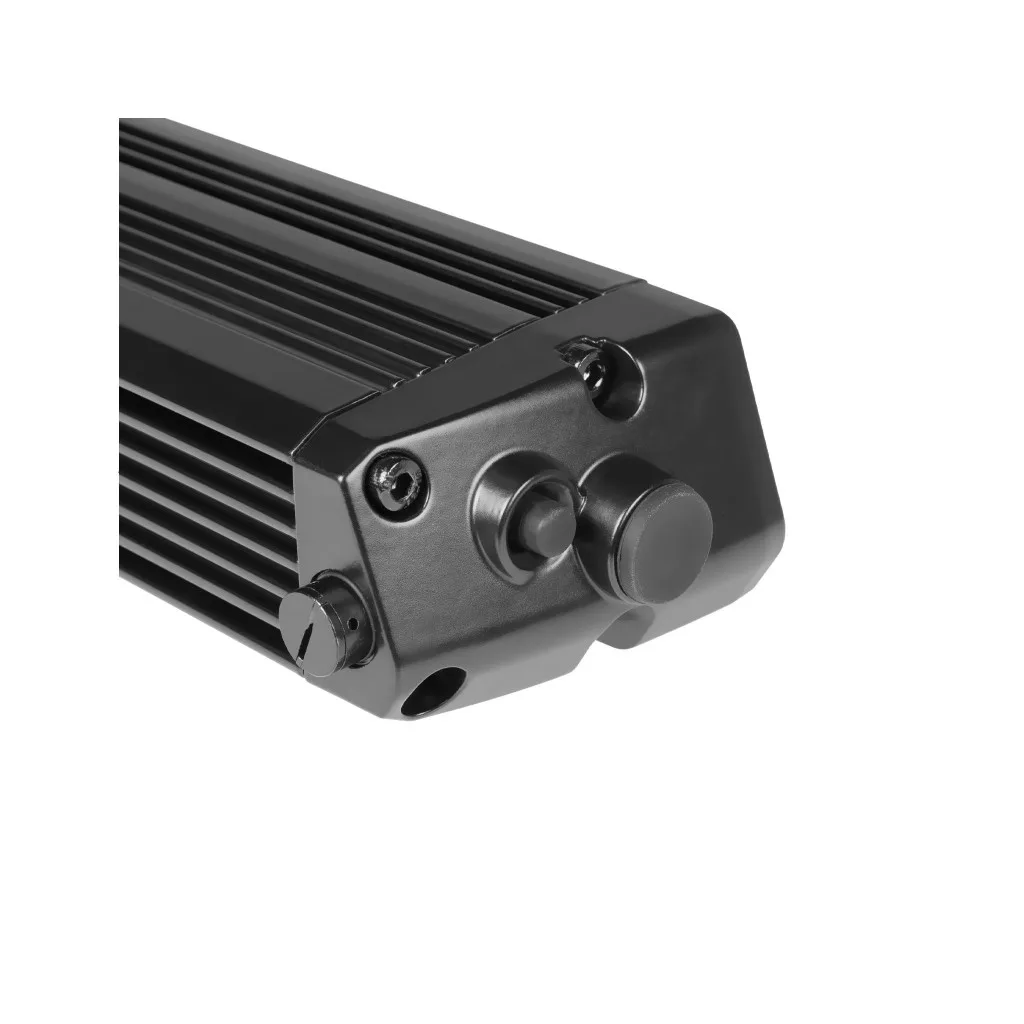

Led bar Purelux Panther Aero S540 - Straight / 54 cm / 108W / Ref. 25
189.08 €
(w/o VAT:148.88 €)
(w/o VAT:148.88 €)
Led bar Purelux Panther Aero S540 - Straight / 54 cm / 108W / Ref. 25
Item number:
HS18823
Available to order
Super slim and aerodynamic led bar, equipped with e.g. with two power modes and a wonderful combinated light pattern. There is also a dual-color parking light! Measured light output 8151 lm, measured range 479 m @ 1 lux.
Color temperature :
5 000 K
Rated power :
108 W
Rated power:
108 W
Rated voltage :
9-36V
Connecting :
Deutsch (DT04-2P, DT06-2S)
Light intensity :
7 500 lm
Light intensity:
8151/3241 lm
Standards:
ECE R10, R149
189.08 €
(w/o VAT:148.88 €)
(w/o VAT:148.88 €)
pcs
-
- Make and model: Purelux Panther Aero S540

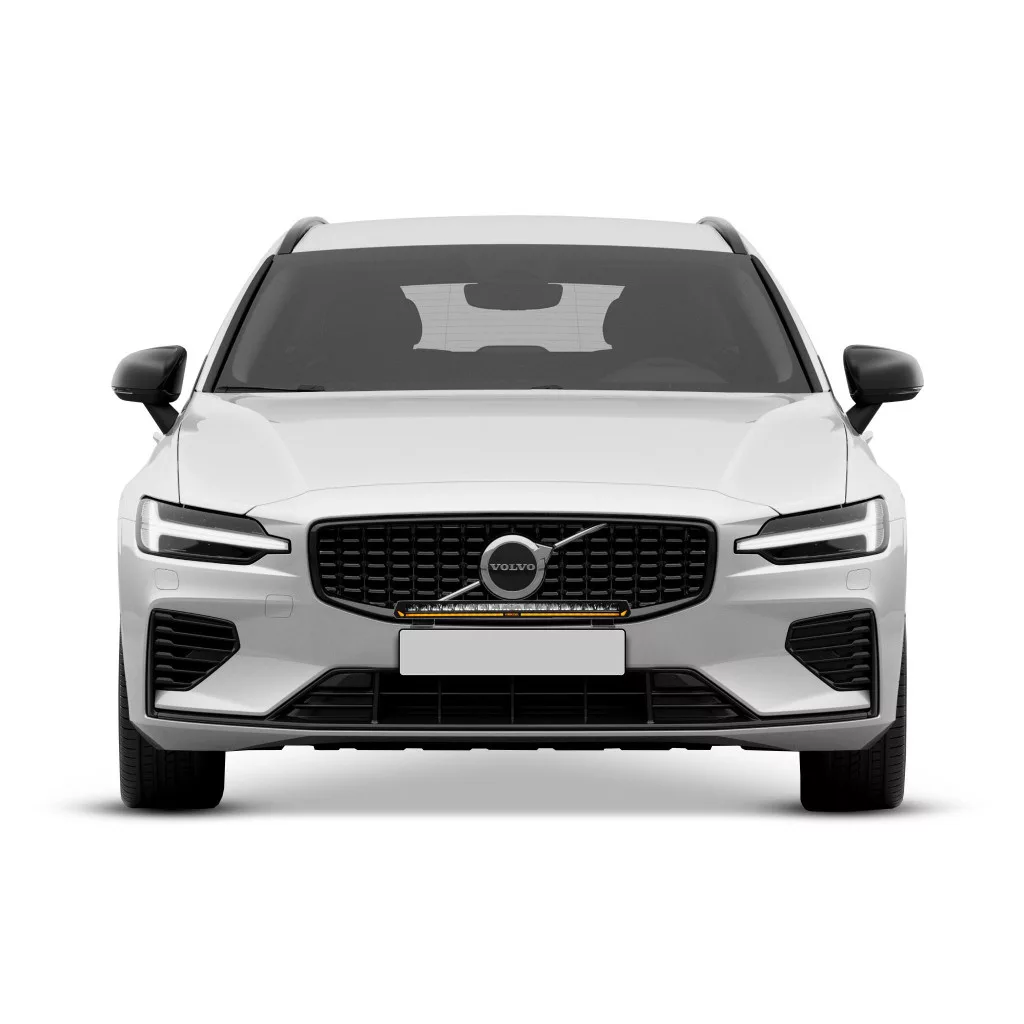

- Purpose: As an auxiliary light in cars / Off-Road vehicles / Work vehicles
- LED: 18 x 6W
- Operating voltage: 9-36 V (DC)
- Reference number: 25
- Rated power: 108 W
- Power consumption measured by the luminaire
- Purelux PowerBoost®: 10.41A @ 12V / 4.12A @ 24V
- Road mode: 2.91A @ 12V / 1.29A @ 24V
- Power measured by the photometer
- Purelux PowerBoost®: 125 W @ 12V / 99 W @ 24V
- Road mode: 35 W @ 12V / 31 W @ 24V
- Manufacturer's declared light output: 7500 lm (Purelux PowerBoost®)
- Measured by photometer: 8151 lm (Purelux PowerBoost®)
- Lamp measured: 3241 lm (Road mode)

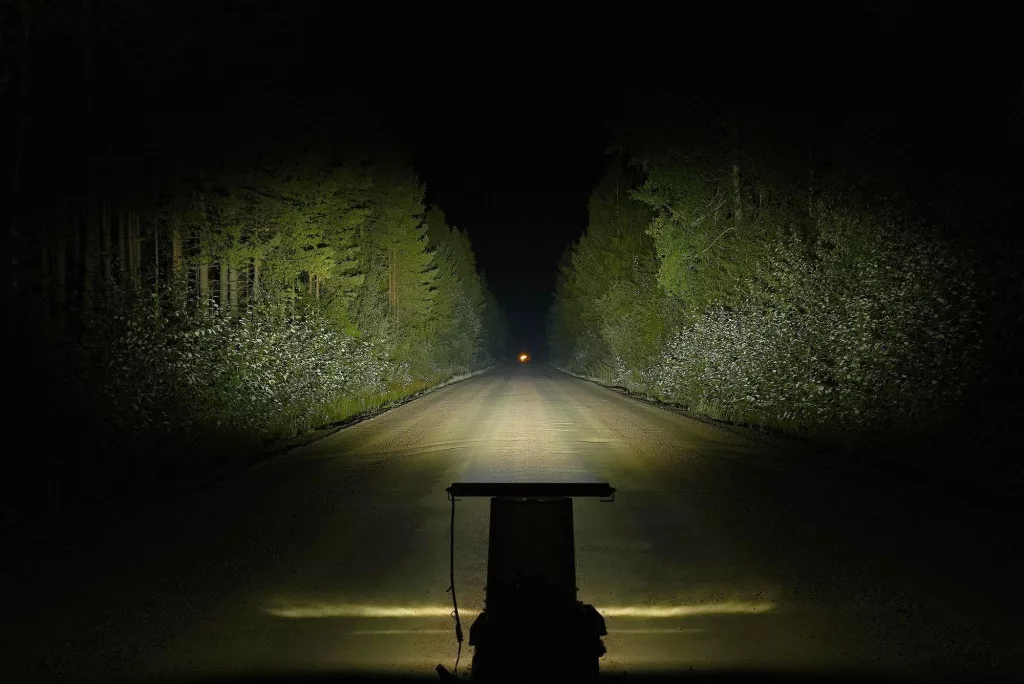

- Range measured by the luminaire: 479 m @ 1 lux / 958 m @ 0.25 lux / (Purelux PowerBoost®)
- Range measured by the photocell: 303 m @ 1 lux / 606 m @ 0.25 lux (Road mode)
- Manufacturer's stated colour temperature: 5000 K
- Measured by the photometer: 5050 K

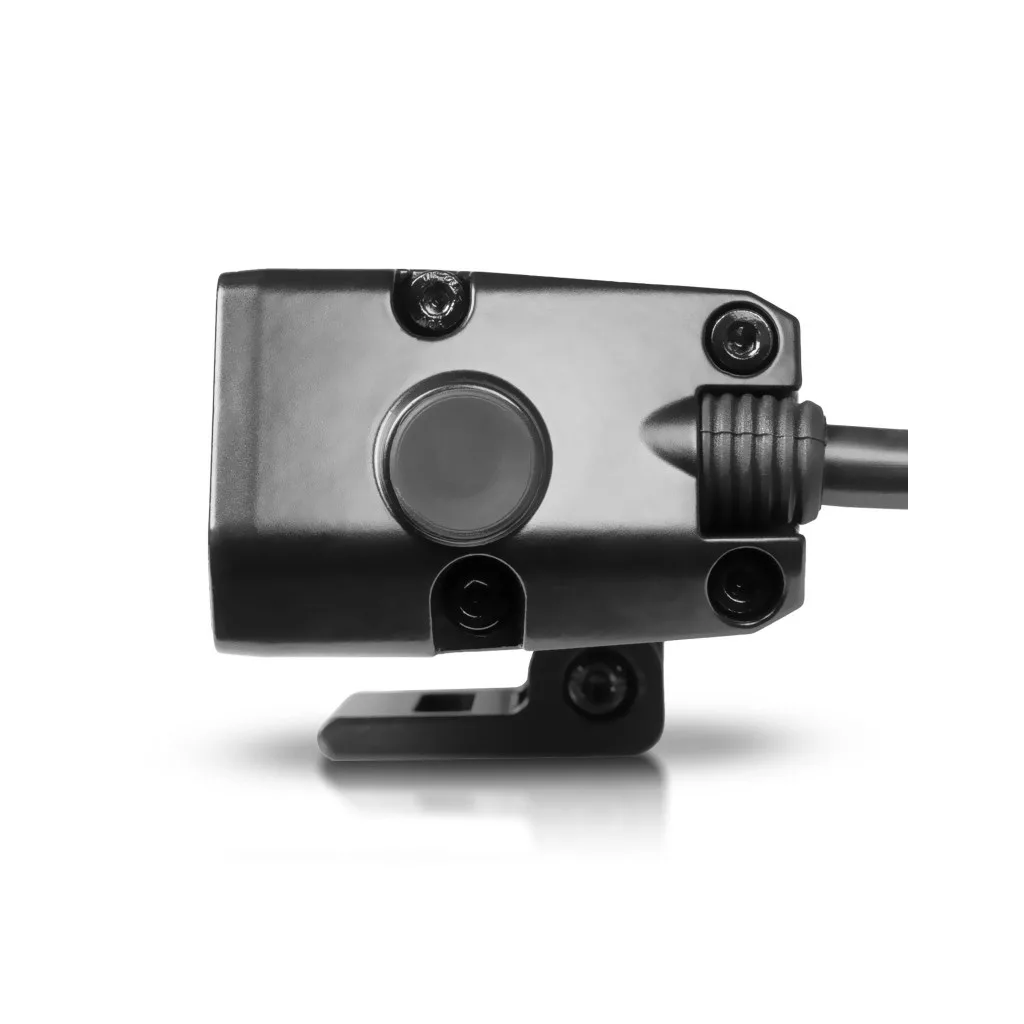

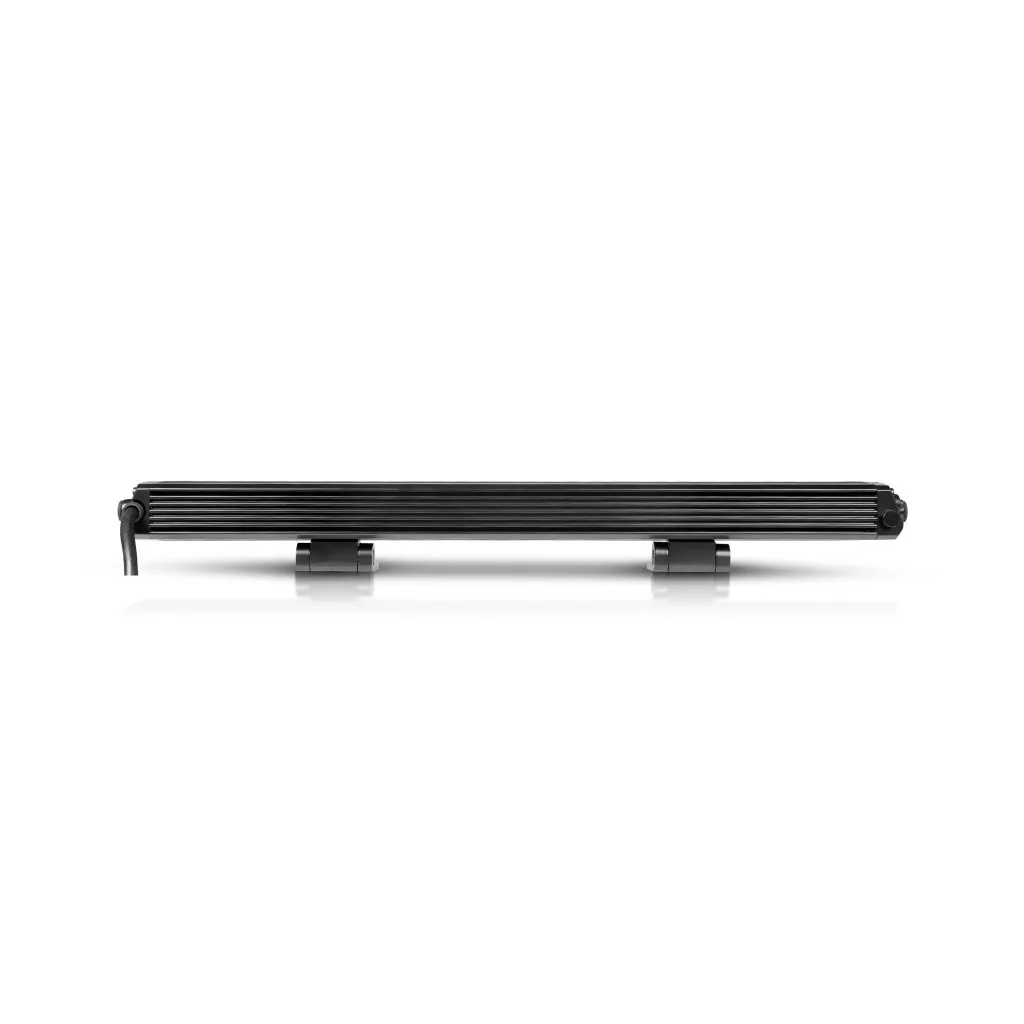

- Mounting: end feet, width adjustable lower feet
- Connector: Deutsch DT-2

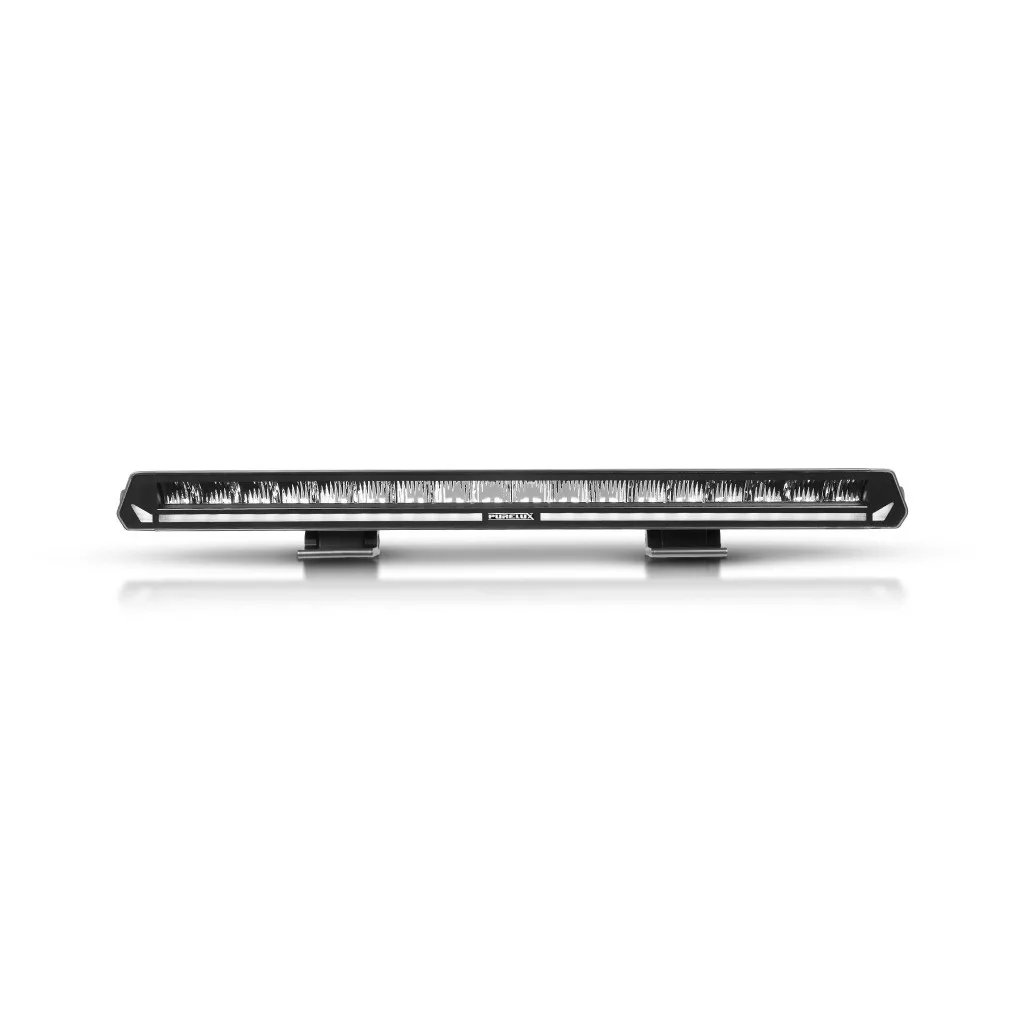

- Parking light + wires separately
- Cable length: 50 cm
- Dimensions: 540 x 42 x 62.5 mm (Width x Height x Depth)
- Height with end legs: 57 mm
- Height with lower legs: 62 mm
- Weight: 1500 g
- IP rating: IP68/IP69K
- Approvals: CE, ECE R10, R148, R149*
- * Roadworthiness approval does not apply to PowerBoost® mode
- Warranty: 24 months
- Importer: Handshake.fi
Installation guide
Click here for the manufacturer's wiring and installation instructions (EN/SE/NO/DK/EN).
Basic delivery content
- Purelux Panther Aero S540
- 2 x Width-adjustable footrests
- 2 x Headrests
- Power cable connector
- Wiring and installation instructions (EN/SE/NO/DK/EN)
Producer:
Purelux
Street legal :
igen (ECE engedélyes)
Type of protection:
IP68/IP69K
Light distance at 1lx:
470 m
Manufacturer logo:
Weight:
1.6 kg/pcs
