Specifications

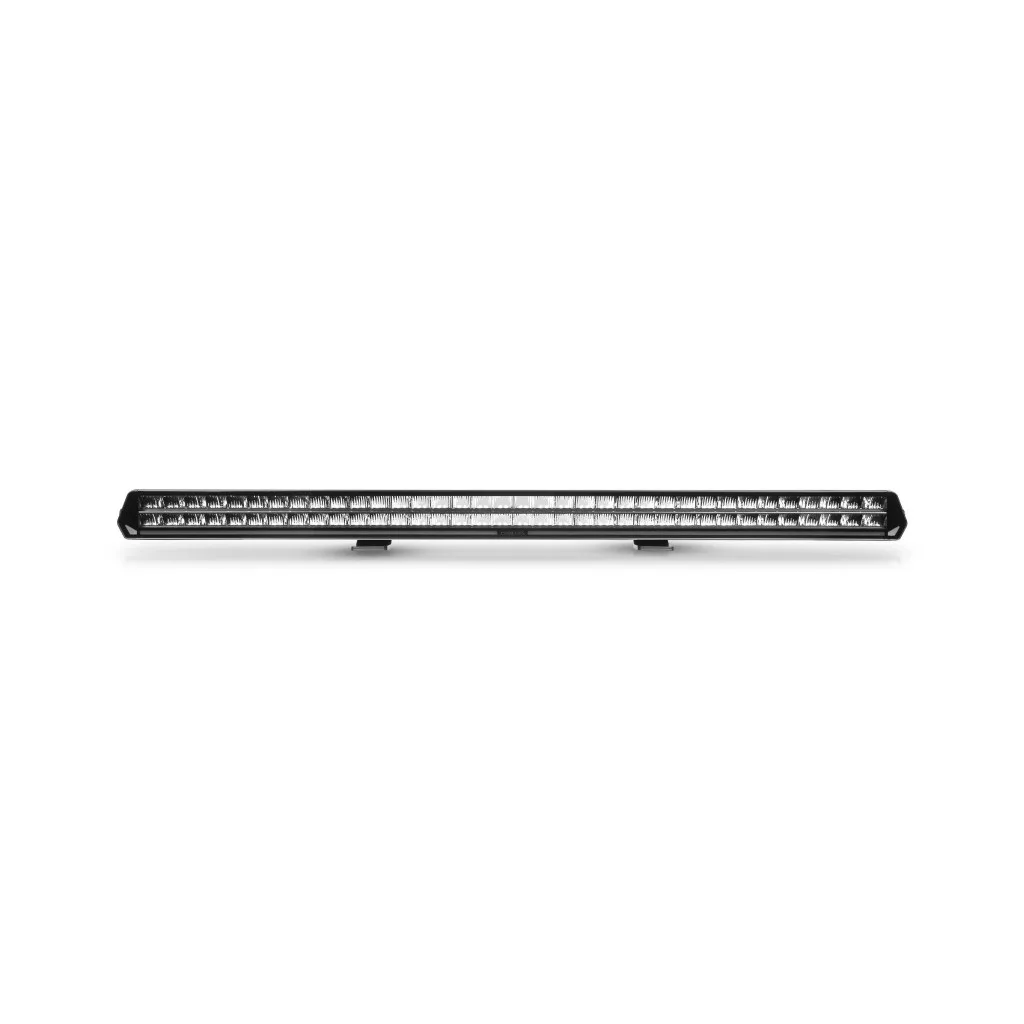

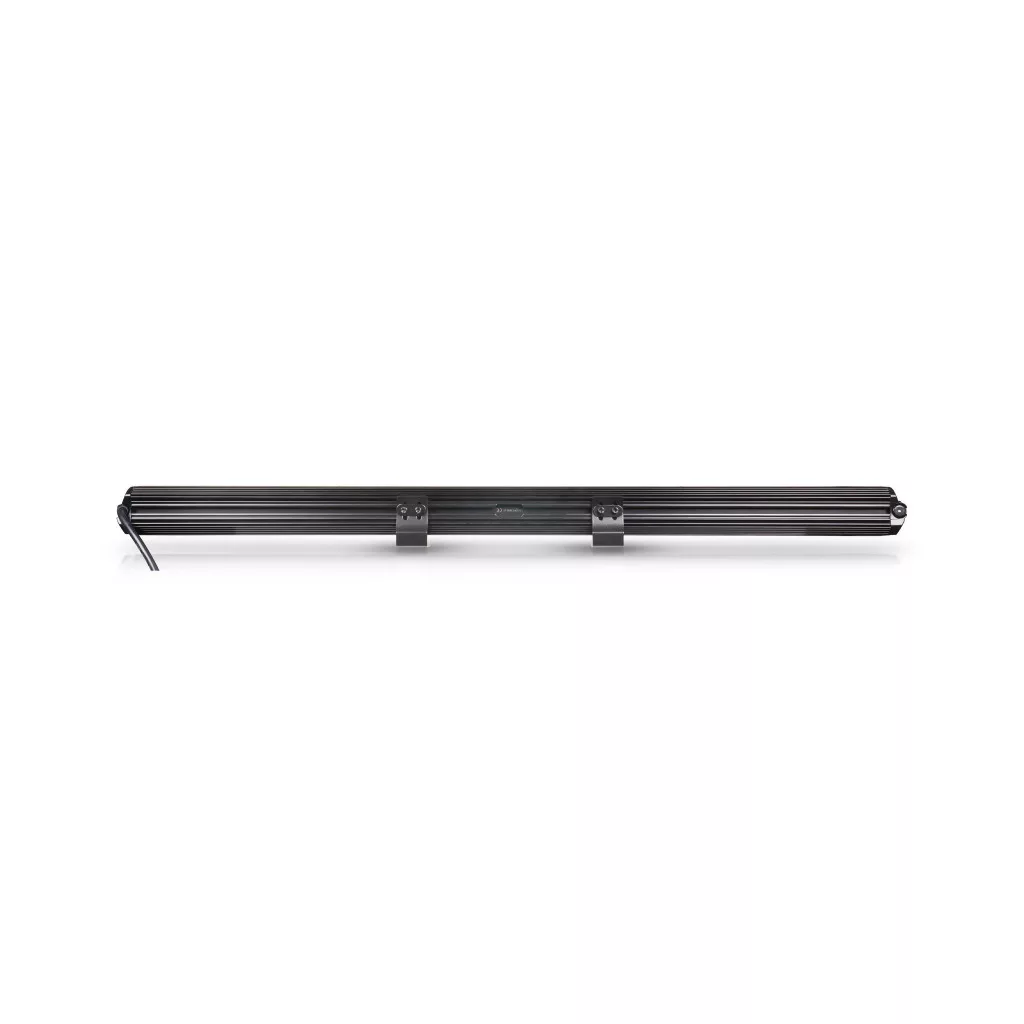

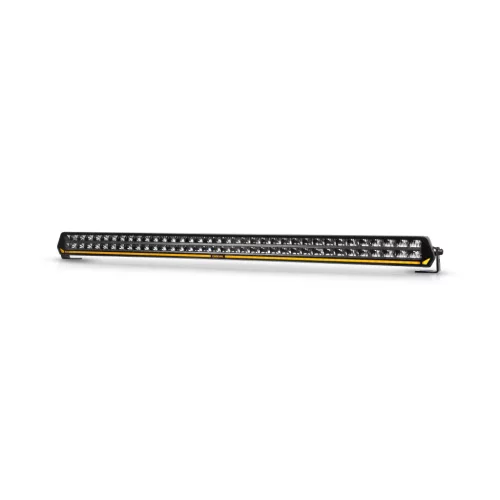

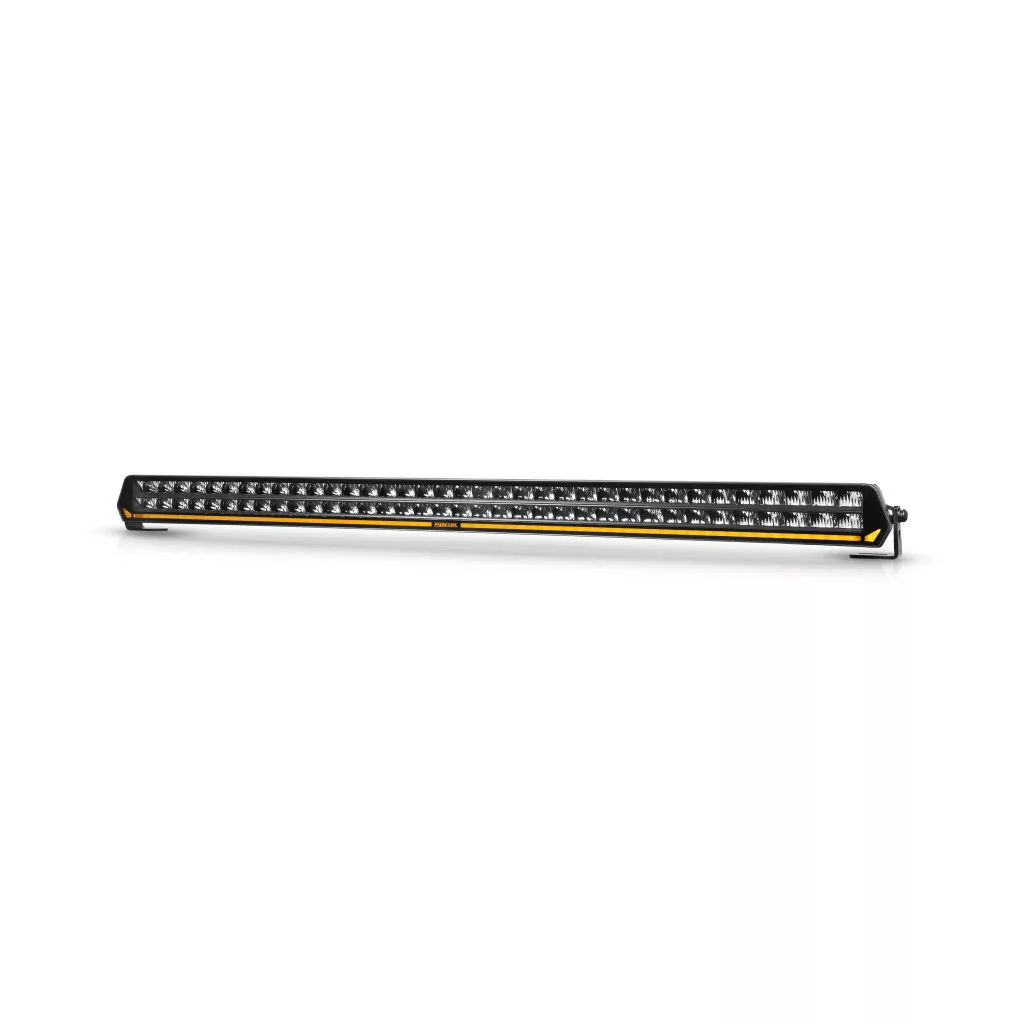

- Brand and model: Purelux Panther S1050 Gen3
- Purpose: As an auxiliary light in cars / Off-Road vehicles / work machines
- LED: 72 x 6W
- Operating voltage: 9-36 V (DC)
- Reference number: 50
- Calculated power: 432 W
- Power consumption measured by Valostore
- Purelux PowerBoost®: 35.83A @ 12V / 14.95A @ 24V
- Road mode: 2A @ 24V
- Power measured by Valostore
- Purelux PowerBoost®: 430W @ 12V / 359 W @ 24V
- Road mode: 48W @ 24V
- Parking light: 7 W
- Light output declared by the manufacturer: 26600 lm (Purelux PowerBoost®)
- Measured by Valostore: 28900 lm (Purelux PowerBoost®)
- Measured by Valostore: 5995 lm (Traffic mode)
- Range measured by Valostore: 880 m @ 1 lux / 1760 m @ 0.25 lux (Purelux PowerBoost®)
- Range measured by Valostore: 362 m @ 1 lux / 724 m @ 0.25 lux (Traffic mode)
- Color temperature stated by the manufacturer: 5000 K
- Measured by Valostore: 5065 K
- Fastening: End legs, width-adjustable lower legs
- Connector: Straight wires, no connector
- Cable length: 220 cm
- Dimensions: 1026 x 66 x 70 mm (Width x Height x Depth)
- Height with end legs: 78 mm
- Height with lower legs: 81.5 mm
- Weight: 4625 g
- IP rating: IP69K
- Approvals: ECE R10, R148, R149*
- *Road traffic approval does not apply to the Purelux PowerBoost® mode
- Other: The panel has ready-made places for stabilizers
- Warranty: 24 months
- Importer: Handshake.fi
Installation guide
You can find the manufacturer's connection and installation instructions (FI/SE/NO/DK/EN) by clicking here.
