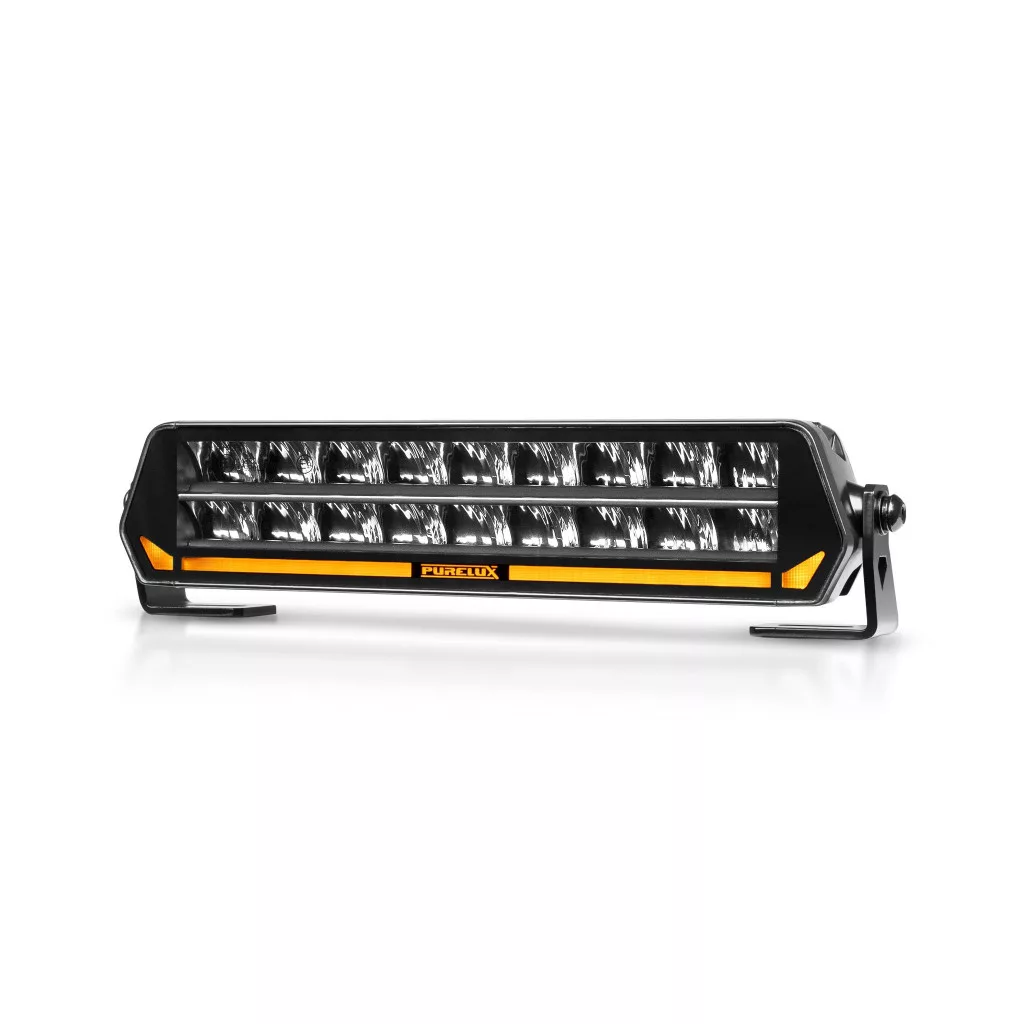

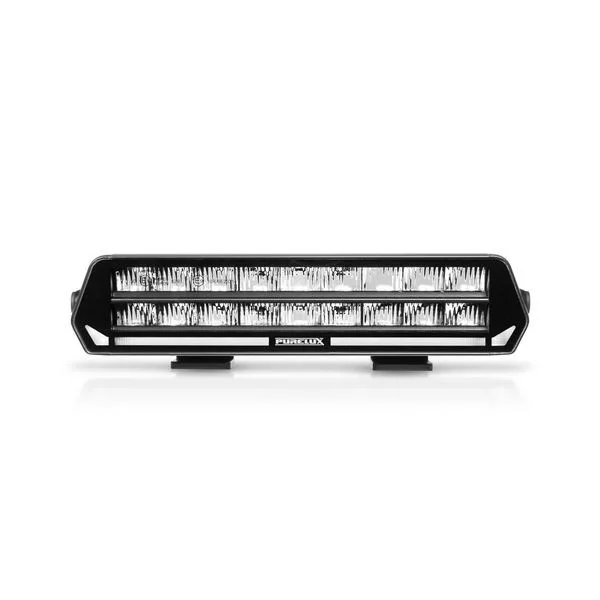

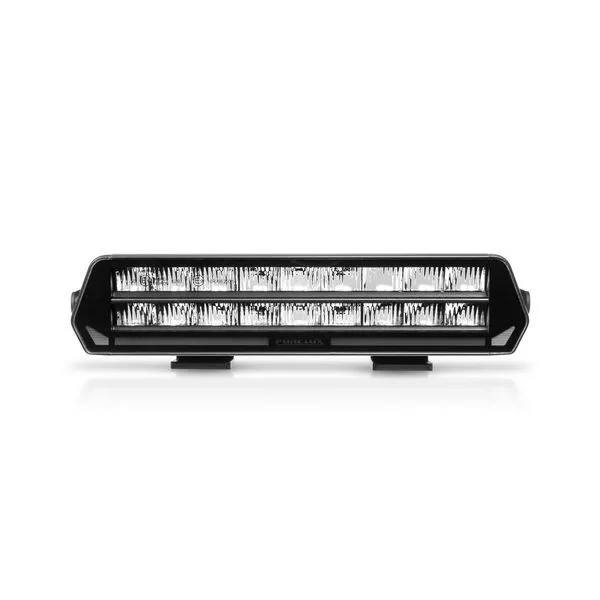

Led bar Purelux Panther S300 - Straight / 30 cm / 108W / Ref. 30
169.89 €
(w/o VAT:133.77 €)
(w/o VAT:133.77 €)
Led bar Purelux Panther S300 - Straight / 30 cm / 108W / Ref. 30
Item number:
HS18817
Available to order
A highly efficient led bar, equipped with PowerBoost® technology and a broad light pattern, whose performance conquers the darkest of nights. Key features of the light include two distinct power modes, a dual-color parking light, edgeless lens, unbreakable structure, and sleek dark optics. Measured light output: 7561 lm, measured range: 481 m @ 1 lux
Color temperature :
5 000 K
Rated power :
108 W
Rated power:
108 W
Rated voltage :
9-32V
Connecting :
Deutsch (DT04-2P, DT06-2S)
Light intensity :
7 900 lm
Light intensity:
7561/4852 lm
Standards:
ECE R10, R149
169.89 €
(w/o VAT:133.77 €)
(w/o VAT:133.77 €)
pcs
-
- Brand and model: Purelux Panther S300 Gen3

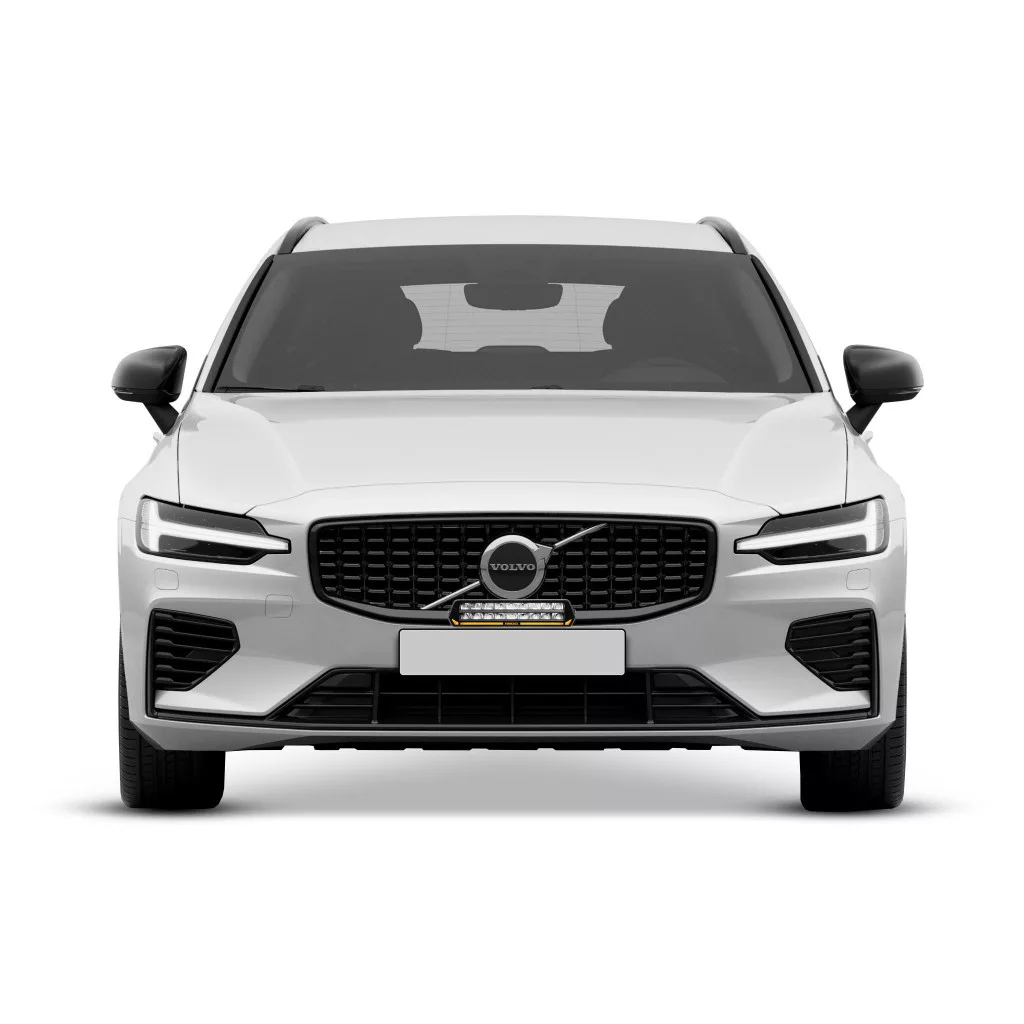

- Purpose: As an auxiliary light in cars / Off-Road vehicles / work machines
- LED: 18 x 6W
- Operating voltage: 9-36 V (DC)
- Reference number: 30
- Calculated power: 108 W
- Power consumption measured by Valostore
- Purelux PowerBoost®: 4.66A @ 24V
- Road mode: 2.29A @ 24V
- Power measured by Valostore
- Purelux PowerBoost®: 118W @ 24V
- Road traffic mode: 55 W @ 24V
- Parking light: 4 W
- Light output declared by the manufacturer: 7900 lm (Purelux PowerBoost®)
- Measured by Valostore: 7561 lm (Purelux PowerBoost®)
- Measured by Valostore: 4852 lm (Traffic condition)
- Range measured by Valostore: 481 m @ 1 lux / 962 m @ 0.25 lux (Purelux PowerBoost®)
- Range measured by Valostore: 390 m @ 1 lux / 780 m @ 0.25 lux (Traffic mode)
- Color temperature stated by the manufacturer: 5000 K
- Measured by Valostore: 5026 K

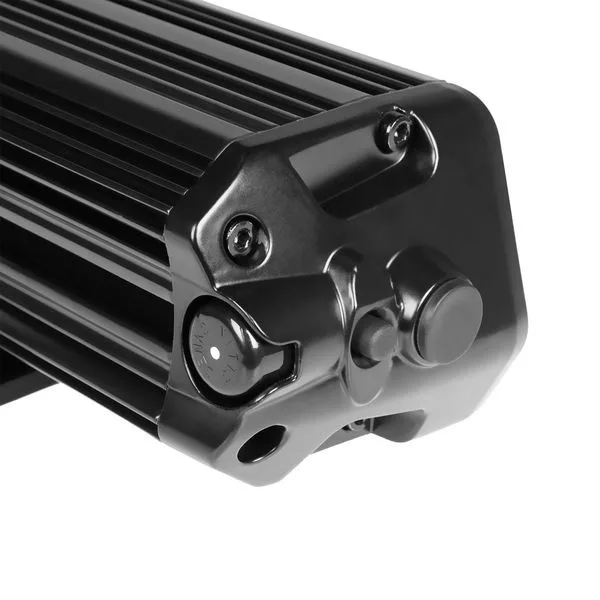

- Fastening: End legs, width-adjustable lower legs
- Connector: DT-2
- Cable length: 50 cm
- Dimensions: 296 x 66 x 70 mm (Width x Height x Depth)
- Height with end legs: 78 mm
- Height with lower legs: 81.5 mm
- Weight: 1315 g
- IP rating: IP69K
- Approvals: ECE R10, R148, R149*
- *Road traffic approval does not apply to the Purelux PowerBoost® mode
- Other: The panel has ready-made places for stabilizers
- Warranty: 24 months
- Importer: Handshake.fi
Installation guide
You can find the manufacturer's connection and installation instructions (FI/SE/NO/DK/EN) by clicking here.
Basic delivery content
- Purelux Panther S300 Gen3
- 2 x Width-adjustable lower legs
- 2 x End feet
- Connection and installation instructions (FI/SE/NO/DK/EN)
Producer:
Purelux
Street legal :
igen (ECE engedélyes)
Type of protection:
IP69K
Light distance at 1lx:
470 m
Manufacturer logo:
Weight:
1.4 kg/pcs
