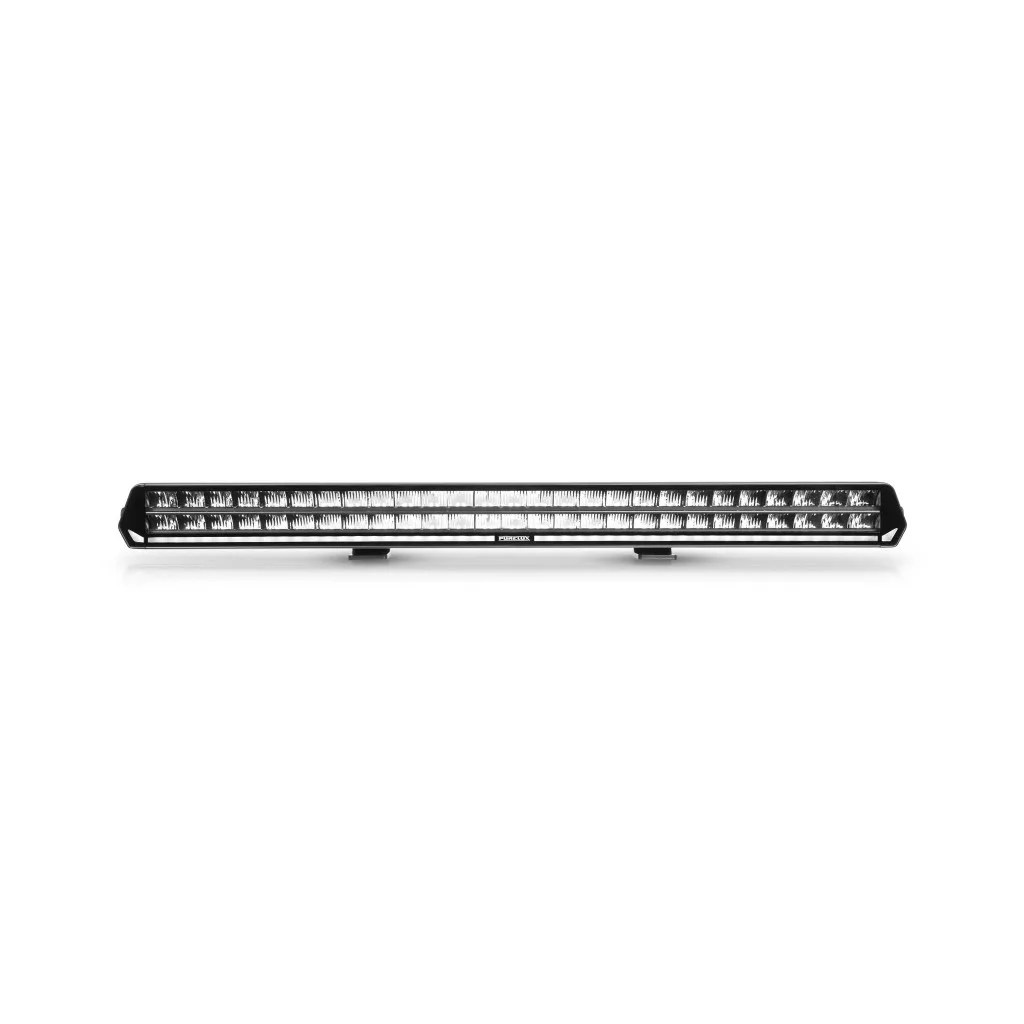

Led bar Purelux Panther S800 - Straight / 78 cm / 324W / Ref. 50

• PowerBoost® technology
• Unfathomable size-performance ratio!

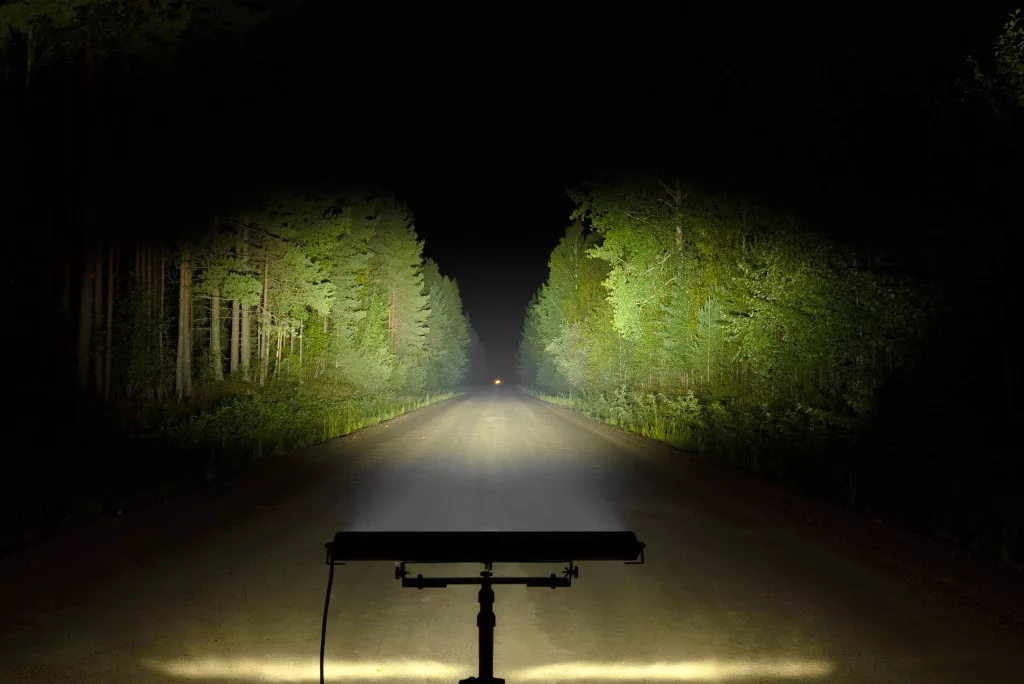

• A long-range combination beam
• 21991 lumens, 729 meters (@ 1 lux)
• Pleasant 5000K color temperature

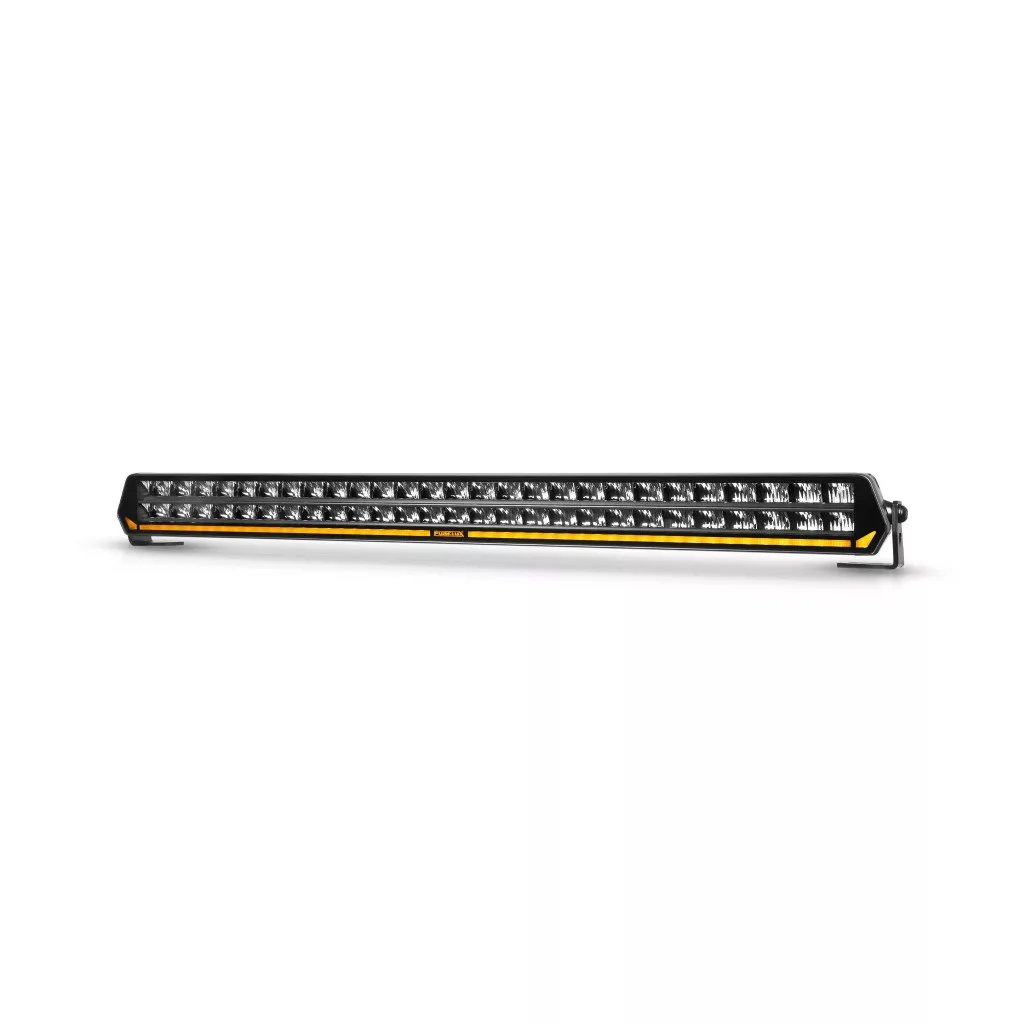

• Stylish two-color parking light
• Frameless Lexa polycarbonate lens
• Easy attachment with end or bottom legs

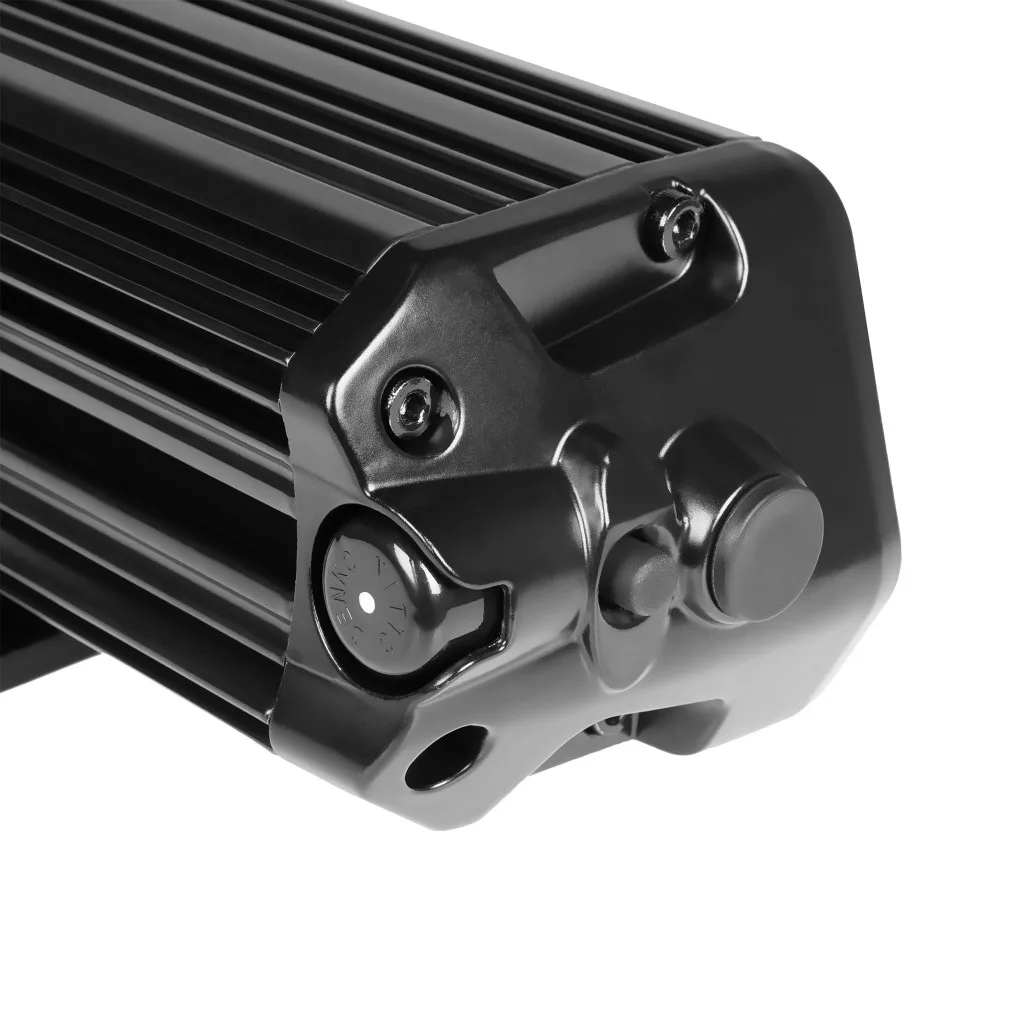

The Purelux Panther S800 Gen3 is an extremely powerful led bar that represents the top of its class in terms of performance and light beam as well as appearance. This light has two different power modes, thanks to which you can switch on either the more moderate power mode approved for road traffic or the PowerBoost® mode that releases all the light power. The unlimited PowerBoost® mode raises the driving experience on sections that require maximum light output to a completely new level, as the light output is measured up to 21991 lumens and the range up to 729 meters (@ 1 lux). The power mode can be changed easily by pressing the button on the body, so there is no need to make laborious connections! When the untamed performance of the Panther is combined with a great design and one of the best combination headlights on the market, it goes without saying why it jumps to the top of its size class in every area!

Specifications

• Brand and model: Purelux Panther S800 Gen3
• Purpose: As an auxiliary light in cars / Off-Road vehicles / work machines
• LED: 54 x 6W
• Operating voltage: 9-36 V (DC)
• Reference number: 50
• Calculated power: 324 W
• Power consumption measured by Valostore
  • Purelux PowerBoost®: 12A @ 24V
  • Road mode: 2.41A @ 24V
• Power measured by Valostore
  • Purelux PowerBoost®: 288W @ 24V
  • Road mode: 58W @ 24V
  • Parking light: 6 W
• Light output declared by the manufacturer: 23300 lm (Purelux PowerBoost®)
  • Measured by Valostore: 21991 lm (Purelux PowerBoost®)
  • Measured by Valostore: 5830 lm (Road traffic mode)
• Range measured by Valostore: 729 m @ 1 lux / 1458 m @ 0.25 lux (Purelux PowerBoost®)
• Range measured by Valostore: 379 m @ 1 lux / 758 m @ 0.25 lux (Traffic mode)
• Color temperature stated by the manufacturer: 5000 K
  • Measured by Valostore: 4899 K

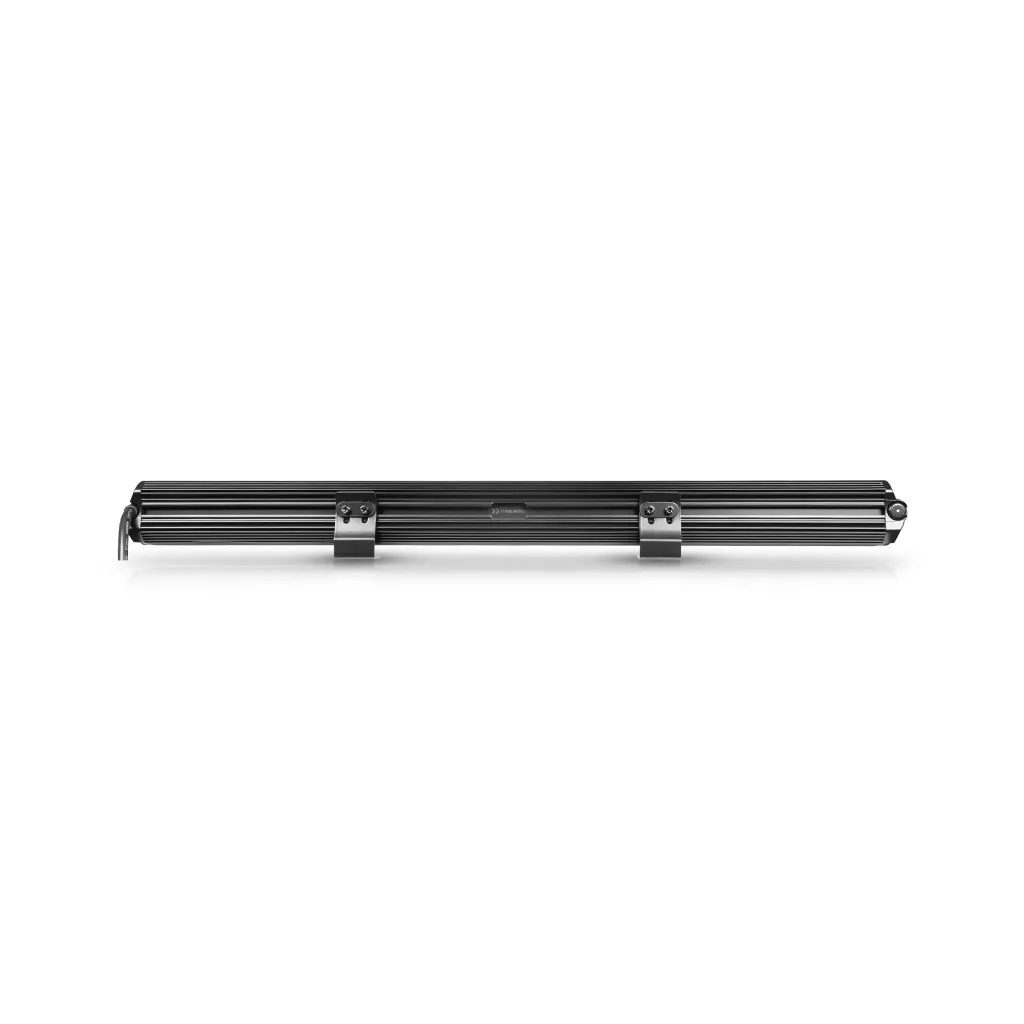

• Fastening: End legs, width-adjustable lower legs
• Connector: Straight wires, no connector
• Cable length: 100 cm

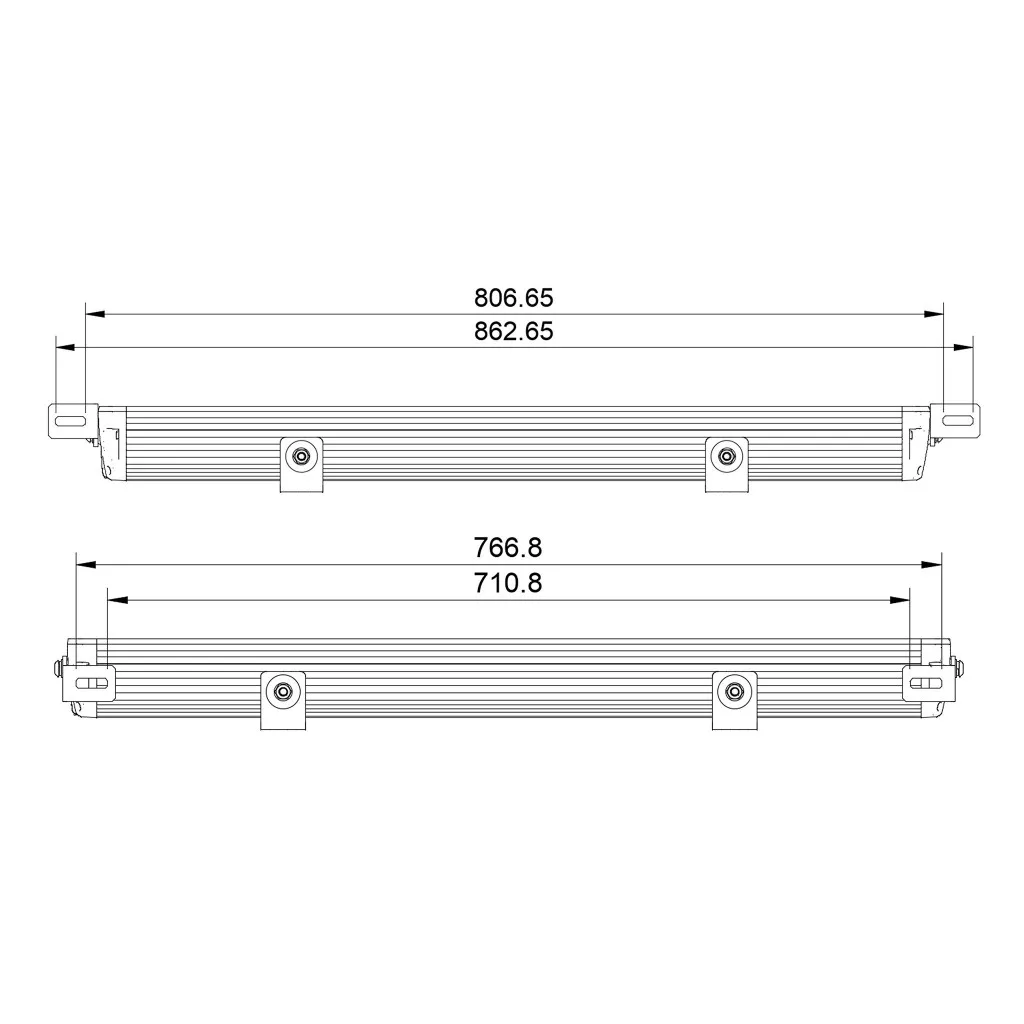

• Dimensions: 783 x 66 x 70 mm (Width x Height x Depth)
  • Height with end legs: 78 mm
  • Height with lower legs: 81.5 mm
• Weight: 3445 g
• IP rating: IP69K
• Approvals: ECE R10, R148, R149*
  • *Road traffic approval does not apply to the Purelux PowerBoost® mode
• Other: The panel has ready-made places for stabilizers
• Warranty: 24 months

Installation guide

You can find the manufacturer's connection and installation instructions (FI/SE/NO/DK/EN) by clicking here.

Basic delivery content

• Purelux Panther S800 Gen3
• 2 x Width-adjustable lower legs
• 2 x End feet
• Connection and installation instructions (FI/SE/NO/DK/EN)
