Led bar Strands Dark Knight Nuuk 20" - Straight / 52 cm / 94W

Strand's Dark Knight Nuuk 20" is a new generation led bar specially designed for electric vehicles. Nuuk offers great performance with lower power consumption, and the ramp's high-quality light cone produces, according to the manufacturer, a maximum output of 9500 lumens with an impressive range of 452 m @ 1 lux. The powerful combined light cone shines both far and wide, so that even game that may suddenly jump forward is detected in time. The led bar has a very low profile, which makes it easy to install even in tight spaces where larger led bars do not fit. The Dark Knight Nuuk has a modern look, and its dark structure and optics allow discreet and stylish mounting practically anywhere. In addition, the Dark Knight Nuuk has both orange and white parking lights, which complement the modern look of the ramp.

Dark Knight Nuuk is designed for challenging conditions and hard use, which is made thanks to the impact-resistant aluminum structure and the lens in practically unbreakable polycarbonate. Even the ramp's mounts are also made of materials that are highly resistant to corrosion, road salt and other stresses from nature, which makes the extra light, down to the smallest detail, a whole that is suitable for the tough conditions in the north. Dark Knight Nuuks have a completely rimless lens, which reduces the accumulation of snow, ice and dirt in front of the lens. In accordance with its optimization for tough use, Dark Night Nuuk is completely dust and waterproof according to IP68. Overall, this extra light is a perfect combination of light effect, design and durability. The light is approved for road traffic according to standards R7 and R112.

The extra light comes with both traditional side mounts and adjustable rail mounts, specifically to increase mounting options. The extra light's power cord comes with a DT-4 connector that makes installation easy.

With its wide operating voltage (9-36V), the additional light is suitable for installation in both 12V and 24V systems. The power cord does not have a ready-made connector, you must make the connections to the lamp yourself. The lamp is protected against radio interference in accordance with the ECE R10 standard. Three year (36 months) warranty!

Technical specification

• Brand and model: Extra light Strands Dark Knight Nuuk 20" - Straight / 52 cm / 94W
• Area of use: As additional light for vehicles / work machines
• LED: 12 x LP
• Operating voltage: 9-36 V
• Reference number: 40
• Estimated power: 120 W
• Manufacturer's reported luminous flux: 9500 lm
• Manufacturer's reported range: 452 m @ 1 lux
• Color temperature: 6000 K

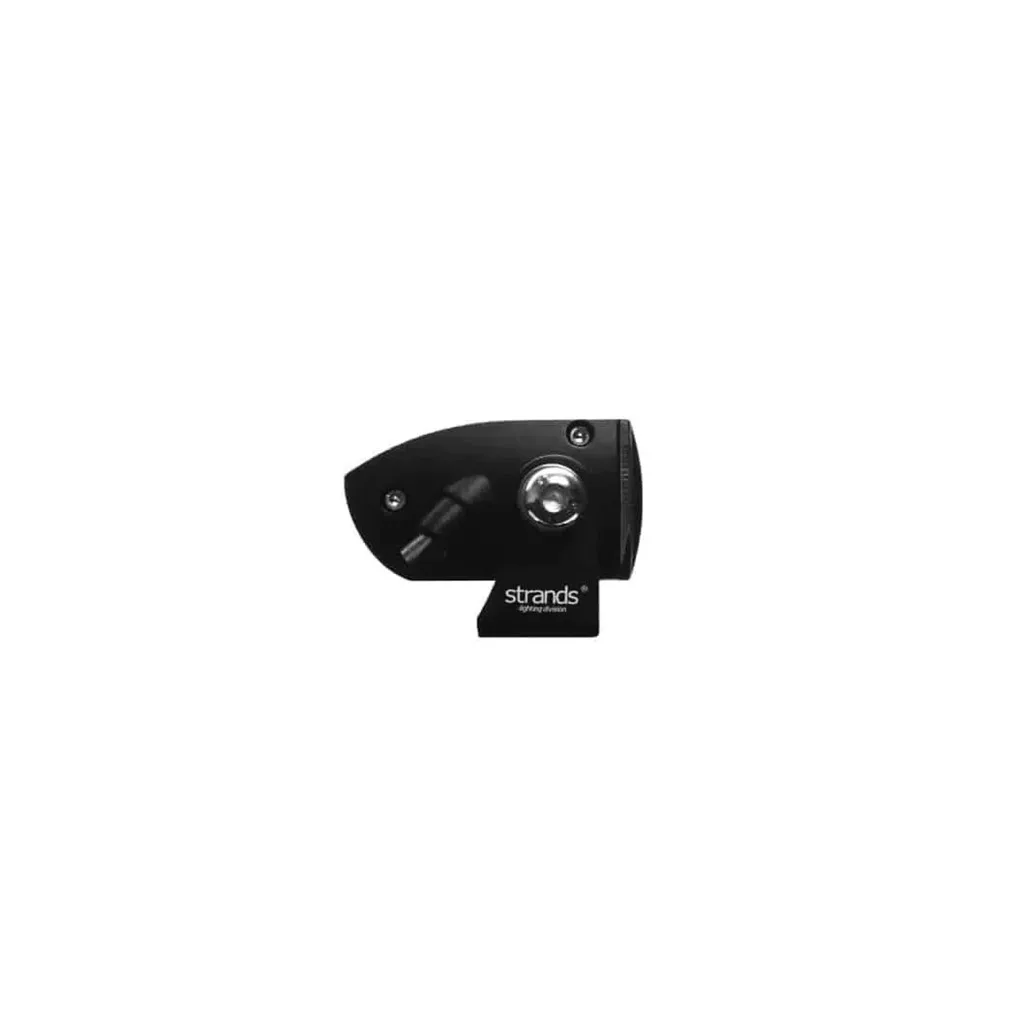

• Mounting: Side or adjustable rail mounts
• Connector: DT-4 connector
• Dimensions: 515 x 69.8 x 38.5 mm (Length x Depth x Height)
  • Height with mounting feet: 51.3 mm
• Materials: Aluminum frame, polycarbonate lens
• Cable length: 500 mm
• Weight: 1200 g
• Protection class: IP68/IP69K
• Approvals: EMC: ECE: R10, R7, R112
• Warranty: 36 months

Installation guide

Coupling

• Red: Stream
• Black: Earth
• White: White parking light
• Yellow: Orange parking light
