Purelux 7200 - Round / 18 cm / 108W / Ref. 25
150.71 €
(w/o VAT:118.67 €)
(w/o VAT:118.67 €)
Purelux 7200 - Round / 18 cm / 108W / Ref. 25
Item number:
HS16336-15272
Available to order

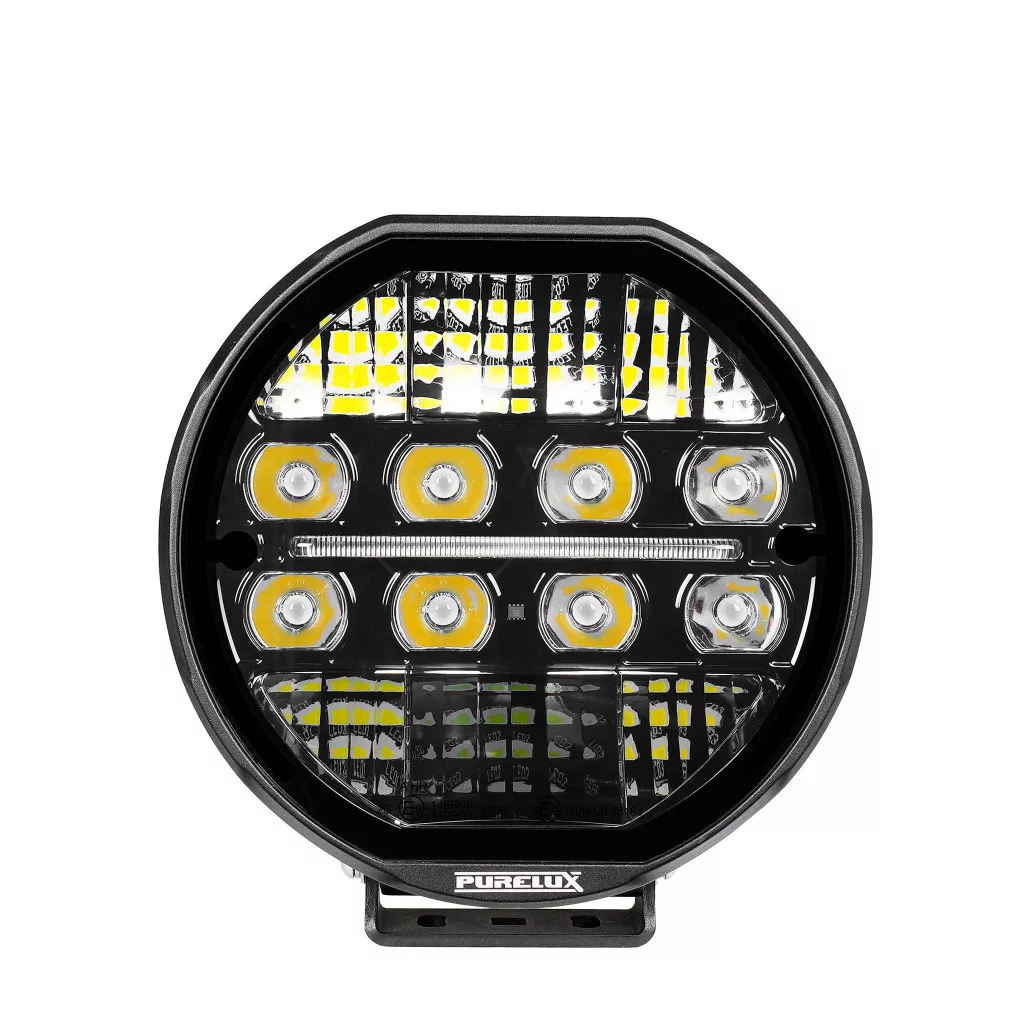

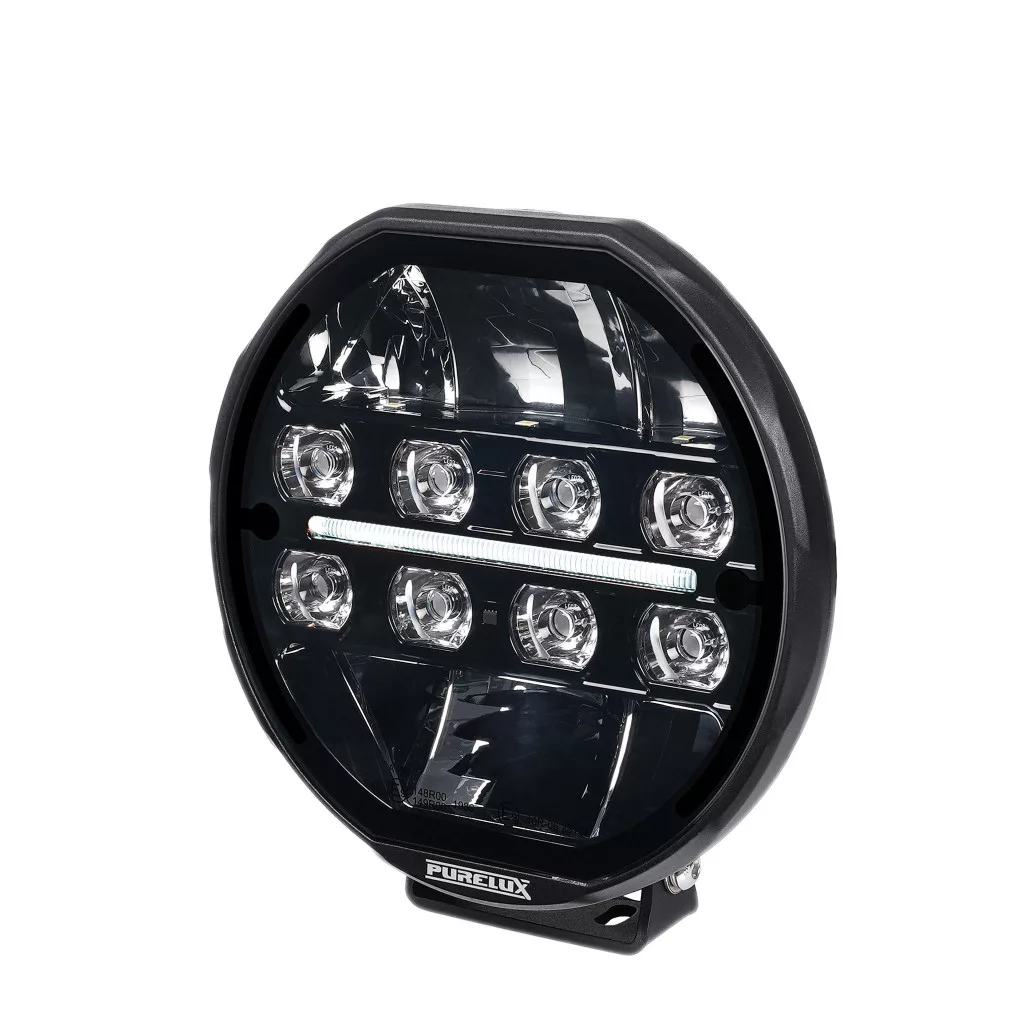

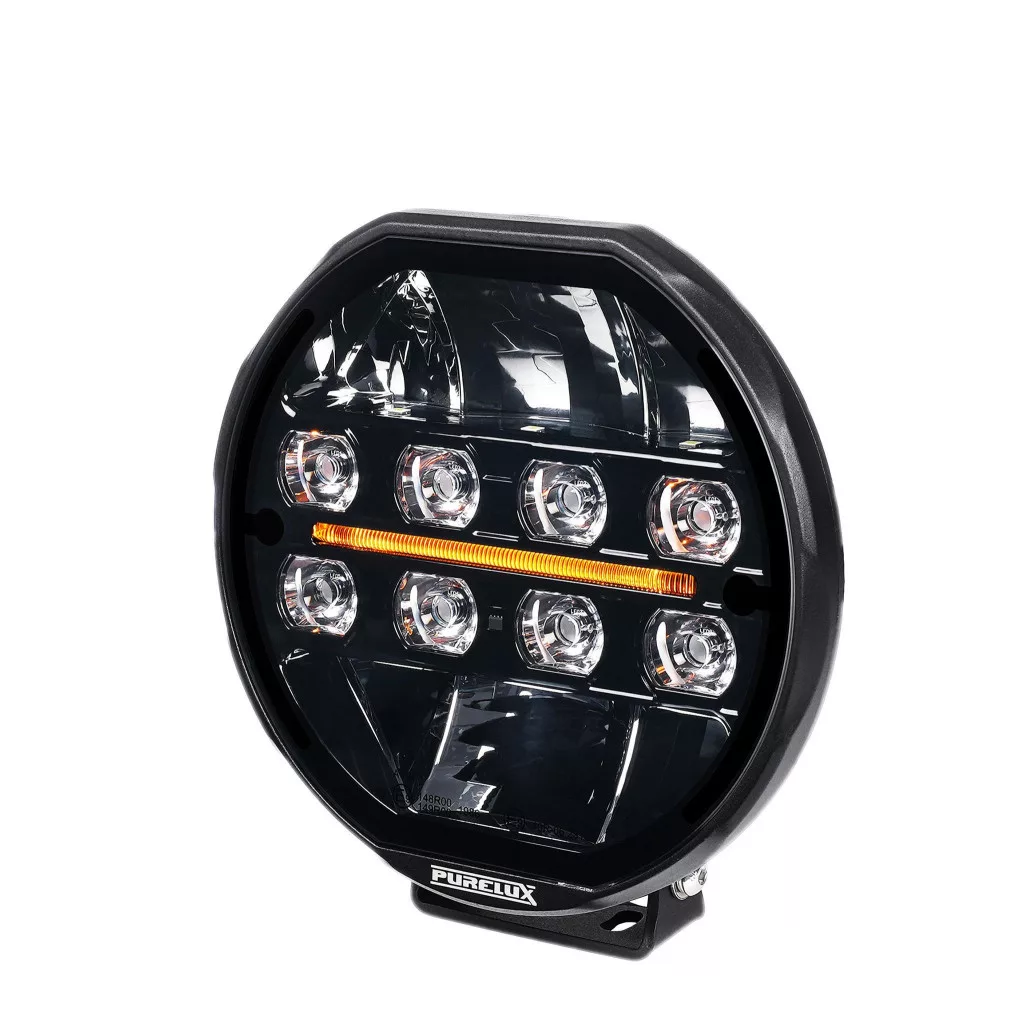

A very high-performance round auxiliary light which top features include e.g. Purelux PowerBoost® technology, exceptionally good combination beam and two-color (orange and white) parking light! Measured light output 6562 lm, measured range 468 m @ 1 lux.
Color temperature :
5 000 K
Color temperature :
5000 K
Rated power :
108 W
Rated voltage :
9-36 V (DC)
Connecting :
Deutsch (DT04-2P, DT06-2S)
Light intensity :
8 800 lm
Light intensity:
6562/4073 lm
Standards:
ECE R7, R10, R112
150.71 €
(w/o VAT:118.67 €)
(w/o VAT:118.67 €)
pcs
We also recommend the following product as an accessory
Technical information
- Brand and model: Purelux 7200

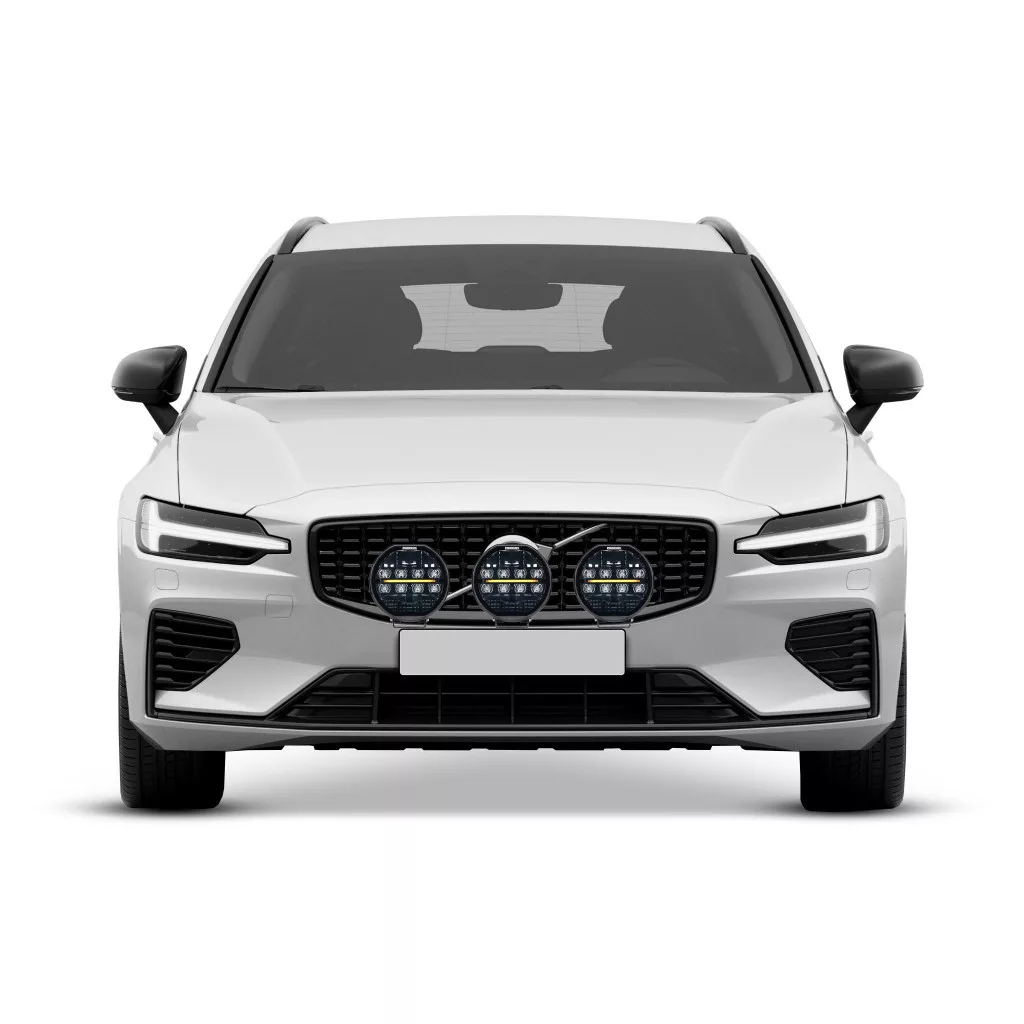

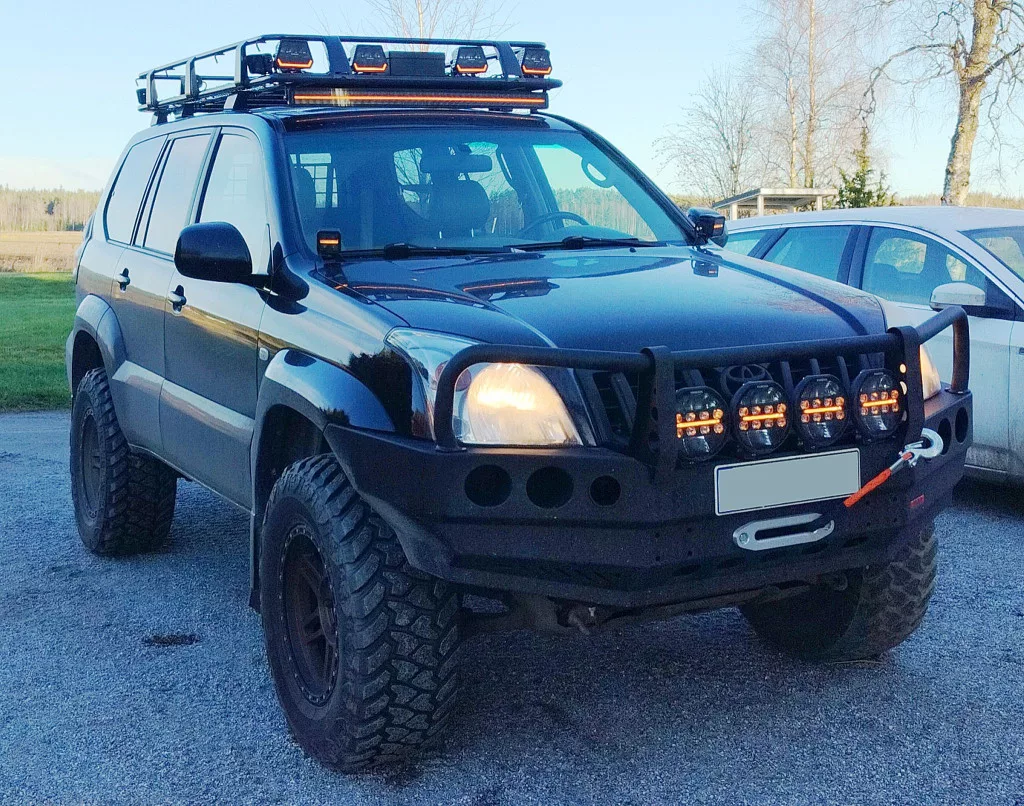

- Purpose: As an additional light in cars / work machines
- LED: 6 x 10W + 8 x 6W
- Operating voltage: 9-36 V (DC)
- Reference number: 25
- Calculated power: 108 W
- Power consumption measured by Valostore
- Purelux PowerBoost®: 4.35A @ 24V
- Road mode: 2.30A @ 24V
- Power measured by Valostore
- Purelux PowerBoost®: 104.6 W
- Road mode: 55.4 W
- Light output declared by the manufacturer: 8800 lm (Purelux PowerBoost®)
- Measured by Valostore: 6562 lm (Purelux PowerBoost®)
- Measured by Valostore: 4073 lm (Road traffic condition)
- Range declared by the manufacturer: 465 m @ 1 lux (Purelux PowerBoost®) / 327 m @ 1 lux (Road traffic mode)

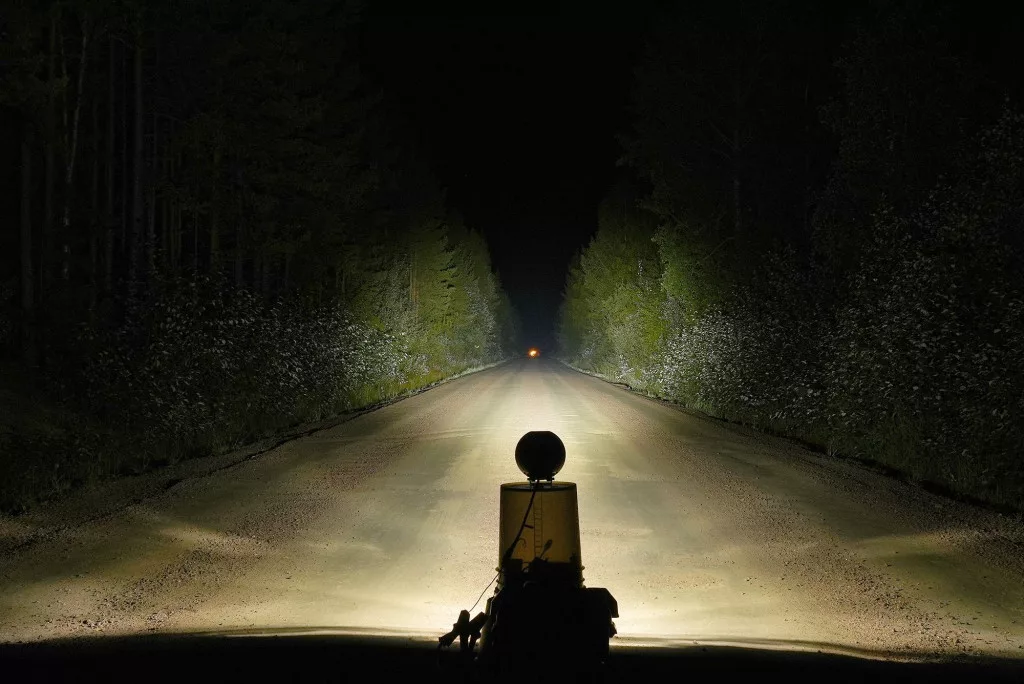

- Measured by Valostore: 468 m @ 1 lux / 936 m @ 0.25 lux (Purelux PowerBoost®)
- Measured by Valostore: 372 m @ 1 lux / 744 lm @ 0.25 lux (Traffic mode)
- Measured distances for multiple lights (powerboost / traffic, 1 lux):
- 2 lights: 662 m / 526 m
- 3 lights: 811 m / 644 m
- 4 lights: 936 m / 744 m
- Color temperature stated by the manufacturer: 5000 K

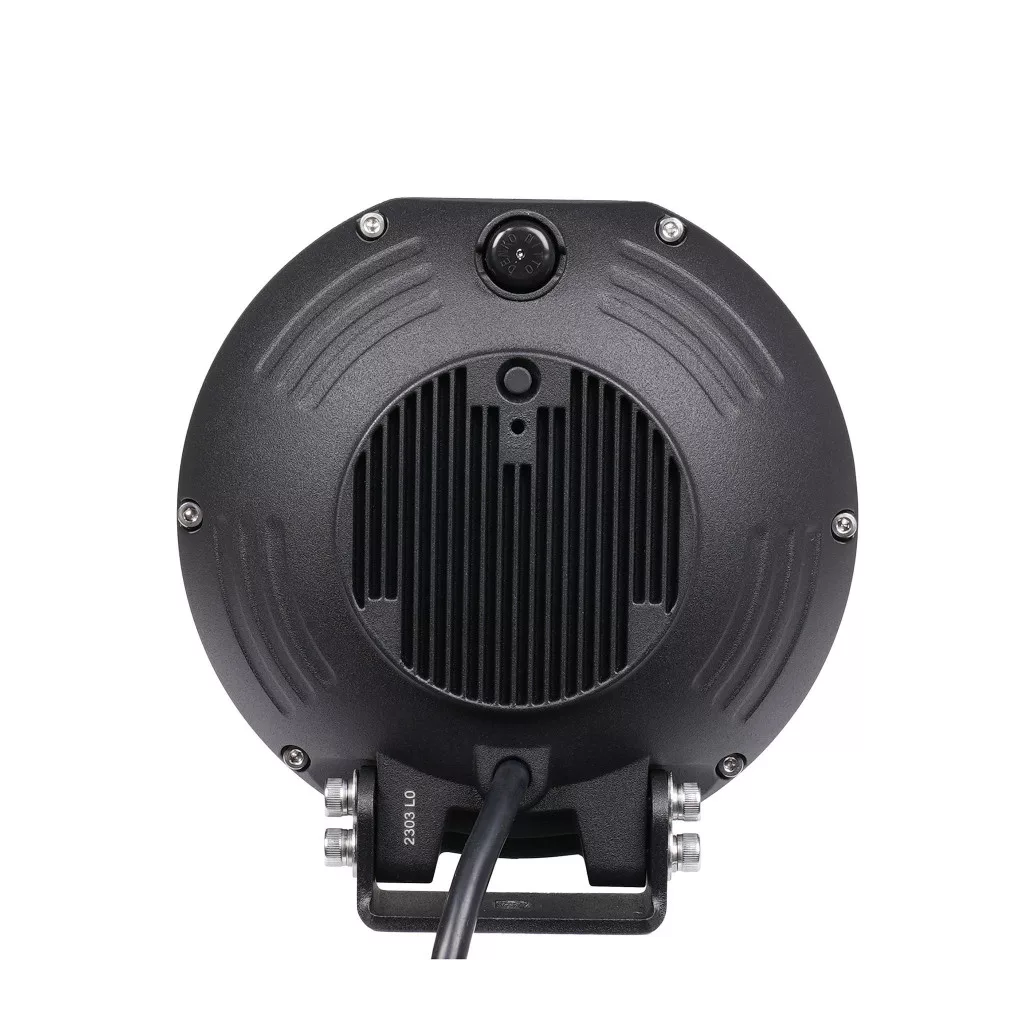

- Mounting: Mounting leg
- Connector: DTP-2
- The parking lights + wires are separate
- Cable length: approx. 50 cm

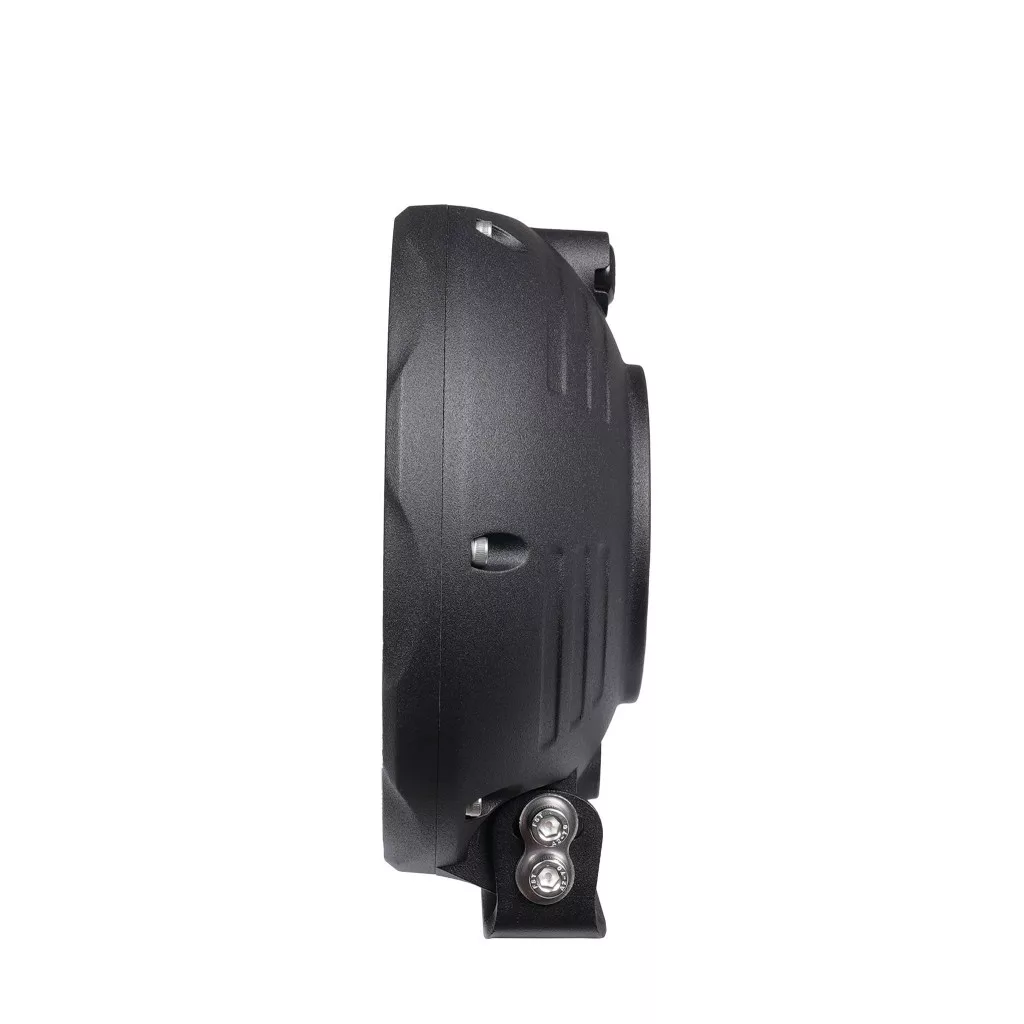

- Dimensions: 185 x 180 x 64.5 mm (Width x Height x Depth)
- Height with mounting leg: 185 mm
- Weight: 1400 g
- IP rating: IP68/IP69K
- Approvals: ECE R7, R10, R112*
- *Road traffic approval does not apply to the Purelux PowerBoost® mode

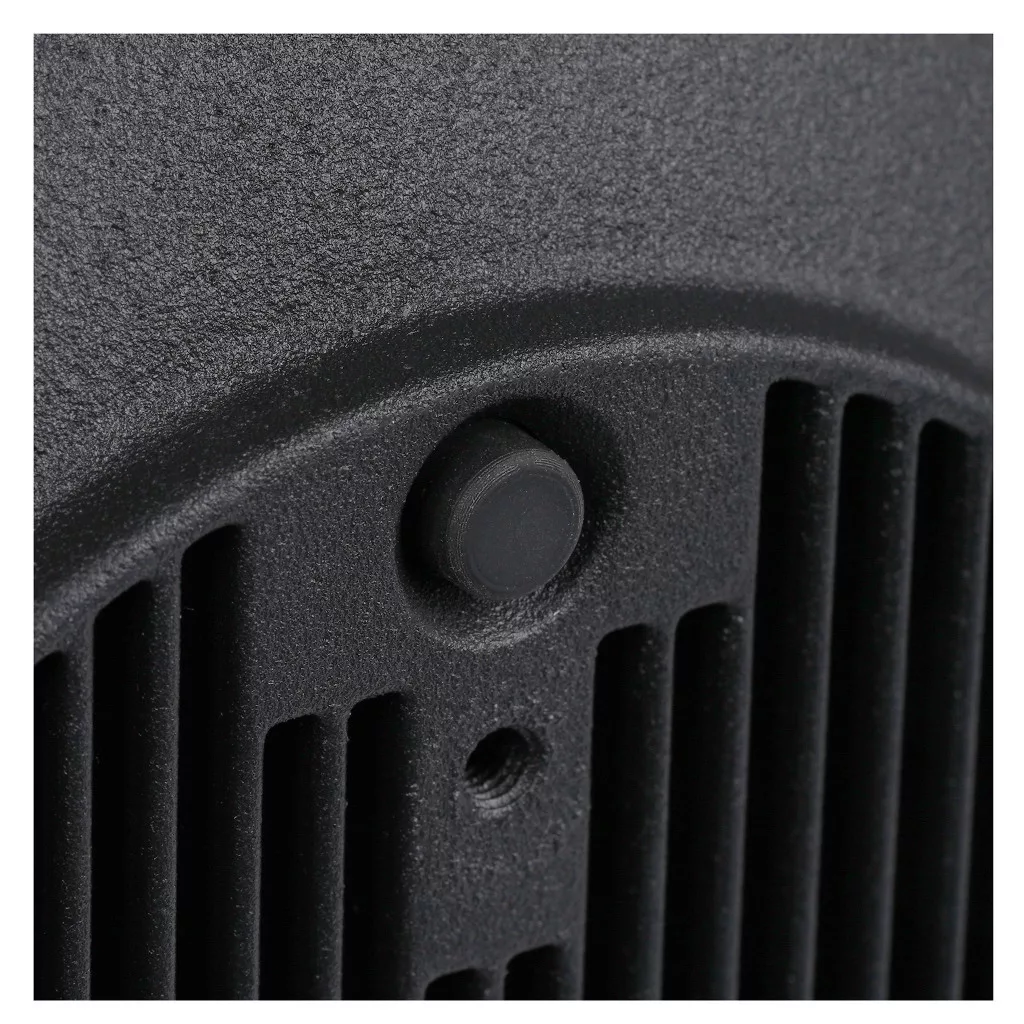

- Other: The light has a ready-made place for stabilizer
- Warranty: 24 months
Producer:
Purelux
Type of protection:
IP68/IP69K
Light distance at 1lx:
465 m
Manufacturer logo:
Weight:
1.5 kg/pcs
