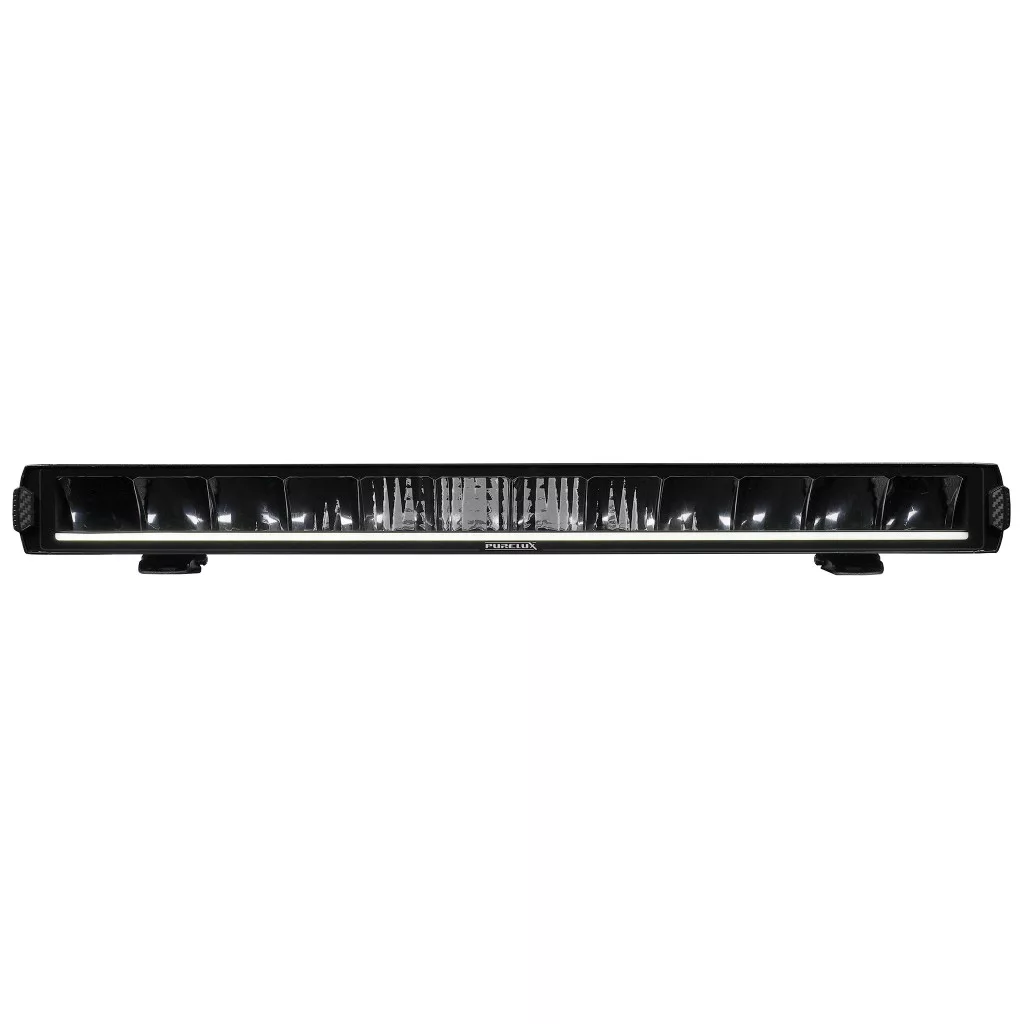

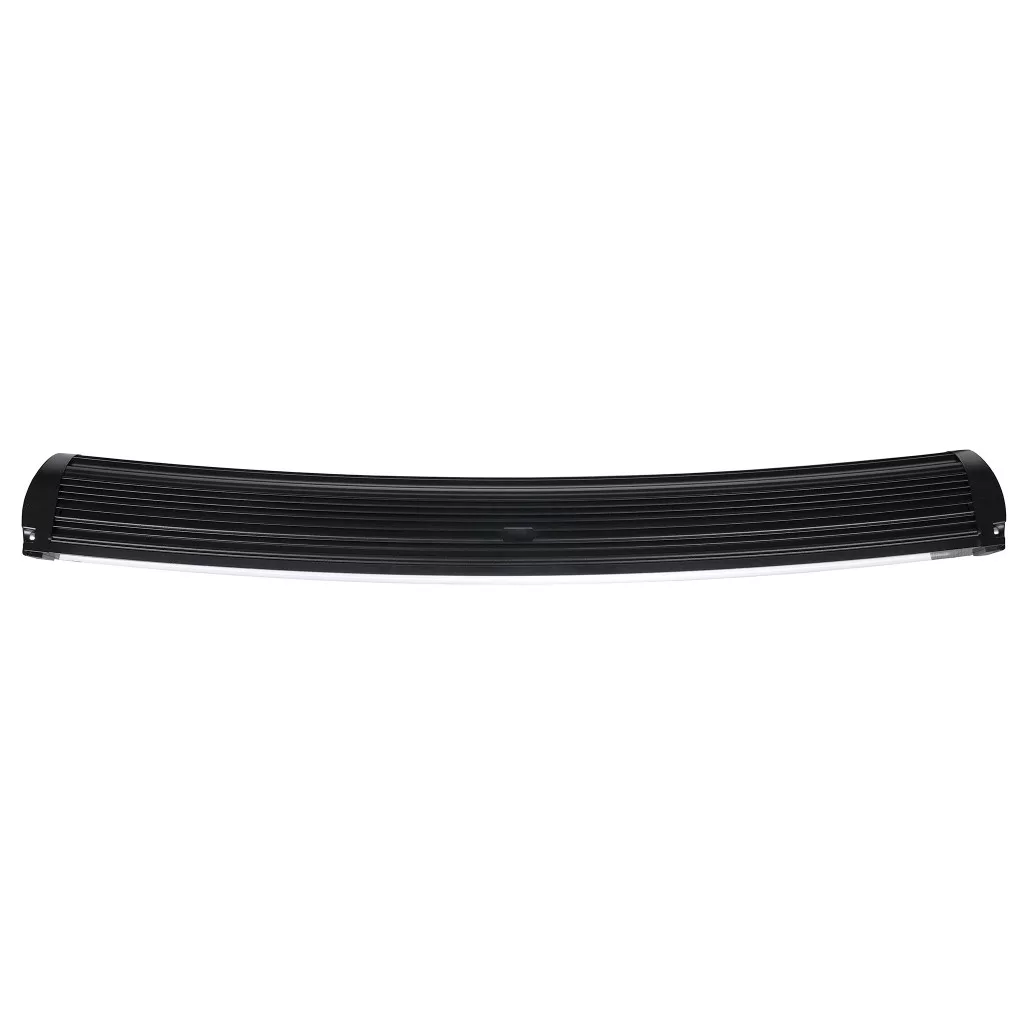

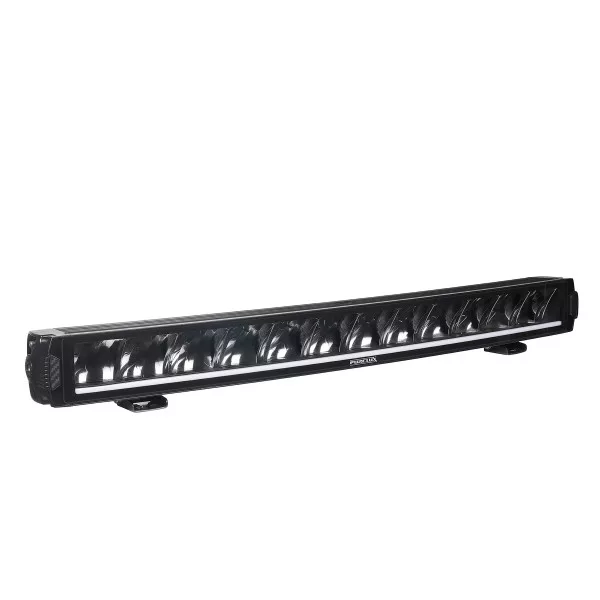

Purelux Road Curve C790 - Curved / 79 cm / 180W / Ref. 40

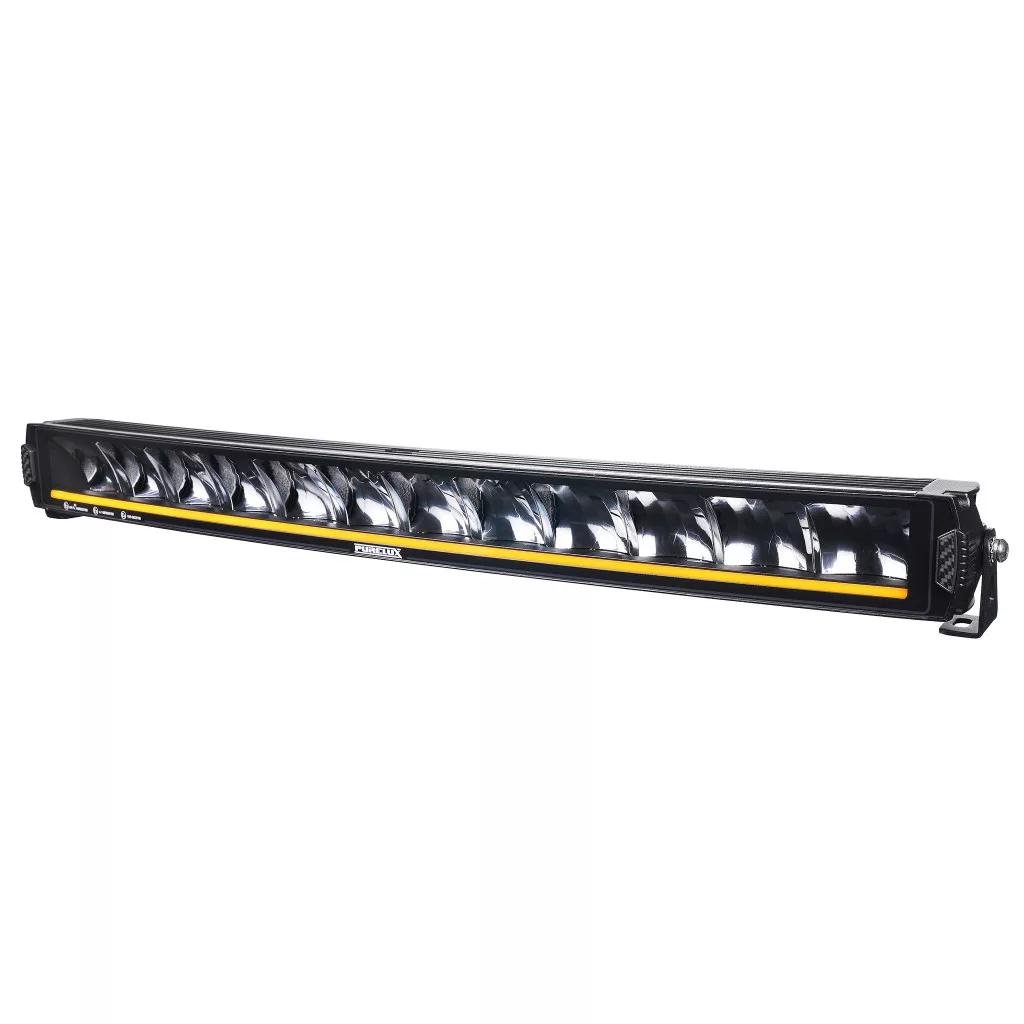

The Purelux Road Curve C790 is the long-awaited, larger and more powerful version of the Road Curve auxiliary light panel that has made Purelux famous, and its features are the best in its class! In addition to its stylish, dark-toned appearance, the C790's features include a frameless lens, a two-color (white and orange) parking light, and two different power modes. The panel can be switched to either the power mode approved for road traffic, or alternatively the Purelux PowerBoost® mode intended for off-road driving, which harnesses the panel's unlimited light output. In PowerBoost mode, the C790 is capable of producing, according to the manufacturer, a staggering 16,500 lumens of light output and a measured range of well over half a kilometer (1 @ lux)! The light beam, which is strictly limited in the vertical direction and evenly spread laterally, directs the entire light output of the panel to exactly the right place, and no light is lost, for example, in the treetops.

Note! The difference between Purelux PowerBoost® and road mode is clearly noticeable in use - PowerBoost mode is significantly more efficient and should not be used when driving in normal road traffic, only off-road.

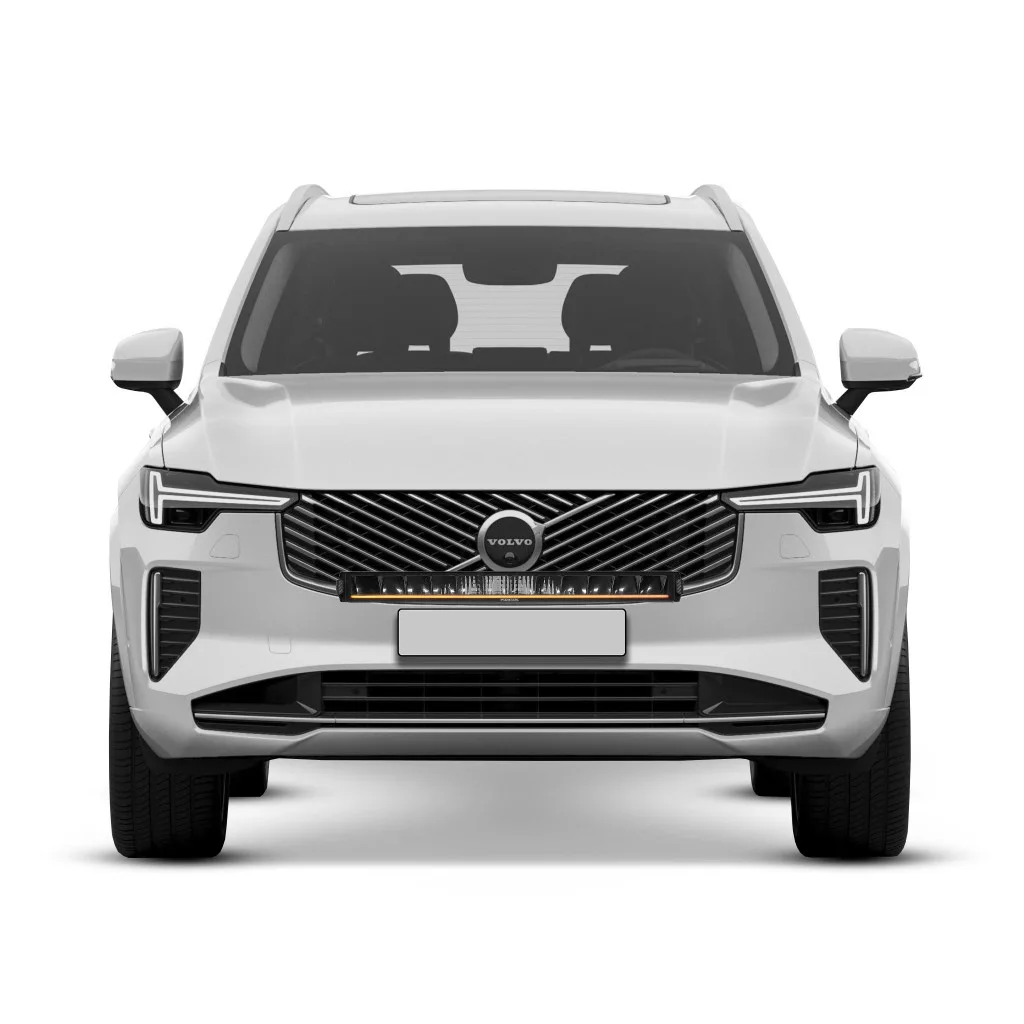

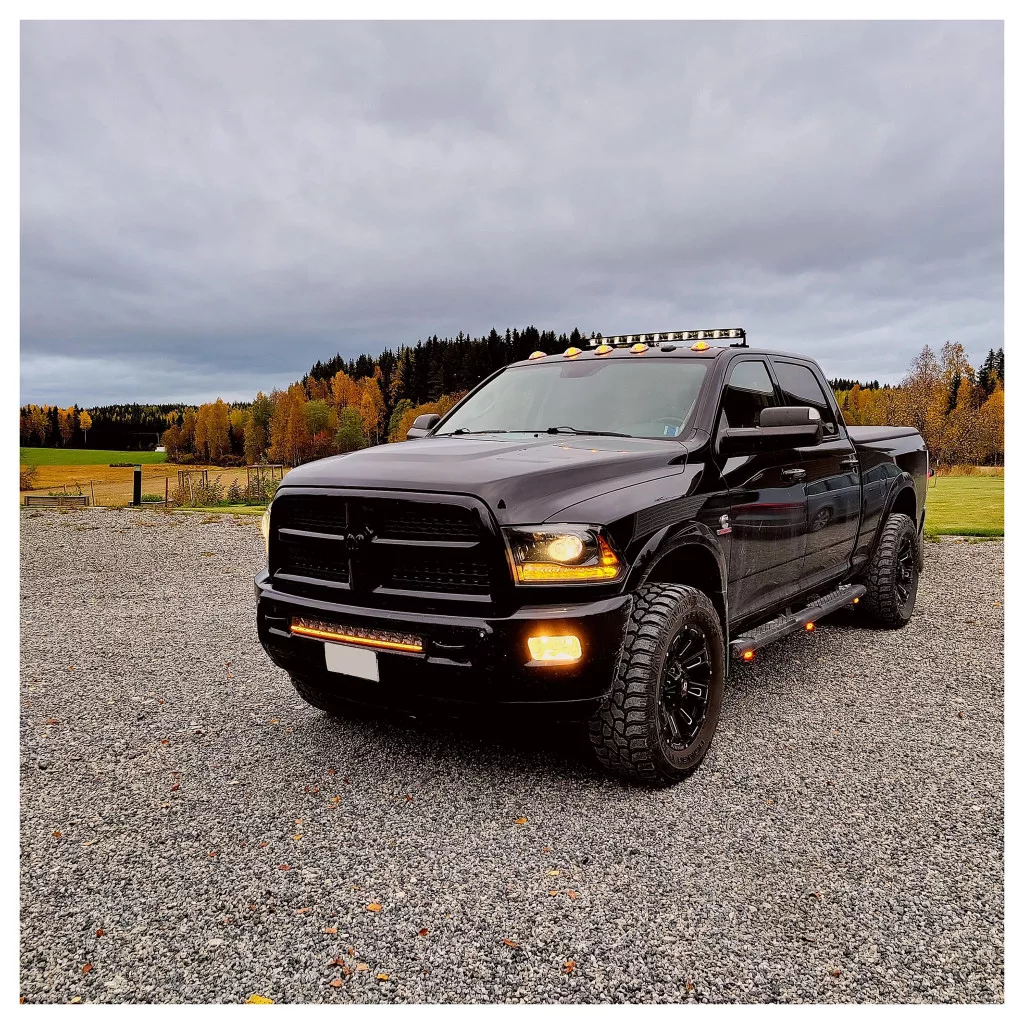

Road Curve C790 is an additional light panel designed specifically for the dark and winding roads of the Nordic countries, and its features have been honed with the long and dark winter in mind. The panel has a strictly vertically limited and evenly distributed light pattern in the lateral direction, which does not emit unnecessary scattered light into the sky or directly onto the ground in front of the car. The C790's precise light beam improves visibility and significantly increases traffic safety even in poor weather conditions, as the light does not target snow drifts from the sky or reflect wet asphalt whipped by rain into the driver's eyes, and it also does not form a dazzling "ball of light" directly in front. This means that the panel can also be installed low, for example under a license plate, making the additional light a neat and unobtrusive part of the whole. High light output combined with a precise light beam provide an impressive measured range of 635 m @ 1 lux, which gives the driver significantly more time to react to events on the road. This panel is suitable for both ordinary road users and professional drivers!

Specifications

Purelux Road Curce C790

• Intended use: As an additional light in cars / work machines
• LED: 12 x 15W
• Operating voltage: 9-30 V (DC)
• Reference number: 40
• Rated power: 180 W
• Power consumption measured by the light bulb
  • Purelux PowerBoost®: 7.03A @ 24V
  • Road mode: 1.57A @ 24V
• Power measured by the light bulb
  • Purelux PowerBoost®: 168.7 W
  • Road mode: 37.7 W
• Manufacturer's theoretical luminous efficacy: 16500 lm (Purelux PowerBoost®)
  • Measured by Valostore: 10295 lm (Purelux PowerBoost®) / 4192 lm (E-approved)
• Manufacturer's stated range: 700 m @ 1 lux (Purelux PowerBoost®) / m @ 1 lux (Road mode)
  • Light source measured: 635 m @ 1 lux / 1270 m @ 0.25 lux (Purelux PowerBoost®)
  • Light tower measured: 375 m @ 1 lux / 761 m @ 0.25 lux (Road mode)
• Manufacturer's stated color temperature: 5000 K
  • Measured by Valostore: 4593 K
• Mounting: End legs, width-adjustable bottom legs
• Connector: Deutsch DTP-2
  • Parking lights + wires separate
• Cable length: 40 cm
• Dimensions: 789.7 x 71.5 x 85 mm (Width x Height x Depth)

  • Height with lower legs: 87 mm
• Weight: 3400g
• IP rating: IP68
• Approvals: ECE R10, R148, R149*
  • *Road traffic approval does not apply to Purelux PowerBoost mode
• Warranty: 24 months
• Importer: Handshake.fi

Installation guide

Coupling

• DTP connector: PowerBoost® mode
• DTP connector + Blue: Road-approved power mode
• Yellow: Orange parking light
• White: White parking light

When the panel is connected using the DTP connector, it will light up in PowerBoost mode. The road-approved power mode can be activated by also connecting the blue wire to the power supply (use DTP connector and blue wire).

General connection and installation instructions here: Additional lights installation guide . The link contains the most common installations, including using a relay wiring harness, as well as a guide to installing additional lights on the CAN bus.
