Reversing light Purelux Phantom - 9 cm / 21W / Wide

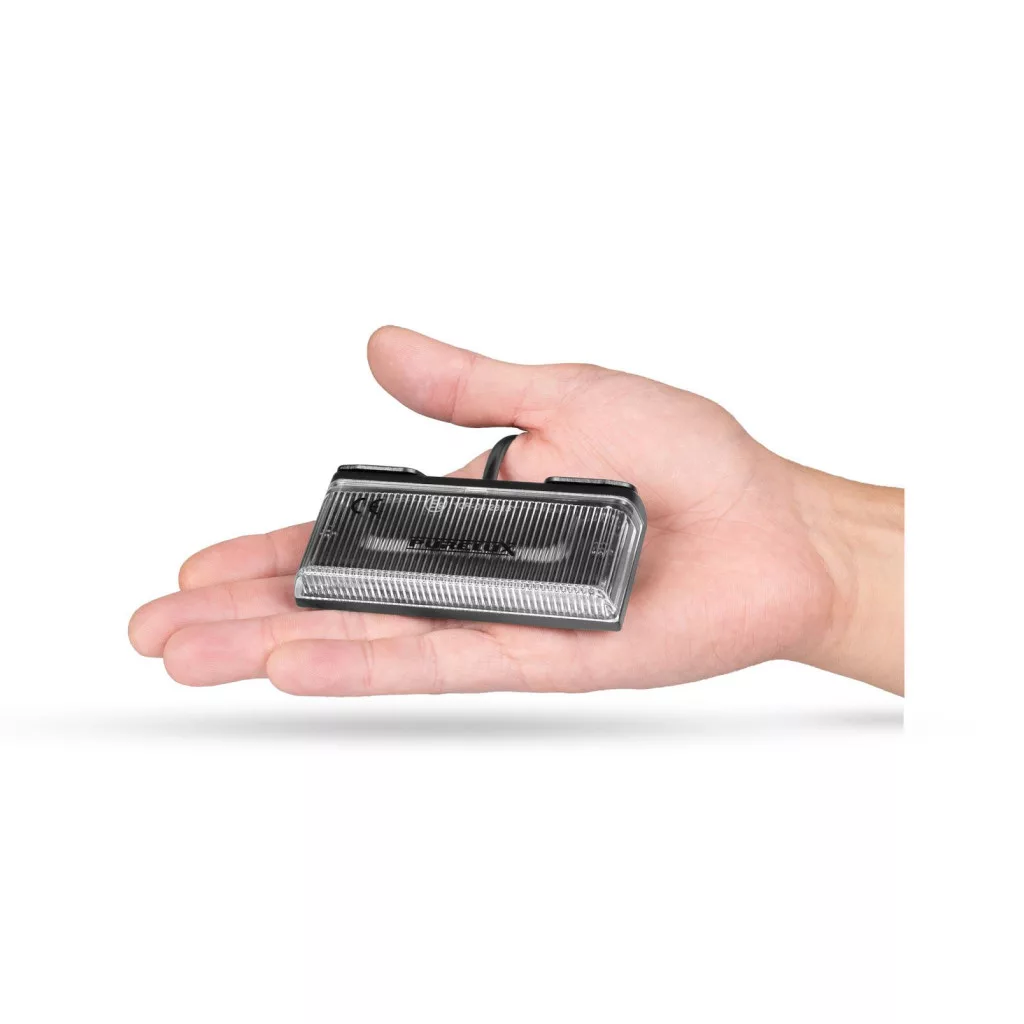

The Purelux Phantom is a very slim and small, yet powerful reversing / work light, which is intended primarily for tight spaces and inconspicuous installations, e.g. at the bottom of the bumper. It is e-approved to be as a reversing light (R148). The Phantom produces a measured light output of almost 1,400 lumens, and the light beam, which opens evenly and very wide in the lateral direction to the surrounding environment, has a measured distance of 35 m (@ 1 lux). The cone is vertically flattened for low installation heights. The Phantom's light color tone is a neutral 5000 kelvin that reduces eye strain, which makes it easy to observe the environment in the dark. Measuring 90 x 40mm and 15mm thick, the light can be installed literally anywhere, and unlike most work lights, the Phantom is actually easy to hide in vehicle structures thanks to its flat and sleek design.

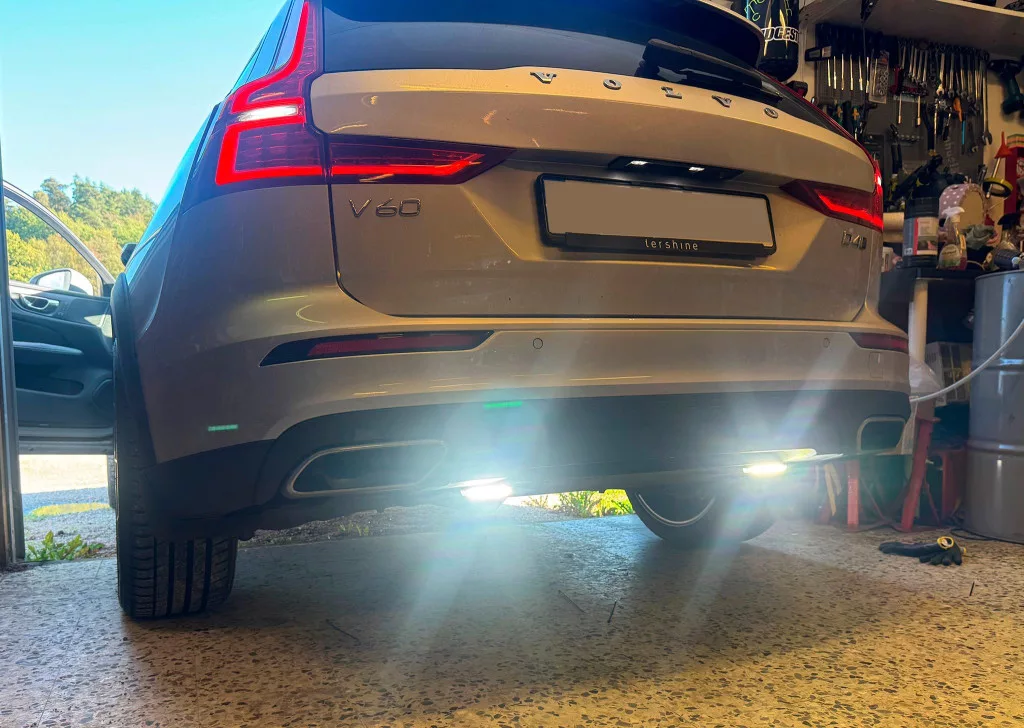

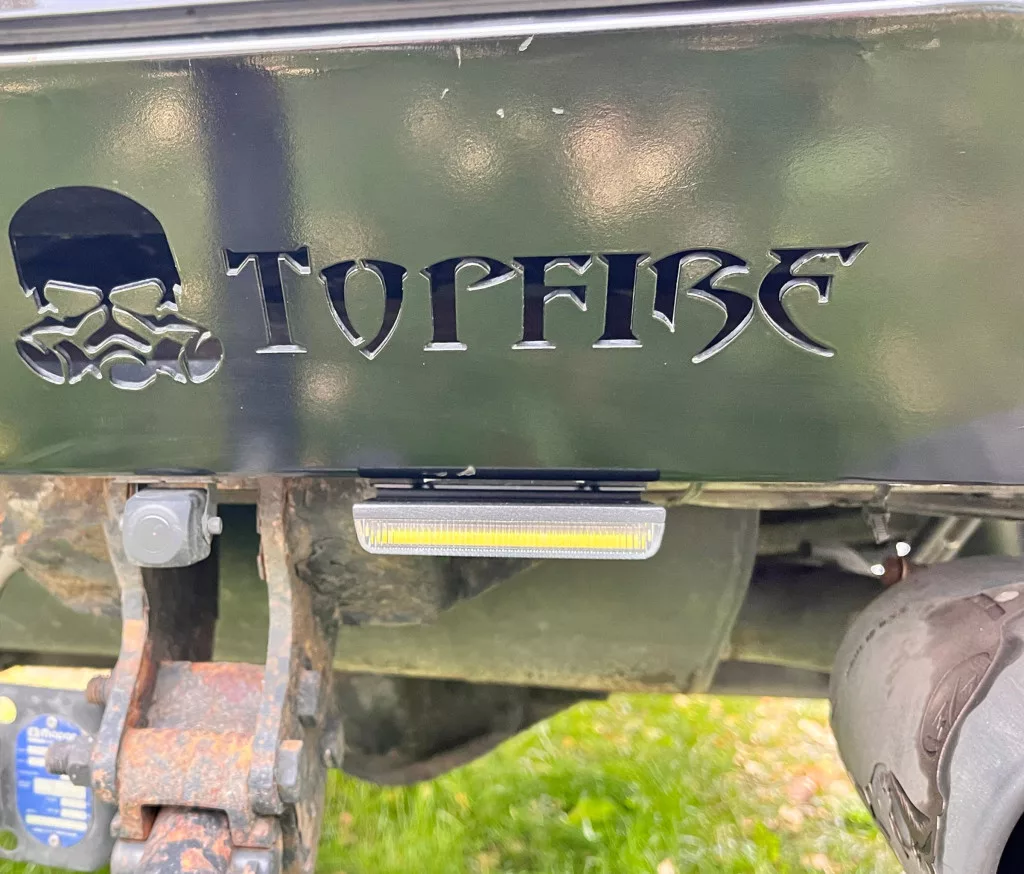

The light's small size and relatively excellent light output enable versatile use in various vehicles, from ATVs and passenger cars to work machines. The Phantom is easy to hide in the mask, skirts, under the bumpers and even on the roof, and the wide light pattern makes it an excellent choice for lighting the vehicle's surroundings and, for example, as a reversing light. Thanks to its water-, dust- and corrosion-resistant construction, the lamp can also be installed in places where it is exposed to road salt, UV radiation, water and other environmental stresses. In addition, the light's exceptionally good temperature resistance (-40°C to +60°C) guarantees operational reliability even in extreme conditions. The lamp is protected against radio interference according to the ECE R10 standard, and it can be installed in both 12V and 24V systems. Two-year (24 months) warranty!

Specifications

• Brand and model: Purelux Phantom
• Purpose: As a work light in vehicles / machinery
• Operating voltage: 9-32V
• Power consumption measured by Valostore: 1.75A @ 12V / 0.875A @ 24V
• Power declared by the manufacturer: 20.8 W
  • Measured by Valostore: 21 W
• Light output declared by the manufacturer: 1384 lm
  • Measured by Valostore: 1395 lm
• Color temperature stated by the manufacturer: 5000 K
  • Measured by Valostore: 4935 K

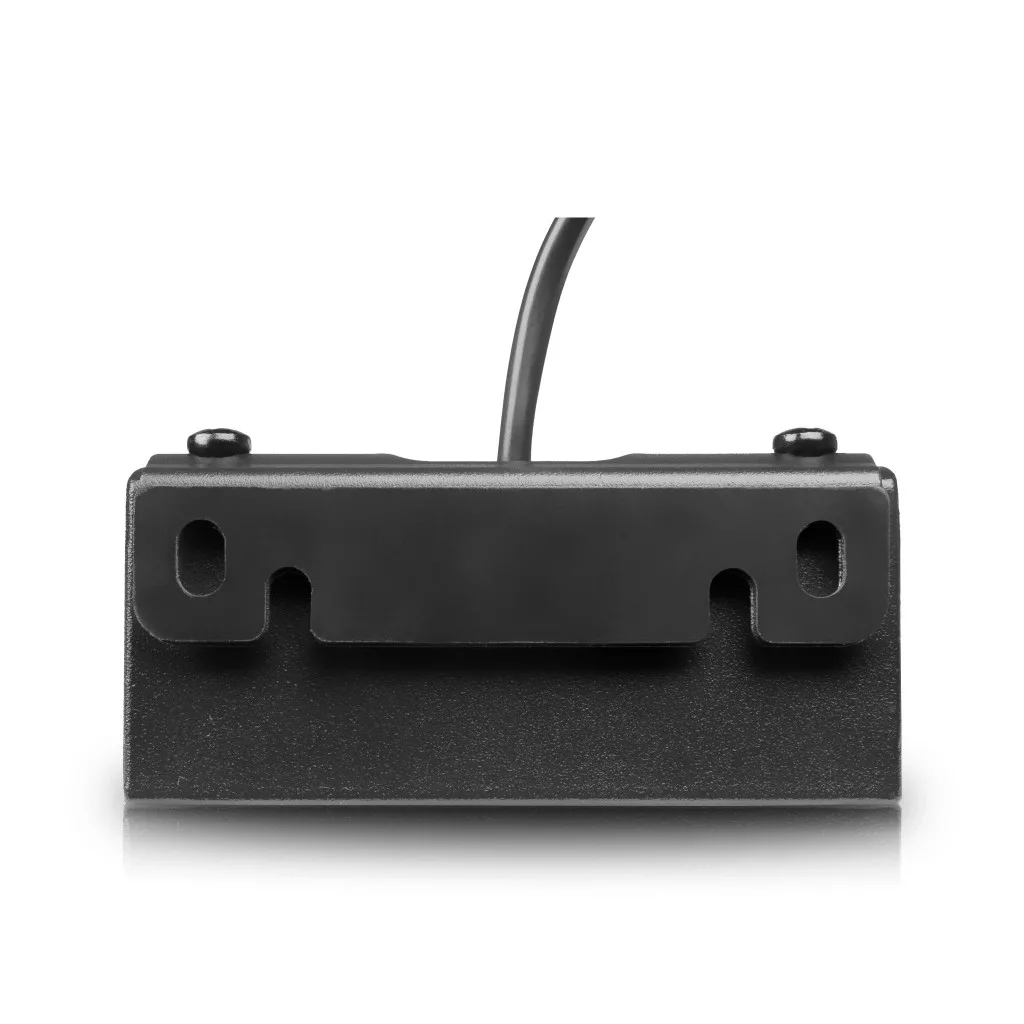

• Mounting: Mounting foot
• Connector: No connector, straight wires
• Cable length: approx. 50 cm
• Dimensions: 90 x 15 x 40 mm (Width x Height x Depth)
  • Height with mounting foot: 22.4 mm
• Distance between mounting holes: 70 mm
• Weight: 90 g
• IP rating: IP67
• Operating temperature: -40°C to +60°C
• Approvals: EMC ECE R10, R148, CE, RoHS
• Warranty: 24 months
