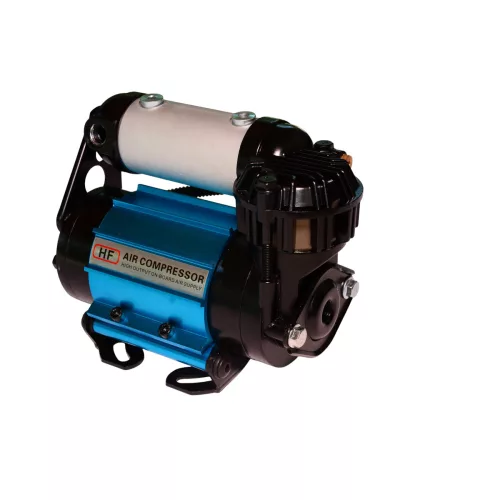

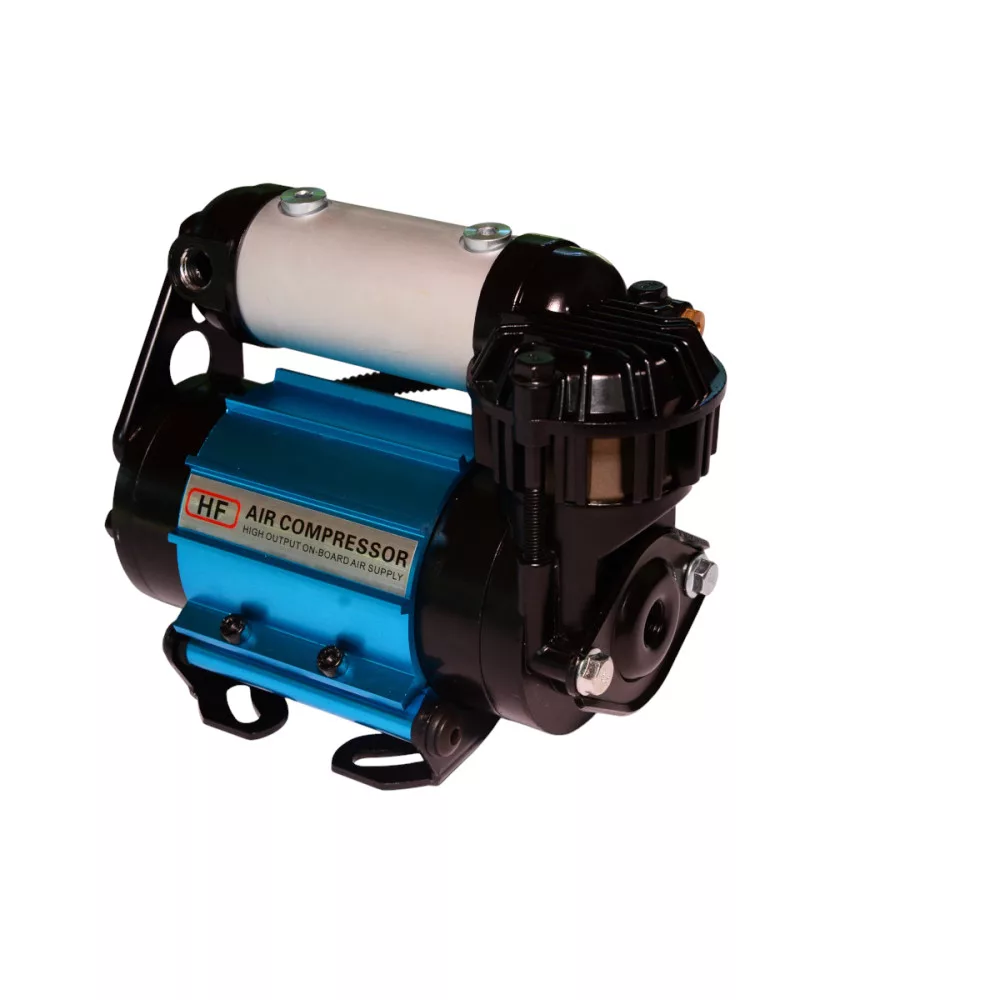

Single piston compressor HF (12V)

HF High-Output Compressor – compact, powerful, reliable

The HF High-Output compressor is a versatile, high-performance unit designed for off-road and workshop use. Perfect for:

• operating HF/ARB differential lockers

• fast tire inflation on off-road vehicles

Equipped with a modern electronic thermal protection system that automatically shuts off the compressor in case of overheating. The new mounting bracket design allows installation at a 180° rotated position, offering greater flexibility in tight spaces.

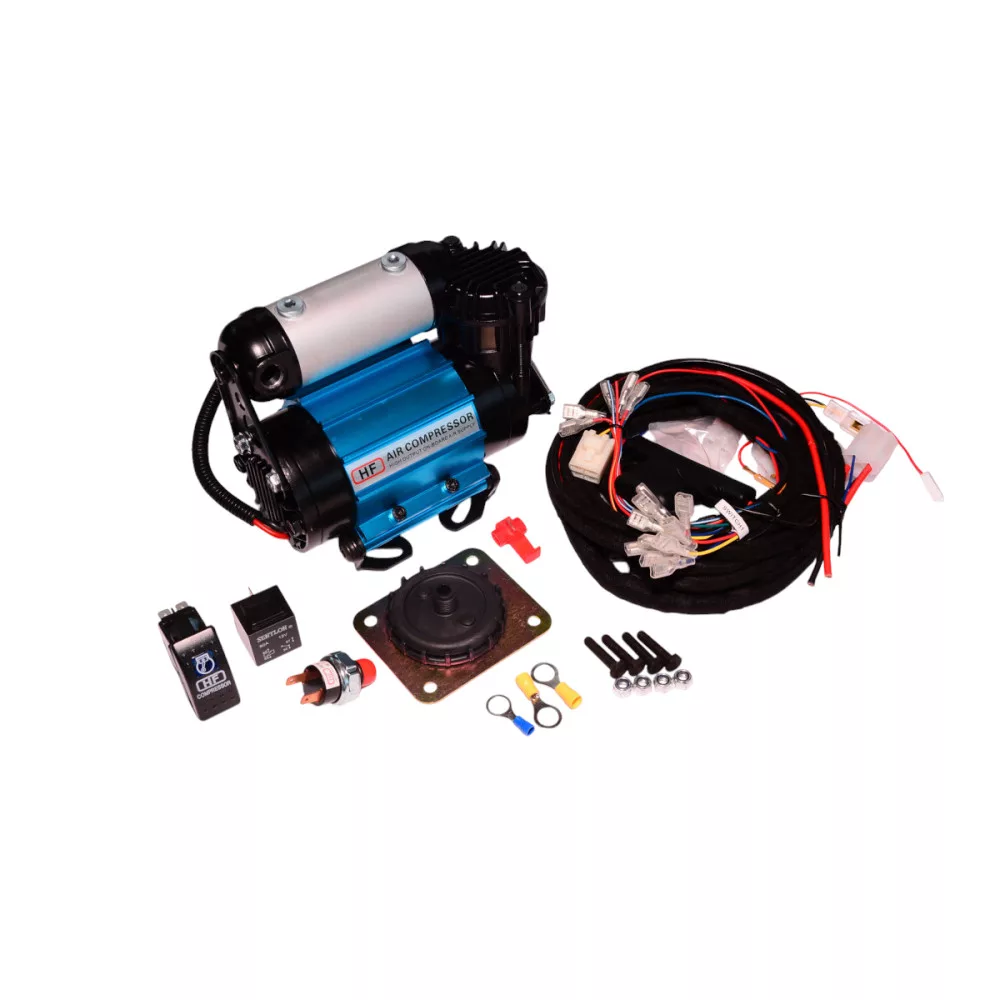

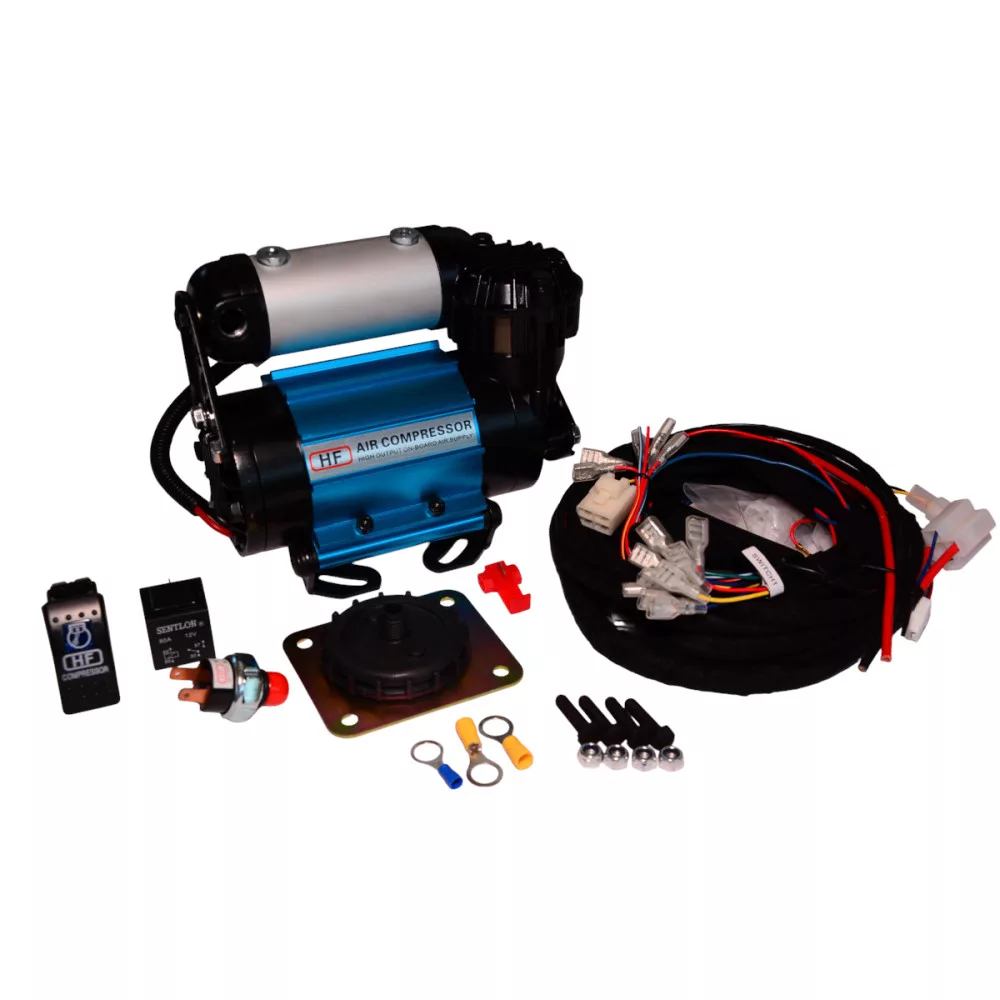

Included in the set:

• HF High-Output twin-piston compressor

• Air filter

• Mounting bracket

• Pressure switch

• In-cabin electrical switch

• Complete wiring harness (ready for front and rear lockers)

Technical specifications:

• Dimensions (H x L x W): 145 x 190 x 96 mm (with mounting plate horizontal)

• Weight: 4.5 kg

• Power supply: 12 V

Current draw:

• No load: 13 A

• Under load: 22.9 A

Performance:

• No load: 75.1 l/min

• Under load (at 200 kPa / 2 bar): 61.6 l/min

Pressure switch range:

• Cut-in pressure: 70 PSI (4.76 bar)

• Cut-out pressure: 100 PSI (6.8 bar)

Safety features:

• Overload protection in wiring harness: yes

• Compressor motor thermal protection: yes
