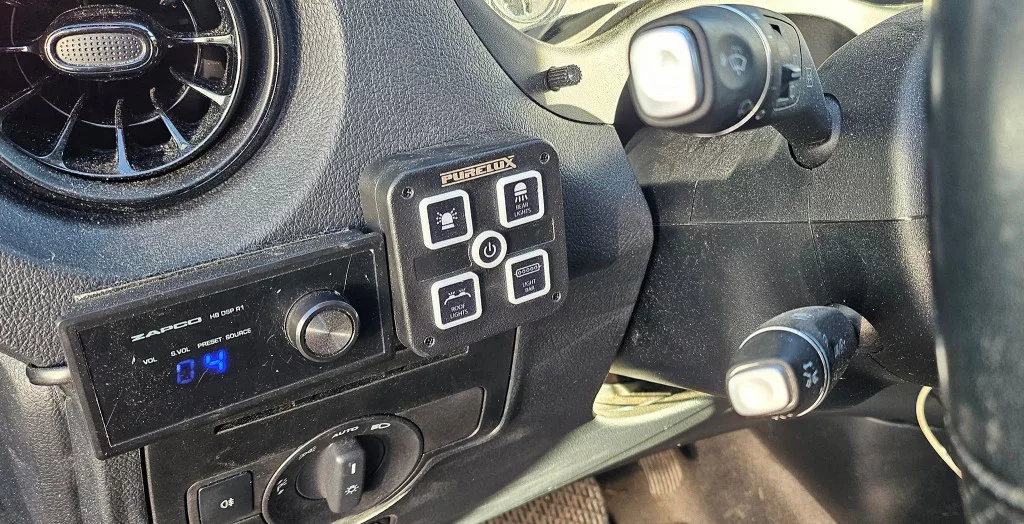

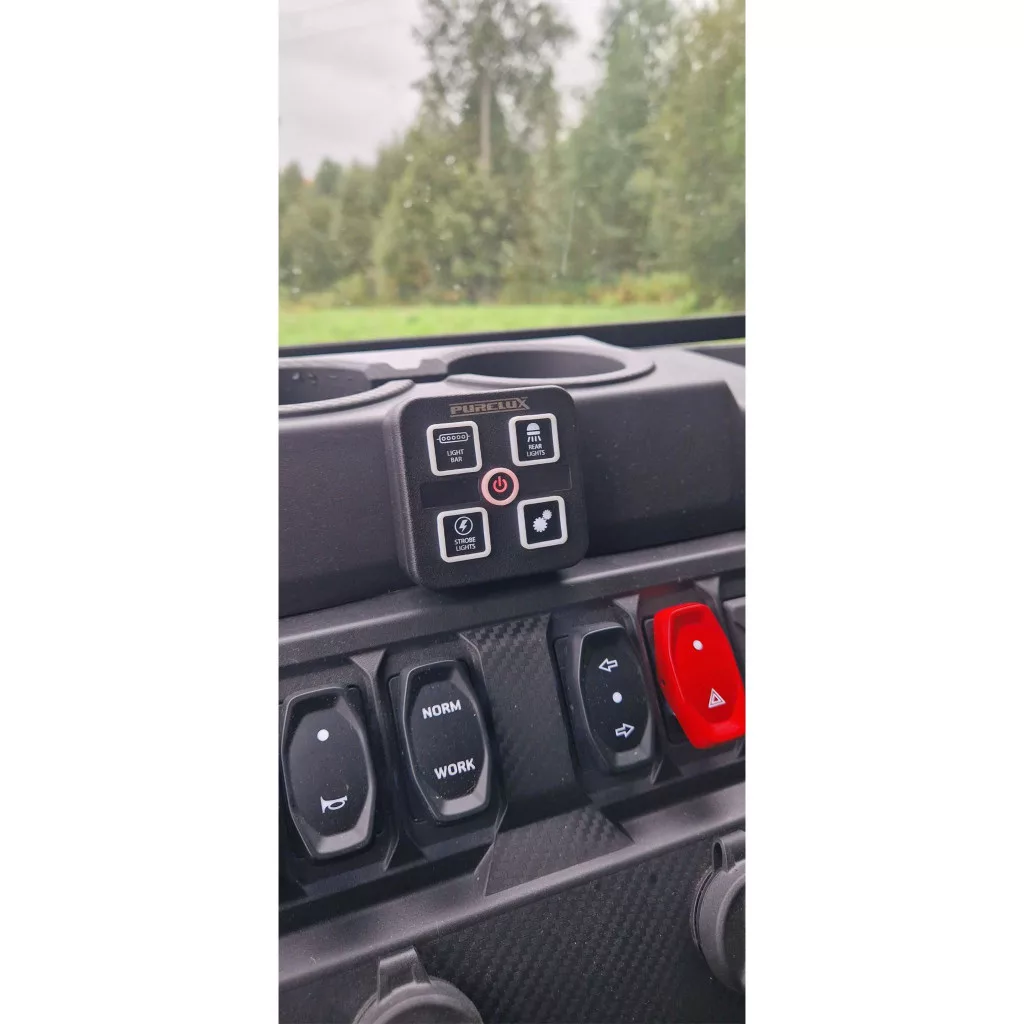

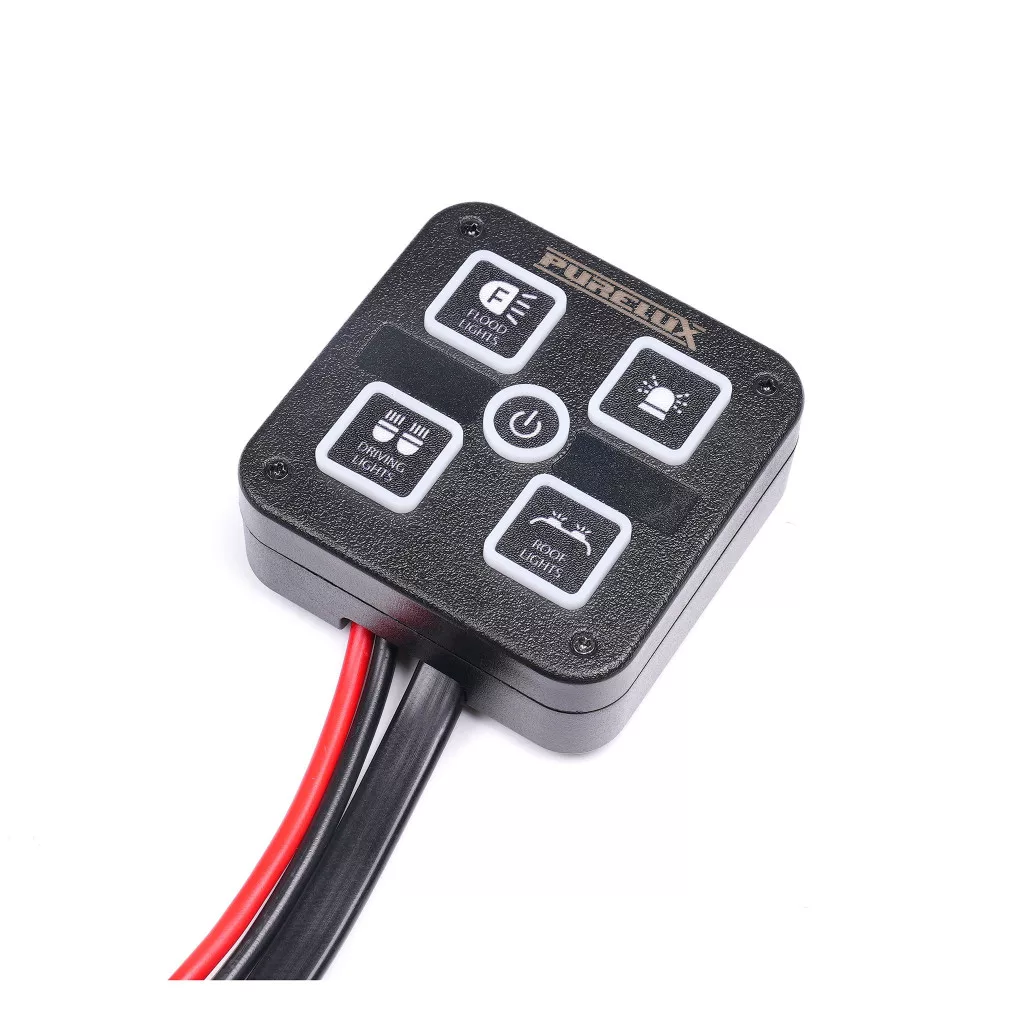

The Purelux Mini Dashboard Controller is a very convenient and easy-to-use switch panel that can control up to four different lighting groups or other electrical devices from the same place. It is ideal for controlling, for example, the work and additional lights, warning and attention lights or even beacons of a small construction machine, van or SUV directly from the vehicle cabin. Thanks to its completely waterproof design (IP67), the switch panel can also be used without worry in boats, ATVs, snowmobiles or other vehicles where it is exposed to rain or splashes. The lights connected to the switch panel can be turned on and off individually, and in addition, the switch in the middle can be used to turn off all devices installed behind the panel at the same time. Of course, entire lighting groups can also be connected behind each button, e.g. ceiling lights, so that all the lamps on the roof operate with one button. The lights can be turned on either continuously (by flicking the switch) or momentarily (by pressing the switch all the way down). This allows the panel to be used, for example, to control warning lights with multiple operating modes, with one switch used as the light's power button and the other for changing the operating mode. This way, all the features of the light can be used without additional adjustments, and operation is effortless.
A total of 18 different picture stickers are supplied with the switch panel which can be used to mark different functions on the switches. With the help of stickers, the switches can be clearly marked, and the user does not have to memorize which button controls which lamp or function. The symbol on the switch panel shines clearly thanks to the backlight, so the panel is easy to use even in the dark. The switch amperage is 240W @12V and 480W @24V. The power on electrical devices that are on at the same time can therefore be a total of 240W (or 480W).
The Mini Dashboard Controller comes with a highly durable 3M adhesive, allowing the switch panel to be attached to virtually any surface. In addition to the decal mount, the Dashboard Controller can also be installed in the vehicle using a separate stand, thus obtaining a permanent installation by screwing the mount directly to the vehicle. By using both mounting methods, the switch becomes a neat part of the vehicle's interior, and the driver never has to look for the panel. In addition, the controller is equipped with a convenient memory function, meaning it turns on the lights in the same mode that was in use before the power was turned off.

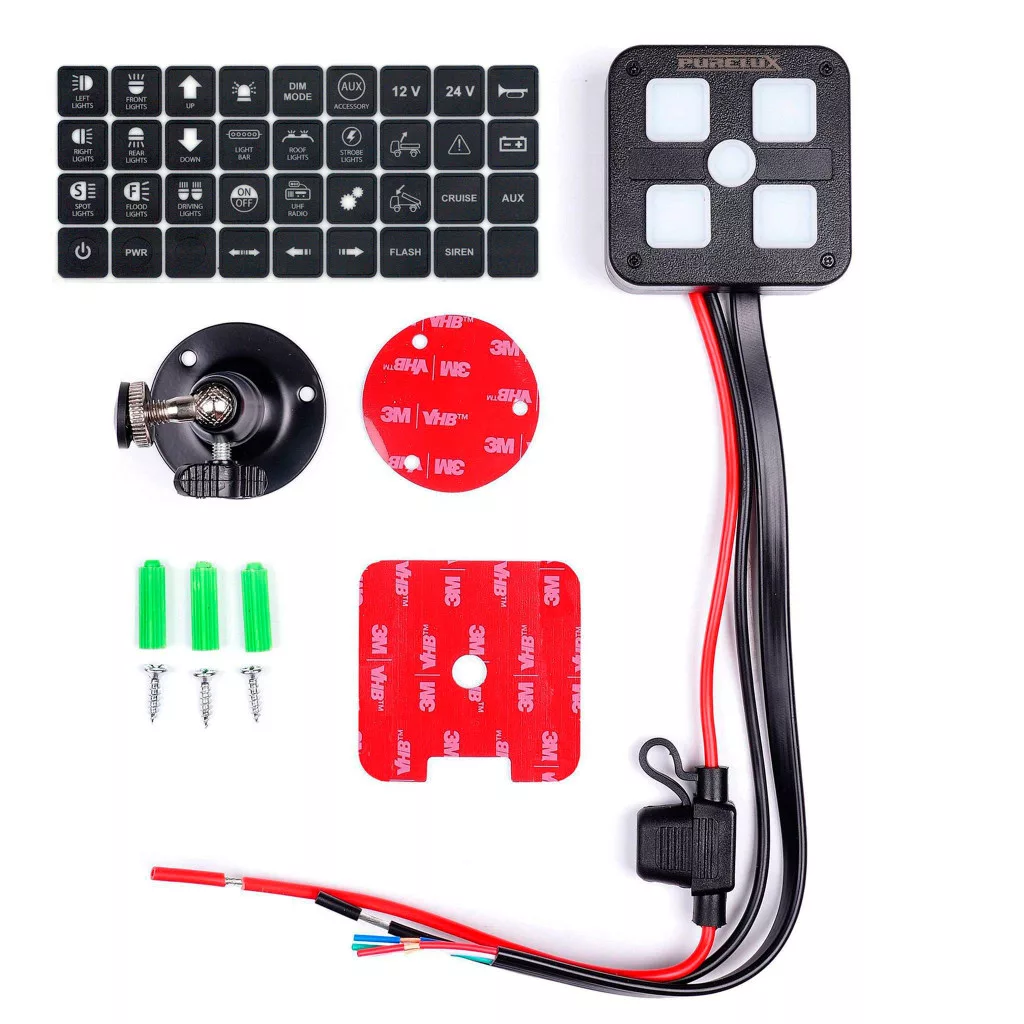

Content
- Switch panel
- 3M self-adhesive mount
- Sticker sheet for switch (36 stickers)
- Stand with screw mount
- 3 x screws
- Installation and connection instructions
Technical specification
- Make and model: Switch panel Purelux Mini Dashboard Controller
- Area of use: Operation and control of 4 electrical units from the same switch panel
- Operating voltage: 10-30V
- Power class: 240W @ 12V, 480W @ 24V
- Max current: 20A
- Dimensions: 62 x 62 x 25 mm
- Weight: 110 g
- Cable length: approx. 30 cm
- Includes 18 marking decals
- Approvals: EMC: ECE: R10
- Warranty: 24 months
Quick guide

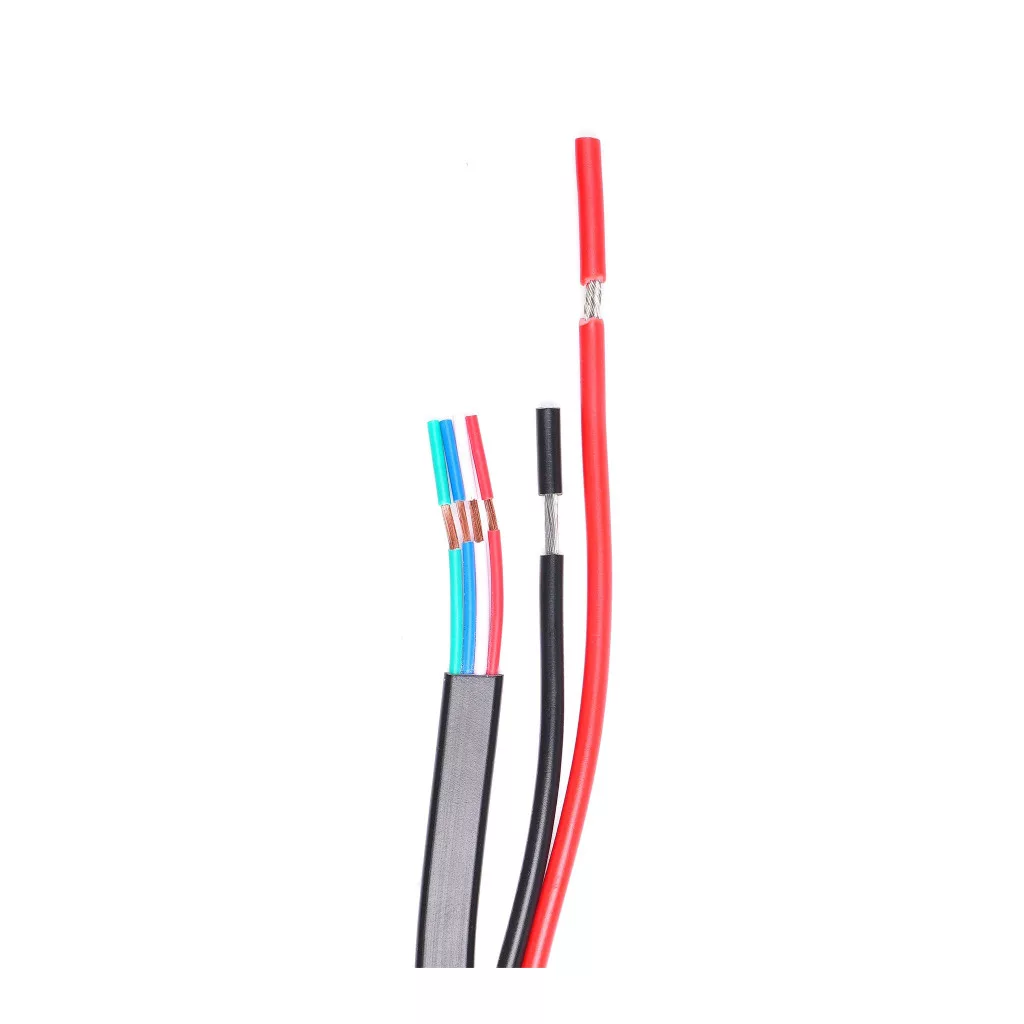

Coupling
- Red: Power (+)
- Black: Ground (-)
- Blue: Output P1 (upper left corner)
- Red: Output P2 (upper right corner)
- Green: Output P3 (lower left corner)
- White: Output P4 (lower right corner)
Selection of button function
- Press On / Off
- Hold / Release
To change the operating mode, turn off the power switch and press and hold the power button together with the desired button until you hear a clicking sound.
Master Switch
The panel can also be used to set a so-called Master Switch, which can be used to control the desired buttons. In practice, this means that if the 1st switch is selected as the master, it can be configured so that when the 1st button is pressed, buttons 2 and 3 are also activated/turned on and off. This way, switches 2, 3 and 4 can be used to control their own light groups/lamps, and when the 1st switch is pressed, the lights connected to outputs 1, 2 and 3 are then turned on.
The Master Switch is configured by pressing the desired switch down until it makes a clicking sound. After this, you select which switches will operate behind the master switch by pressing those switches. The Master Switch can be disabled in the same way.
