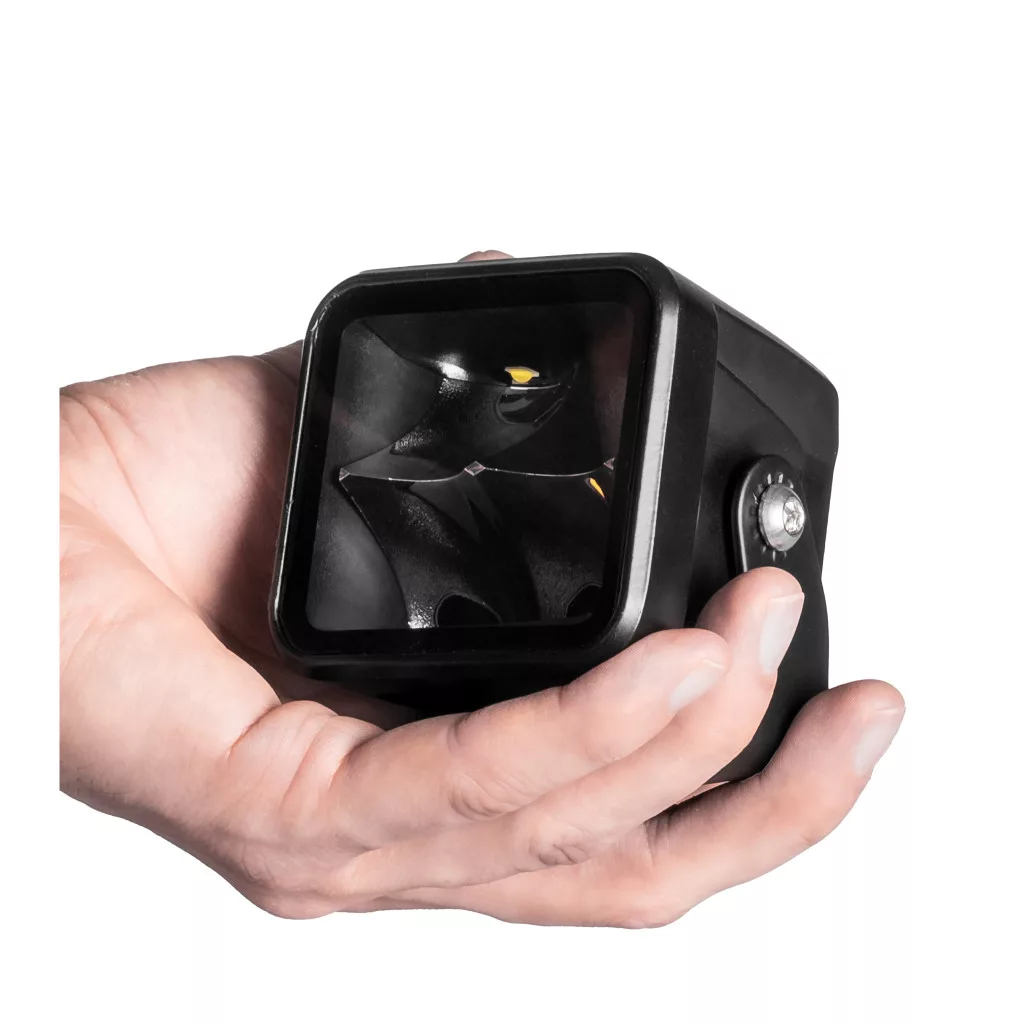

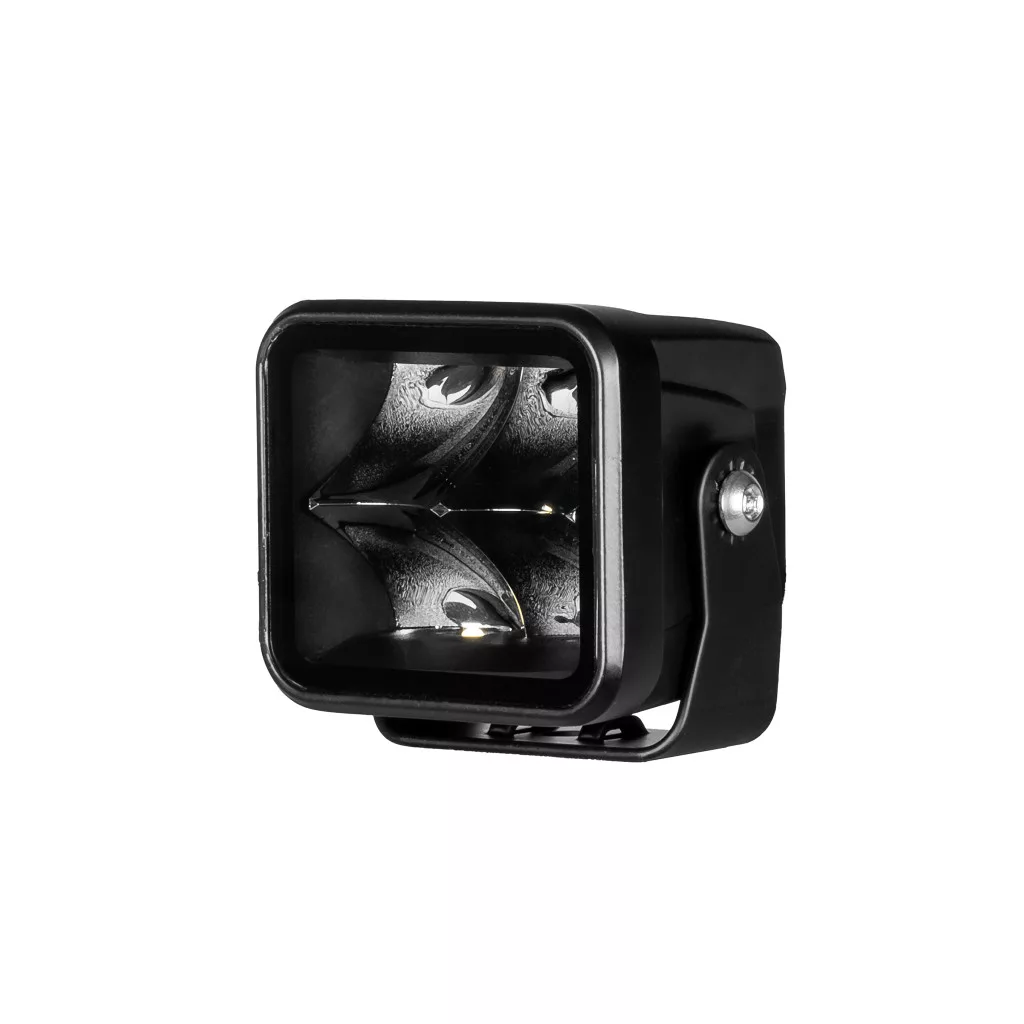

The Purelux Terrain Black Square Spot 20W is a top-class LED work light designed for challenging conditions. The model with a narrow beam is best suited for applications where you want to illuminate more than just the area around a car or work machine. Despite its small size, the Terrain Black Slim Spot offers an impressive 1920 lm light output and a 252 m range (@ 1lux), which are the absolute top of its size class. Due to its very small size (only 64 x 70 mm), the Terrain Black Square works great even in tight installation spaces, and the modern, dark reflector optics ensure that the light fits in with the most modern vehicles in terms of appearance. The high-quality, impact- and weather-resistant aluminum frame combined with a practically unbreakable polycarbonate lens ensure that the light is at home in tough work conditions despite its small size.
Unlike traditional work lights, the lens in the Terrain Black Square series is adapted to the frame in such a way that it practically comes to the level of the frame in the front part, and there is no longer a "threshold" on the edges of the lens that collects snow, sleet, sand and dust. In addition, the glare of the work light has been reduced with a new type of reflector technology, as the LEDs are directed from the top and bottom of the lamp to the reflector. The lamp is suitable for both 12V and 24V systems. The pleasant, neutral 5700K color temperature ensures that the level of alertness remains good and the lighting does not strain the eyes even during extended periods of work. Mounting accessories are included in the package. 24-month warranty.
Specifications
- Brand and model: Purelux Terrain Black Square Spot
- Intended use: As a work light in cars / work machines

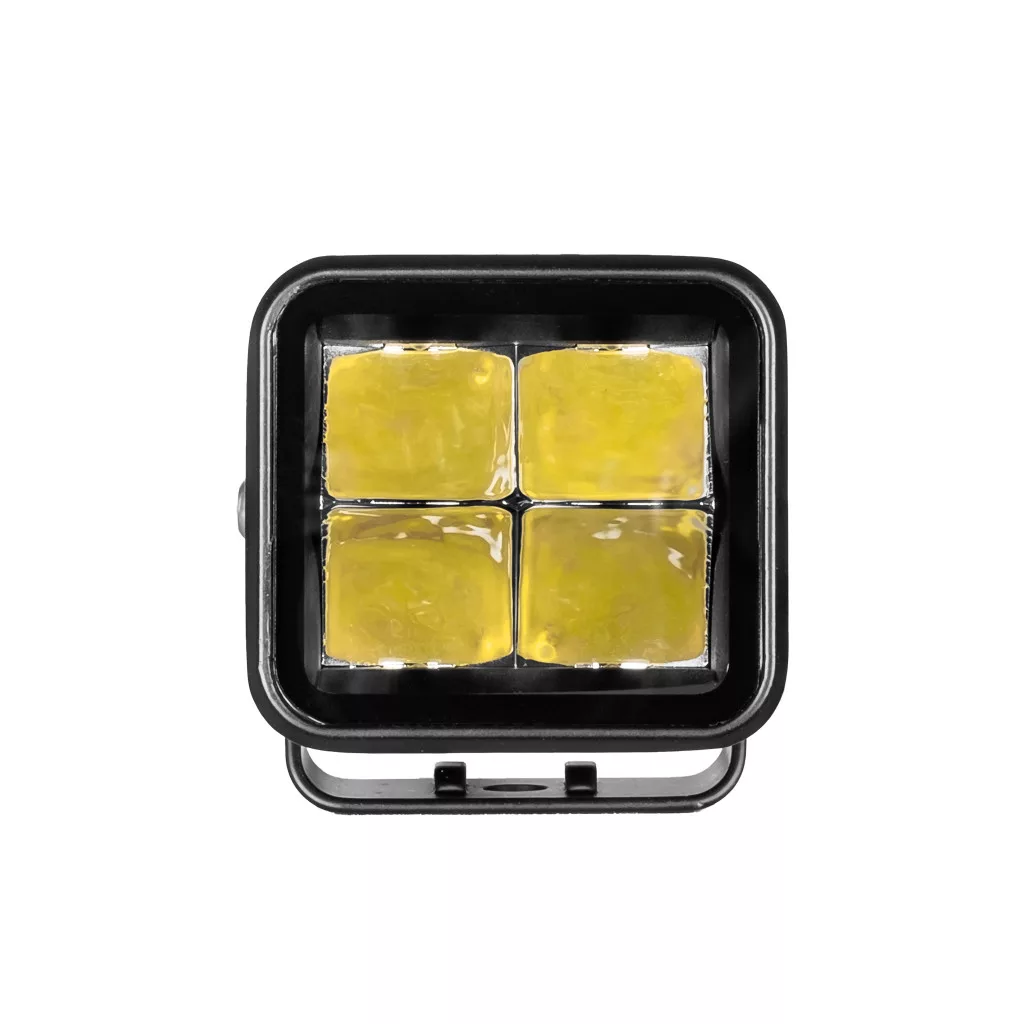

- LED: 4 x 5W OSRAM
- Operating voltage: 9-32 V
- Current consumption measured by Valostore: 0.99A @ 24V
- Rated power: 20 W
- Measured by the light bulb: 23.7 W
- Theoretical luminous efficacy: 1920 lm
- Measured by Valostore: 1932 lm
- Manufacturer's stated range: 252 m @ 1 lux
- Light tower measured: 545 m @ 0.25 lux / 273 m @ 1 lux
- Manufacturer's stated color temperature: 5700 K
- Measured by Valostore: 5440 K
- Lighting angle: 10°
- Mounting: Mounting foot
- Mounting foot material: Stainless steel
- Connector: Deutsch DT2
- Cable length: approx. 50 cm
- Dimensions: 70 x 64 x 60 mm (Width/Height/Depth)
- Weight: 342g
- IP rating: IP68
- Approvals: CE, RoHS, R10
- Warranty: 24 months
