On-board air compressor CKMTA12 12V ARB
892.54 €
(w/o VAT:702.78 €)
(w/o VAT:702.78 €)

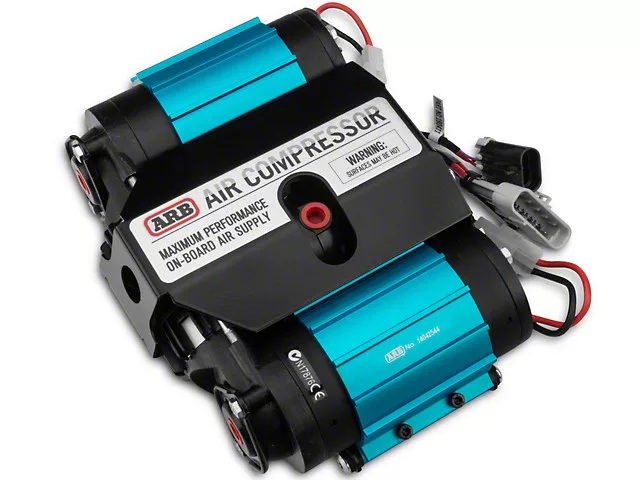

On-board air compressor CKMTA12 12V ARB
Item number:
ARBCKMTA12
The high-performance CKMTA12 ARB compressor can be used to activate the air locks, pump wheels or power the tools. Compressor engine has a new type of electronic protection against overheating that automatically shuts off the compressor. Made of light but very durable materials used in aviations. Properly sealed against dust and moisture.
Â
Â
Kit includes:Â compressor, air filter, mounting bracket, pressure switch, electrical switch for cabin car and complete electrical harness.
Â
Â
NOTE:
- Kit with reservoir(ARB171503, sold separately)Â is necessary to properly control air lockers, remote air adjustable shocks, or other air devices which will be mounted to air compressor
-Â In case of replacement of old compressor (CKxx series) on CKMTA, old harness will be compatible with new compressor
- Kit with reservoir(ARB171503, sold separately)Â is necessary to properly control air lockers, remote air adjustable shocks, or other air devices which will be mounted to air compressor
-Â In case of replacement of old compressor (CKxx series) on CKMTA, old harness will be compatible with new compressor
Â
Â
Overload protection in harness: yes
Overhead protection of compressor engine: yes
Â
Dimensions (H x L x W): 105 x 278 x 190 [mm]Â
Weight: 8.8 kg
Power supply: 12 V
Power consumption:
- no load: 28.4 A
- under load: 50.4 A
Efficiency:
- no load: 174.4 l / min.
- under load: (at 200kPa) 131.8 l / min.
Efficiency duty cycle: 100%Â
Producer:
ARB
Weight:
6 kg/db
