ClearView Tyre Spider

ClearView Tyre Spider

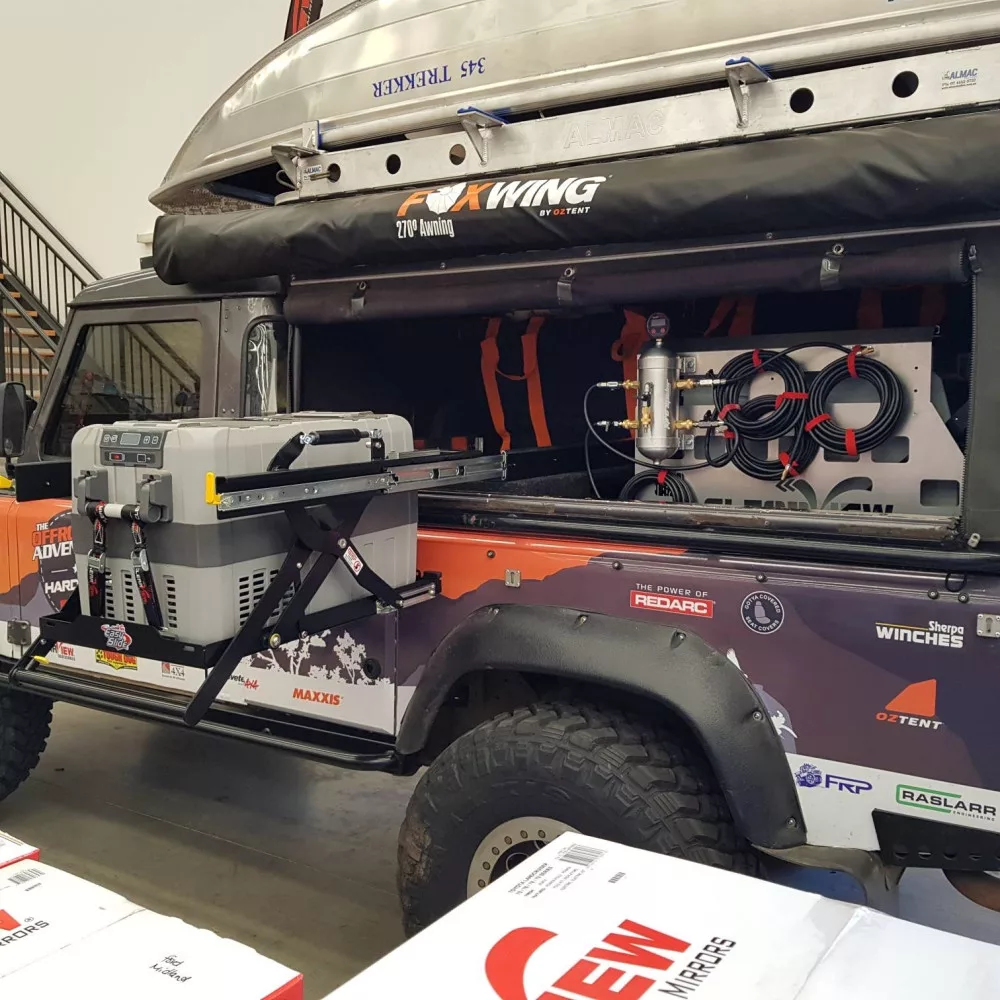

Whether you’re driving on sand or through muddy/soft tracks, the  ClearView Tyre Spider will quickly and easily assist you to adjust the tyre pressures evenly of your vehicle, caravan or trailer.  Designed to work independently OR to attached to your vehicles air-compressor.

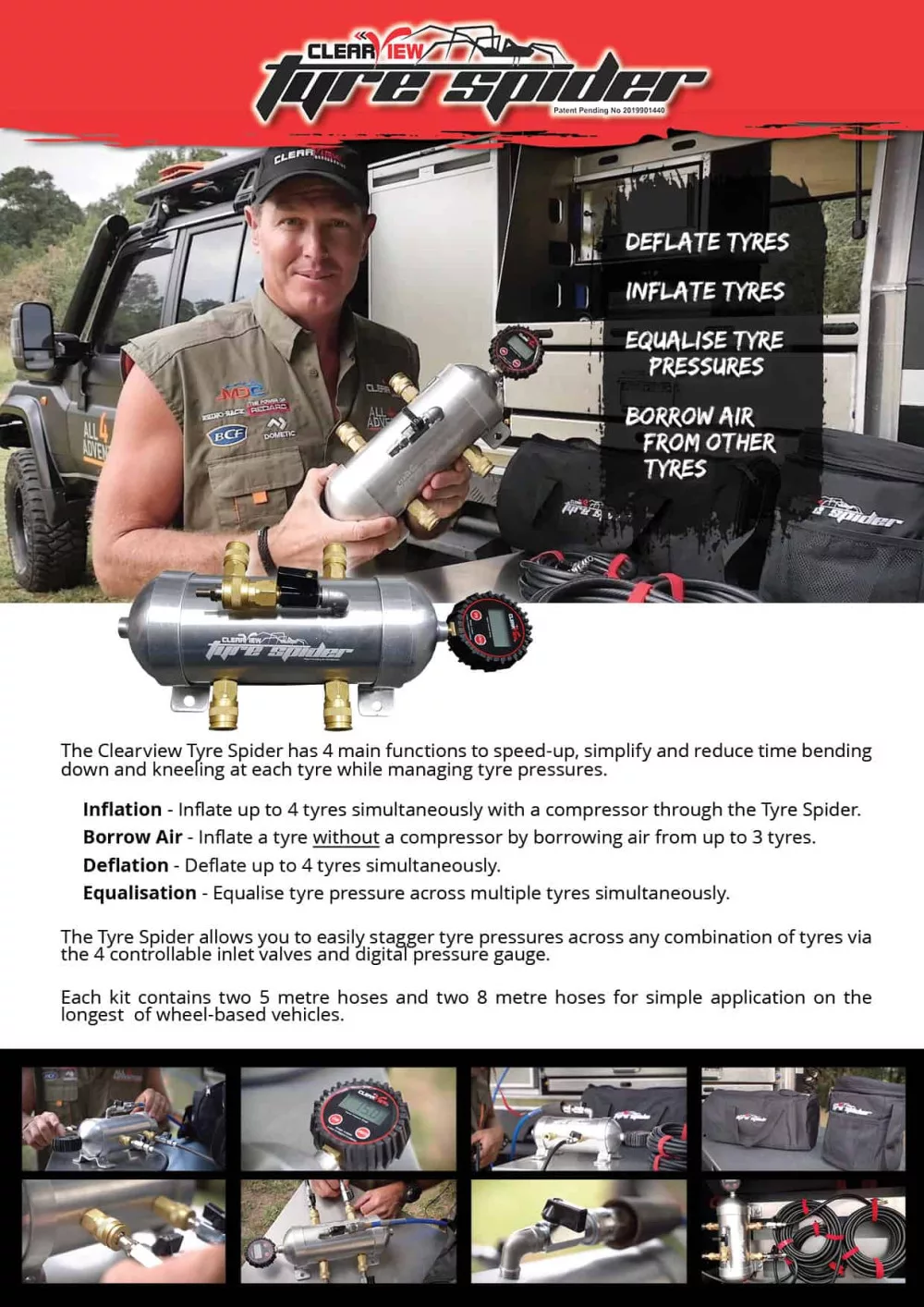

ClearView Tyre Spider Product Features:

• Inflation – Inflate up to 4 tyres simultaneously via an air-compressor.

• Borrow Air – Inflate a tyre without an air-compressor by borrowing air from up to 3 tyres.

• Deflation – Deflate up to 4 tyres simultaneously.

• Equalisation – Equalise tyre pressure across multiple tyres simultaneously.

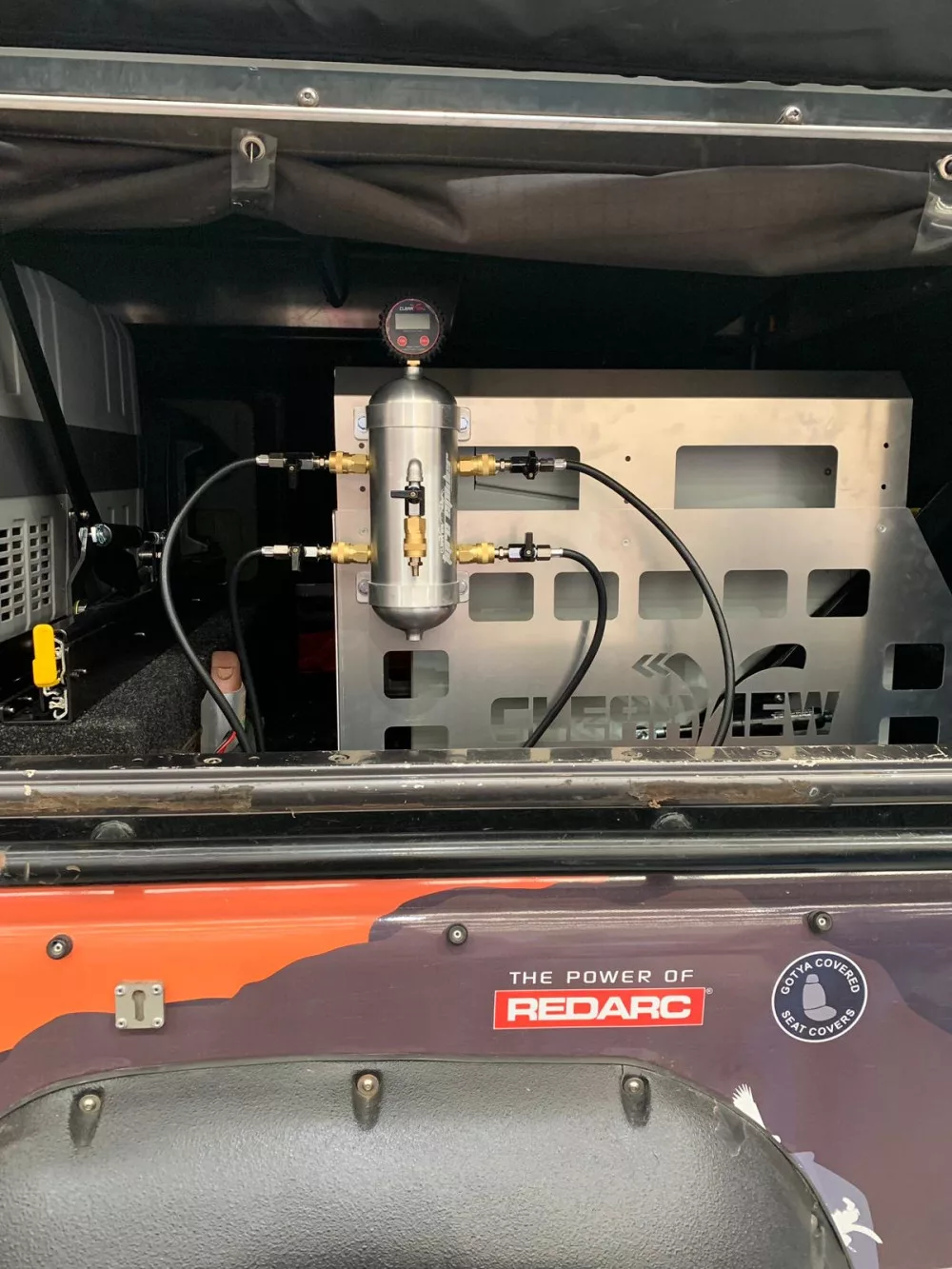

The Tyre Spider allows you to easily stagger tyre pressures across any combination of tyres via the 4 controllable inlet valves and digital pressure gauge.

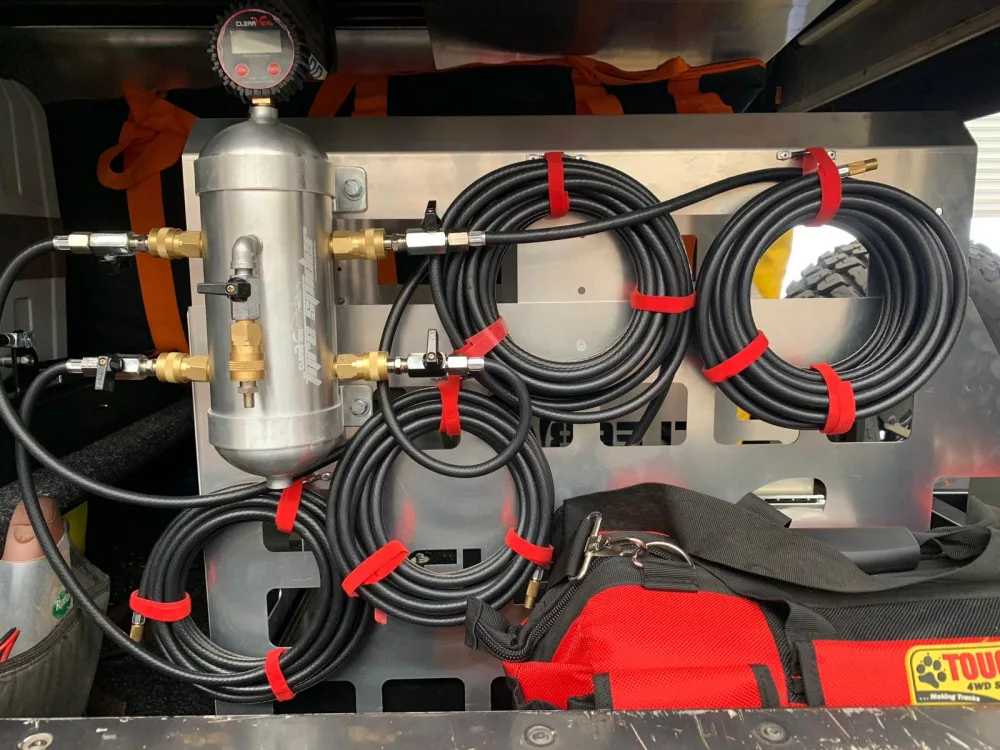

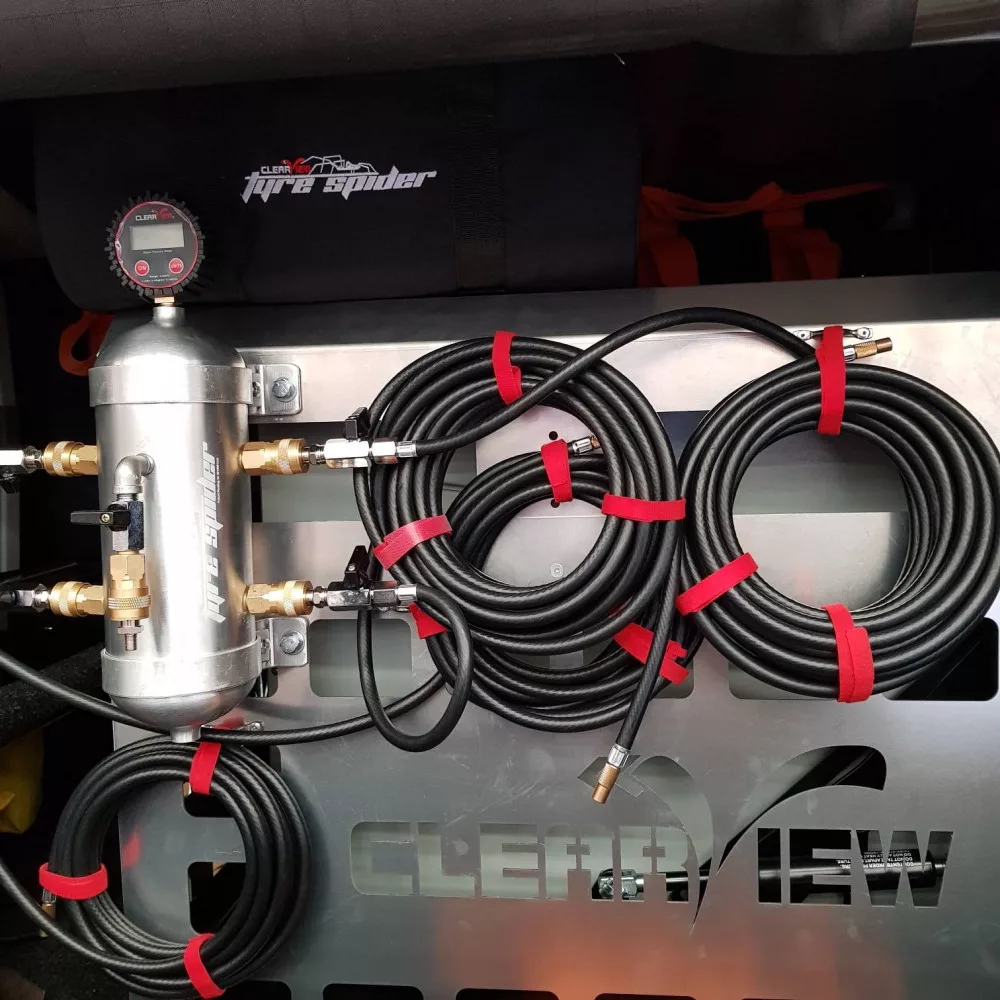

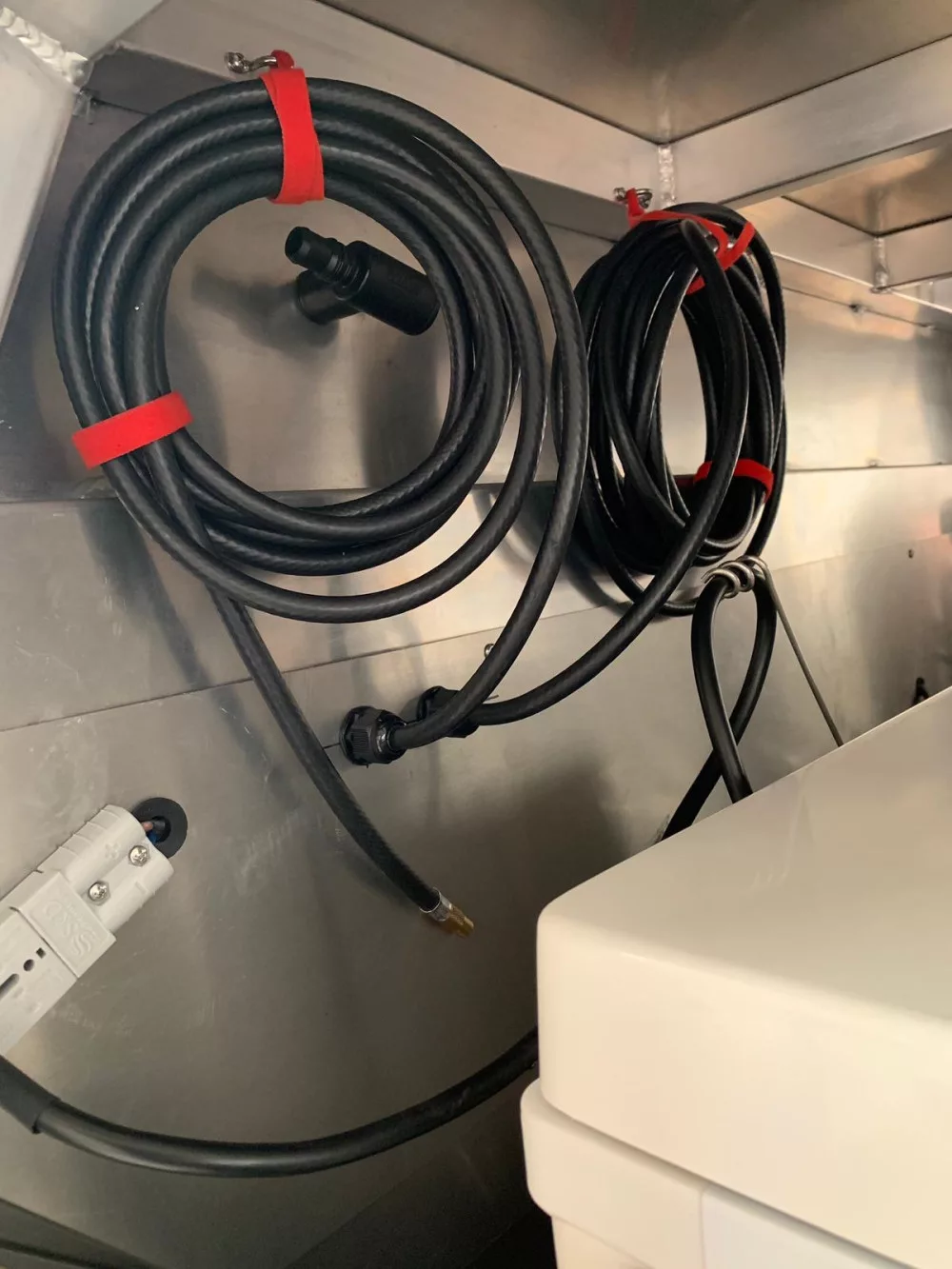

Each kit contains two 5 metre hoses and two 8 metre hoses for simple application on the longest of wheel-based vehicles.

Instructions on how to use the ClearView Tyre Spider:

Tyre Inflation – with air compressor (connect up to 4 tires at the same time)

Close the main valve. Open all 4 individual valve hoses to begin pressure equalisation.  Once equalised, close the individual valves, connect your air-compressor and re-open all 5 valves and turn on your air-compressor to begin inflating all four tyres at the same time.  If you require staggered pressure across your tyres, close the individual valves where the ideal pressure has been achieved and continue inflating the remaining tyres.
***This will reduce the overall load on the air-compressor, reduce overall inflation time and reduce the chances of your air compressor overheating.

Tyre Inflation – without air compressor (connect up to 4 tires at the same time)

With the main valve is closed. Open all 4 individual valve hoses to begin sharing air across all 4 tyres.  This will utilise the air in the inflated tyres to re-inflate the deflated tyres.  If you require staggered pressure across your tyres, close the individual valves where the ideal pressure has been achieved and continue inflating the remaining tyres.

Tyre Deflation

Close the main valve. Open all 4 individual valve hoses to begin tyre pressure equalisation.  This will equalise and balance the pressure across all 4 tyres.  Once equalised, open the main valve and the pressure of all 4 tyres will decrease at the same time.  When you are requiring staggered pressure across your tyres, close the individual valves where the ideal pressure has been achieved to allow deflation of the remaining tyres.

Tyre Equalisation

With the main valve closed. Open the 4 individual valve hoses to begin tyre pressure equalisation.  This will equalise and balance the pressure across all 4 tyres.  Close any individual valves if you require different pressure balance from front to back and once completed close the main valve.

Have a look at this movie:

The Tyre Spider Explained by Jase from All 4 Adventure
