Front brake kit DBA T2 Street Performance - Toyota Hilux

Improve the brakes on your vehicle with DBA

DBA’s brake kit of T2 Street series slotted rotors and Street Performance (SP) brake pads with ECE R90 Certification have been designed for drivers seeking improved braking performance over traditional O.E. brake discs and pads. DBA Street Performance brake pads are the next step up for all vehicles, developed to provide an effective friction response to pedal application and offer low wear and dust minimisation. The kit is recommended for daily driver and performance vehicles, 4WD’s and SUV’s. It is also compatible with light commercial and trade vehicles.

Specs:

• Improved braking performance over factory brake system
• Street performance and occasional track day suitable
• Slotted rotors offer better heat dissipation than smooth rotors
• Perfectly matching and extensively tested combination of disc and pad
• High quality
• Excellent performance at high temperatures

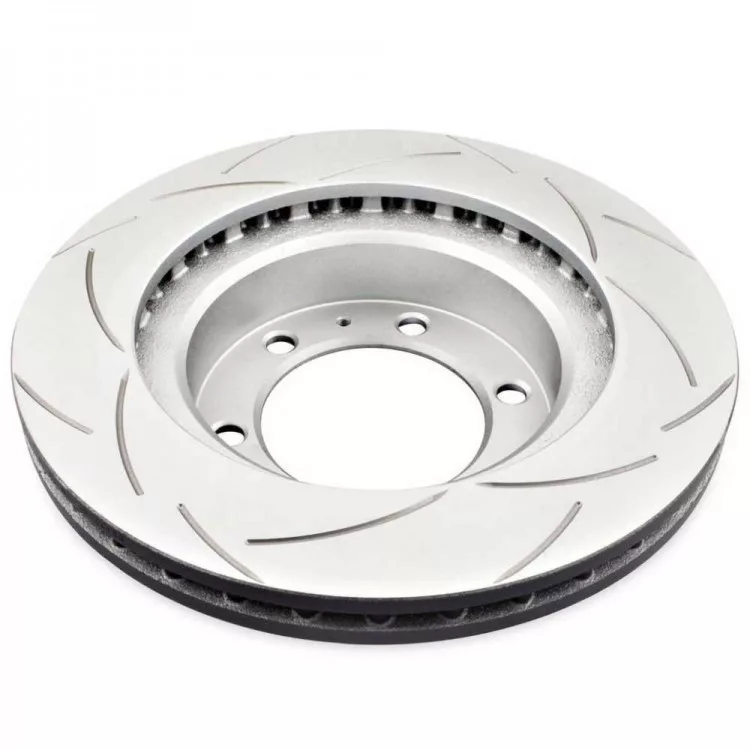

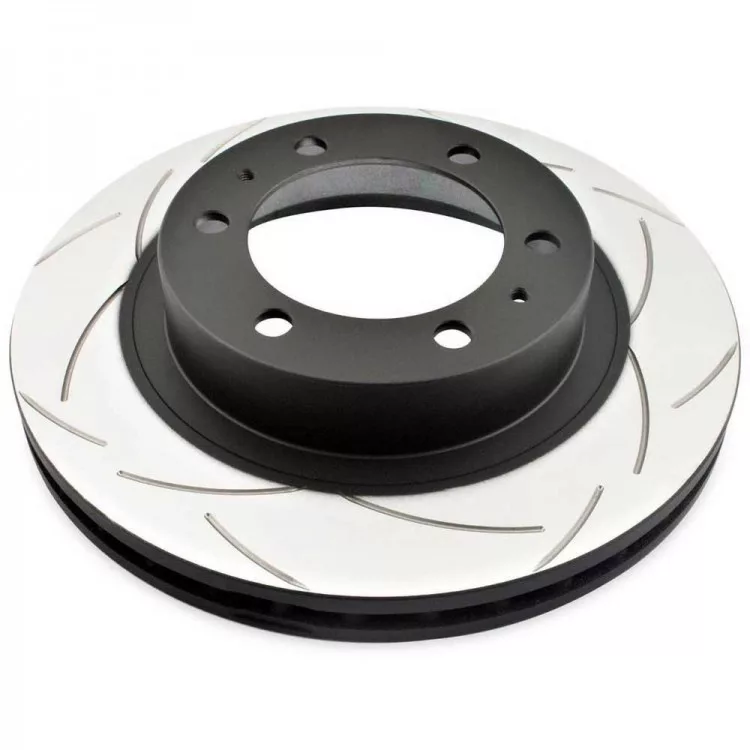

Brake discs specs:

• T2 precision CNC machined slots
  • Bi-symmetrical curve slots resulting in a quieter, more responsive and smoother brake pedal feel
  • Increased number of out-gassing exit points for brake pad friction gasses to escape through
  • Universal slot design
  • Increases the consistency and effectiveness of every brake stop
  • Eliminates the need for left and right discs
• Kangaroo Paw – 144 diamond and tear drop pillar ventilation system
  • Increased surface area resulting in greater heat dissipation
  • Minimises brake fade and increases braking effectiveness
  • Prolongs service life for both pads and rotors, reduces mechanical damage and associated costs
• XG150 high carbon alloyed iron
  • An increase in thermal capacity property allows the rotor to handle constant extremes of heat over extended periods of time
  • Minimises warping and cracking and prolongs the service life of the rotor
• Thermographic temperature monitoring
  • Heat paint markings change colour at specific temperature thresholds
  • When temperature thresholds are exceeded paint markings will permanently change colours
  • Offers the driver a clear indication of peak braking temperatures
  • Allows the driver to monitor rotor fatigue and decide on rotor replacement
• Paint protection on non-friction areas
  • Enhances appearance
  • Stops any unsightly rust formation

Brake disc dimensions:

• Diameter: 319 mm
• Height: 67,5 mm
• Thickness: 28 mm
• Inner Diameter: 108 mm
• Number of holes: 6

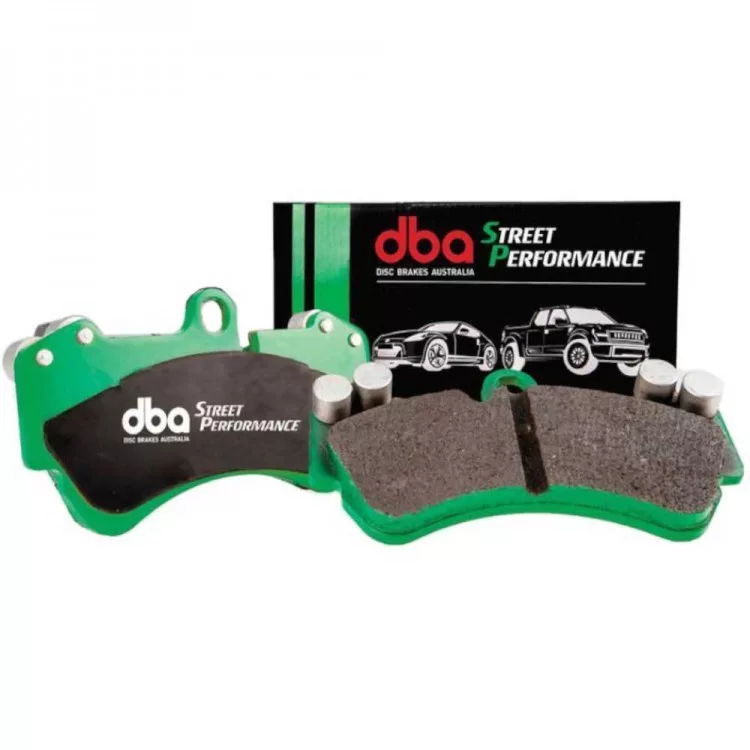

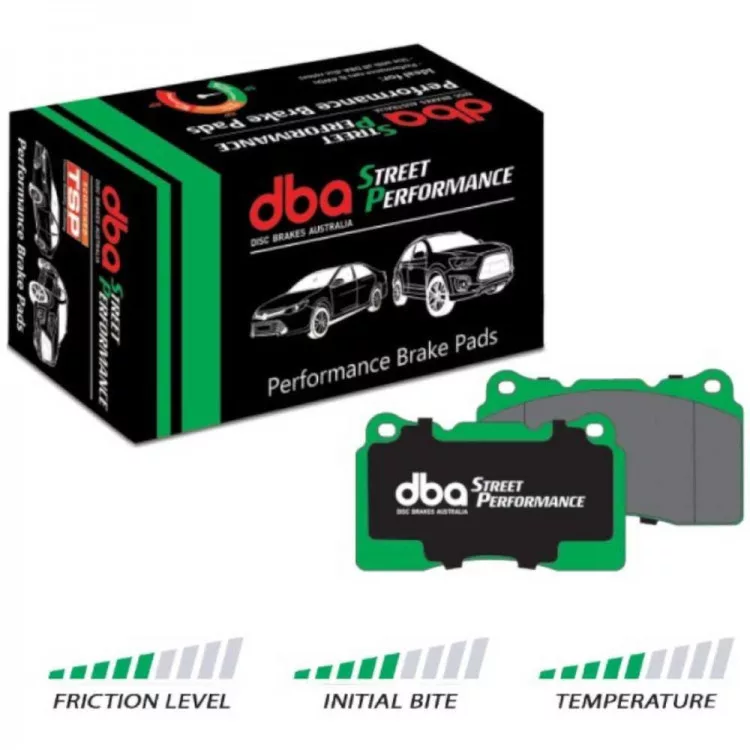

Brake pads specs:

• ECE R90 Certification
• Semi-metallic friction material
• F-F class friction (0,35 average mu from low to high temperatures)
• Consistent friction at high temperatures
• Optimal braking consistency up to 438C (820F)

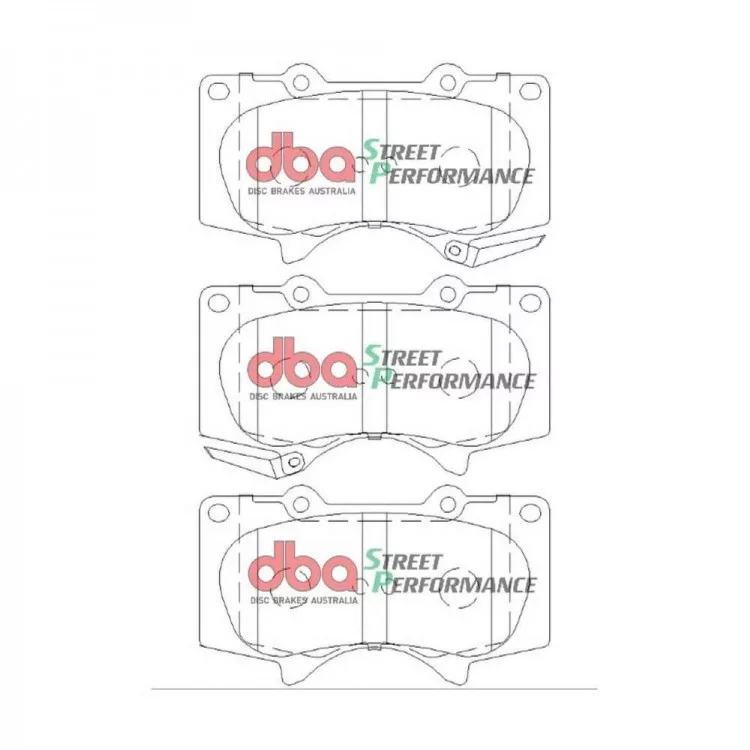

Brake pads dimensions:

• Width: 134,6 mm
• Height: 77,1 mm
• Thickness: 16,9 mm

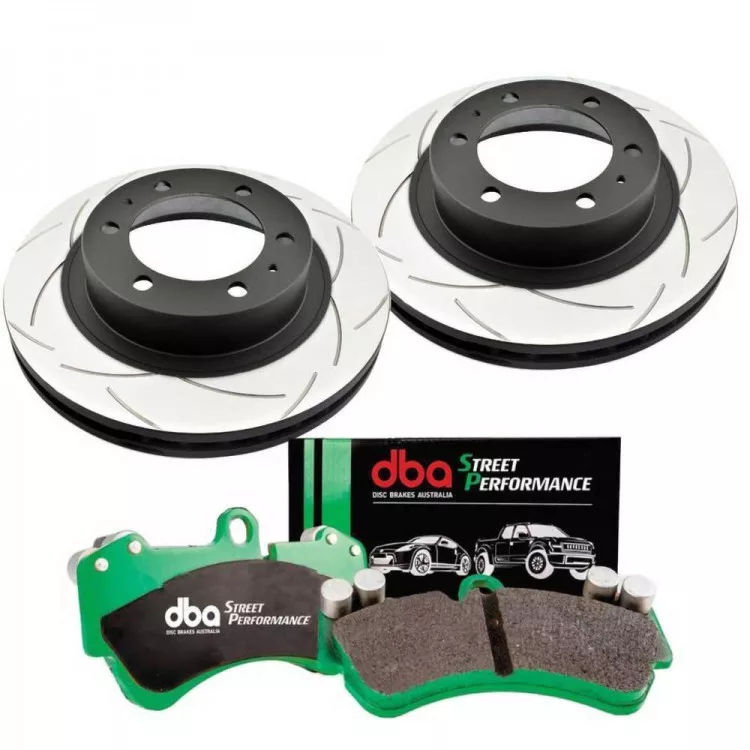

In the box:

• (2) Front discs
• Front full break pads kit

Fitment:

• Toyota Hilux 2008-2016 | Front | 3.0 TD (AHT) (VSC) (KUN26)
• Toyota Hilux 2005-2016 | Front | 3.0 TD (MRO) (VSC) (KUN26)
• Toyota Hilux 2015-present (Double Cab) | Front | 2.4 TD (AHT) (GUN)
• Toyota Hilux 2015-present (Double Cab) | Front |2.4 TD (MRO) (GUN)
• Toyota Hilux 2015-present (Extra Cab) | Front | 2.4 TD (AHT) (GUN)
• Toyota Hilux 2015-present (Extra Cab) | Front | 2.4 TD (MRO) (GUN)
• Toyota Hilux 2015-present (Single Cab) | Front | 2.4 TD (AHT) (GUN)
• Toyota Hilux 2015-present (Single Cab) | Front | 2.4 TD (MRO) (GUN)
• Toyota FJ Cruiser 2007-2009 | Front | 4.0
• Toyota FJ Cruiser 2010-2016 | Front | 4.0
