EFS 5,5 Degree Caster Correction Plates Nissan Patrol Y60, Y61

EFS 5,5 Degree Caster Correction Plates Nissan Patrol Y60, Y61

For vehicles with +4-6" lift

100 mm lift Nissan Patrol GU Wagon / COIL F & R Y60, Y61

125 mm lift Nissan Patrol  GU Wagon / COIL F & R Y60, Y61

When raising your Nissan Patrol (Y60 or Y61) above 4 inches, the use of a castor correction bush kit becomes inadequate and does not adjust the castor enough. You should also remember about the steering angle of the steering pin.This is where castor plates are used which can achieve correct castor angles up to approx 7 inches of lift. This is a very important parameter that creates a stabilizing moment from the lateral reactions of the ground, which contributes to the stability of the steered wheels, especially at high speeds and a large turning radius.

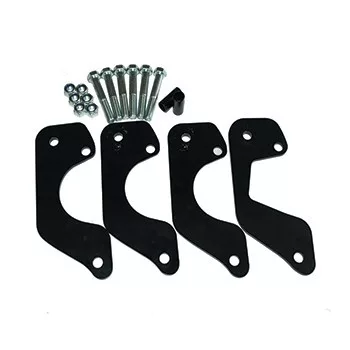

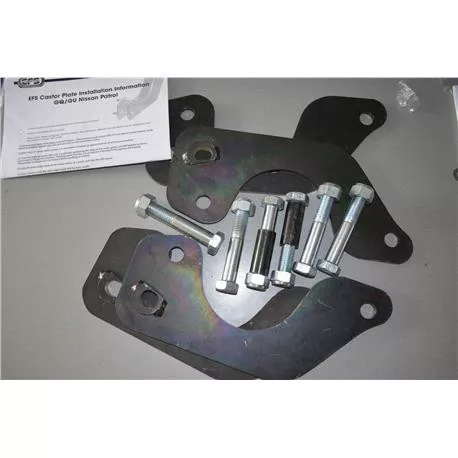

EFS Castor Plate kits come powder coated to resist rust and include all mounting hardware.

This set allows the bridge to be tilted 5.5 degrees to the original.

3 years warranty/100.000 km
