Technical information

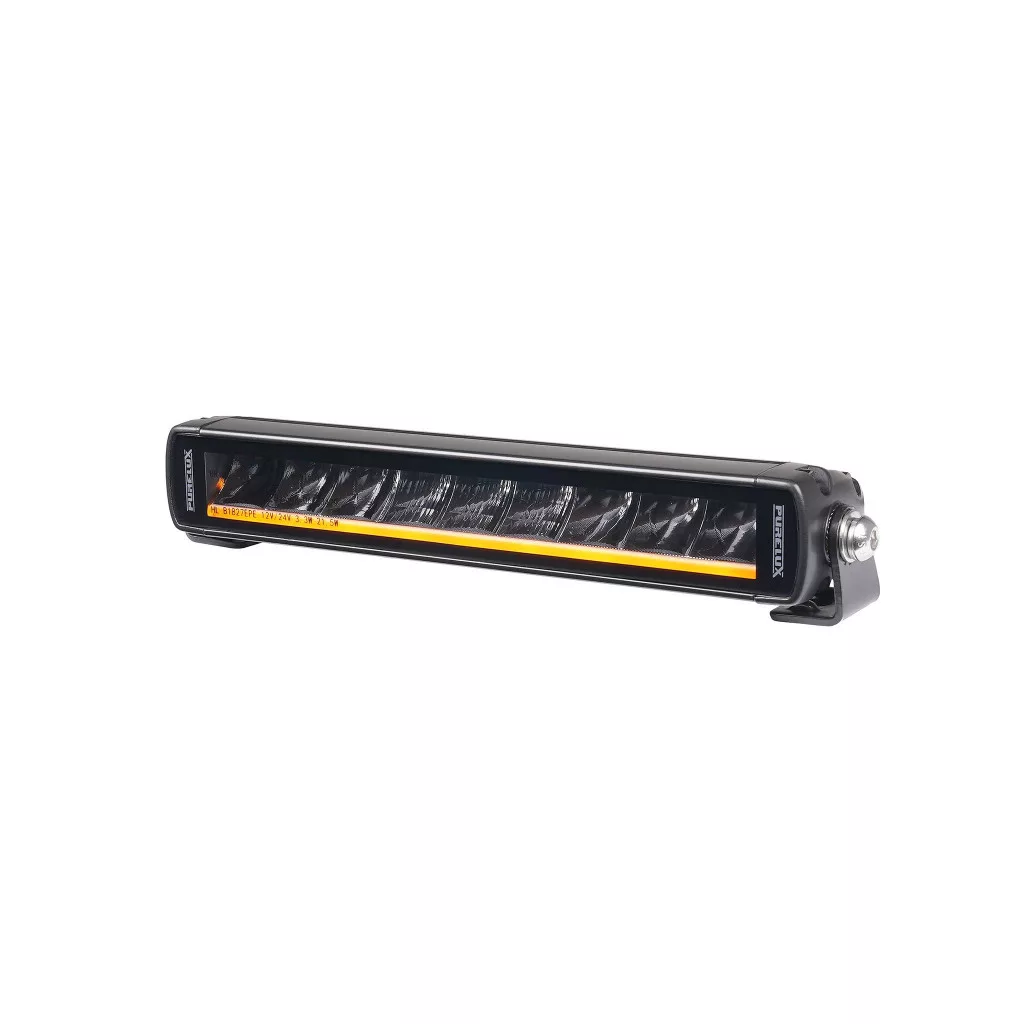

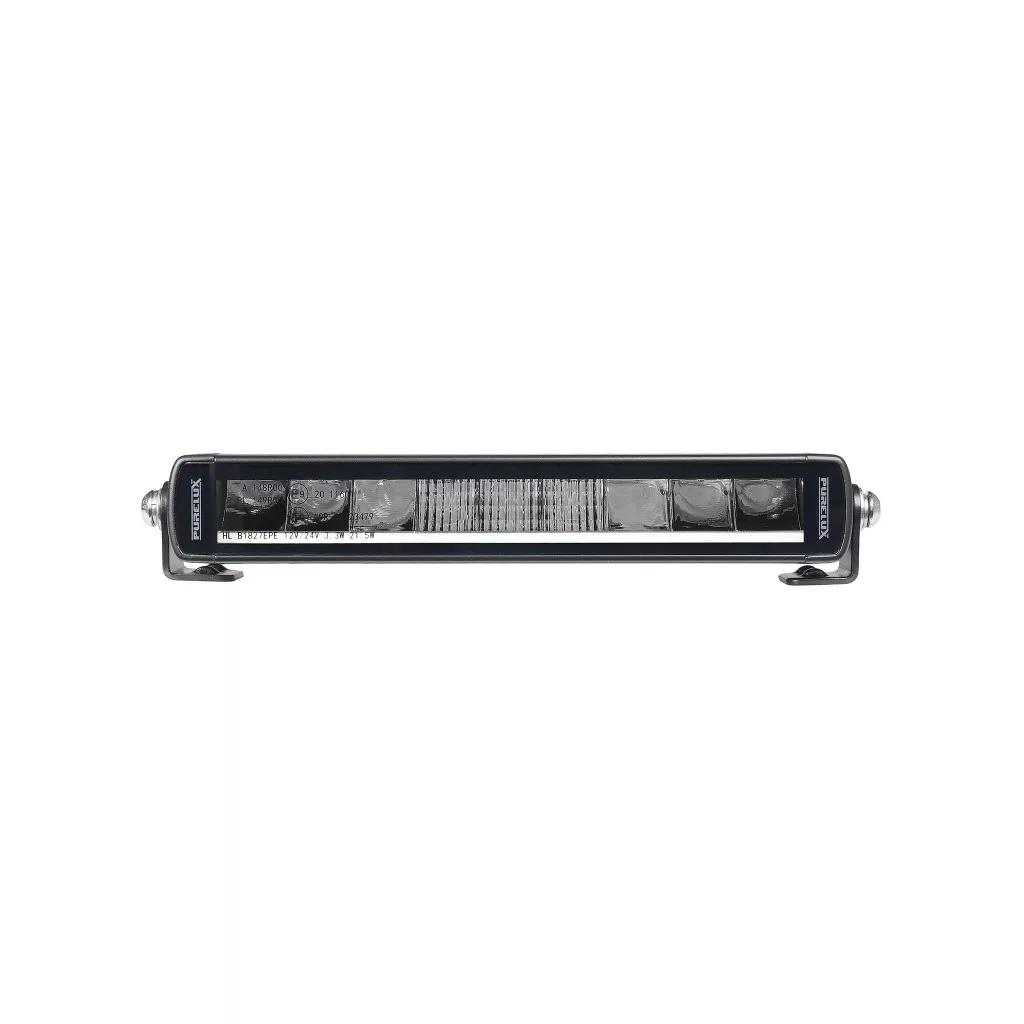

- Brand and model: Purelux Black X-Slim S250 Gen2
- Purpose: As an additional light in cars / Off-Road vehicles / work machines
- LED: Osram
- Operating voltage: 9-32 V
- Reference number: 20
- Calculated power: 45 W
- Power consumption measured by Valostore
- Purelux PowerBoost®: 3.16A @ 12V / 0.91A @ 24V
- Road mode: 1.83A @ 12V / 0.91A @ 24V
- Power measured by Valostore:
- Purelux PowerBoost®: 37.9 W @ 24V
- Road mode: 22W @ 24V
- Light output declared by the manufacturer: 3780 lm (Purelux PowerBoost®)
- Measured by Valostore: 2906 lm (Purelux PowerBoost®)
- Measured by Valostore: 1708 lm (Traffic mode)
- Range measured by Valostore
- Purelux PowerBoost®: 370 m @ 1 lux / 740 m @ 0.25 lux
- Road traffic condition: 282 m @ 1 lux / 564 m @ 0.25 lux
- Color temperature stated by the manufacturer: 5700 K
- Measured by Valostore: 5690 K

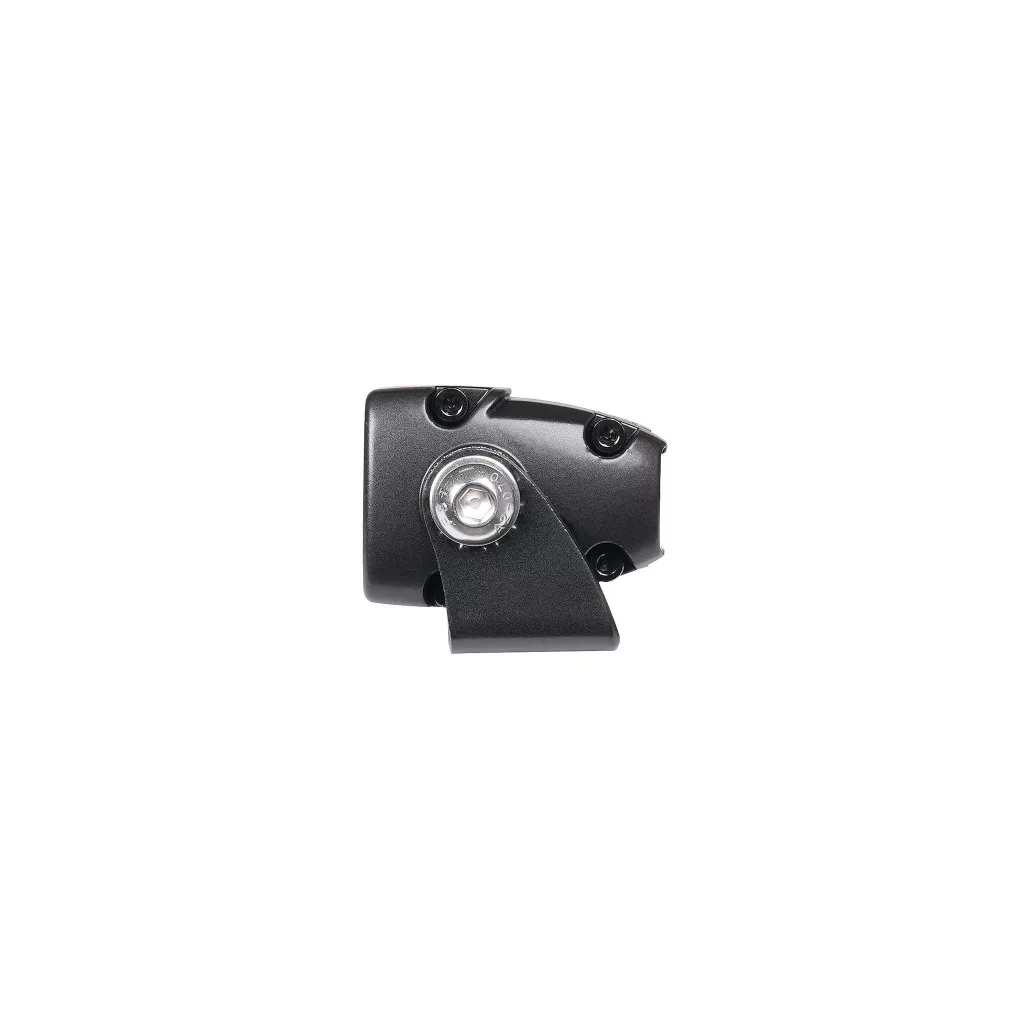

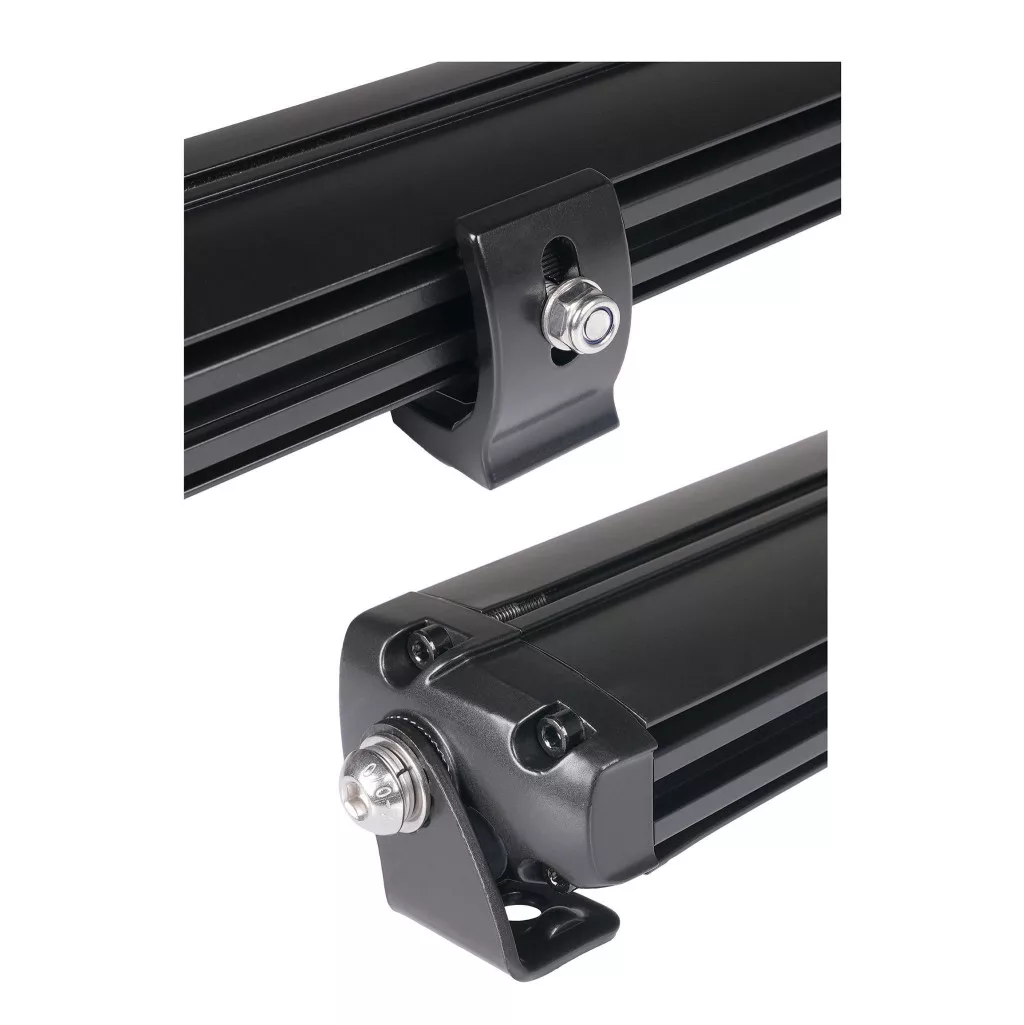

- Fastening: End legs, width-adjustable lower legs
- Connector: Deutch DT-2
- The parking lights + wires are separate
- Cable length: 50 cm
- Dimensions: 246 x 40 x 54 mm (Width x Height x Depth)
- Height with end legs: 49 mm
- Height with lower legs: 51 mm
- Weight: 700 g
- IP rating: IP69K
- Approvals: ECE: R10, R148, R149*
- *Road traffic approval does not apply to PowerBoost® mode
- Warranty: 24 months
Installation guide
Coupling
- DT-2 connector: Additional light connection
- White: White parking light
- Yellow: Orange parking light
Basic delivery content
- Purelux Black X-Slim S250 Gen2
- 2 x Width-adjustable lower legs
- 2 x End feet
- Power cable counterpart
- Connection and installation instructions (EN/FI/SE/NO/DK)
Changing the power mode with UI technology: The first time the lamp is used, it lights up in the E-approved mode. To change the power mode, turn the light off for five seconds, then turn the light on for two seconds, and turn the light off and on 3 times in five seconds to change the power mode. Repeat to change the power mode again.
You can find the manufacturer's connection and installation instructions (EN/FI/SE/NO/DK) by clicking here.
