Technical information

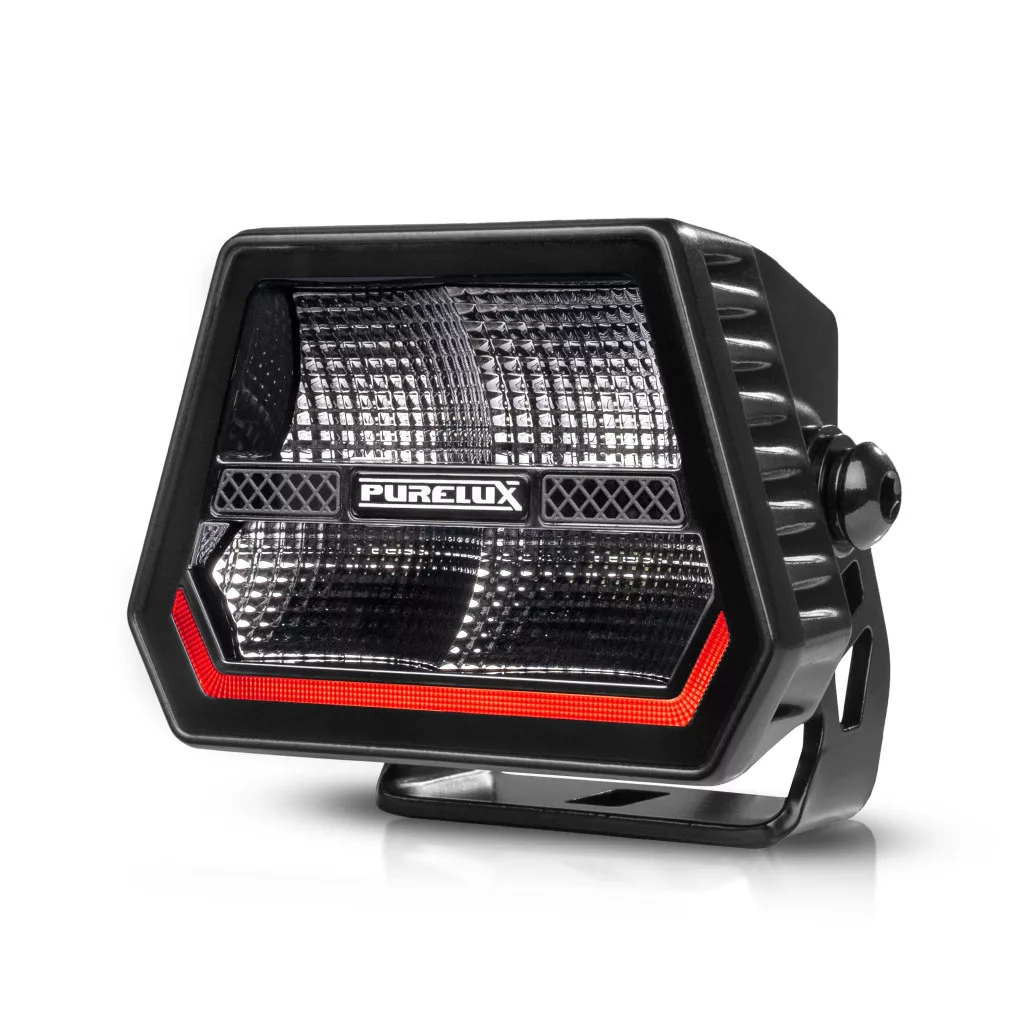

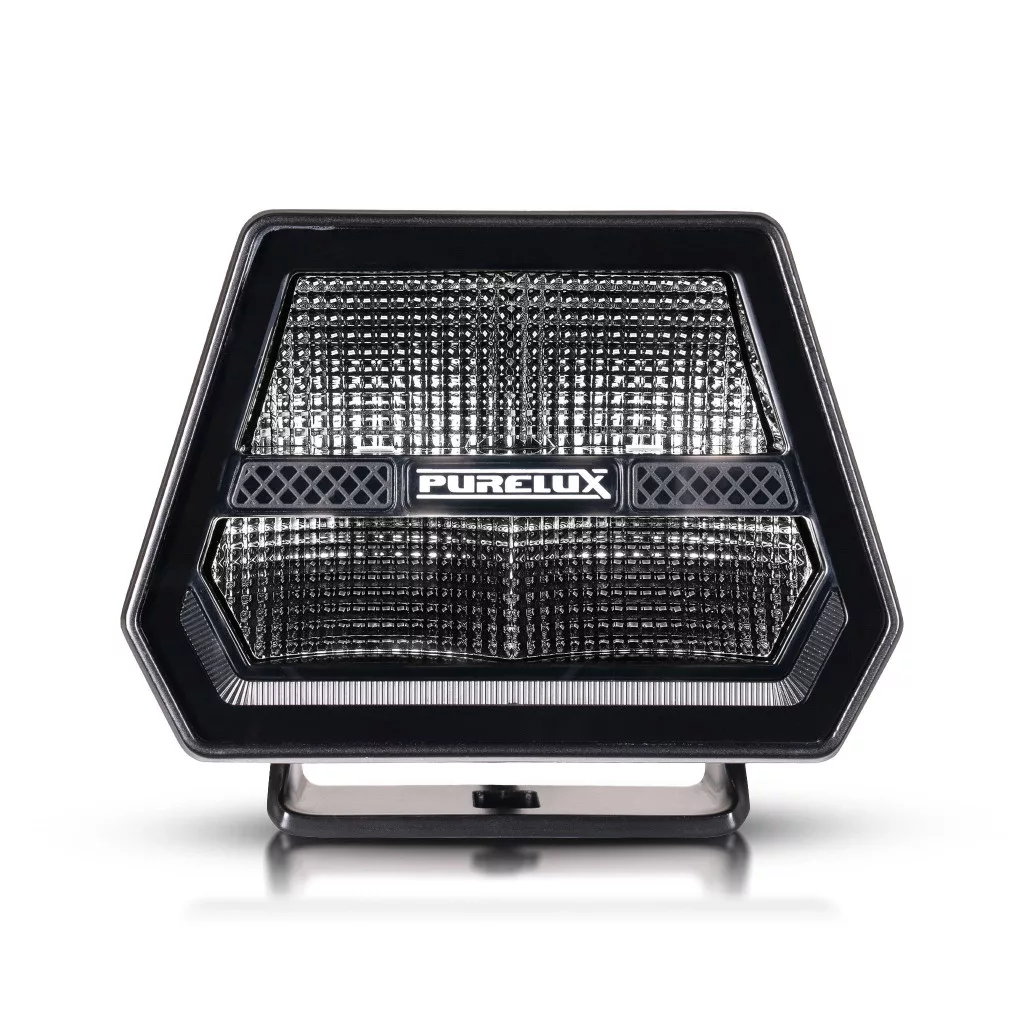

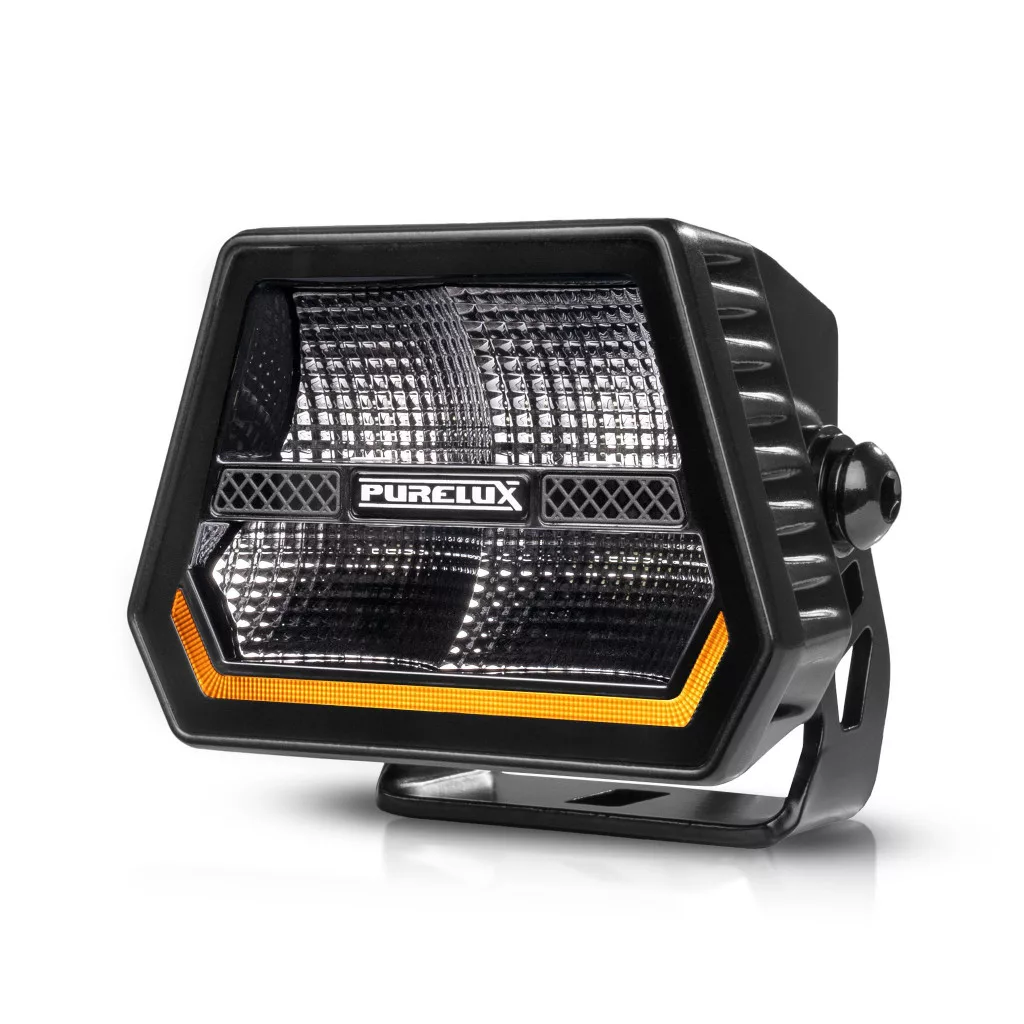

- Brand and model: Purelux Panther Alpha 60 Wide

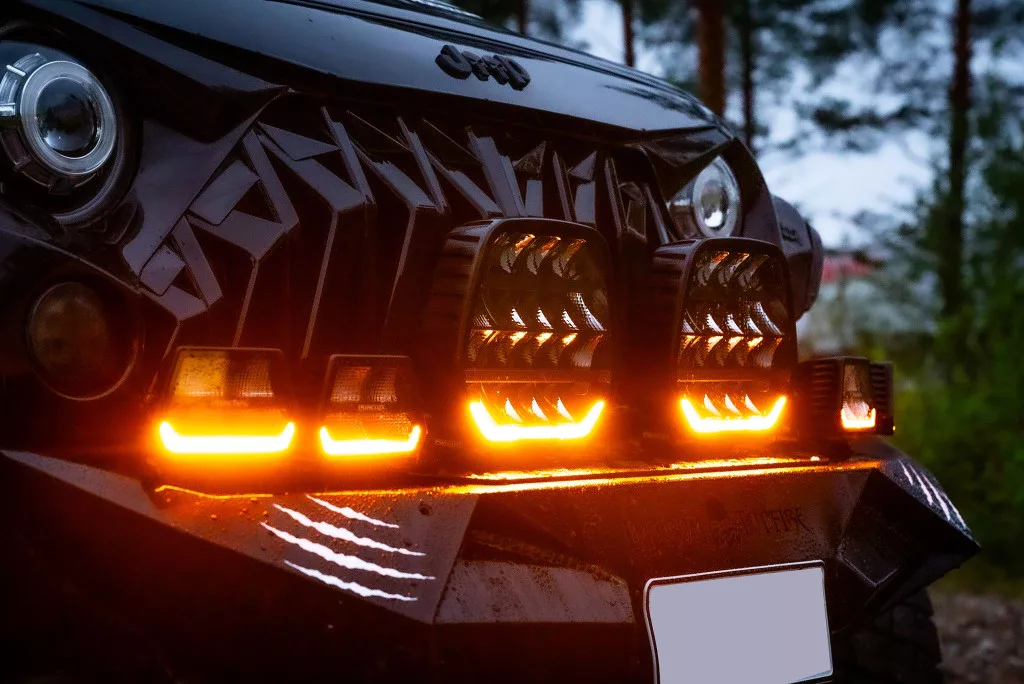

- Purpose: As a work light in work machines, heavy equipment and cars
- Operating voltage: 9-36V
- Power consumption measured by Valostore
- Work light: 1.7A @ 24V

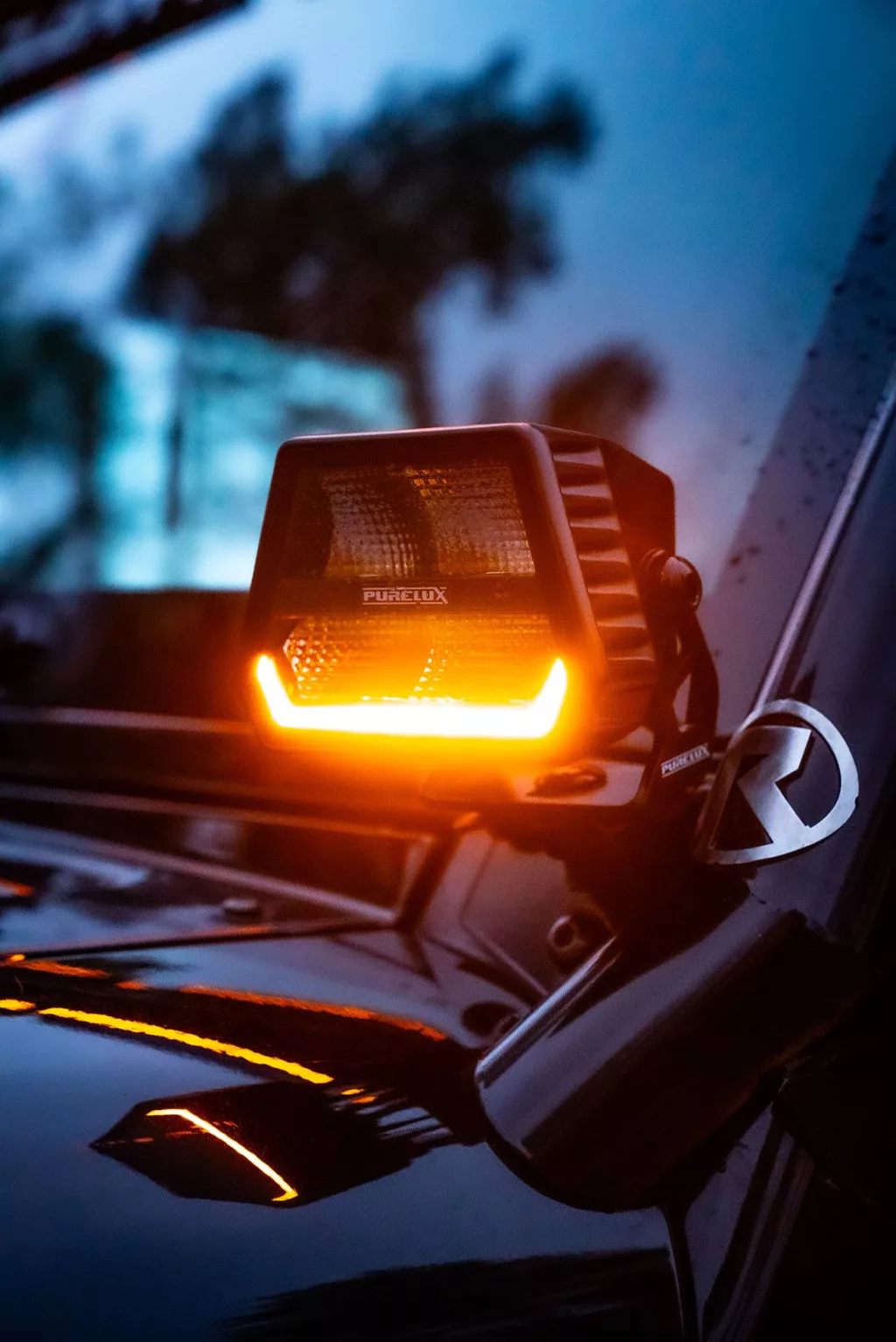

- Parking light: 0.17A @ 24V
- Theoretical power declared by the manufacturer: 60 W
- Power measured by Valostore
- Work light: 40.8 W
- Parking light: 4.1 W
- Light output stated by the manufacturer: 3500 lm
- Measured by Valostore: 3448 lm
- Range measured by Valostore: 322 m @ 1 lux / 644 m @ 0.25 lux
- Color temperature stated by the manufacturer: 5000 K
- Measured by Valostore: 5014 K

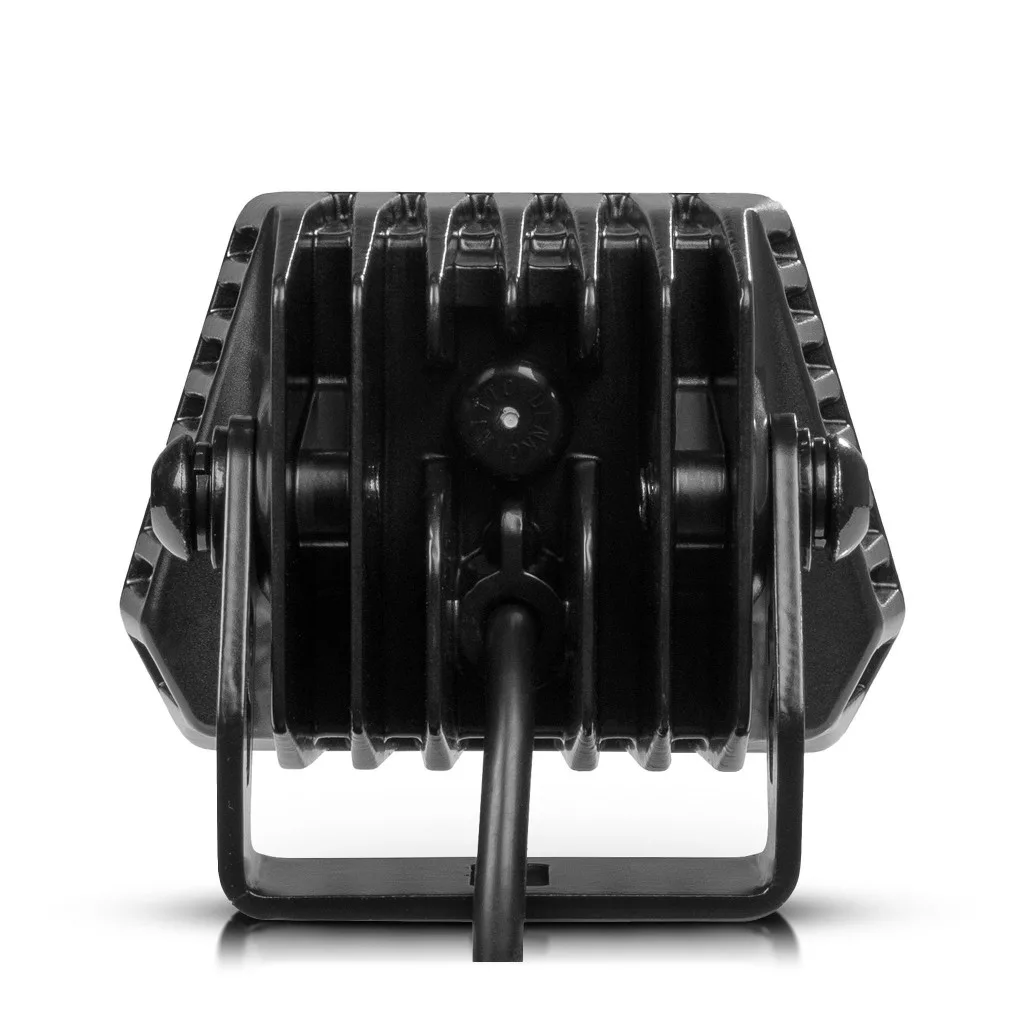

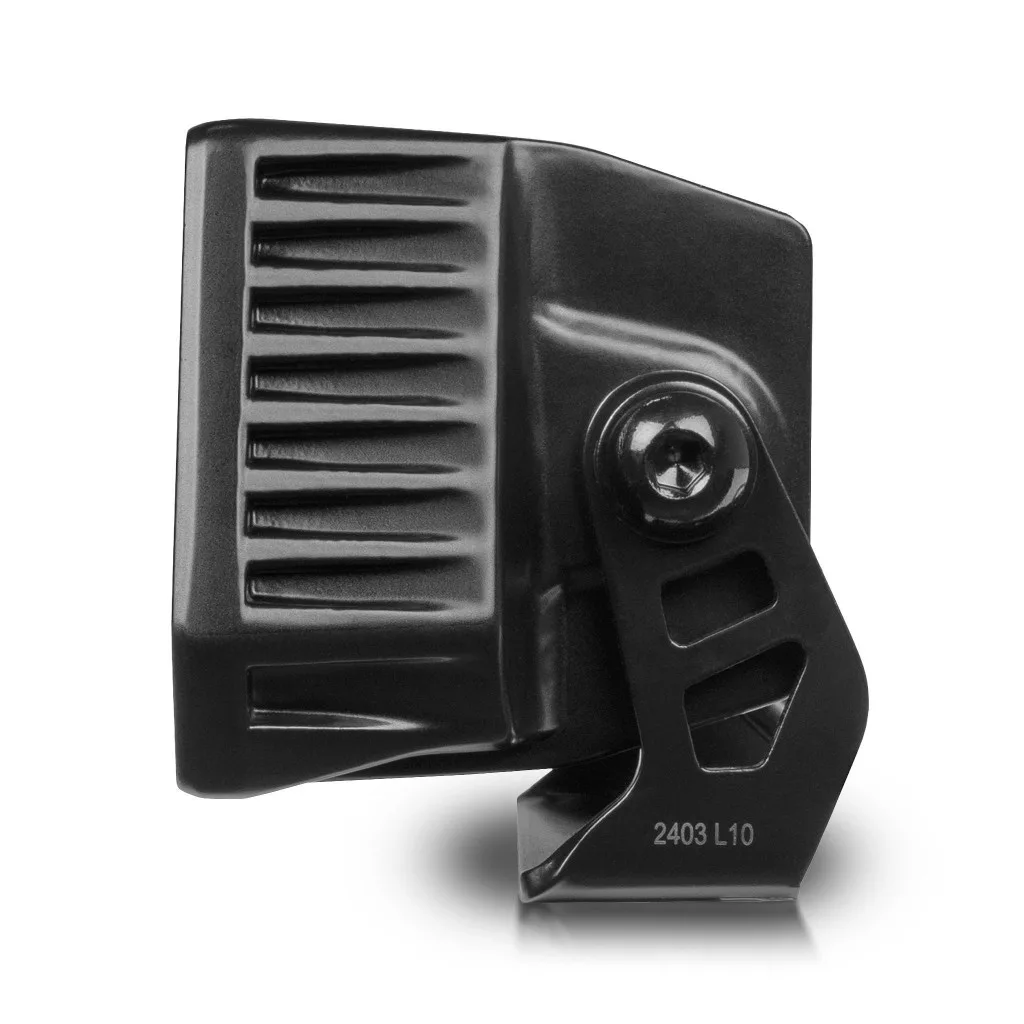

- Mounting: Mounting base
- Connector: DT-4
- Cable length: 50 cm
- Dimensions: 116 x 82 x 77 mm (Width x Height x Depth)
- Weight: 700 g
- IP rating: IP69K
- Operating temperature: -40°C to +60°C
- Approvals: EMC: ECE: R10, R149, CISPR25 Class 3, CE, RoHS
- Warranty: 36 months
Basic delivery content
- Purelux Panther Alpha 60 Wide
- Sturdy mounting leg
- Fixing bolt
- Power cable with DT-4 connector, 50 cm
- The counterpart of the connector
- Connection and installation instructions (EN, FI, SE, NO, DK)
Installation guide
You can find the manufacturer's connection and installation instructions (FI/SE/NO/DK/EN) by clicking here.
