- PowerBoost® technology
- A great, wide combination beam
- First choice for bow installations
- 7783 lumens, 648 meters (@ 1 lux)
- Optimal 5000K color temperature
- Stylish two-color parking light
- Frameless Lexa polycarbonate lens

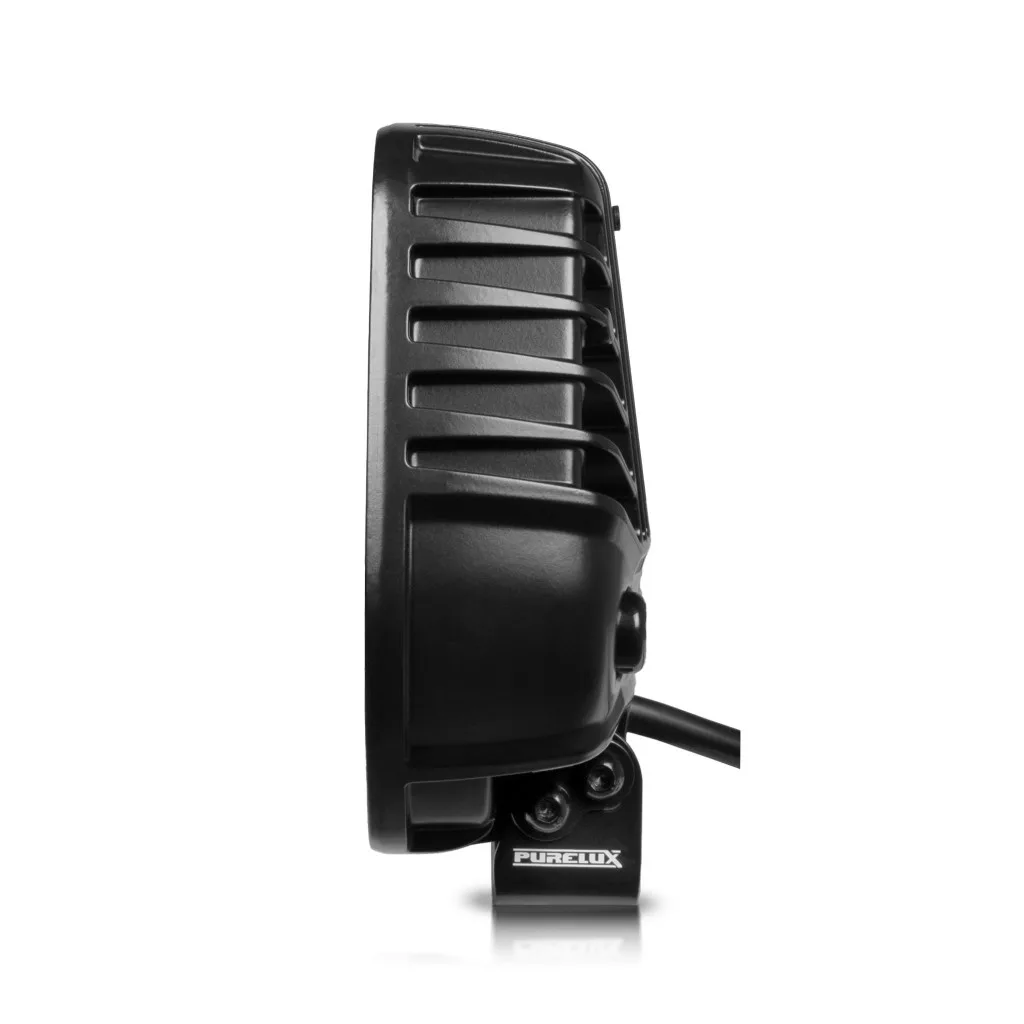

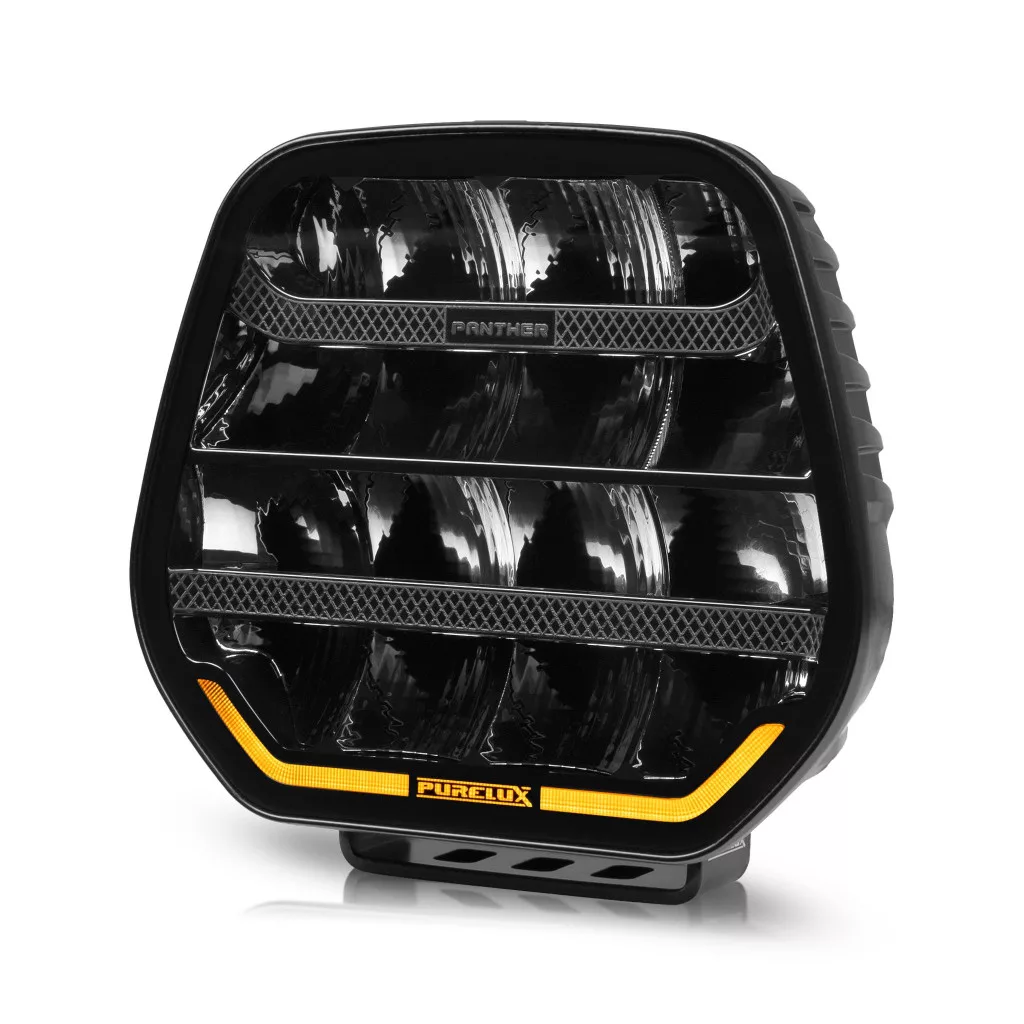

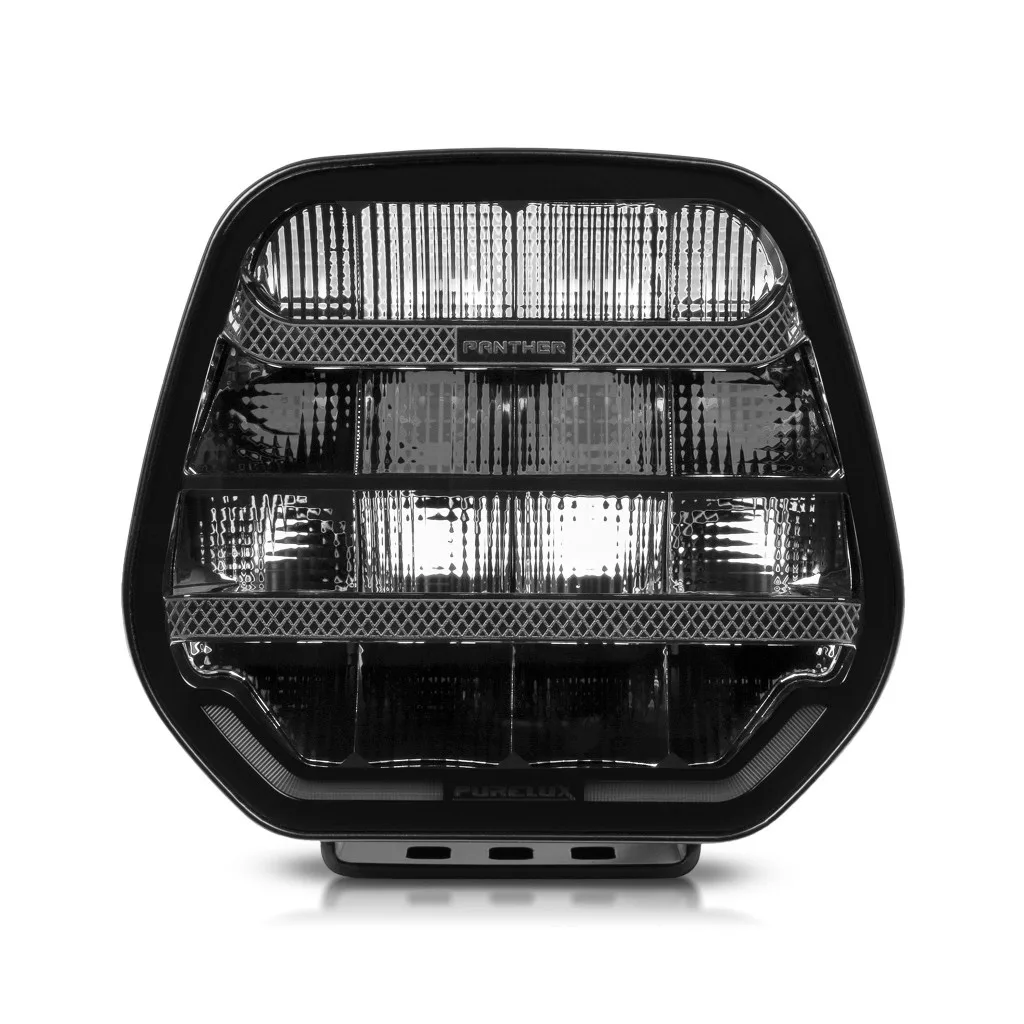

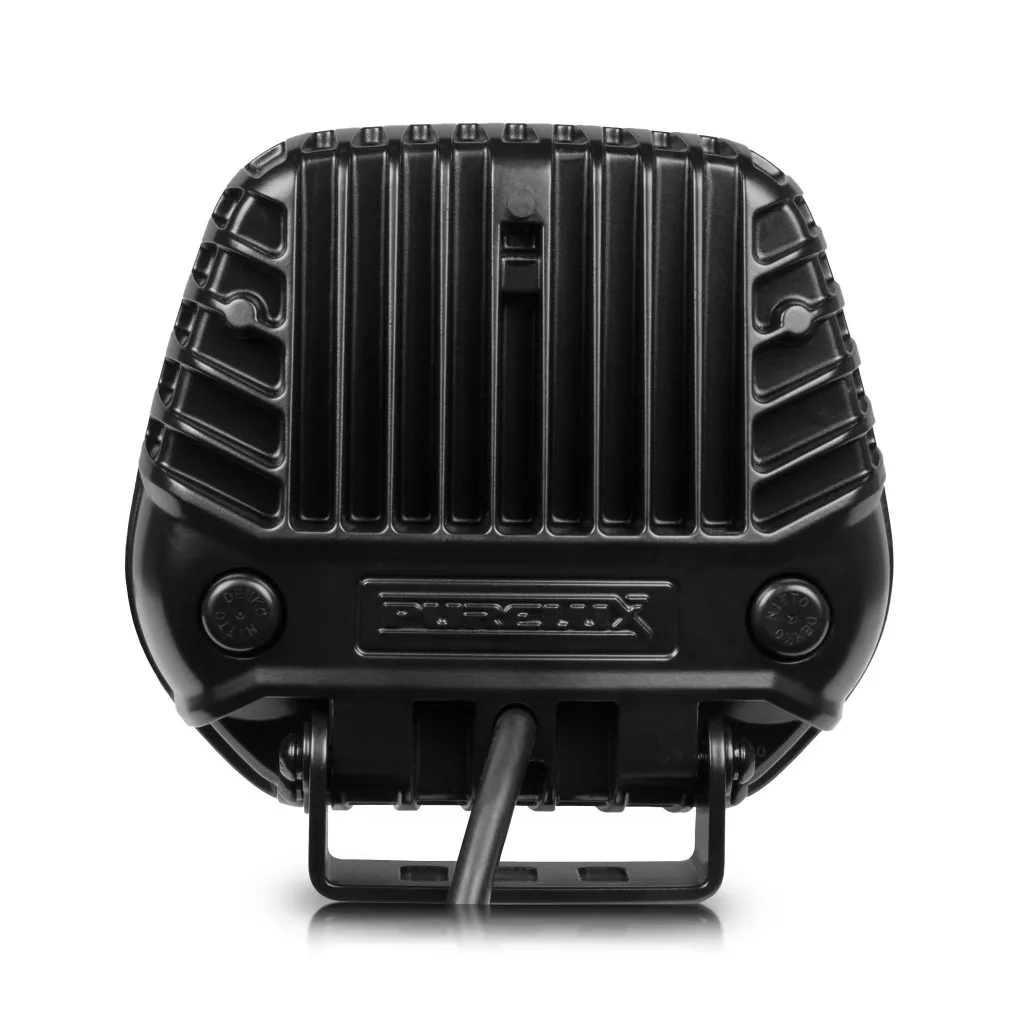

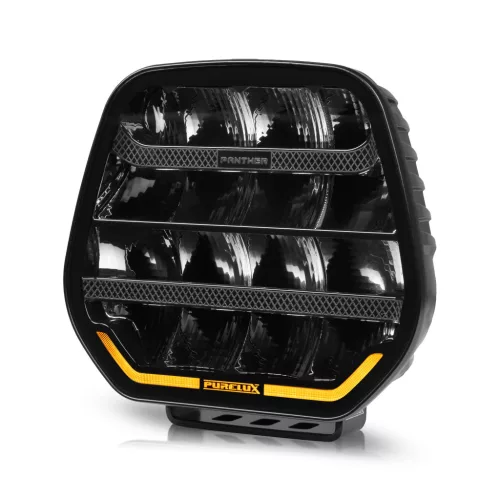

The Purelux Panther 7 is a shockingly powerful and spectacular auxiliary light that shakes up the market of round auxiliary lights with a fierce performance, one of the best combination light beams on the market and a unique appearance. The light has two different power modes, i.e. it can be switched on either the more moderate power mode approved for road traffic or the PowerBoost® mode that releases unlimited light output. The innovative user interface integrated into the light allows you to change the power modes easily and quickly while driving, so there is no need to make any additional connections!

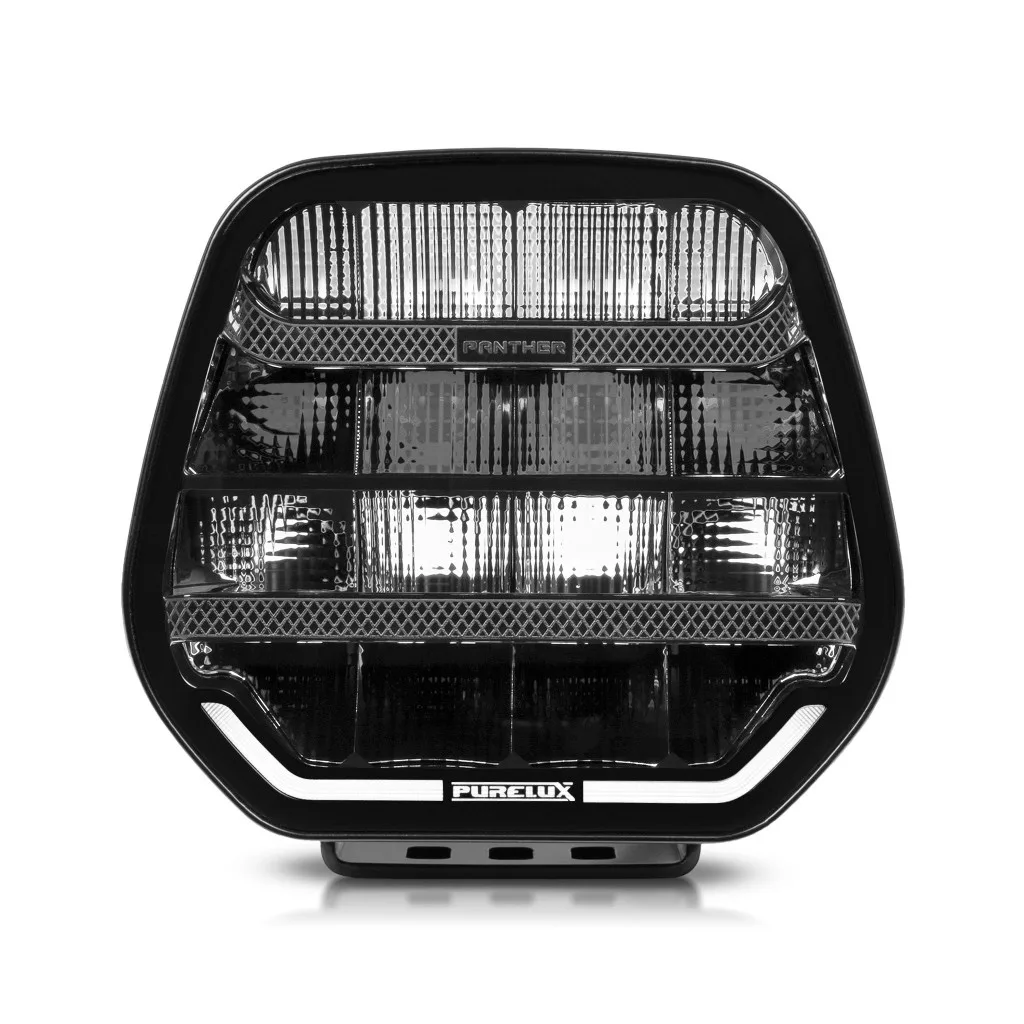

In PowerBoost® mode, the measured light output of just one light is 7,783 lumens and the range reaches up to 648 meters (1 lux), and when two or more lights are installed side by side, in the darkness of the night, the unnoticeable row of black panthers turns into a light phenomenon that signals the way ahead in an unprecedented way. The attention-grabbing design, stylish details and the orange or white parking light at the bottom of the light make the Panther 7 an eye-catching revelation, and thanks to the stylish black color, it fits neatly into any vehicle.
Specifications
- Brand and model: Purelux Panther 7
- Purpose: As an additional light in cars / work machines
- Operating voltage: 9-36 V (DC)
- Reference number: 20
- Calculated power: 128 W
- Power consumption measured by Valostore
- Purelux PowerBoost®: 5.09A @ 24V
- Road traffic mode: @ 24V
- Warning light: @ 24V
- Power measured by Valostore
- Purelux PowerBoost®: 122.1 W @ 24V
- Road traffic mode: @ 24V
- Parking lights: @ 24V
- Light output measured by Valostore: 7783 lm (Purelux PowerBoost®) / lm (Road traffic mode)
- Range measured by Valostore: 648 m @ 1 lux / 1296 m @ 0.25 lux (Purelux PowerBoost®)
- Range measured by Valostore: m @ 1 lux / m @ 0.25 lux (Traffic mode)
- Range with more light, measured (PowerBoost® / E-approved, @ 1 lux):
- With two: 916 m / m (@ 1 lux)
- With three: 1122 m / m (@ 1 lux)
- With four: 1296 m / m (@ 1 lux)
- Color temperature stated by the manufacturer: 5000 K
- Measured by Valostore: 4993 K
- Mounting: Mounting leg
- Connector: DT-2
- The parking lights + wires are separate
- Cable length: approx. 100 cm
- Dimensions: 178 x 158 x 61 mm (Width x Height x Depth)
- Height with mounting leg: 169 mm
- Weight: 1160 g
- IP rating: IP69K
- Approvals: ECE R10, R148, R149, CE, RoHS
- Road traffic approval does not apply to the Purelux PowerBoost® mode
- Other: The light has a ready place for the support iron
- Warranty: 36 months
Basic delivery content (1 pc.)
- Purelux Panther 7
- Mounting leg
- Power cord with DT-2 connector
- Connection and installation instructions (FI/SE/NO/DK)
Installation guide
Coupling
- DT2 connector: Additional light
- Yellow: Orange parking light
- White: White parking light
Changing the power mode with UI technology: The first time the lamp is used, it lights up in PowerBoost mode. To change the power mode, turn the light off, then turn the light on for two seconds, and turn the light off and on 2 times in 1.5 seconds to change the power mode. Repeat to change the power mode again.
You can find the manufacturer's connection and installation instructions by clicking here.
