- Brand and model: Purelux Panther Alpha 20
- Purpose: As a work light in work machines, heavy equipment and cars
- Operating voltage: 9-36V
- Power consumption measured by Valostore
- Work light: 0.80A @ 24V
- Parking light: 0.225A @ 24V
- Theoretical power declared by the manufacturer: 20 W
- Power measured by Valostore
- Work light: 19.3 W
- Parking light: 5.4 W
- Light output stated by the manufacturer: 1500 lm
- Measured by Valostore: 1394 lm
- Range measured by Valostore: 56 m @ 1 lux / 112 m @ 0.25 lux
- Manufacturer's stated color temperature: 5000K
- Measured by Valostore: 5049K

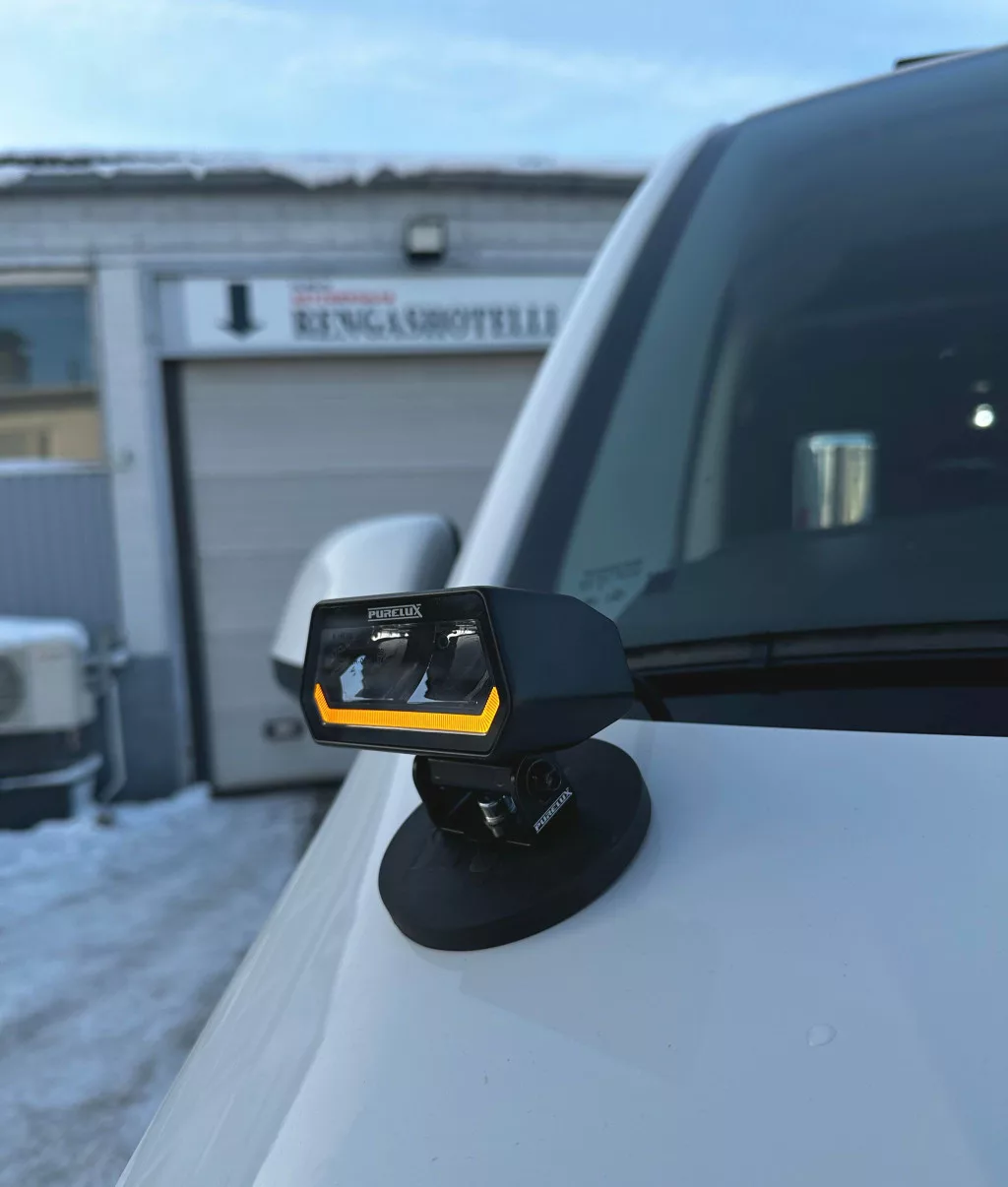

- Mounting: Mounting base
- Connector: DT-4
- Cable length: 50 cm
- Dimensions: 96 x 45 x 50 mm (Width x Height x Depth)
- Weight: 320 g
- IP rating: IP69K
- Operating temperature: -40°C to +60°C
- Approvals: EMC: ECE: R10, R23, R149, CE, RoHS
- Warranty: 36 months
Installation guide
You can find the manufacturer's connection and installation instructions (FI/SE/NO/DK/EN) by clicking here.
Basic delivery content
- Purelux Panther Alpha 20
- Sturdy mounting leg
- Fixing bolt
- Power cable with DT-4 connector, 50 cm
- The counterpart of the connector
- Connection and installation instructions (EN, FI, SE, NO, DK)
