Specifications:
Brand and model: Strands Nuuk D-Line MC 3"
Intended use: As an additional light on motorcycles / cars
Operating voltage: 10-32 V
Reference number: 12.5
Manufacturer's stated current consumption: 3.25A @ 12V / 1.625A @ 24V
Manufacturer's declared power:
Additional light: 39 W

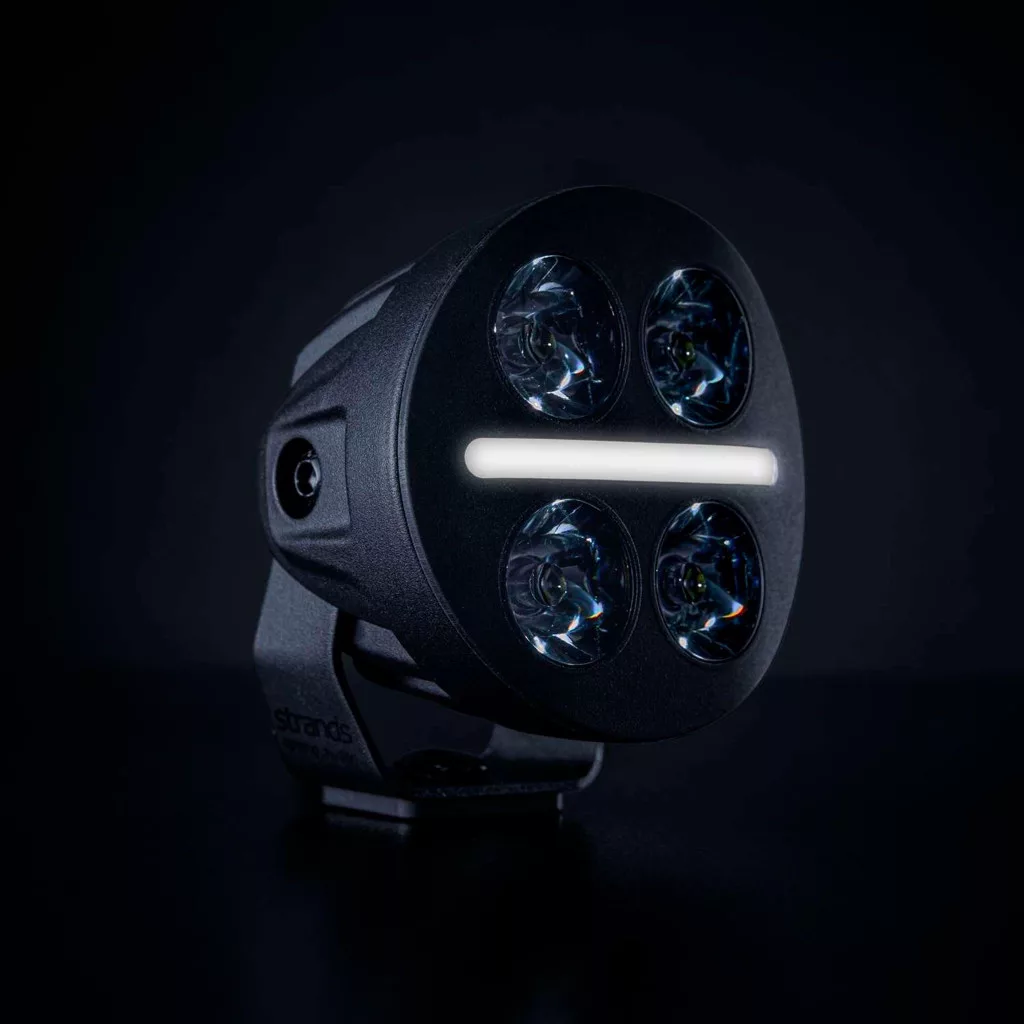

White parking light: 3 W

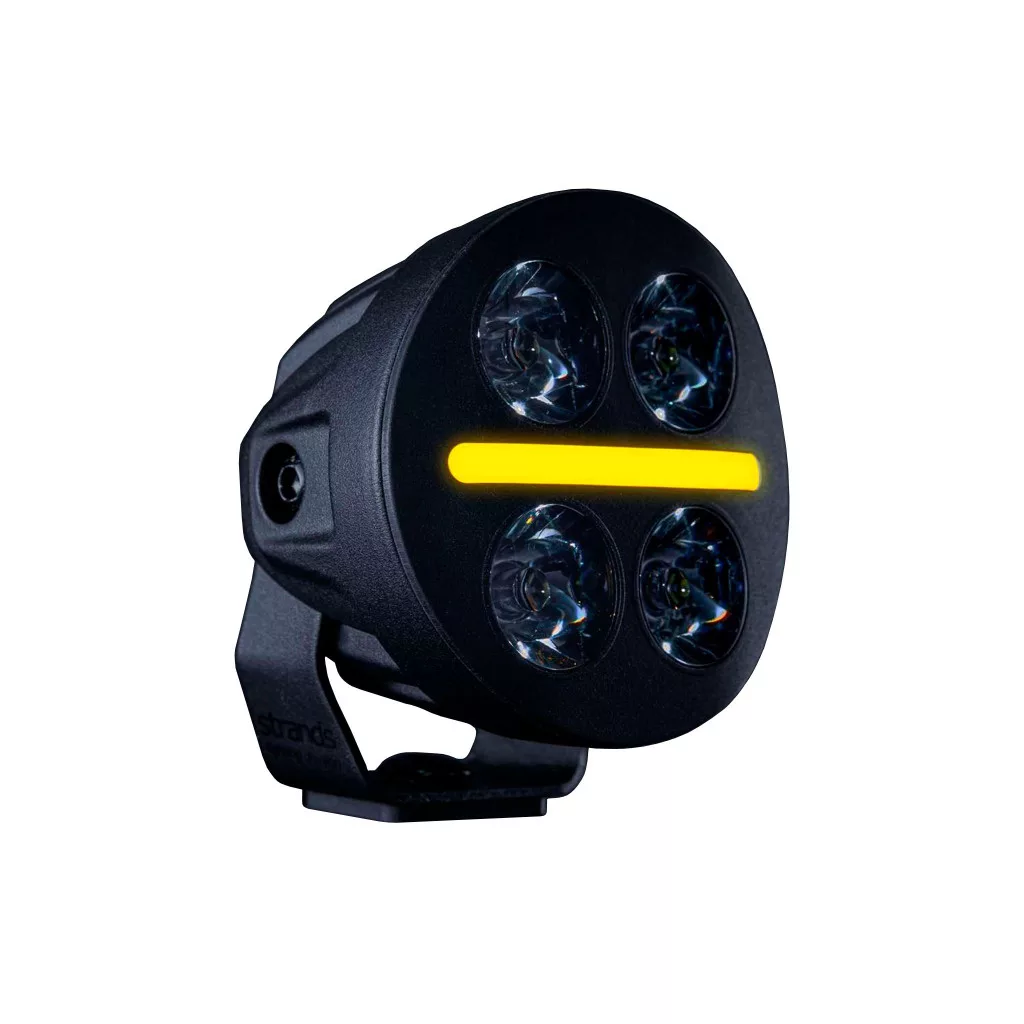

Yellow parking light: 3.2 W
Manufacturer's declared luminous efficacy: 2540 lm
Manufacturer's stated range: 276 m @ 1 lux / 552 m @ 0.25 lux
Range with multiple lights:
With two: 390 m (@ 1 lux)
With three: 478 m (@ 1 lux)
With four: 552 m (@ 1lux)
Manufacturer's stated color temperature: 5700 K
Mounting: Mounting stand
Connector: Deutsch DT4
Cable length: approx. 150 mm

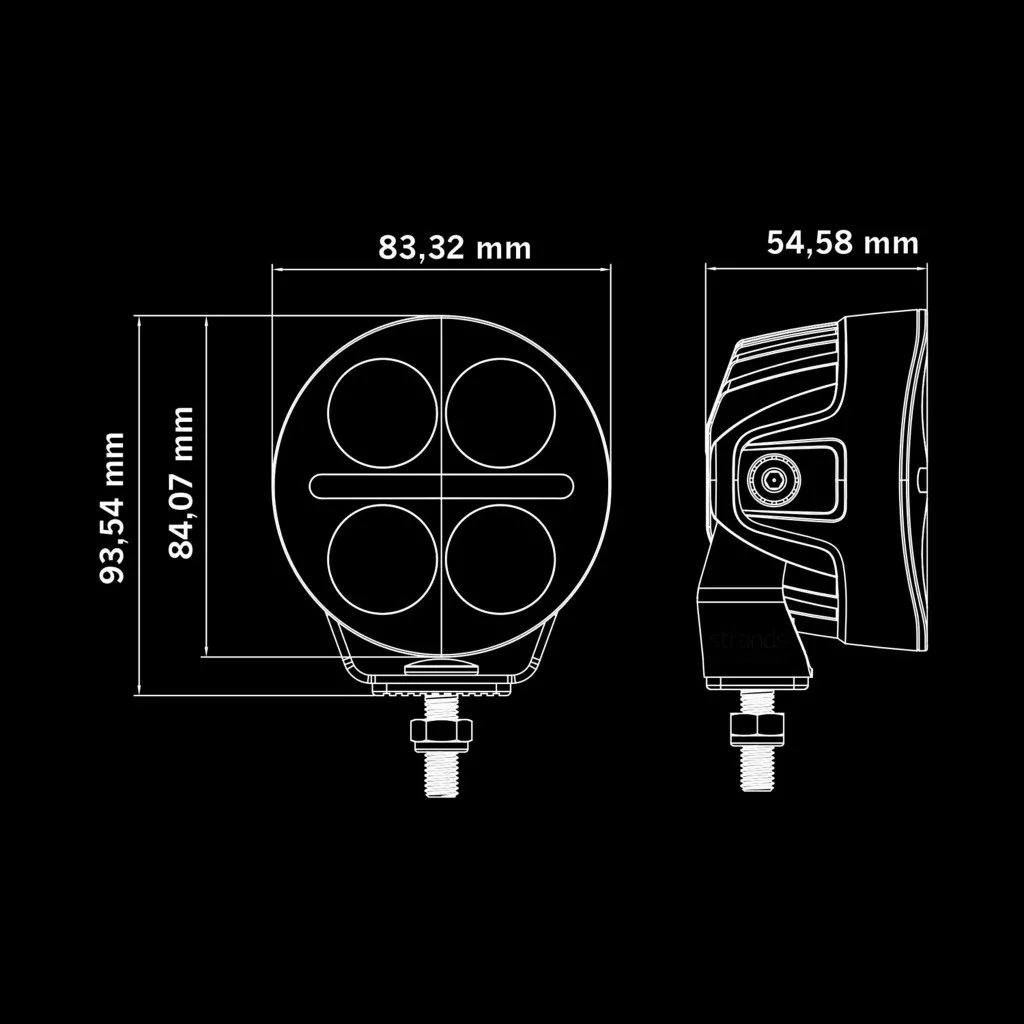

Dimensions: 83.32 x 84.07 x 54.58 mm (Width x Height x Depth)
Height with foot: 93.54 mm
Weight: 500g
IP rating: IP68/IP69K
Operating temperature: -30°C - +65°C
Approvals: EMC: ECE R10, R148 (R113), R149 (R7)
Warranty: 36 months
Installation guide
Coupling
Red: Power (+)
Black: Ground: (-)
Yellow: Yellow parking light
White: White parking light
