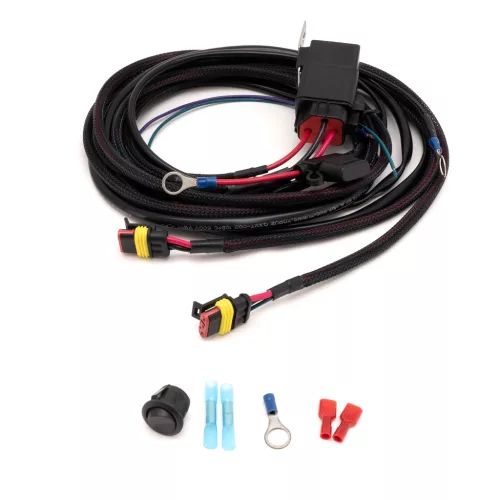

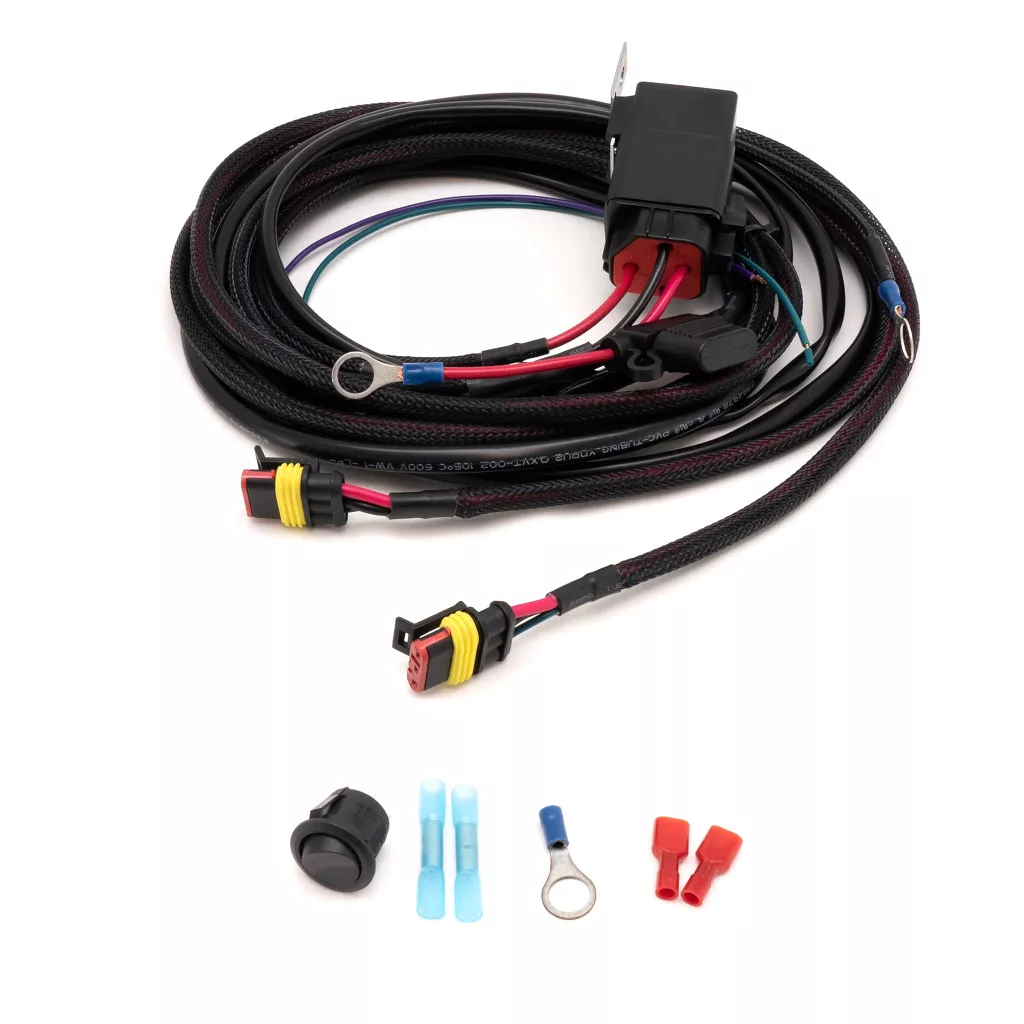

Original Lazer auxiliary light relay harness with POSITION LIGHT. Compatible with extra light ramps in the ST, Linear and Triple-R series. Complete cable set for easy connection and installation. The relay cable set contains two relays, one of which controls the position light (which is connected to the car's dipped beam) and the other controls the additional light itself (which is connected to the car's high beam.) Fits one or two additional lights / ramps. Everything needed is included (see picture).
The cable length from the relay to the first contact for connecting the additional light is approx. 3 meters, and to the second approx. 4 meters, which means that the relay cable set also fits e.g. trucks
Technical specification
- Product: Relay cable set Lazer, 12V, Position light
- Waterproof three-pole connectors (AMP 3-pin)
- Splash-proof fuse box with 25A fuse
- Seal-protected connector
- Cables long enough for even for e.g. truck
- Separate relay for position light and main beam
- Operating voltage: 12V
- Fuse: 25A (max. load 300W)
The Lazer relay kit is directly Plug & Play compatible with the following additional lights
- Lazer Linear 12 Elite position light
- Lazer Linear 18 Elite position light
