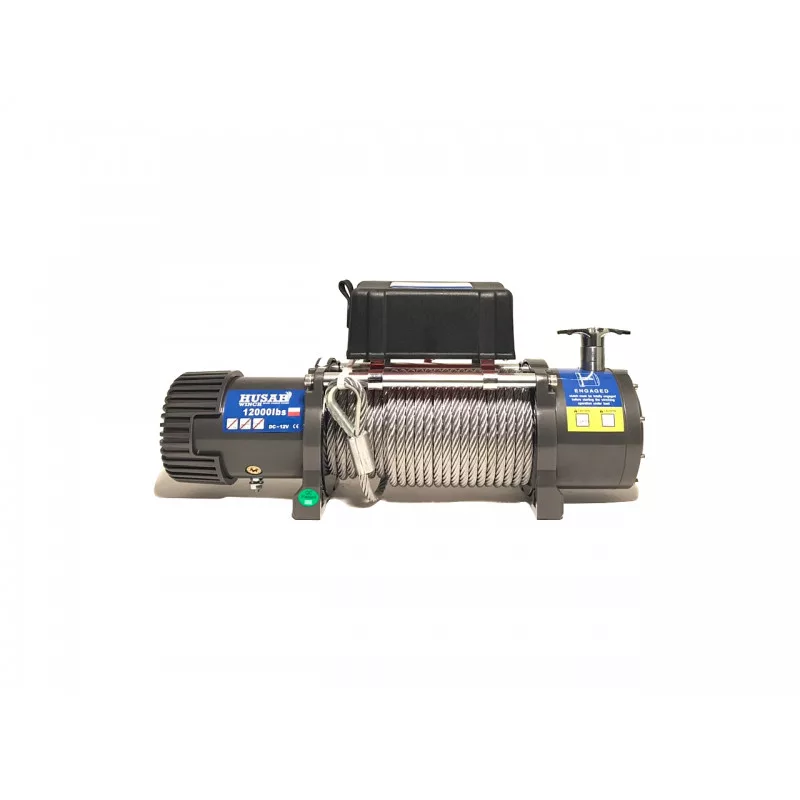

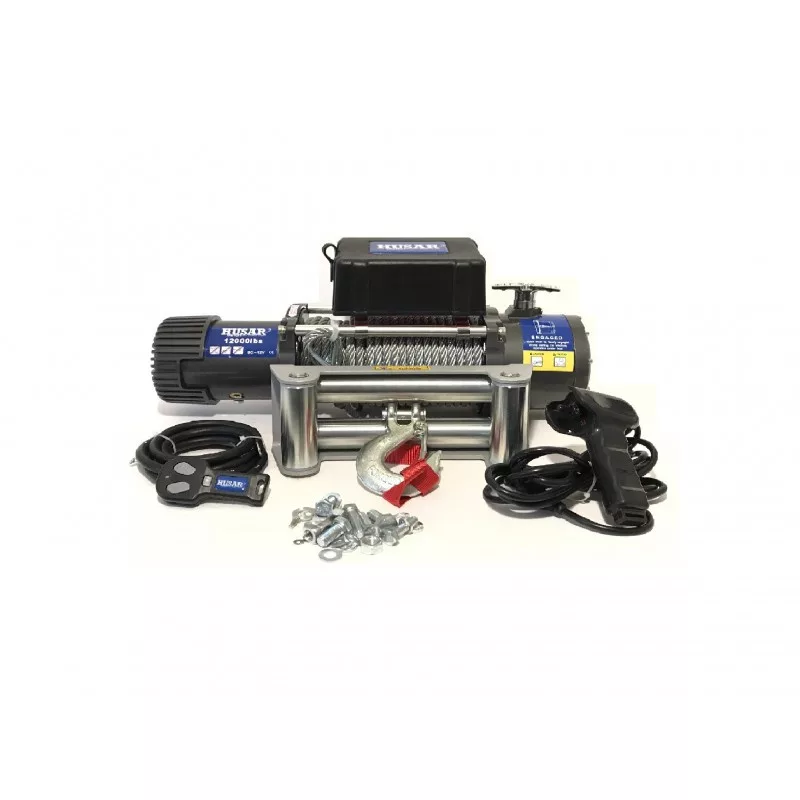

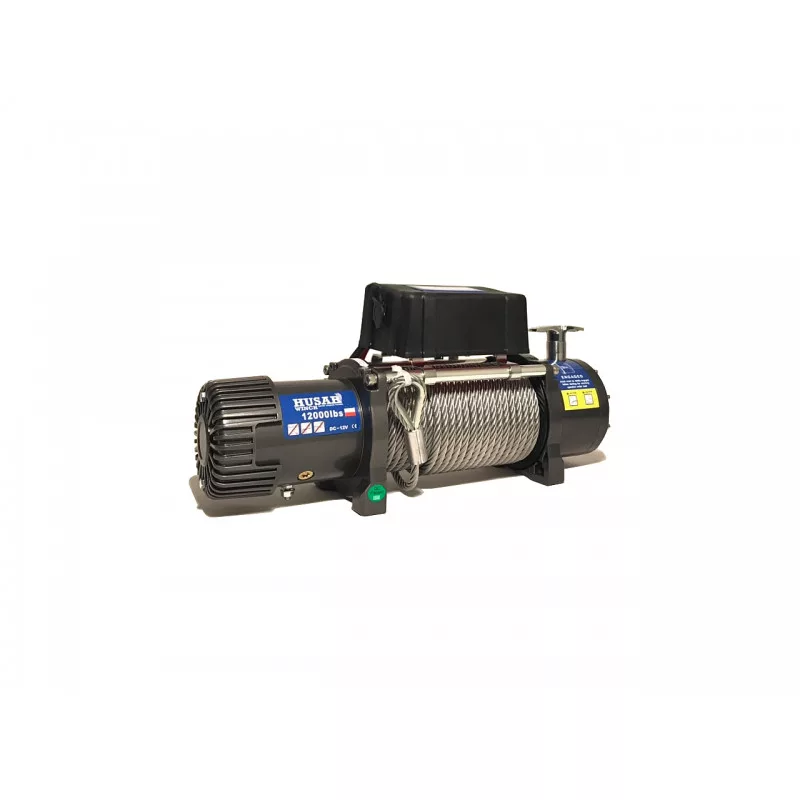

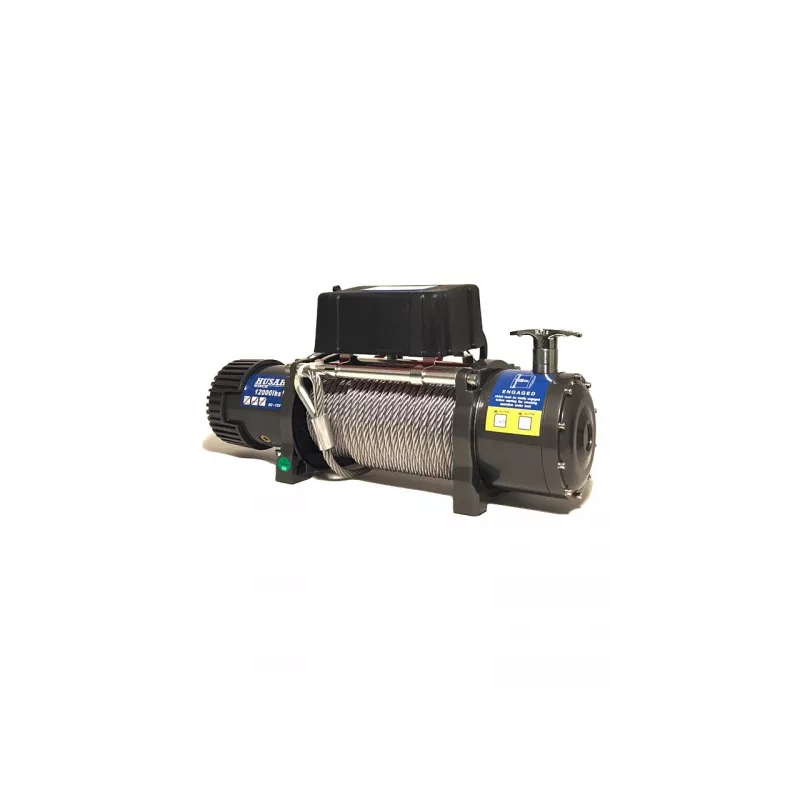

HusarWinch 12000 lbs (5443 kg)
618.66 €
(w/o VAT:487.14 €)
(w/o VAT:487.14 €)
HusarWinch 12000 lbs (5443 kg)
Item number:
HWIBST12000
Available to order
In external stock: 5 pcs,
Available: 10-12 days
Suitable for every type of car
HusarWinch 12000 lbs (5443 kg)
BST 12000lbs Technical specifications
Pull capacity(single line): 12000lbs / 5443 kgs
Motor 12V / 24: V6.0 KM / 4,4 Kw 8,1KM/6,0kW
Controls: Wired / wireless remote control
Gear: 3-stage planetary
Gear ratio: 265:1
Brake: Automatic
Rope: 25m x Ø 9,5 mm
Fairlead: 4-ways rollers fairlead
Net weight: 38 kg
Mounting bolt pattern: 254mm x 114,3mm
Dimensions(L x W x H): 546mm × 160mm × 218mm
| Line speed and motor current (first layer) | ||||||
| lbs | 0 | 4000 | 6000 | 10000 | 12000 | |
| Line pull | kg | 0 | 1814 | 2722 | 4536 | 5443 |
| Line speed | m/min 12V | 6.8 | 3.8 | 3 | 2.1 | 1.7 |
| m/min 24V | 10 | 7 | 5.5 | 3.2 | 2.7 | |
| Motor current | amper 12V | 80 | 170 | 210 | 310 | 360 |
| erősítők 24V | 45 | 70 | 95 | 185 | 240 | |
| Line pull and cable capacity | ||||||
| Layer of cable | 1 | 2 | 3 | 4 | ||
| lbs | 12000 | 9900 | 8300 | 7000 | ||
| Rated line pull per layer | kg | 5443 | 4490 | 3765 | 3175 | |
| Cable capacity per layer | m | 6 | 13 | 22 | 25 | |

Controls:
vezetékes/ vezeték nélküli távirányító
Gear:
3 fokozatú bolygóműves
Brake:
automata
Fairlead :
görgős ablak
Net weight:
38 kg
Mounting bolt pattern:
254 mm x 114,3 mm
Dimensions (L x W x H):
546 × 160 × 218 mm
