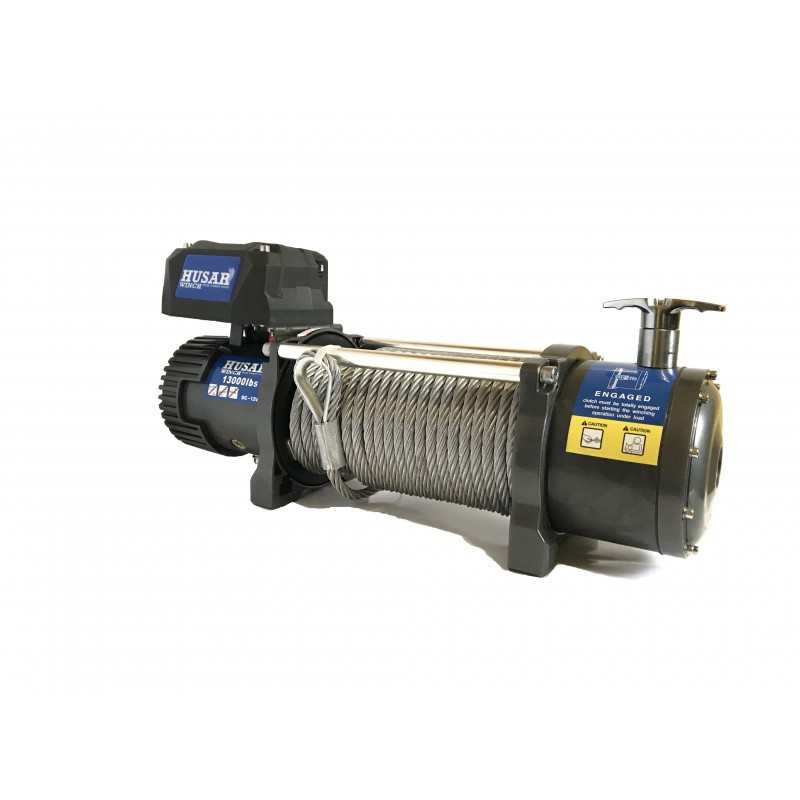

HusarWinch 13000 lbs (5897 kg)
598.07 €
(w/o VAT:470.92 €)
(w/o VAT:470.92 €)
HusarWinch 13000 lbs (5897 kg)
Item number:
HWIBST13000
Available to order
In external stock: 5 pcs,
Available: 10-12 days
Suitable for every type of car
HusarWinch 13000 lbs (5897 kg)
Pull capacity(single line): 13000lbs / 5897 kgs
Motor 12V / 24V: 6.5 KM / 4.5 Kw 8.5 KM/6.4Kw
Controls: Wired / wireless remote control
Gear: 3-stage planetary
Gear ratio: 265:1
Brake: Automatic
Rope: 25m x Ø 10 mm
Fairlead: 4-ways rollers fairlead
Net weight: 38 kg
Mounting bolt pattern: 546mm x 160mmx 218mm
Dimensions: (L x W x H) 593mm × 226mm × 294mm
| Line speed and motor current (first layer) | ||||||
| lbs | 0 | 4000 | 6000 | 10000 | 13000 | |
| Line pull | kg | 0 | 1814 | 2722 | 4536 | 5897 |
| Line speed | m/min 12V | 6.8 | 3.8 | 3 | 2.1 | 1.7 |
|
m/min 24V |
10 | 7 | 5.5 | 3.2 | 2.7 | |
| Motor current | Amper 12V | 80 | 170 | 210 | 310 | 380 |
| Amper 24V | 45 | 70 | 95 | 185 | 250 | |
| Line pull and cable capacity | ||||||
| Layer of cable | 1 | 2 | 3 | 4 | ||
| lbs | 13000 | 9900 | 8300 | 7000 | ||
| Rated line pull per layer | kg | 5897 | 4490 | 3765 | 3175 | |
| Cable capacity per layer | m | 6 | 13 | 22 | 25 | |

Controls:
vezetékes/ vezeték nélküli távirányító
Gear:
3 fokozatú bolygóműves
Brake:
automata
Fairlead :
görgős ablak
Net weight:
38 kg
Mounting bolt pattern:
254 mm x 114,3 mm
Dimensions (L x W x H):
546 ×160× 218 mm
Producer:
Pull capacity(single line):
Gear ratio:
Rope:
598.07 €
(w/o VAT:470.92 €)
(w/o VAT:470.92 €)
pcs
