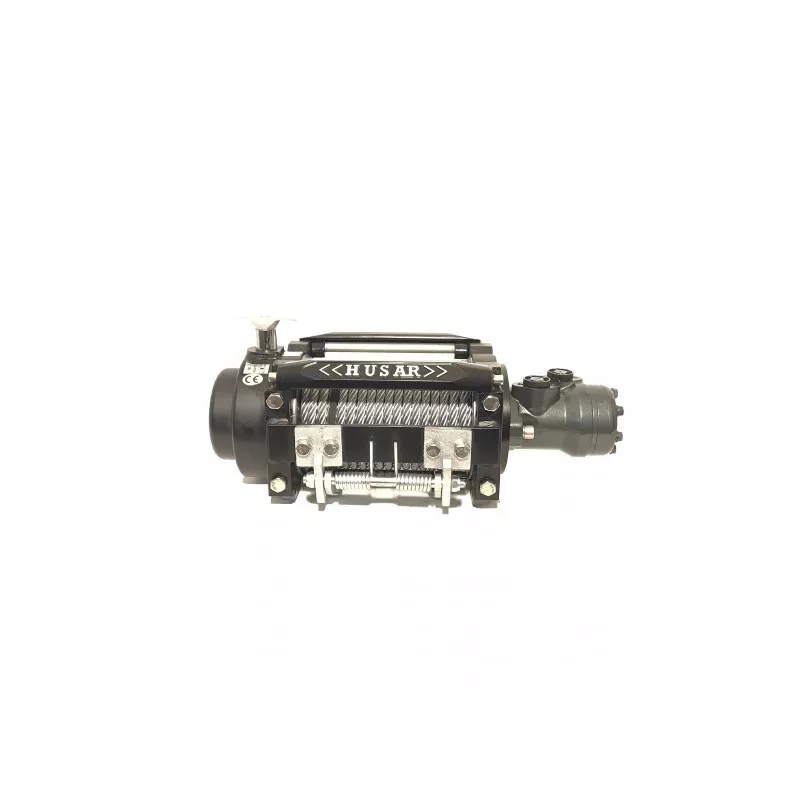

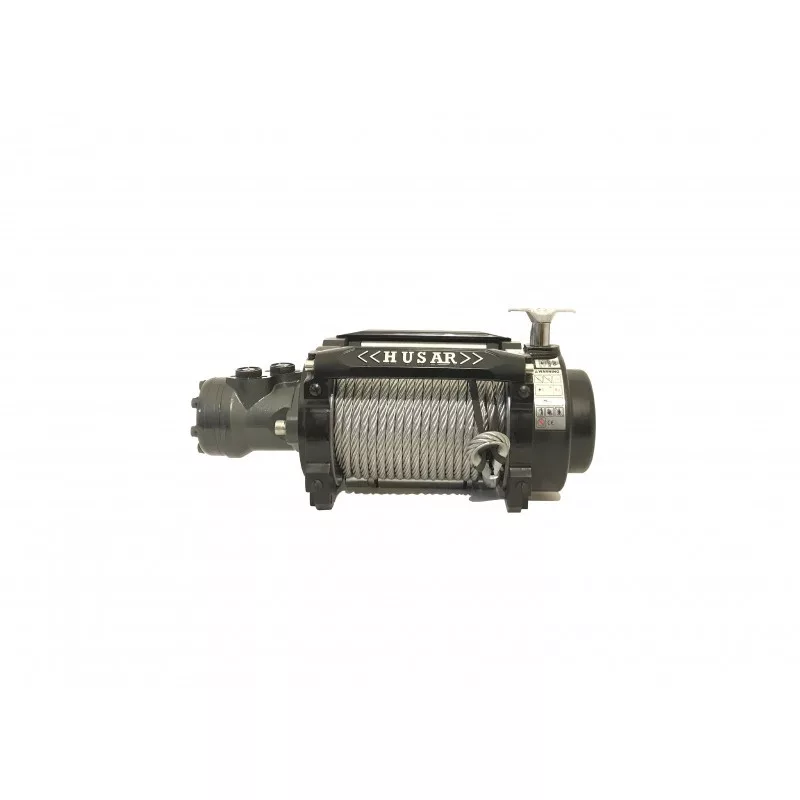

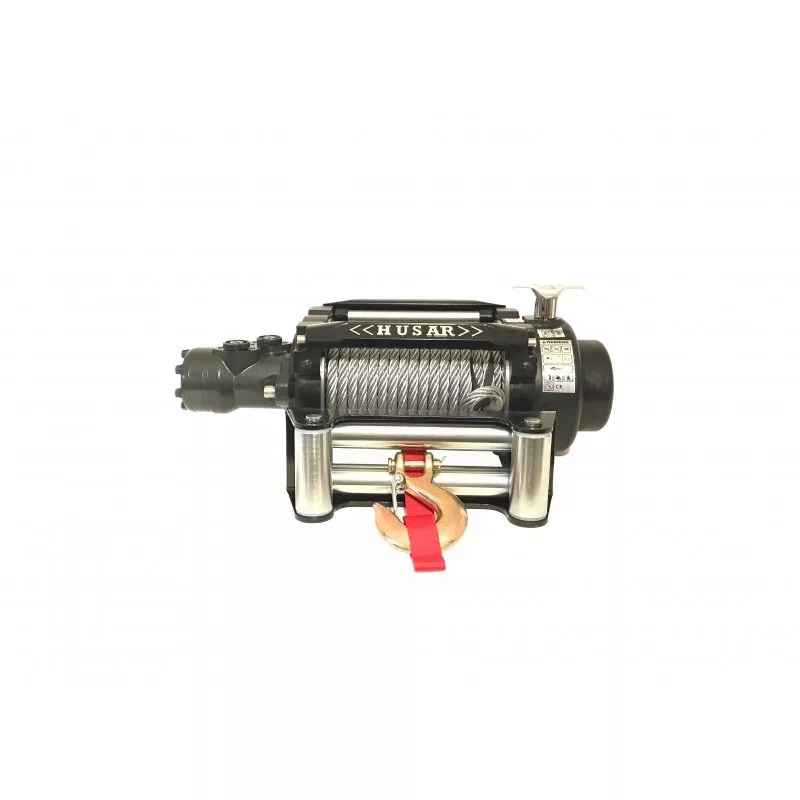

HusarWinch hidraulic winch 12000 lbs (5443 kg)
1 231.99 €
(w/o VAT:970.07 €)
(w/o VAT:970.07 €)
HusarWinch hidraulic winch 12000 lbs (5443 kg)
Item number:
HWIBSTH12000
Available to order
In external stock: 5 pcs,
Available: 10-12 days
HusarWinch hidraulic winch 12000 lbs (5443 kg)
| BST H 12000 lbs | Technical data | |||
| Pulling rate (one line) | 12000 font (5443 kg) | |||
| Motor displacement | 65 ml/r | |||
| Brake | automatic | |||
| Oil flow | 5-45L/perc | |||
| Pressure | 14 MPa | |||
| Gear | 2 -stage planetary | |||
| Gear ratio | 25,5:1 | |||
| Rope | 25,5 m x Ø 10,2 mm | |||
| Fairlead | 4-ways rollers fairlead | |||
| Net weight | 53 kg | |||
| Mounting bolt pattern | 254 mm × 114,3 mm | |||
| Dimensions |
(H x Szé x Ma) 519 mm x 235 mm x 246 mm |
|||
| Line speed and motor current (first layer) | ||||||
| lbs | 0 | 3000 | 6000 | 9000 | 12000 | |
| Line pull | kg | 0 | 1361 | 2722 | 4082 | 5443 |
| Line speed | m/min | 0.7 | 1.4 | 2.7 | 4.6 | 5.1 |
| Pressure | PSI | 290.1 | 652.7 | 986,2 | 1305.3 | 1812.9 |
| Oil flow | l/min | 5.0 | 10.0 | 20.0 | 35.0 | 40,0 |
| Line pull and cable capacity | ||||||
| Layer of cable | 1 | 2 | 3 | 4 | ||
| lbs | 12000 | 9000 | 6000 | 3000 | ||
| Rated line pull per layer | kg | 5543 | 4082 | 2722 | 1362 | |
| Cable capacity per layer | m | 5 | 11.3 | 18.6 | 25.5 | |
.jpg)
Pull capacity(single line):
12000 lbs/5443 kg
Gear:
2 fokozatú bolygóműves
Brake:
automata
Rope:
acél
Fairlead :
görgős ablak
Net weight:
53 kg
Mounting bolt pattern:
254 mm × 114,3 mm
Dimensions (L x W x H):
519 x 235 x 246 mm
Oil flow :
5-45L/perc
Oil pressure :
14 Mpa
