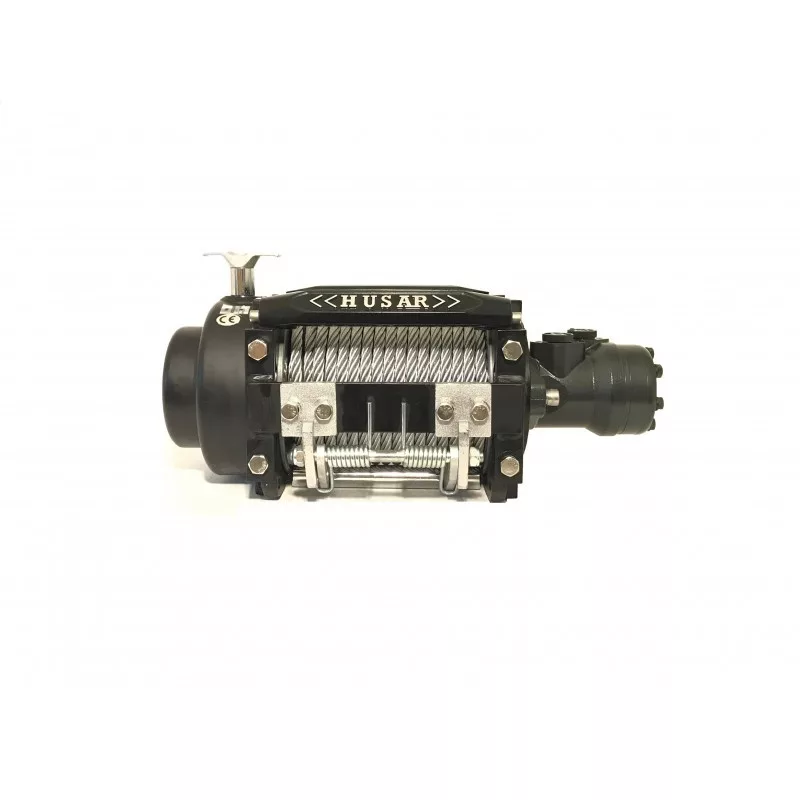

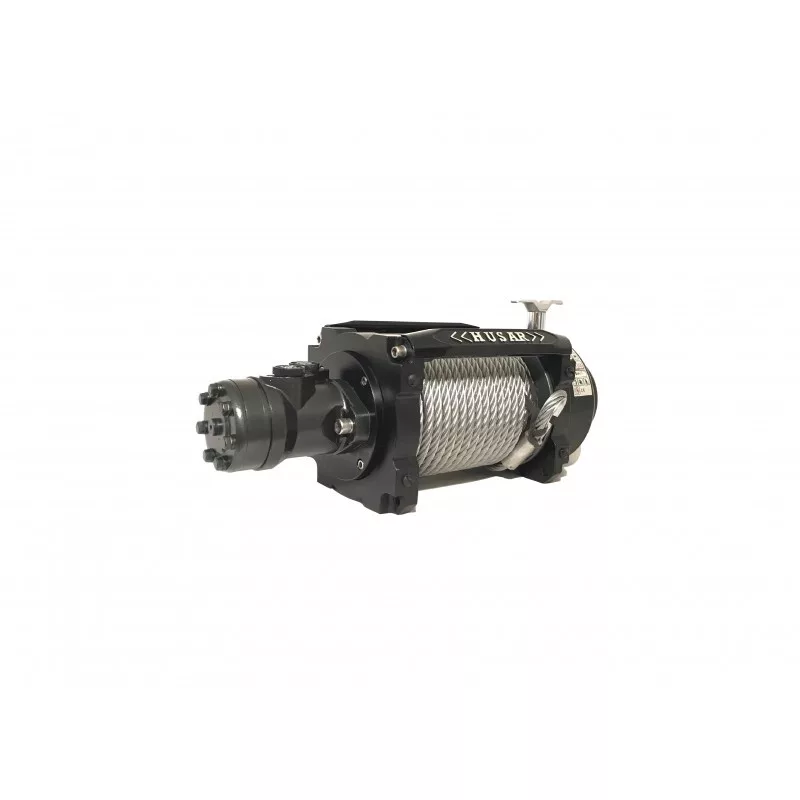

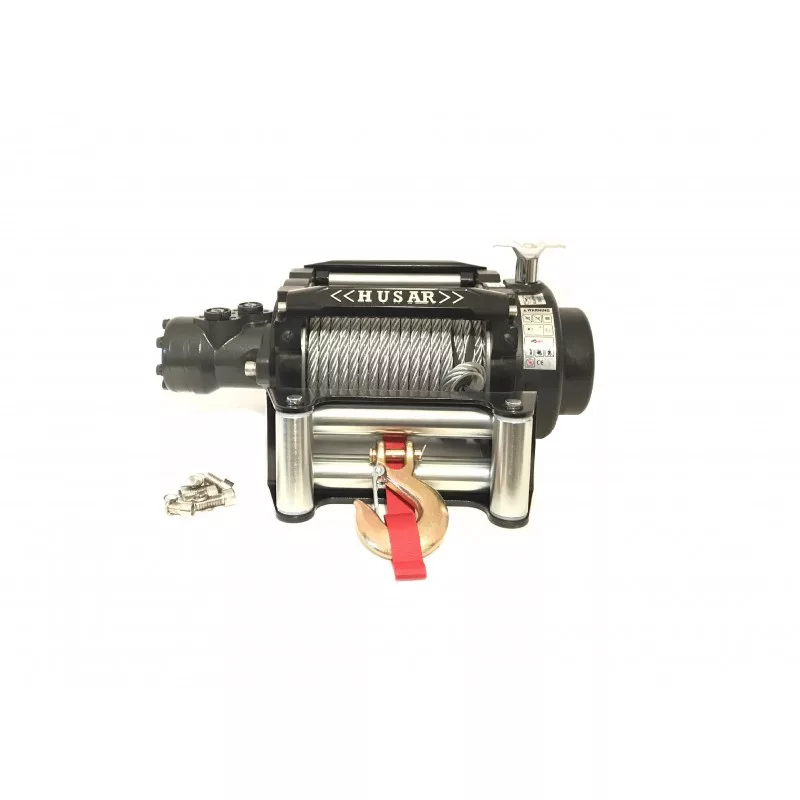

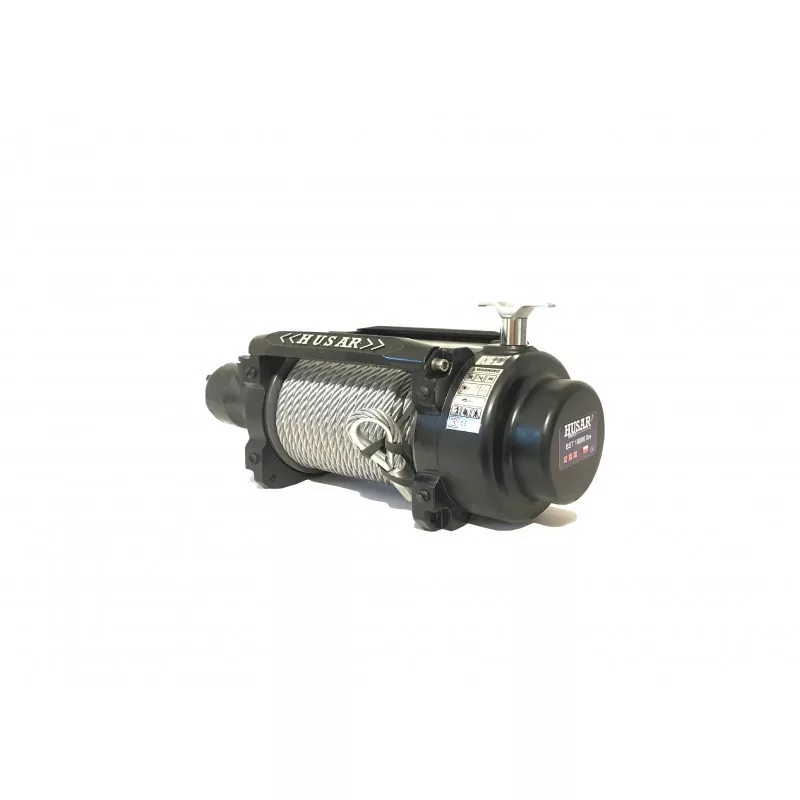

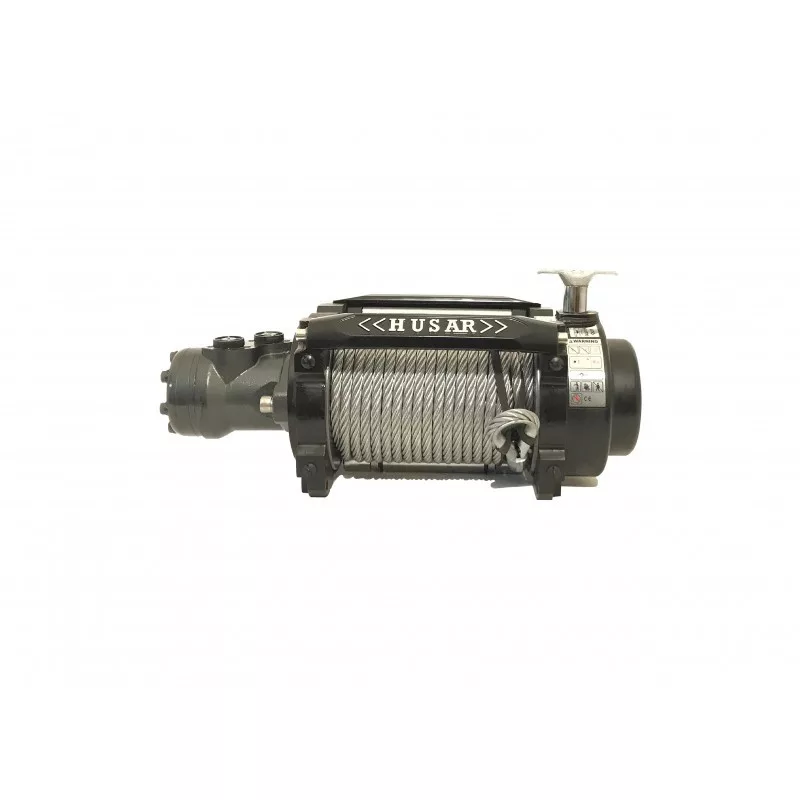

HusarWinch hidraulic winch18000 lbs (8165 kg)
1 581.41 €
(w/o VAT:1 245.2 €)
(w/o VAT:1 245.2 €)
HusarWinch hidraulic winch18000 lbs (8165 kg)
Item number:
HWIBSTH18000
Available to order
In external stock: 5 pcs,
Available: 10-12 days
HusarWinch hidraulic winch18000 lbs (8165 kg)
BST H 18000lbs Technical specifications
Pulling rate: 18000 lbs (8165 kg)
Motor displacement: 80ml/r
Oil flow: 5~60L/min
Pressure: 13Mpa
Gear: 4 -stage planetary
Gear ratio: 34:1
Rope: 26,5m x Ø 12 mm
Fairlead: 4-ways rollers fairlead
Net weight: 69 kg
Mounting bolt pattern: 254mm×114.3mm
Dimensions(L x W x H): 541x390x320mm
| Line speed and motor current (first layer) | ||||||
| lbs | 0 | 10000 | 12000 | 15000 | 18000 | |
| Line pull | kg | 0 | 4536 | 5443 | 6843 | 8165 |
| Line speed | m/min | 0.5 | 2.0 | 3.0 | 5.5 | 6.0 |
| Pressure | PSI | 290.1 | 1261,8 | 1450,3 | 1775.2 | 1885.4 |
| Oil flow | l/min | 5 | 10 | 20 | 30 | 60 |
| Line pull and cable capacity | ||||||
| Layer of cable | 1 | 2 | 3 | 4 | ||
| lbs | 18000 | 12120 | 10168 | 8757 | ||
| Rated line pull per layer | kg | 8165 | 5498 | 4612 | 3972 | |
| Cable capacity per layer | m | 5.5 | 12.4 | 20.1 | 26.5 | |

Pull capacity(single line):
18000 lbs/8165 kg
Gear:
2 fokozatú bolygóműves
Gear ratio:
34:1
Brake:
automata
Rope:
acél
Fairlead :
görgős ablak
Net weight:
69 kg
Mounting bolt pattern:
254 mm × 114,3 mm
Dimensions (L x W x H):
541 × 226 × 262 mm
Oil flow :
5-60L/perc
Oil pressure :
13 Mpa
1 581.41 €
(w/o VAT:1 245.2 €)
(w/o VAT:1 245.2 €)
pcs
