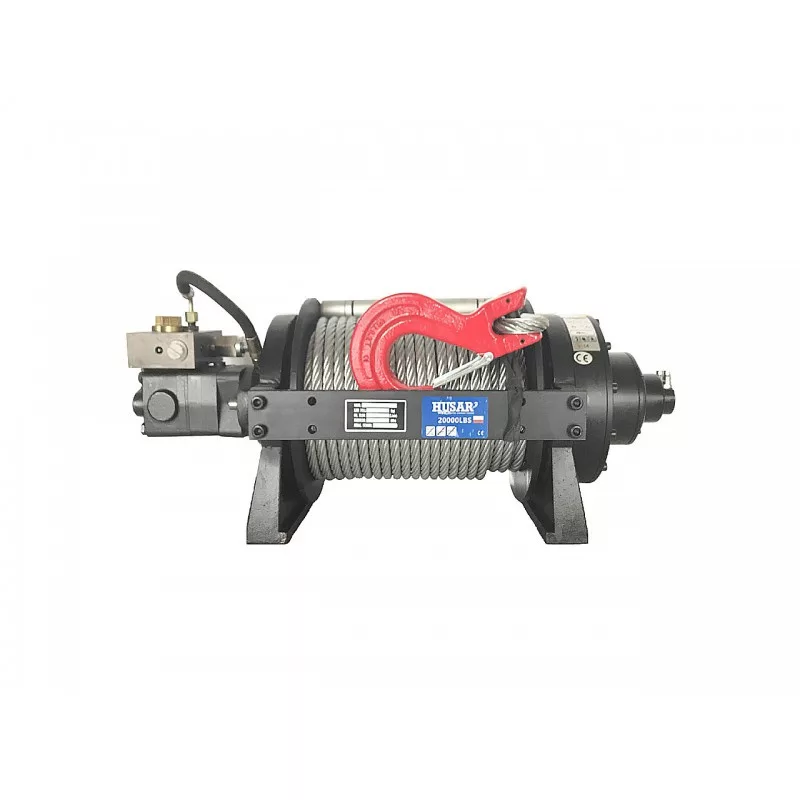

HusarWinch hidraulic winch 20000 lbs (9072 kg)
4 288.68 €
(w/o VAT:3 376.91 €)
(w/o VAT:3 376.91 €)
HusarWinch hidraulic winch 20000 lbs (9072 kg)
Item number:
HWIBSTH20000
Available to order
In external stock: 5 pcs,
Available: 10-12 days
HusarWinch hidraulic winch 20000 lbs (9072 kg)
BST H 20000lbs Technical specifications
Pulling rate: 20000 lbs (9072 kg)
Oil flow: 15~75L/min
Pressure: 17,5Mpa
Gear ratio: 39:1
Rope: 48m x Ø 14 mm
Net weight: 163 kg
Dimensions(L x W x H): 784x390x320mm
| Line speed and motor current (first layer) | ||||||
| lbs | 0 | 4000 | 8000 | 15000 | 20000 | |
| Line pull | kg | 0 | 1814 | 3629 | 6804 | 9072 |
| Line speed | m/min | 1.8 | 3.6 | 6.0 | 7.2 | 9.0 |
| Pressure | PSI | 362,6 | 608.1 | 1232,8 | 2030.5 | 2538.1 |
| Oil flow | l/min | 15 | 30.0 | 50,0 | 60,0 | 75,0 |
Line pull and cable capacity
| Layer of cable | 1 | 2 | 3 | 4 | ||
| lbs | 20000 | 16889 | 14615 | 12881 | ||
| Rated line pull per layer | kg | 9072 | 7661 | 6629 | 5843 | |
| Cable capacity per layer | m | 10.3 | 22.5 | 35.9 | 48,0 | |

Pull capacity(single line):
20000 lbs/9072 kg
Gear:
2 fokozatú bolygóműves
Gear ratio:
39:1
Brake:
automata
Rope:
acél
Fairlead :
görgős ablak
Net weight:
163 kg
Mounting bolt pattern:
431mm × 64mm × 192mm
Dimensions (L x W x H):
784 × 390 × 320 mm
Oil flow :
15-75L/perc
Oil pressure :
17,5 Mpa
4 288.68 €
(w/o VAT:3 376.91 €)
(w/o VAT:3 376.91 €)
pcs
