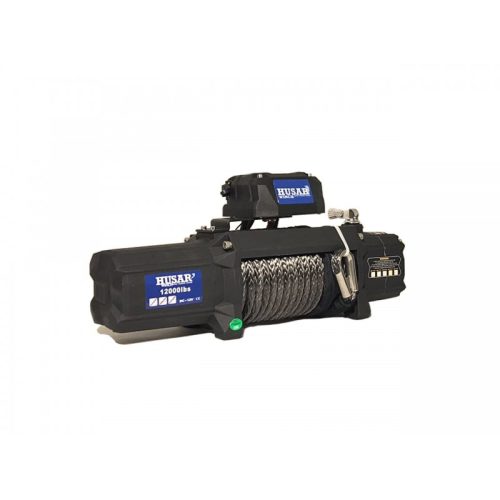

HusarWinch electric winch S 12000 lbs (5443 kg) with synthetic rope
919.62 €
(w/o VAT:724.11 €)
(w/o VAT:724.11 €)
HusarWinch electric winch S 12000 lbs (5443 kg) with synthetic rope
Item number:
HWIBSTS12000SIN
Available to order
In external stock: 5 pcs,
Available: 10-12 days
Suitable for every type of car
HusarWinch S 12000 lbs (5443 kg)
Pull capacity(single line): 12000lbs / 5443 kgs
Motor 12V / 24: V6.0 KM / 4,4 Kw
Controls: Wired / wireless remote control
Gear: 3-stage planetary
Gear ratio: 265:1
Brake: Automatic
Rope: 25m x Ø 9,5 mm
Fairlead: 4-ways rollers fairlead
Net weight: 38 kg
Mounting bolt pattern: 254mm x 114,3mm
Dimensions(L x W x H): 546mm × 160mm × 195 mm
| Line speed and motor current (first layer) | ||||||
| lbs | 0 | 4000 | 6000 | 10000 | 12000 | |
| Line pull | kg | 0 | 1814 | 2722 | 4536 | 5443 |
| Line speed |
m/min 12V |
6.8 | 3.8 | 3 | 2.1 | 1.7 |
| Motor current | Amper 12V | 80 | 170 | 210 | 310 | 360 |
| Line pull and cable capacity | ||||||
| Layer of cable | 1 | 2 | 3 | 4 | ||
| lbs | 12000 | 9900 | 8300 | 7000 | ||
| Rated line pull per layer | kg | 5443 | 4490 | 3765 | 3175 | |
| Cable capacity per layer | m | 6 | 13 | 22 | 25 | |

Controls:
vezetékes/ vezeték nélküli távirányító
Gear:
3 fokozatú bolygóműves
Brake:
automata
Fairlead :
görgős ablak
Net weight:
39 kg
Mounting bolt pattern:
254 mm x 114,3 mm
Dimensions (L x W x H):
545 × 160 × 195 mm
Producer:
Pull capacity(single line):
Gear ratio:
Rope:
