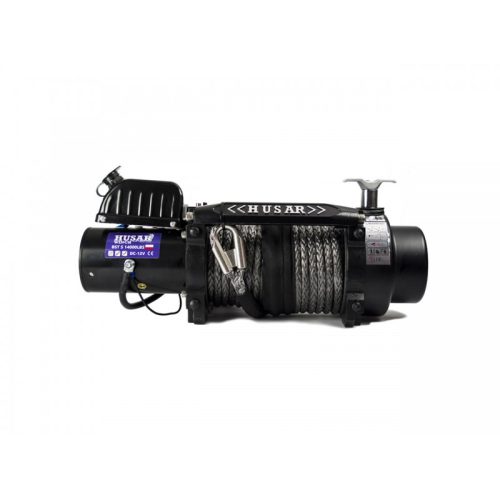

HusarWinch S 14000 lbs (6350 kg)
1 130.38 €
(w/o VAT:890.06 €)
(w/o VAT:890.06 €)
HusarWinch S 14000 lbs (6350 kg)
Item number:
HWIBSTS14000SIN
Available to order
In external stock: 5 pcs,
Available: 10-12 days
Suitable for every type of car
HusarWinch S 14000 lbs (6350 kg)
Pull capacity(single line): 14000lbs / 6350 kgs
Motor 12V / 24V: 6,7 KM / 5,1 kW / 6,4 KM 4,8kW
Controls: Wired / wireless remote control
Gear: 3-stage planetary
Gear ratio: 332:1
Brake: Automatic
Rope: 28,5m x Ø 10,2 mm
Fairlead: 4-ways rollers fairlead
Net weight: 61 kg
Mounting bolt pattern: 254x114,3 4-M12
Dimensions: (L x W x H) 593x226x294 mm
| Line speed and motor current (first layer) | |||||
| lbs | 0 | 8000 | 1000 | 1400 | |
| Line pull | kg | 0 | 3629 | 4536 | 6350 |
| Line speed | m/min 12V | 5 | 1.9 | 1.7 | 1.2 |
| m/min 24V | 5.4 | 2 | 1.8 | 1.5 | |
| Motor current | Amper 12V | 80 | 310 | 350 | 480 |
| Amper 24V | 40 | 145 | 185 | 250 | |
| Line pull and cable capacity | |||||
| Layer of cable | 1 | 2 | 3 | 4 | |
| lbs | 14000 | 11255 | 9410 | 8085 | |
| Rated line pull per layer | kg | 6350 | 5105 | 4268 | 3667 |
| Cable capacity per layer | m | 5.6 | 12.5 | húsz | 28.5 |

Controls:
vezetékes/ vezeték nélküli távirányító
Gear:
3 fokozatú bolygóműves
Brake:
automata
Fairlead :
görgős ablak
Net weight:
58 kg
Mounting bolt pattern:
254 mm x 114,3 mm 4-M12
Dimensions (L x W x H):
593 x 226 x 294 mm
Producer:
Pull capacity(single line):
Gear ratio:
Rope:
1 130.38 €
(w/o VAT:890.06 €)
(w/o VAT:890.06 €)
pcs
