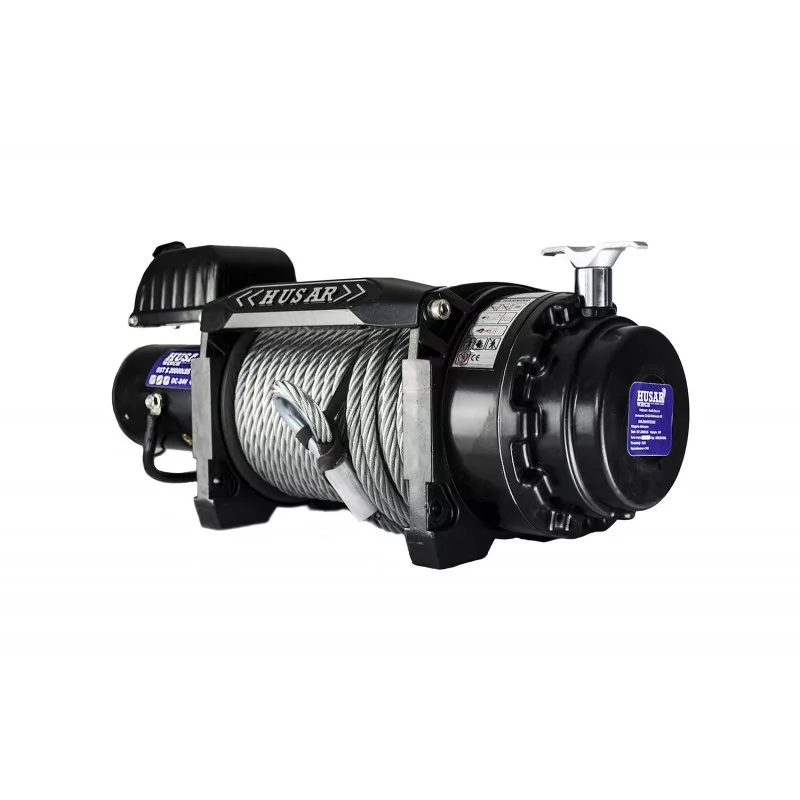

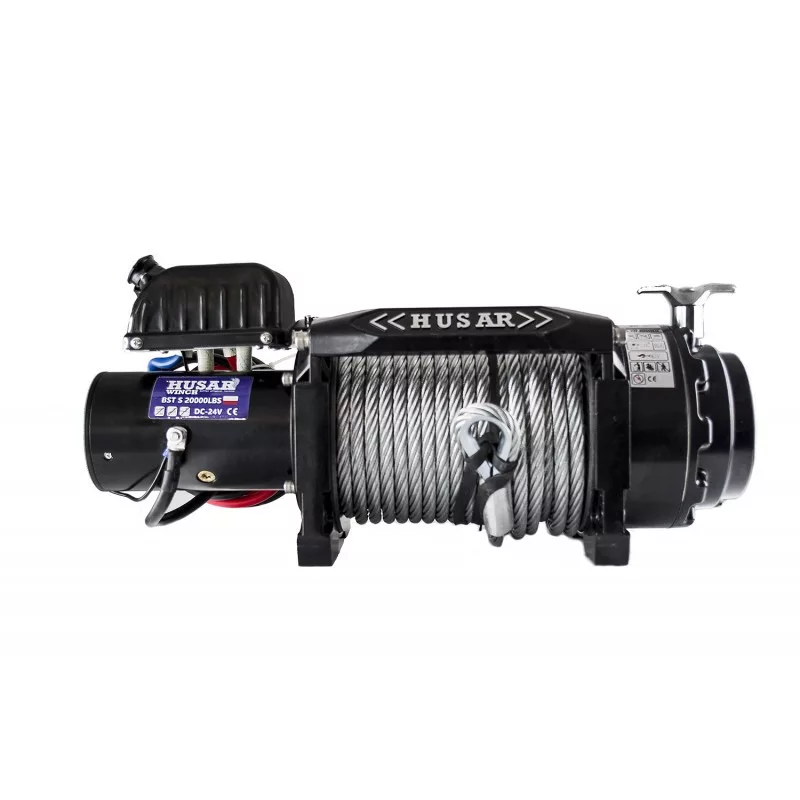

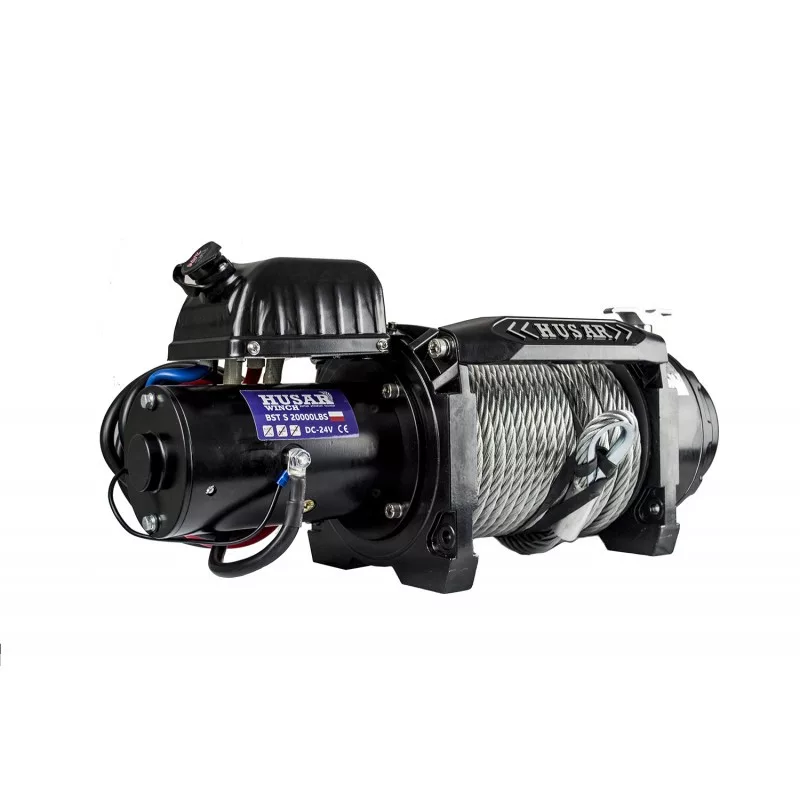

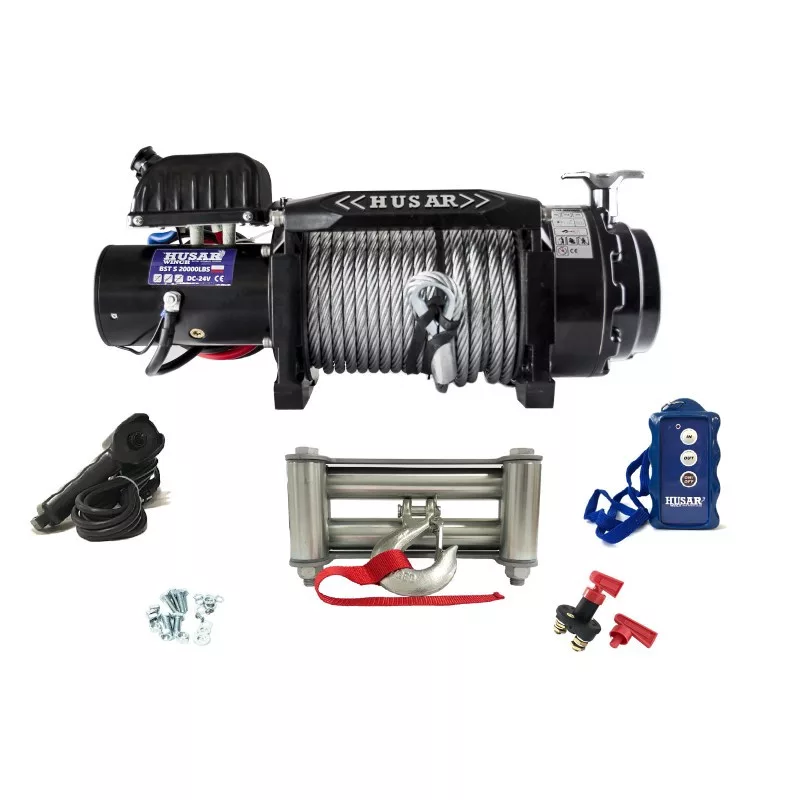

HusarWinch BST S 20000 lbs (9072 kg) 24V
1 346.58 €
(w/o VAT:1 060.3 €)
(w/o VAT:1 060.3 €)
HusarWinch BST S 20000 lbs (9072 kg) 24V
Item number:
HWIBSTS20000
Available to order
In external stock: 5 pcs,
Available: 10-12 days
Suitable for every type of car
HusarWinch BST S 20000 lbs (9072 kg) 24V
Application: special passenger cars, commercial vehicles, tugboats
Pull capacity(single line): 20000lbs / 9072 kgs
Motor 24V: 6.0kW / 7.9hp
Controls: Wired / wireless remote control
Gear: 3-stage planetary
Gear ratio: 450:1
Brake: Automatic
Rope: 26,5m x Ø 12 mm
Fairlead: 4-ways rollers fairlead
Net weight: 80 kg
Mounting bolt pattern: 254mm x 114,3mm
Dimensions(L x W x H): 620x214x290mm
| Line speed and motor current (first layer) | ||||||
| lbs | 0 | 12500 | 14000 | 17500 | 20000 | |
| Line pull | kg | 0 | 5670 | 6350 | 7938 | 9072 |
| Line speeed |
m/min 24V |
4.4 | 1.6 | 1.4 | 1.2 | 1 |
| Motor current | Amper 24V | 40 | 180 | 200 | 250 | 265 |
| Line pull and cable capacity | ||||||
| Layer of cable | 1 | 2 | 3 | 4 | ||
| lbs | 20000 | 16160 | 13557 | 11677 | ||
| Rated line pull per layer | kg | 9072 | 7330 | 6149 | 5297 | |
| Cable capacity per layer | m | 6 | 12 | 21 | 25.5 | |

Pull capacity(single line):
20000 lbs/9072 kg
Controls:
vezetékes/ vezeték nélküli távirányító
Gear:
3 fokozatú bolygóműves
Gear ratio:
450:1
Brake:
automata
Rope:
acél
Fairlead :
görgős ablak
Net weight:
67 kg
Mounting bolt pattern:
254 mm × 114,3 mm
Dimensions (L x W x H):
620 × 214 × 290 mm
