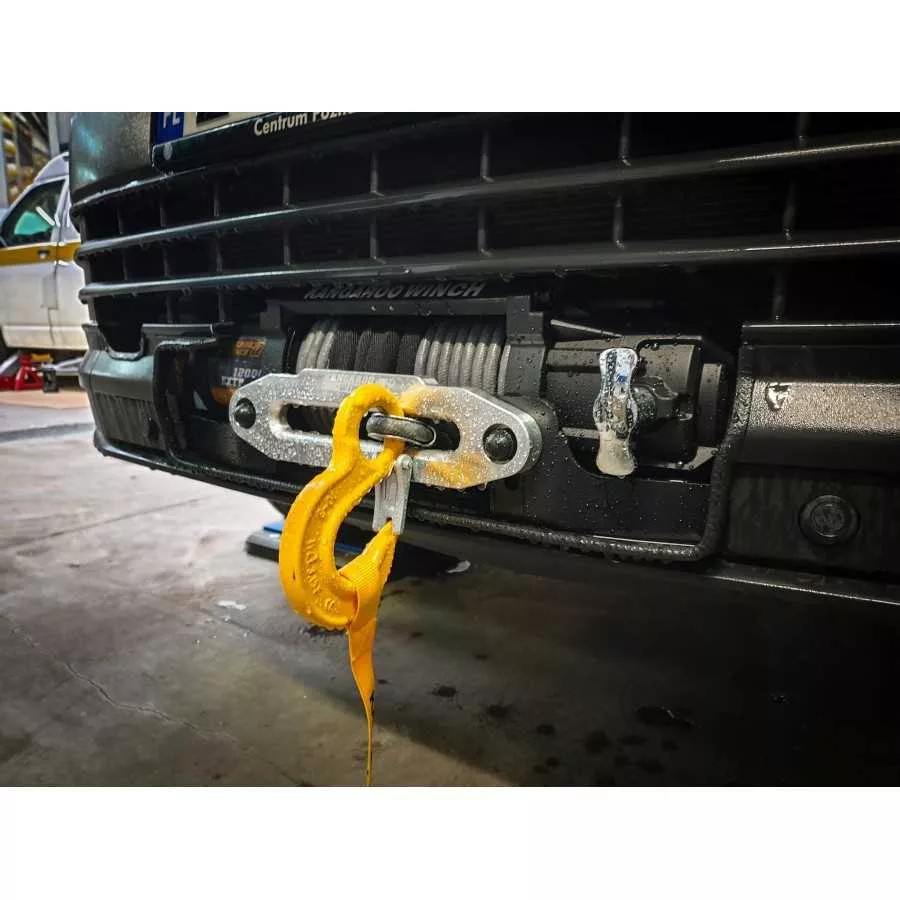

Kangaroowinch K12000 Extreme HD 12V SR

Name: Kangaroowinch K12000 Extreme HD 12V SR
Brand: Kangaroowinch
SKU: K12000XT-HD-SR-12
Price: 671.35 EUR
Availability: InStock

Item number:

K12000XT-HD-SR-12

Available to order

In external stock: 1 pcs,

Available: 10-12 days

The advanced technology sets the new benchmark for the Extreme Series. These winches occupy the top-of-the-market, and are filled with features serious off-roaders demand: rugged construction, extreme sealing (IP68), and high performance ratings!

Pull capacity(single line):

12000 lbs/5443 kg

Voltage:

12 Volts

Controls:

vezetékes/ vezeték nélküli távirányító

Gear:

3 fokozatú bolygóműves

Gear ratio:

265:1

Brake:

automata

Rope:

szintetikus

Fairlead :

görgős ablak

Net weight:

30 kg

Mounting bolt pattern:

254 mm x 114,3 mm

Dimensions (L x W x H):

535.5 x 165.5 x 244.1 mm

More details

671.35 €
(w/o VAT:528.63 €)

pcs

Details

Kangaroowinch K15000 Extreme HD 12V

Why Extreme Series?

Extremely attractive design
Hardened brake, partly outside the drum
New, innovative 2-in-1 combo remote control
Great sealings – IP68 rating
Waterproof, powerful 6,5 HP Series Wound
Professional synthetic rope 10 mm x 26 m.

With winch you get:
– K15000 Extreme HD high quality winch
– Wire rope (12 mm x 26 m) pre-fitted to the drum
– Aluminum hawse
– 500A HD Solenoid
– Indispensable large cross-section power cables
– Grip corded combo remote (wireless/wired)
– Mounting bolts
– User manual
– Warrany card

#	Specs	Value
1	Rated line pull	6818 kg
2	Motor	6,5 HP Series Wound
3	Gearing	3-st. planetary
4	Gear ratio	430:1
5	Voltage	12V
6	Solenoid	500A
7	Brake	Automatic, partly outside the drum
8	Rope	Wire 12 mm x 26 m
9	Fairlead	Roller
10	Dimensions	566.42 x 190.5 x 271.78 mm
11	Drum dimensions	64 x 226 mm
12	Mounting bolt pattern	254 mm x 114,3 mm
13	Weight	53 kg
14	Current draw	70-330 A
15	Line speed	0 kg – 7.2 m./min., 6818 kg – 1.2 m./min.
