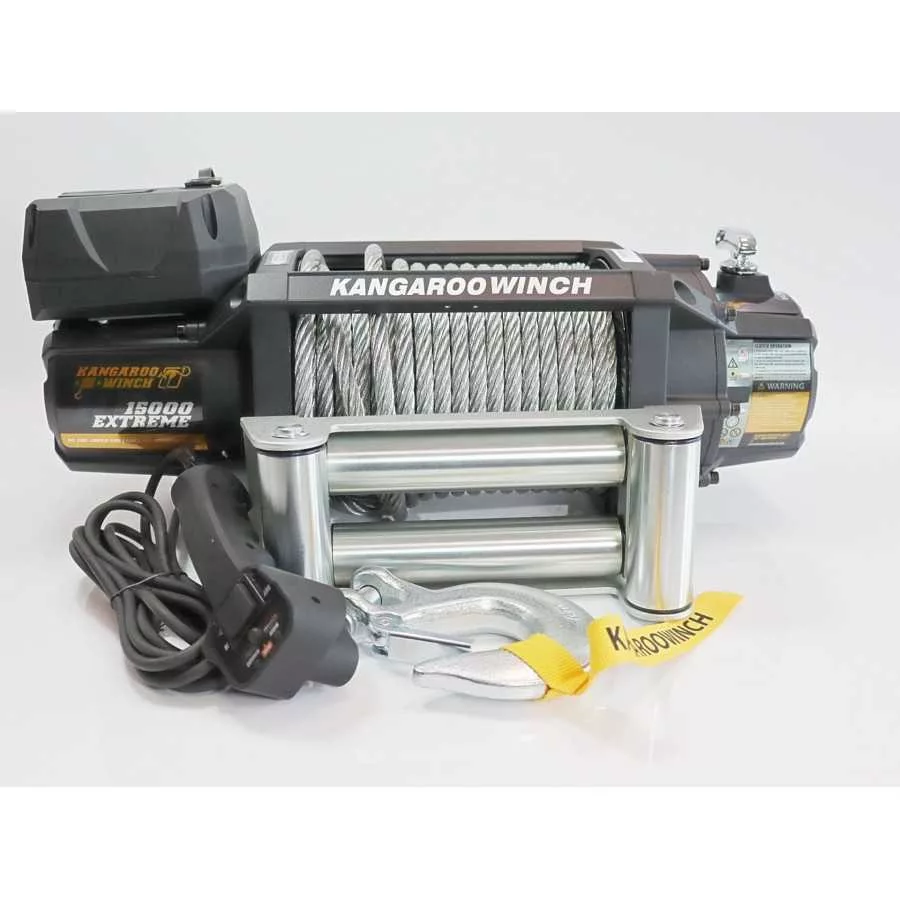

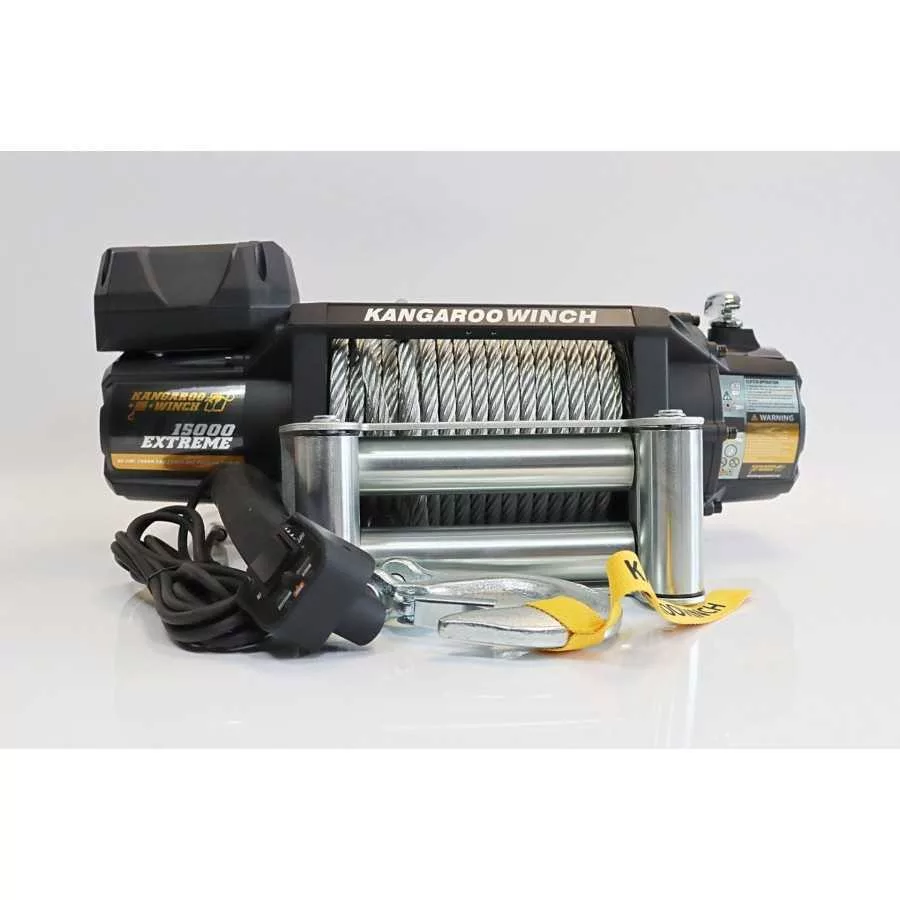

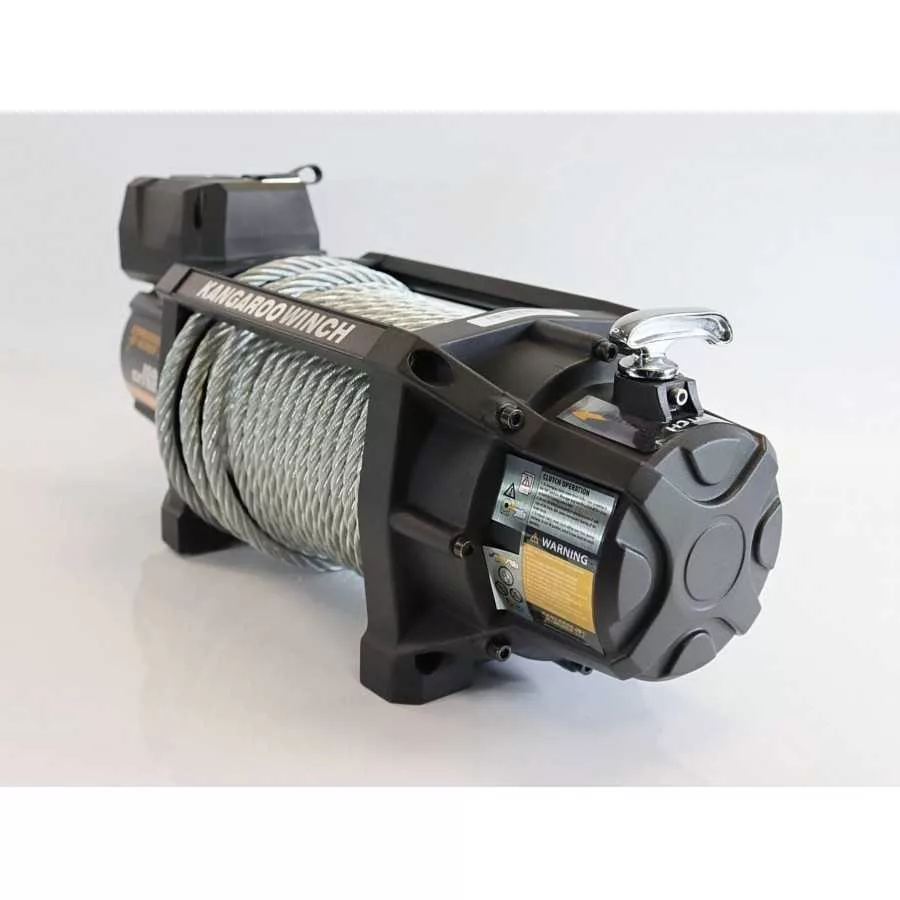

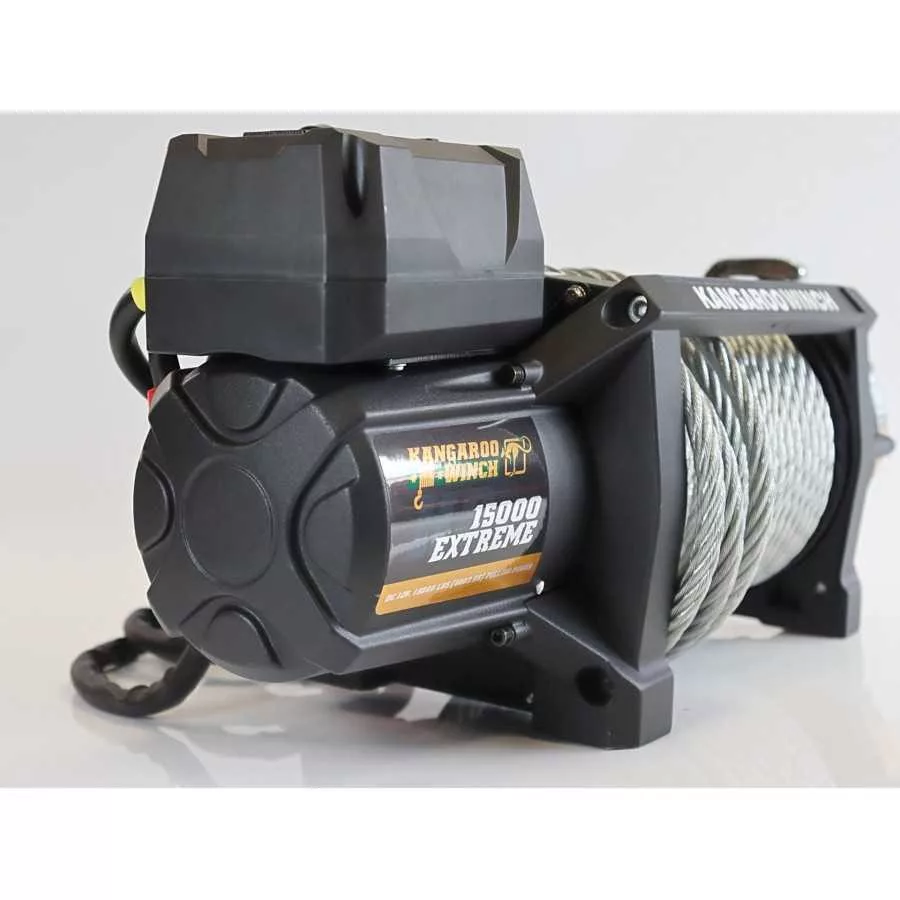

Kangaroowinch K15000 Extreme HD 12V
Why Extreme Series?
- Extremely attractive design
- Hardened brake, partly outside the drum
- New, innovative 2-in-1 combo remote control
- Great sealings – IP68 rating
- Waterproof, powerful 6,5 HP Series Wound
- Professional synthetic rope 10 mm x 26 m.
With winch you get:
– K15000 Extreme HD high quality winch
– Wire rope (12 mm x 26 m) pre-fitted to the drum
– Aluminum hawse
– 500A HD Solenoid
– Indispensable large cross-section power cables
– Grip corded combo remote (wireless/wired)
– Mounting bolts
– User manual
– Warrany card
| # |
Specs |
Value |
| 1 |
Rated line pull |
6818 kg |
| 2 |
Motor |
6,5 HP Series Wound |
| 3 |
Gearing |
3-st. planetary |
| 4 |
Gear ratio |
430:1 |
| 5 |
Voltage |
12V |
| 6 |
Solenoid |
500A |
| 7 |
Brake |
Automatic, partly outside the drum |
| 8 |
Rope |
Wire 12 mm x 26 m |
| 9 |
Fairlead |
Roller |
| 10 |
Dimensions |
566.42 x 190.5 x 271.78 mm |
| 11 |
Drum dimensions |
64 x 226 mm |
| 12 |
Mounting bolt pattern |
254 mm x 114,3 mm |
| 13 |
Weight |
53 kg |
| 14 |
Current draw |
70-330 A |
| 15 |
Line speed |
0 kg – 7.2 m./min., 6818 kg – 1.2 m./min. |
