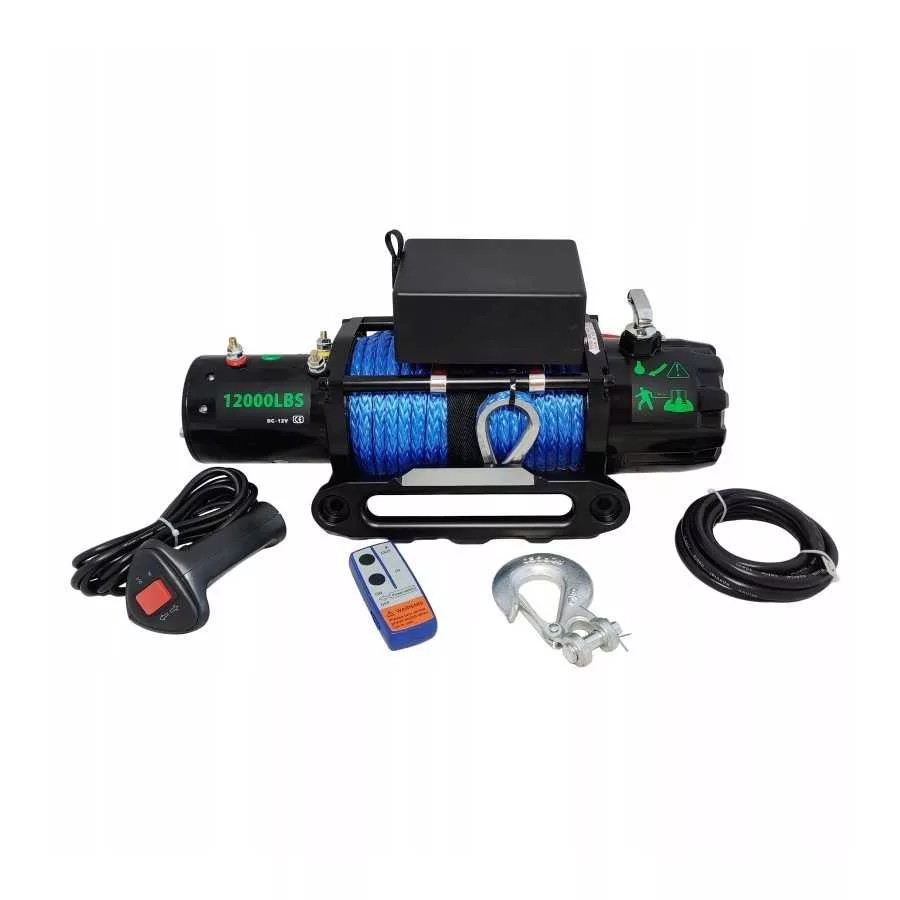

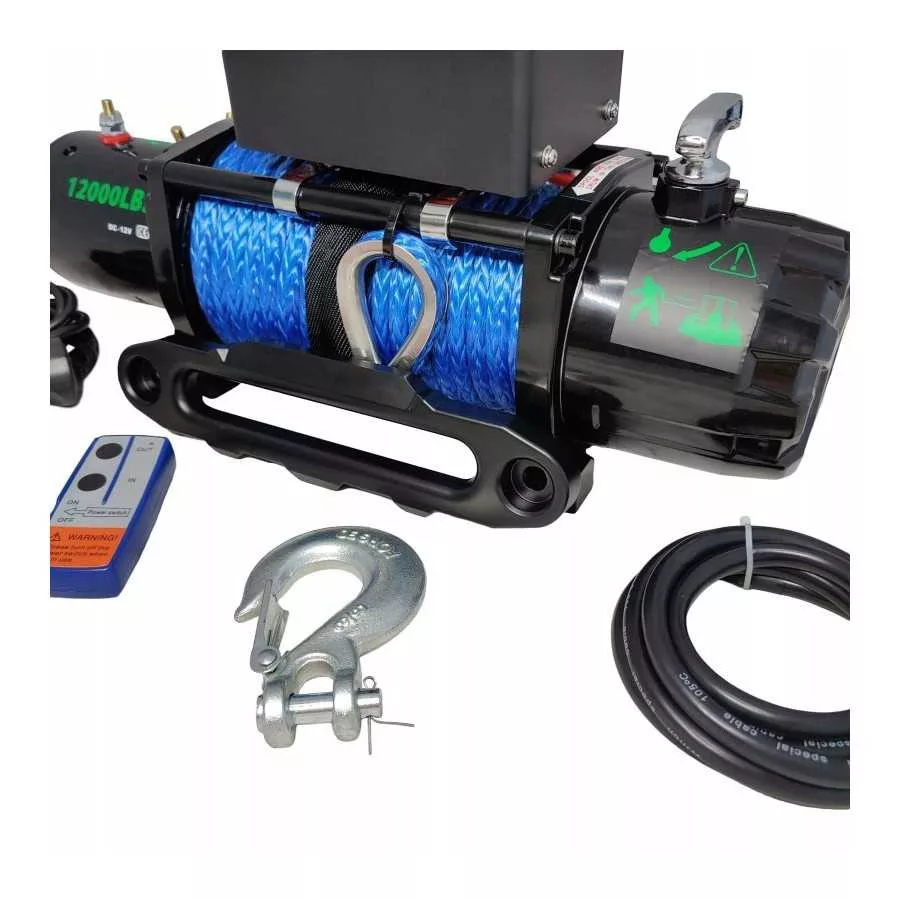

12000lbs electric winch with synthetic rope - 5,454kg
Not marking the winch with the logo of a given brand allows for lowering its price, but also shortens the warranty period to one year.
This is a cheaper alternative while maintaining high product quality.
The 12V winch is equipped with a series, sealed 5.5 HP motor, a very precise brush holder and a long rotor with better torque.
We recommend the 12V W12000 car electric winch, among others: for roadside assistance vehicles, off-road recreation and utility applications.
Advanced, modern technical solutions enable effective operation of the winch with power consumption not exceeding 360A at full load!
The box with a combined, 2 x 250A relays is placed on the drum. If we want to place it in another place - no problem, we only need a few minutes.
A reliable friction brake is responsible for maintaining the load, and the durable 3-stage planetary gear made of reinforced steel will allow for many years of failure-free operation. We recommend the winch, among others: for roadside assistance vehicles, off-road recreation and utility applications.
# Spec Value
| Towing capacity |
5443 kg |
| Motor |
5,5 HP |
| Gearbox |
planetary, 3 stage |
| Gear ratio |
265:1 |
| Voltage |
12V |
| Relay |
2 x 250A |
| Break |
Automatic 100% hold inside drum |

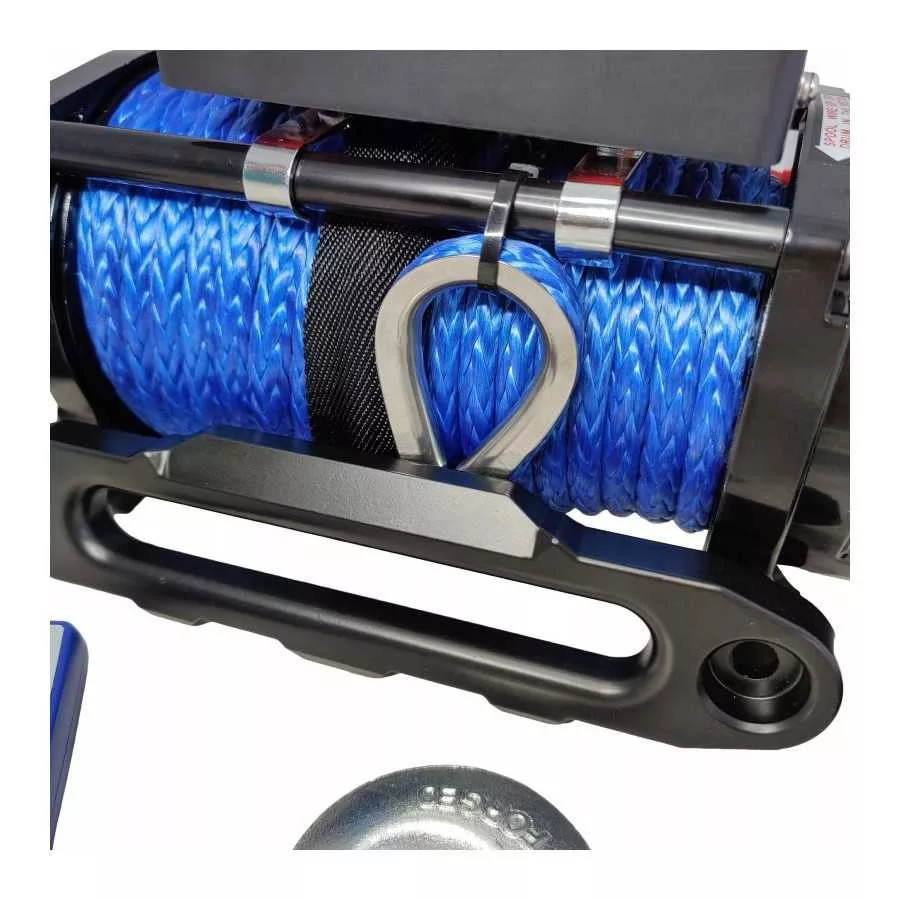

| Rope |
Synthetic 9,5mm x 26m |
| Dimmensions |
539 mm x 155 mm x 198 mm |
| Weight |
28 kg
|
