strands Big Energy 7" - Round / 18 cm / 70W / Ref. 50
175.37 €
(w/o VAT:138.09 €)
(w/o VAT:138.09 €)
strands Big Energy 7" - Round / 18 cm / 70W / Ref. 50
Item number:
HS20316
Available to order

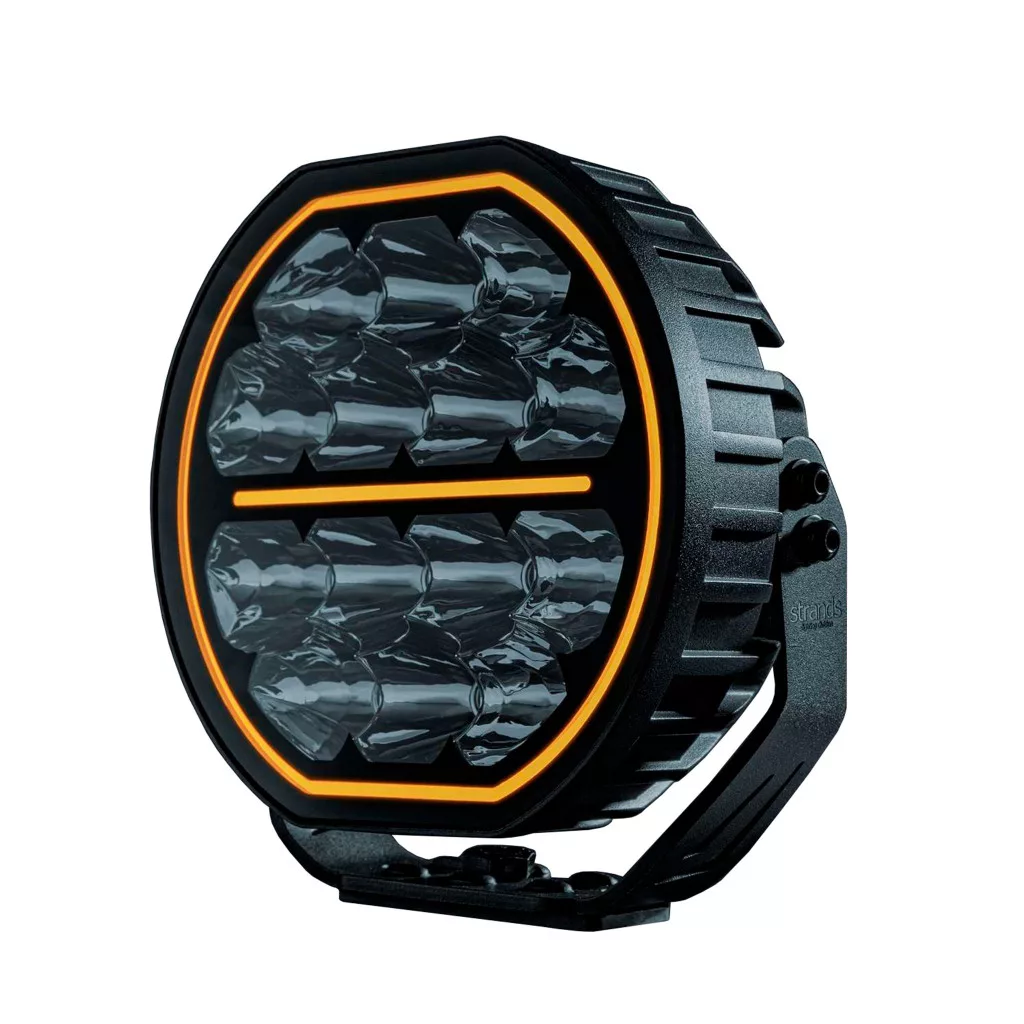

A stylish and slim-bodied 7" auxiliary light, equipped with, among other things, an orange and white parking light and a combination beam optimized for road traffic. The manufacturer's stated light output is 5600 lm, range 465 m @ 1 lux.
Color temperature :
5 700 K
Color temperature :
5700 K
Rated power :
70 W
Rated voltage :
10-32 V
Connecting :
Deutsch (DT04-2P, DT06-2S)
Light intensity :
6 000 lm
Light intensity:
5600 lm
Standards:
EMC: ECE R10, R148, R149
175.37 €
(w/o VAT:138.09 €)
(w/o VAT:138.09 €)
pcs
Specifications
- Brand and model: Strands Big Energy 7"
- Intended use: As an auxiliary light in cars / heavy equipment / construction machinery
- Operating voltage: 10-32 V
- Reference number: 50
- Manufacturer's stated current consumption: 5A @ 12V / 2.5A @ 24V
- Rated power: 70 W
- Manufacturer's stated power: 60 W @ 12V
- Theoretical light output: 6000 lm
- Manufacturer's declared output: 5600 lm
- Manufacturer's stated range: 465 m @ 1 lux / 930 m @ 0.25 lux
- Range with multiple lights:
- Two: 658 m (@ 1 lux)
- Three: 805 m (@ 1 lux)
- Four: 930 m (@ 1 lux)
- Manufacturer's stated color temperature: 5700 K
- Mounting: Mounting stand
- Connector: Deutsch DT4
- Cable length: approx. 100 cm

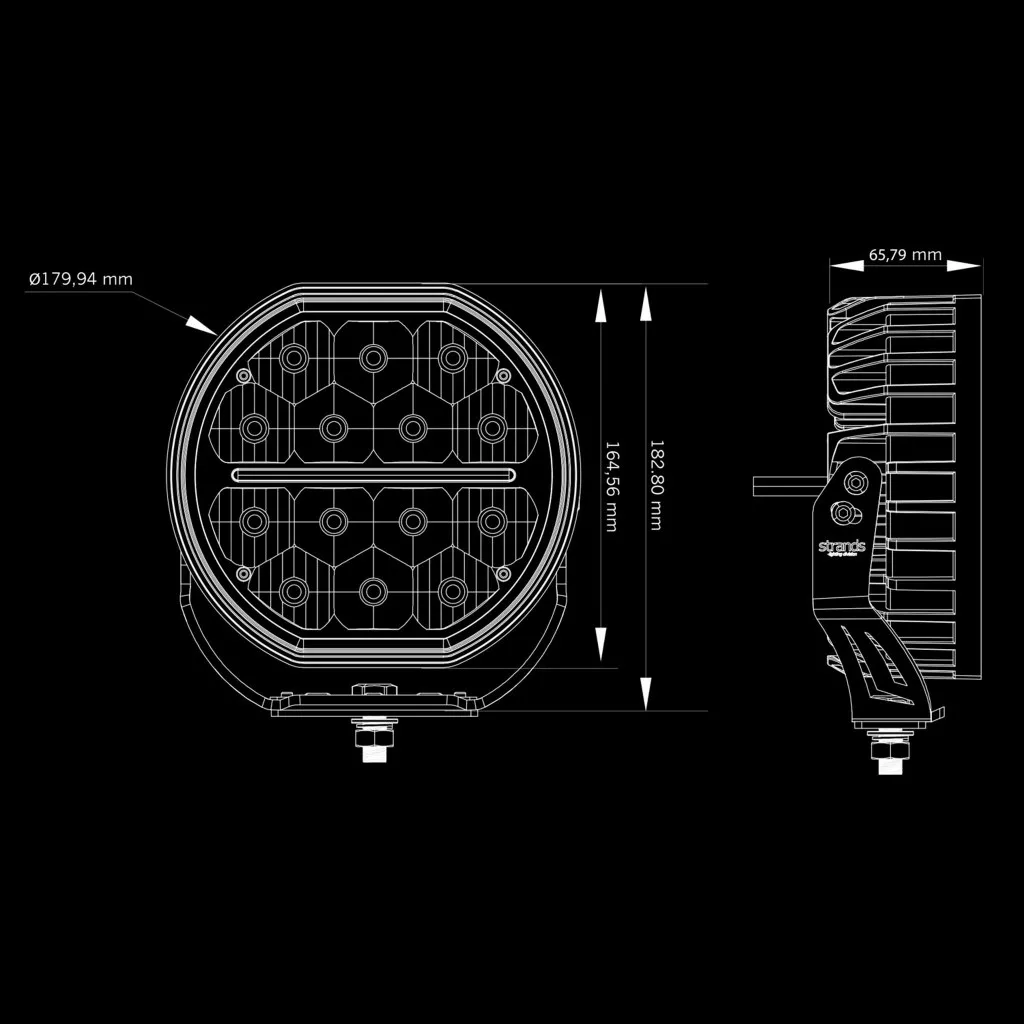

- Dimensions: 179.94 x 164.56 x 65.79 mm (Width x Height x Depth)
- Height with stand: 182.8 mm
- Weight: 1350g
- IP rating: IP68/IP69K
- Operating temperature: -35°C - +60°C
- Approvals: EMC: ECE R10, R148, R149
- Warranty: 36 months
Installation guide
Coupling
- Red: Power (+)
- Black: Ground: (-)
- Yellow: Orange parking light
- White: White parking light
Producer:
Strands
Type of protection:
IP68/IP69K
Light distance at 1lx:
465 m
Manufacturer logo:
Weight:
1.45 kg/pcs
