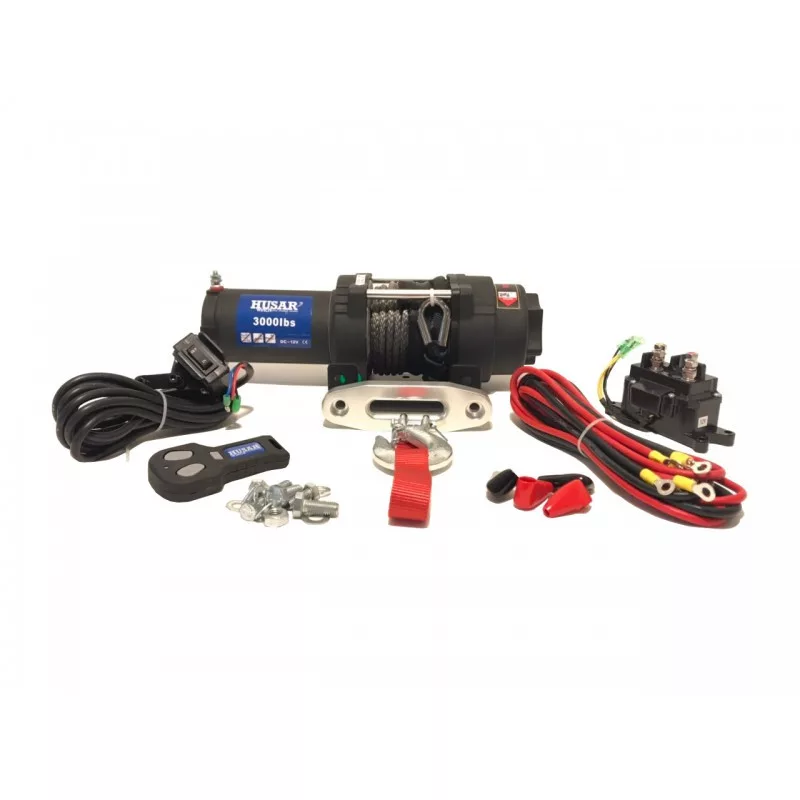

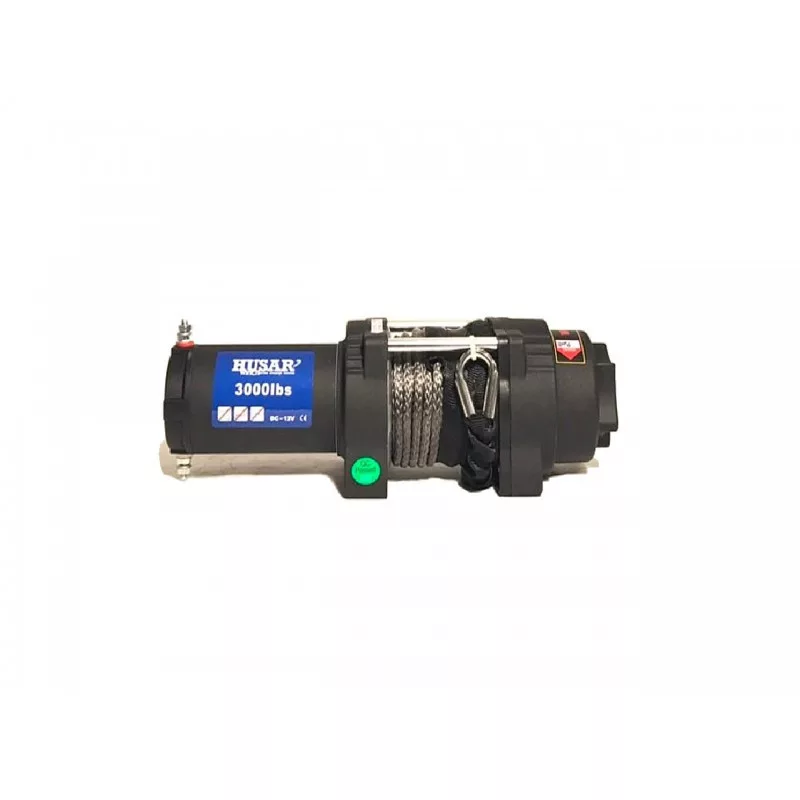

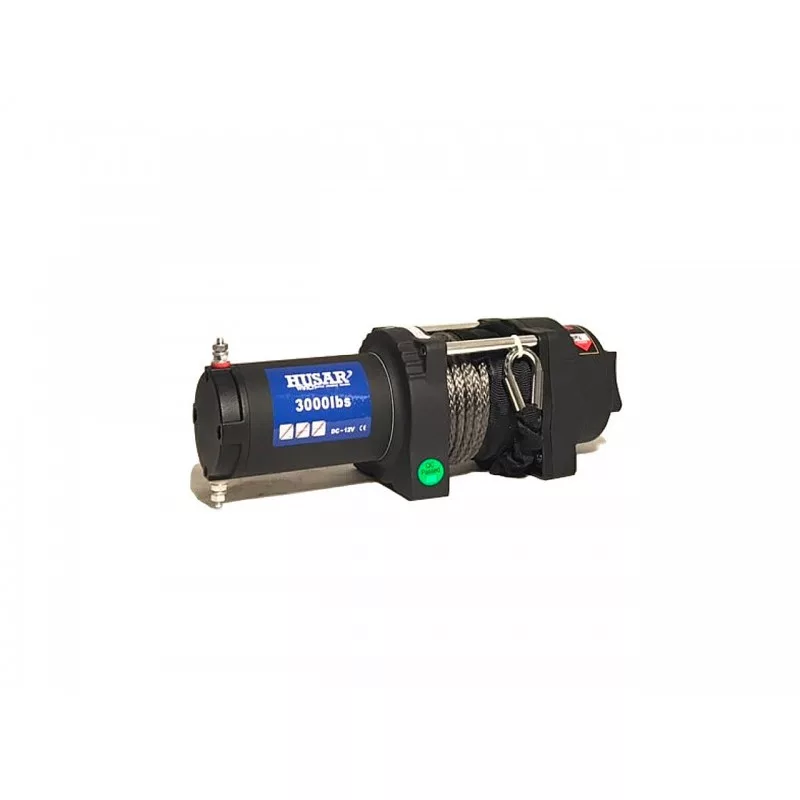

HusarWinch S 3000 lbs 1361 kg
311.88 €
(w/o VAT:245.57 €)
(w/o VAT:245.57 €)
HusarWinch S 3000 lbs 1361 kg
Item number:
HWIBSTS3000SIN
Available to order
In external stock: 5 pcs,
Available: 10-12 days
HusarWinch S 3000 lbs 1361 kg
BST S 3000lbs 12 V Technical specifications
Pull capacity(single line)3000 lb / 1361 kg
Motor 12V1.5 KM / 1,0 kw
Controls Wired / wireless remote control
Gear ratio138:1
Brake Automatic
Rope 12m x Ø 4.8mm
Fairlead 4-ways rollers fairlead
Dimensions 124mm x 76mm
Net weight 7,5kg
Dimensions(L x W x H) 334 X 114 X 120mm
| Line speed and motor current (first layer) | |||||
| lbs | 0 | 1000 | 2000 | 3000 | |
| Line pull | kg | 0 | 454 | 907 | 1360 |
| Line speed | m/min | 7.5 | 4.5 | 3.2 | 2.1 |
| Motor current | Amper | 15 | 75 | 120 | 175 |
| Line pull and cable capacity | |||||
| Layer of cable | 1 | 2 | 3 | 4 | |
| lbs | 3000 | 2520 | 2170 | 1870 | |
| Rated line pull per layer | kg | 1360 | 1140 | 985 | 849 |
| Cable capacity per layer | m | 2.2 | 4.8 | 7.9 | 12 |

Controls:
vezetékes/ vezeték nélküli távirányító
Brake:
automata
Fairlead :
görgős ablak
Net weight:
7.5 kg
Dimensions (L x W x H):
334 x 114 x 120 mm
Producer:
Pull capacity(single line):
Voltage:
Gear ratio:
Rope:
311.88 €
(w/o VAT:245.57 €)
(w/o VAT:245.57 €)
pcs
