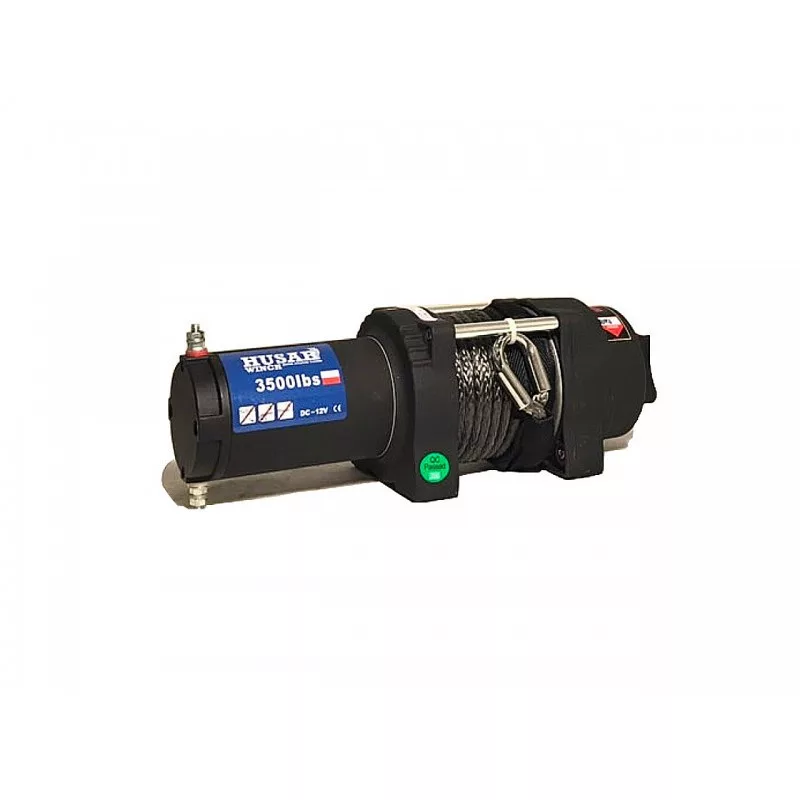

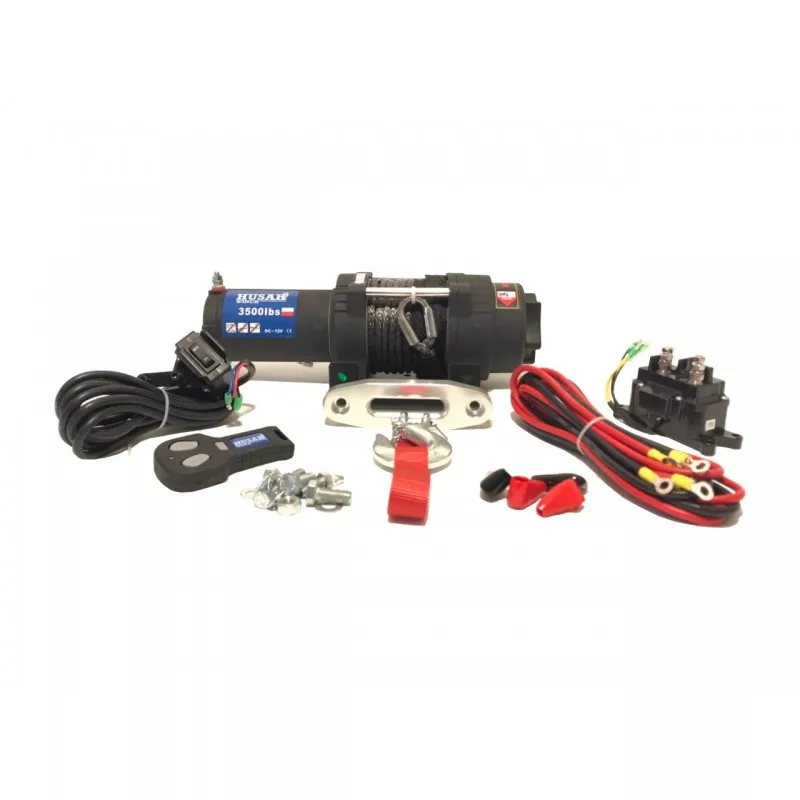

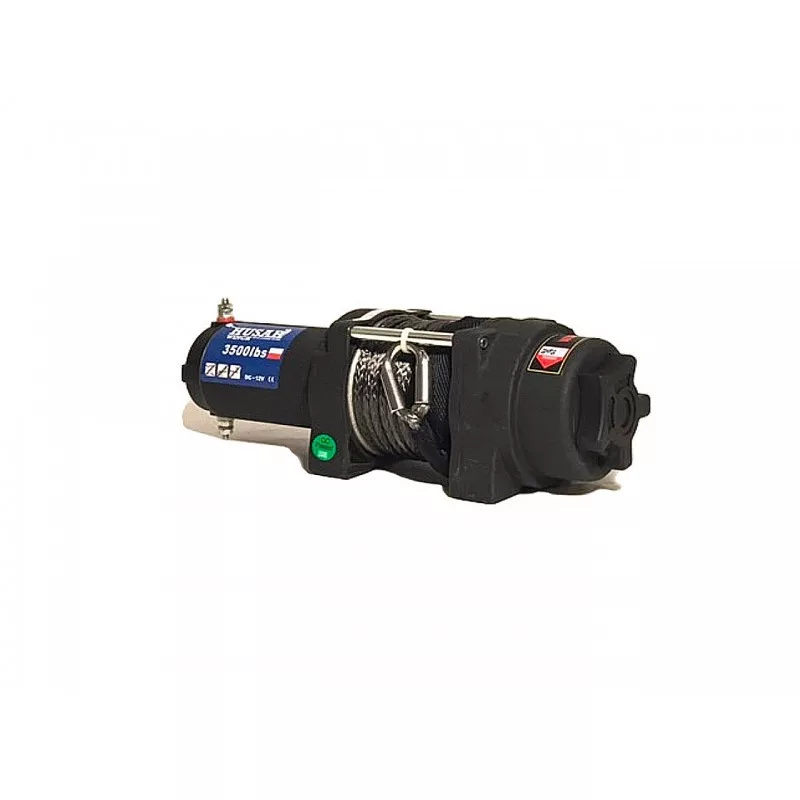

HusarWinch S 3500 lbs (1587 kg)
337.28 €
(w/o VAT:265.57 €)
(w/o VAT:265.57 €)
HusarWinch S 3500 lbs (1587 kg)
Item number:
HWIBSTS3500SIN
Available to order
In external stock: 5 pcs,
Available: 10-12 days
HusarWinch S 3500 lbs (1587 kg)
BST S 3500lbs Technical specifications
Pull capacity(single line) 3500lbs / 1587 kgs
Motor 12V 1.5 KM / 1,0 kw
Controls Wired / wireless remote control
Gear ratio 198:1
Brake Automatic
Rope 12m Ø 5,5 mm
Fairlead 4-ways rollers fairlead
Net weight 8kg
Mounting bolt pattern 124mm x 76mm
Dimensions (L x W x H) 334mm × 114mm × 120mm
| Line speed and motor current (first layer) | ||||||
| lbs | 0 | 1000 | 2000 | 3000 | 3500 | |
| Line pull | kg | 0 | 454 | 907 | 1360 | 1589 |
| Line seed | m/min | 4.9 | 3.2 | 2.8 | 2.2 | 1.8 |
| Motor current | Amper | 15 | 70 | 105 | 135 | 150 |
| Line pull and cable capacity | ||||||
| Layer of cable | 1 | 2 | 3 | 4 | ||
| lbs | 3500 | 2870 | 2430 | 2100 | ||
| Rated line pull per layer | kg | 1598 | 1300 | 1100 | 950 | |
| Cable capacity per layer | m | 2.1 | 4.6 | 7.6 | 12 | |

Controls:
vezetékes/ vezeték nélküli távirányító
Brake:
automata
Fairlead :
görgős ablak
Net weight:
8 kg
Mounting bolt pattern:
124mm x 76mm
Dimensions (L x W x H):
322 × 114 × 115,5 mm
Producer:
Pull capacity(single line):
Voltage:
Gear ratio:
Rope:
337.28 €
(w/o VAT:265.57 €)
(w/o VAT:265.57 €)
pcs
