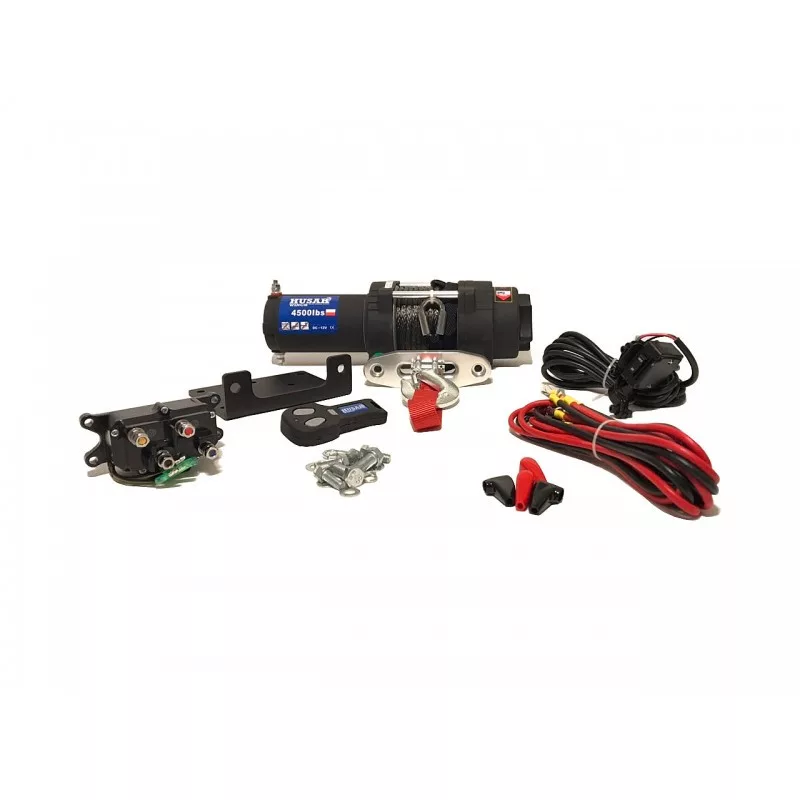

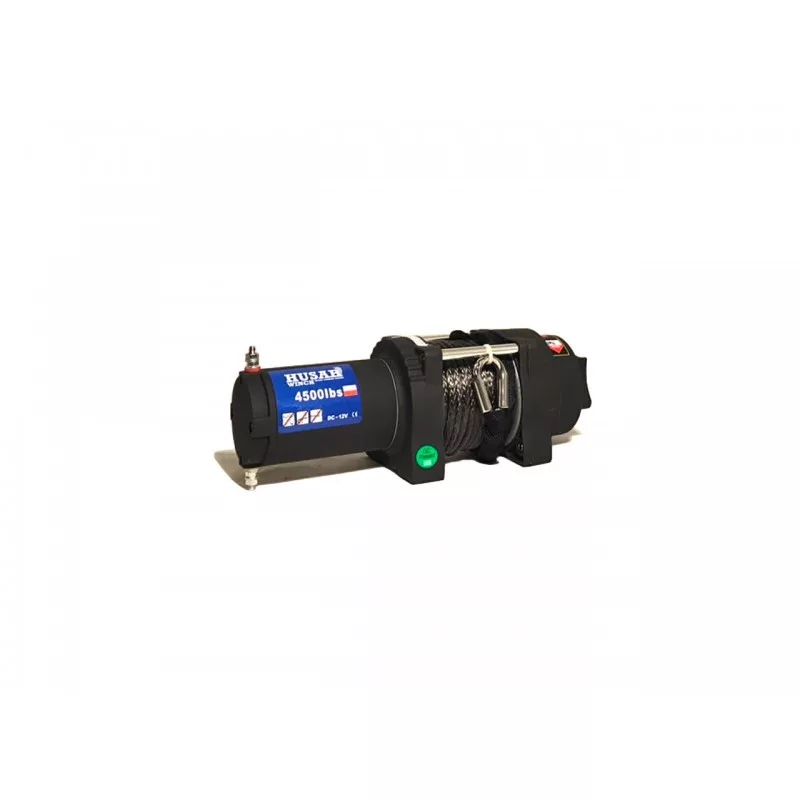

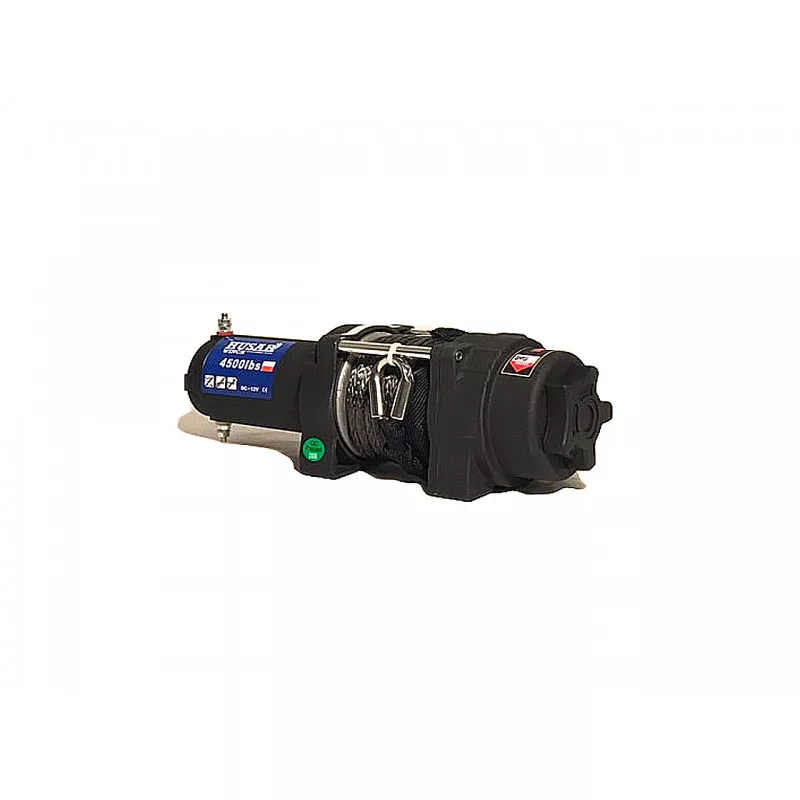

HusarWinch S 4500 lbs (2041 kg)
410.38 €
(w/o VAT:323.13 €)
(w/o VAT:323.13 €)
HusarWinch S 4500 lbs (2041 kg)
Item number:
HWIBSTS4500SIN
Available to order
In external stock: 5 pcs,
Available: 10-12 days
HusarWinch S 4500 lbs (2041 kg)
BST S 4500lbs Technical specifications
Pull capacity(single line) 4500lbs / 2041 kgs
Motor 12V 18 KM / 1,3 kw
Controls Wired / wireless remote control
Gear ratio 198:1
Brake Automatic
Rope 12 m Ø 6,3 mm
Fairlead 4-ways rollers fairlead
Net weight 11 kg
Mounting bolt pattern 165mm x 76mm
Dimensions (L x W x H) 391mm × 114mm × 120mm
| Line speed and motor current (first layer) | ||||||
| lbs | 0 | 1000 | 2000 | 3000 | 4500 | |
| Line pull | kg | 0 | 454 | 907 | 1360 | 2041 |
| Line speed | m/min | 4.9 | 3.2 | 2.8 | 2.2 | 1.5 |
| Motor current | Amper | 17 | 70 | 105 | 135 | 180 |
| Line pull and cable capacity | ||||||
| Layer of cable | 1 | 2 | 3 | 4 | ||
| lbs | 4500 | 3841 | 3310 | 2907 | ||
| Rated line pull per layer | kg | 2041 | 1742 | 1501 | 1319 | |
| Cable capacity per layer | m | 2 | 4.3 | 7.2 | 12 | |

Controls:
vezetékes/ vezeték nélküli távirányító
Brake:
automata
Fairlead :
görgős ablak
Net weight:
10 kg
Mounting bolt pattern:
124mm x 76mm
Dimensions (L x W x H):
322 × 114 × 115,5 mm
Producer:
Pull capacity(single line):
Voltage:
Gear ratio:
Rope:
