JEEP WRANGLER JL (IV) 2017 -

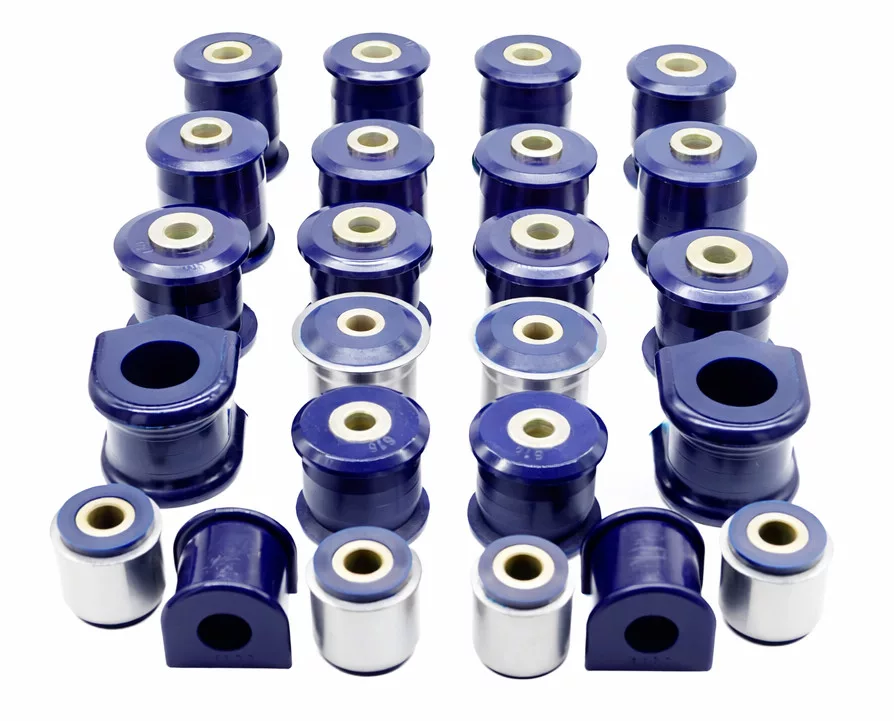

Polyurethane bushings and silentblock made entirely - undivided , with a hardness of 80 Sha, navy blue.
Our polyurethane bushings for the Jeep Wrangler JL are a one-piece element and, according to the instructions, should be installed by pressing using an appropriate press.
Lubrication of polyurethane bushings in control arms is important because polyurethane – unlike rubber – rotates around the metal bushing and may squeak without lubrication.

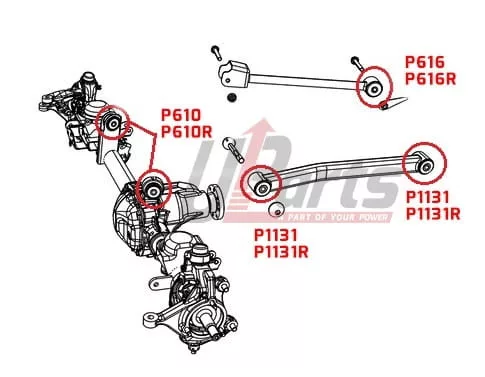

Front suspension contents:
- Front upper wishbone bushing, axle side, in metal housing (no. 610) x 2 pcs.
- Front upper wishbone bushing, frame side (no. 616) x 2 pcs.
- Front lower control arm bushing (no. 1131) x 4 pcs.
- Front panhard rod bushing - to frame diameter x 1 pc.
- Front panhard rod bushing - to axle x 1 pc.
- Front Stabilizer Bar Bushing (No. 1132) x 2 pcs.

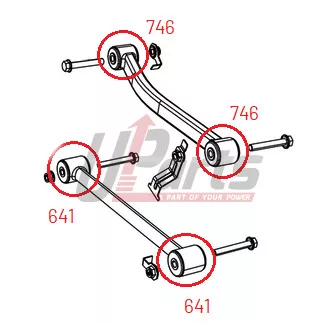

Rear suspension contents:
- Rear/Upper Control Arm Bushing (No. 746) x 4 pcs.
- Rear/lower control arm bushing (no. 641) x 4 pcs.
- Rear panhard rod bush x 2 pcs.
- Rear stabilizer bar bushing (no. 1133) x 2 pcs.
Fits vehicles
Jeep WRANGLER IV (JL):
- 2.0 (2.0) 1995ccm 270KM/199kW 2017-
- 2.0 T-GDi (JL72, JL74) (EC1) 1995ccm 270KM/199kW 2017/11-
- 2.2 (2.2 CRD) 2143ccm 200KM/147kW 2017-
- 2.2 Multijet II (JL72, JL74) (EBH) 2143ccm 200KM/147kW 2017/11-
- 3.6 VVT (JL72, JL74) (ERC) 3604ccm 284KM/209kW 2017/11-
How often should I re-lubricate?
It depends on the conditions and how the car is used:
Car used every day (city/highway)
- Inspection every 10–15 thousand km
- Re-lubrication usually every 1-2 years if no symptoms
Dynamic driving / track / off-road
- Inspection every 5–10 thousand km
