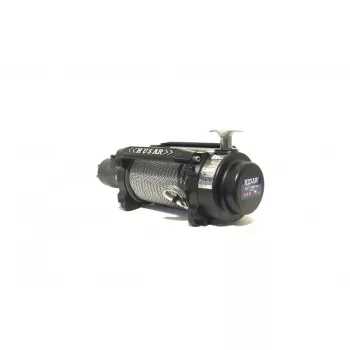

HusarWinch hidraulic winch 15000 lbs (6804 kg)
HWIBSTH15000
HusarWinch hidraulic winch 15000 lbs (6804 kg)
BST H 15000lbs Technical specifications
Pulling rate: 15000 lbs (56804kg)
Motor displacement: 65ml/r
Oil flow: 5～45L/min
Pressure: 14Mpa
Gear: 2 -stage planetary
Gear ratio: 26:1
Rope: 25,5m x Ø 11 mm
Fairlead: 4-ways rollers fairlead
Net weight: 65 kg
Mounting bolt pattern: 254mm×114.3mm
Dimensions(L x W x H): 519mm × 226mm × 262mm
|
Line speed and motor current (first layer) |
||||||
| lbs | 0 | 5000 | 10000 | 12000 | 15000 | |
|
Line pull |
kg | 0 | 1361 | 2722 | 4536 | 5443 |
| Line speed | m/min | 0.7 | 1.4 | 2.7 | 4.6 | 5.3 |
| Pressure | PSI | 290.1 | 623,7 | 1261,8 | 1450,3 | 1885.4 |
| Oil flow | l/min | 5 | 10 | 20 | 35 | 50 |
| Line pull and cable capacity | ||||||
| Layer of cable | 1 | 2 | 3 | 4 | ||
| lbs | 15000 | 12120 | 10168 | 8757 | ||
| Rated line pull per layer | kg | 6804 | 5498 | 4612 | 3972 | |
| Cable capacity per layer | m | 5 | 11.3 | 18.6 | 25.5 | |
Available:
10-12 days
Warranty:
2 év
Pull capacity(single line):
15000 lbs/6804 kg
Available to order
In external stock: 5 pcs,
Available: 10-12 days
1 458.34 €
(w/o VAT:1 148.3 €)
(w/o VAT:1 148.3 €)
pcs

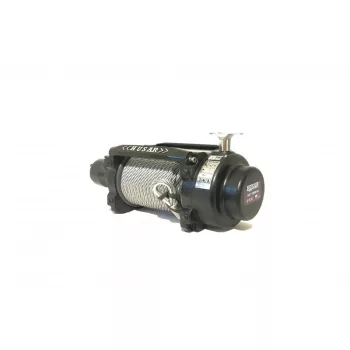

HusarWinch hidraulic winch18000 lbs (8165 kg)
HWIBSTH18000
HusarWinch hidraulic winch18000 lbs (8165 kg)
BST H 18000lbs Technical specifications
Pulling rate: 18000 lbs (8165 kg)
Motor displacement: 80ml/r
Oil flow: 5～60L/min
Pressure: 13Mpa
Gear: 4 -stage planetary
Gear ratio: 34:1
Rope: 26,5m x Ø 12 mm
Fairlead: 4-ways rollers fairlead
Net weight: 69 kg
Mounting bolt pattern: 254mm×114.3mm
Dimensions(L x W x H): 541x390x320mm
| Line speed and motor current (first layer) | ||||||
| lbs | 0 | 10000 | 12000 | 15000 | 18000 | |
| Line pull | kg | 0 | 4536 | 5443 | 6843 | 8165 |
| Line speed | m/min | 0.5 | 2.0 | 3.0 | 5.5 | 6.0 |
| Pressure | PSI | 290.1 | 1261,8 | 1450,3 | 1775.2 | 1885.4 |
| Oil flow | l/min | 5 | 10 | 20 | 30 | 60 |
| Line pull and cable capacity | ||||||
| Layer of cable | 1 | 2 | 3 | 4 | ||
| lbs | 18000 | 12120 | 10168 | 8757 | ||
| Rated line pull per layer | kg | 8165 | 5498 | 4612 | 3972 | |
| Cable capacity per layer | m | 5.5 | 12.4 | 20.1 | 26.5 | |
Available:
10-12 days
Warranty:
2 év
Pull capacity(single line):
18000 lbs/8165 kg
Available to order
In external stock: 5 pcs,
Available: 10-12 days
1 574.69 €
(w/o VAT:1 239.92 €)
(w/o VAT:1 239.92 €)
pcs

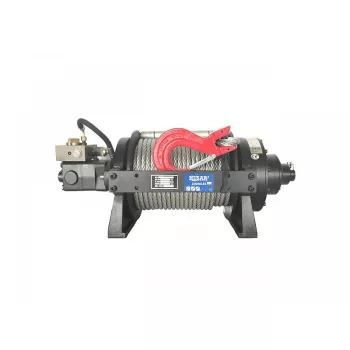

HusarWinch hidraulic winch 20000 lbs (9072 kg)
HWIBSTH20000
HusarWinch hidraulic winch 20000 lbs (9072 kg)
BST H 20000lbs Technical specifications
Pulling rate: 20000 lbs (9072 kg)
Oil flow: 15～75L/min
Pressure: 17,5Mpa
Gear ratio: 39:1
Rope: 48m x Ø 14 mm
Net weight: 163 kg
Dimensions(L x W x H): 784x390x320mm
| Line speed and motor current (first layer) | ||||||
| lbs | 0 | 4000 | 8000 | 15000 | 20000 | |
| Line pull | kg | 0 | 1814 | 3629 | 6804 | 9072 |
| Line speed | m/min | 1.8 | 3.6 | 6.0 | 7.2 | 9.0 |
| Pressure | PSI | 362,6 | 608.1 | 1232,8 | 2030.5 | 2538.1 |
| Oil flow | l/min | 15 | 30.0 | 50,0 | 60,0 | 75,0 |
Line pull and cable capacity
| Layer of cable | 1 | 2 | 3 | 4 | ||
| lbs | 20000 | 16889 | 14615 | 12881 | ||
| Rated line pull per layer | kg | 9072 | 7661 | 6629 | 5843 | |
| Cable capacity per layer | m | 10.3 | 22.5 | 35.9 | 48,0 | |
Available:
10-12 days
Warranty:
2 év
Pull capacity(single line):
20000 lbs/9072 kg
Available to order
In external stock: 5 pcs,
Available: 10-12 days
4 270.47 €
(w/o VAT:3 362.58 €)
(w/o VAT:3 362.58 €)
pcs

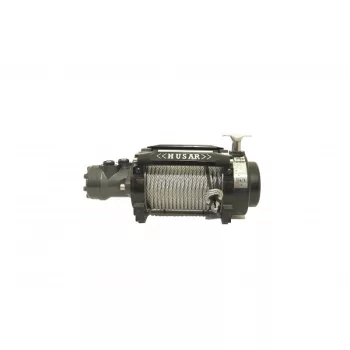

HusarWinch hidraulic winch 12000 lbs (5443 kg)
HWIBSTH12000
HusarWinch hidraulic winch 12000 lbs (5443 kg)
| BST H 12000 lbs | Technical data | |||
| Pulling rate (one line) | 12000 font (5443 kg) | |||
| Motor displacement | 65 ml/r | |||
| Brake | automatic | |||
| Oil flow | 5-45L/perc | |||
| Pressure | 14 MPa | |||
| Gear | 2 -stage planetary | |||
| Gear ratio | 25,5:1 | |||
| Rope | 25,5 m x Ø 10,2 mm | |||
| Fairlead | 4-ways rollers fairlead | |||
| Net weight | 53 kg | |||
| Mounting bolt pattern | 254 mm × 114,3 mm | |||
| Dimensions |
(H x Szé x Ma) 519 mm x 235 mm x 246 mm |
|||
| Line speed and motor current (first layer) | ||||||
| lbs | 0 | 3000 | 6000 | 9000 | 12000 | |
| Line pull | kg | 0 | 1361 | 2722 | 4082 | 5443 |
| Line speed | m/min | 0.7 | 1.4 | 2.7 | 4.6 | 5.1 |
| Pressure | PSI | 290.1 | 652.7 | 986,2 | 1305.3 | 1812.9 |
| Oil flow | l/min | 5.0 | 10.0 | 20.0 | 35.0 | 40,0 |
| Line pull and cable capacity | ||||||
| Layer of cable | 1 | 2 | 3 | 4 | ||
| lbs | 12000 | 9000 | 6000 | 3000 | ||
| Rated line pull per layer | kg | 5543 | 4082 | 2722 | 1362 | |
| Cable capacity per layer | m | 5 | 11.3 | 18.6 | 25.5 | |
.jpg)
Available:
10-12 days
Warranty:
2 év
Pull capacity(single line):
12000 lbs/5443 kg
Available to order
In external stock: 5 pcs,
Available: 10-12 days
1 226.76 €
(w/o VAT:965.95 €)
(w/o VAT:965.95 €)
pcs

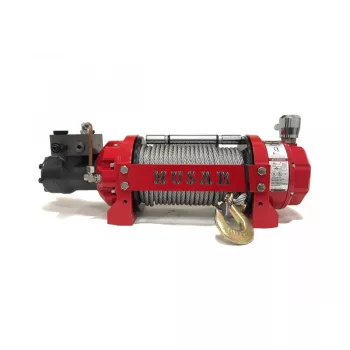

HusarWinch hidraulic winch S 12000 lbs (5443 kg)
HWIBSTHS12000
HusarWinch hidraulic winch HS 12000 lbs (5443 kg)
| BST H 12000 lbs | Technical data | |||
| Pulling rate (one line) | 12000 font (5443 kg) | |||
| Motor displacement | 100 ml/r | |||
| Brake | automatic | |||
| Oil flow | 5-60L/min | |||
| Pressure | 15 MPa | |||
| Gear | 2 -stage planetary | |||
| Gear ratio | 17,6:1 | |||
| Rope | 25,5 m x Ø 10,2 mm 8-M10 | |||
| Fairlead | 4-ways rollers fairlead | |||
| Net weight | 51 kg | |||
| Mounting bolt pattern | 374,2 mm × 114,3 mm | |||
| Dimensions |
(H x Szé x Ma) 519 mm x 235 mm x 246 mm |
|||
| Line speed and motor current (first layer) | ||||||
| lbs | 0 | 4000 | 6000 | 8000 | 12000 | |
| Line pull | kg | 0 | 1814 | 2722 | 3629 | 5443 |
| Line speed | m/min | 0.9 | 1.8 | 3.6 | 7.2 | 9.5 |
| Pressure | PSI | 435.1 | 986,2 | 1334,3 | 1740.4 | 2175 |
| Oil flow | l/min | 5.0 | 10.0 | 20.0 | 40,0 | 60,0 |
| Line pull and cable capacity | ||||||
| Layer of cable | 1 | 2 | 3 | 4 | ||
| lbs | 12000 | 8000 | 6000 | 4000 | ||
| Rated line pull per layer | kg | 5543 | 3629 | 2722 | 1814 | |
| Cable capacity per layer | m | 7 | 15 | 18.6 | 25.5 | |
Available:
10-12 days
Warranty:
2 év
Pull capacity(single line):
12000 lbs/5443 kg
Available to order
In external stock: 5 pcs,
Available: 10-12 days
1 584.81 €
(w/o VAT:1 247.88 €)
(w/o VAT:1 247.88 €)
pcs

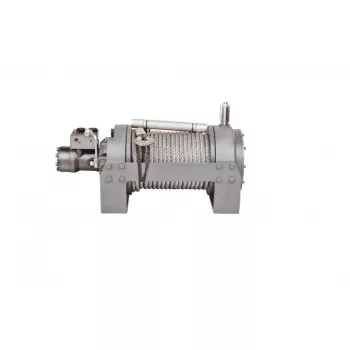

HusarWinch hidraulic winch 17637 lbs (8000kg)
HWIBSTHS080
HusarWinch hidraulic winch 17637 lbs (8000kg)
| BST H 12000 lbs | Technical data | |||
| Pulling rate (one line) | 17637 lbs (8000kg) | |||
| Brake | automatic | |||
| Oil flow | 5-50L/min | |||
| Pressure | 15 MPa | |||
| Gear | 2 -stage planetary | |||
| Gear ratio | 38:1 | |||
| Rope | 32m x Ø14mm 8-M14 | |||
| Net weight | 138 kg | |||
| Mounting bolt pattern | 400 × 220mm 400 × 120mm | |||
| Dimensions |
665 × 226 × 262 mm |
|||
| Line speed and motor current (first layer) | ||||||
| lbs | 0 | 4409 | 8818 | 1328 | 17637 | |
| Line pull | kg | 0 | 2000 | 4000 | 6000 | 8000 |
| Line speed | m/perc | 1.8 | 2.5 | 3.2 | 4 | |
| Pressure | PSI | 290.1 | 609.2 | 1131,3 | 1508 | 1885.4 |
| Oil flow | l/perc | 5 | 10 | 20 | 30 | 60 |
| Line pull and cable capacity | ||||||
| Layer of cable | 1 | 2 | 3 | |||
| lbs | 17637 | 1498 | 1302 | |||
| Rated line pull per layer | kg | 8000 | 6795 | 5906.0 | ||
| Cable capacity per layer | m | 9 | 20 | 32 | ||
Available:
10-12 days
Warranty:
2 év
Pull capacity(single line):
17637 lbs/8000kg
Available to order
In external stock: 5 pcs,
Available: 10-12 days
4 382.61 €
(w/o VAT:3 450.87 €)
(w/o VAT:3 450.87 €)
pcs

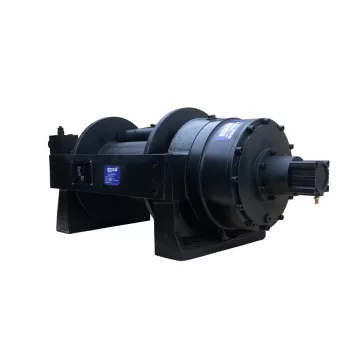

HusarWinch hidraulic winch 35000 lbs (15875kg)
HWIBSTH35000
| BST H 35000lbs | Technical Specifications | ||
| Pulling force (single rope) | 15875 kg | ||
| Wire rope recommended (Ø× L) | Ø22mm, 50m | ||
| Pressure | 16 MPa | ||
| Clutch | Pneumatic | ||
| Pneumatic clutch pressure | 0.4~0.8MPa | ||
| Oil | 220 industrial gear oil | ||
| Oil capacity | 0.8 liters | ||
| screws | 8×M20, Class 10.9 | ||
| Gross weight | 320 kg | ||
| Drum size (Ø.×L) | Ø210mm×340mm | ||
| Spacing of mounting screws | 522mm×180/280mm 8- Ø22 | ||
| Dimensions (L×W×H) | 1077mm×640mm×420mm | ||
| Rope speed and motor current (first layer) | |||||
| A layer of rope | 1 | 2 | 3 | 4 | 5 |
| Rope pull on the layer | 35000lbs | 28000lbs | 24500lbs | 21000lbs | 19000lbs |
| 15875 kg | 12700 kg | 11113 kg | 9525 kg | 8618 kg | |
| Maximum speed depending on layer | 8.17 m/min | 9.45 m/min | 10.85 m/min | 12.19 m/min | 13.56 m/min |
Available:
10-12 days
Warranty:
2 év
Pull capacity(single line):
35000 lbs/15875 kg
Available to order
In external stock: 5 pcs,
Available: 10-12 days
9 169.36 €
(w/o VAT:7 219.97 €)
(w/o VAT:7 219.97 €)
pcs

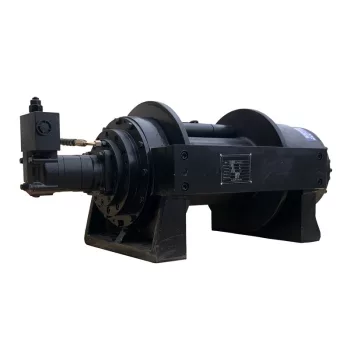

HusarWinch hidraulic winch 45000 lbs (20400kg)
HWIBSTH45000
| BST H 45000lbs | Technical Specifications | ||
| Pulling force (single rope) | 20400 kg | ||
| Wire rope recommended (Ø× L) | Ø26mm, 50m | ||
| Pressure | 17 MPa | ||
| Clutch | Pneumatic | ||
| Pneumatic clutch pressure | 0.4~0.8MPa | ||
| Oil | 220 industrial gear oil | ||
| Oil capacity | 0.8 liters | ||
| screws | 8×M24, Class 10.9 | ||
| Gross weight | 370 kg | ||
| Drum size (Ø.×L) | Ø210mm×340mm | ||
| Spacing of mounting screws | 522mm×180/280mm 8- Ø22 | ||
| Dimensions (L×W×H) | 1077mm×640mm×420mm | ||
| Rope speed and motor current (first layer) | |||||
| A layer of rope | 1 | 2 | 3 | 4 | 5 |
| Rope pull on the layer | 45000lbs | 28000lbs | 24500lbs | 21000lbs | 19000lbs |
| 20411 kg | 16329 kg | 14061 kg | 12247 kg | 10886 kg | |
| Maximum speed depending on layer | 8.17 m/min | 9.45 m/min | 10.85 m/min | 12.19 m/min | 13.56 m/min |
Available:
10-12 days
Warranty:
2 év
Pull capacity(single line):
45000 lbs/20400kg
Available to order
In external stock: 5 pcs,
Available: 10-12 days
12 196.21 €
(w/o VAT:9 603.31 €)
(w/o VAT:9 603.31 €)
